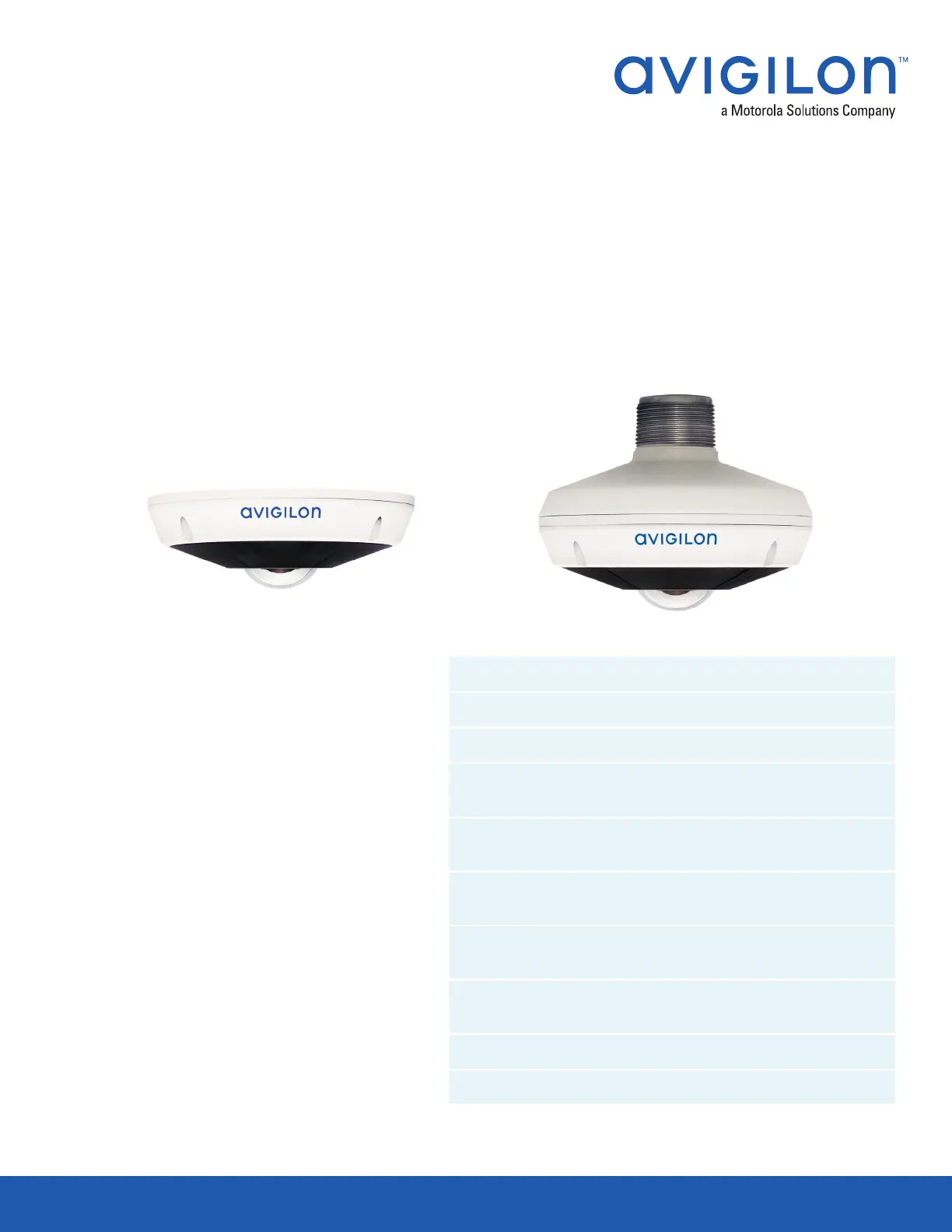

H4 Fisheye Camera Line

KEY FEATURES

6.0 and 12.0 megapixel resolution models

360 degree ﬁeld of view ﬁsheye lens

Patented High Deﬁnition Stream Management (HDSM) Technology

Content adaptive IR technology provides eective illumination through

the ﬁeld of view, while maintaining excellent scene illumination

Integrated IR (Infrared) LEDs provide uniform illumination in the dark,

even at 0 lux, up to a maximum of 10 m (32.8 ft) away

Idle Scene Mode lowers bandwidth and storage usage if there are no

motion events detected in the scene

IP66 certiﬁcation oers total dust ingress protection and protection

against high-pressure water jets

Avigilon LightCatcher™ technology provides exceptional image quality in

low light environments

Vandal resistant with IK10 impact rating

ONVIF® Proﬁle S and Proﬁle T Compliant

The H4 Fisheye has a sleek, low-proﬁle design making it

suitable for installations where aesthetics are important

and allowing it to ﬁt in with architectural features without

detracting from the surroundings. Its IK10-rated, vandal-

proof and IP66 weather protected housing is ideal for

indoor and outdoor environments such as retail stores,

theatres, gas stations, manufacturing, healthcare,

commercial and educational facilities.

Built on the H4 platform, the H4 Fisheye is available in

6 and 12 megapixel (MP) camera resolutions. It delivers

exceptional image quality even in harsh environments and

lighting conditions, and keeps bandwidth and storage to

a minimum. Its content adaptive IR technology provides

eective brightness while maintaining excellent scene

illumination in dark environments. The H4 Fisheye also

allows users to zoom in, focus and investigate a region of

interest (ROI) in live or recorded video while preserving full

situational awareness.

Harnessing the strength of Avigilon Control Center (ACC)

software, High Deﬁnition Stream Management (HDSM)

technology and idle scene mode technology, the H4

Fisheye camera intelligently and eciently manages video

data, lowering bandwidth and storage. The powerful client-

side de-warping coupled with virtual PTZ technology allows

easy navigation through live or recorded video, enabling

security operators to view and track an object of interest

from point A to B.

The Avigilon H4 Fisheye camera line is designed to provide a complete high resolution 360-degree panoramic

view of a scene with no blind spots. The H4 Fisheye camera line is a cost-eective, easy-to-install solution

designed to provide clear image detail and broad coverage with fewer cameras.

By providing quality imaging and situational awareness, the H4 Fisheye camera is an essential component of the

complete Avigilon solution and a valuable addition to any existing surveillance solution.

ONVIF is a trademark of Onvif, Inc.

SUPPORT 1.888.281.5182 | sales@avigilon.com | avigilon.com

Specications

IMAGE CONTROL Image Compression Method H.264 (MPEG-4 Part 10/AVC), Motion JPEG

Streaming Multi-stream H.264 and Motion JPEG

Bandwidth Management HDSM™; Idle Scene Mode

Motion Detection Pixel motion

Tamper Detection Yes

Electronic Shutter Control Automatic, Manual (1/7 to 1/8000 sec)

Iris Control Fixed

Day/Night Control Automatic, Manual

Flicker Control 50 Hz, 60 Hz

White Balance Automatic, Manual

Backlight Compensation Adjustable

Privacy Zones Up to 64 zones

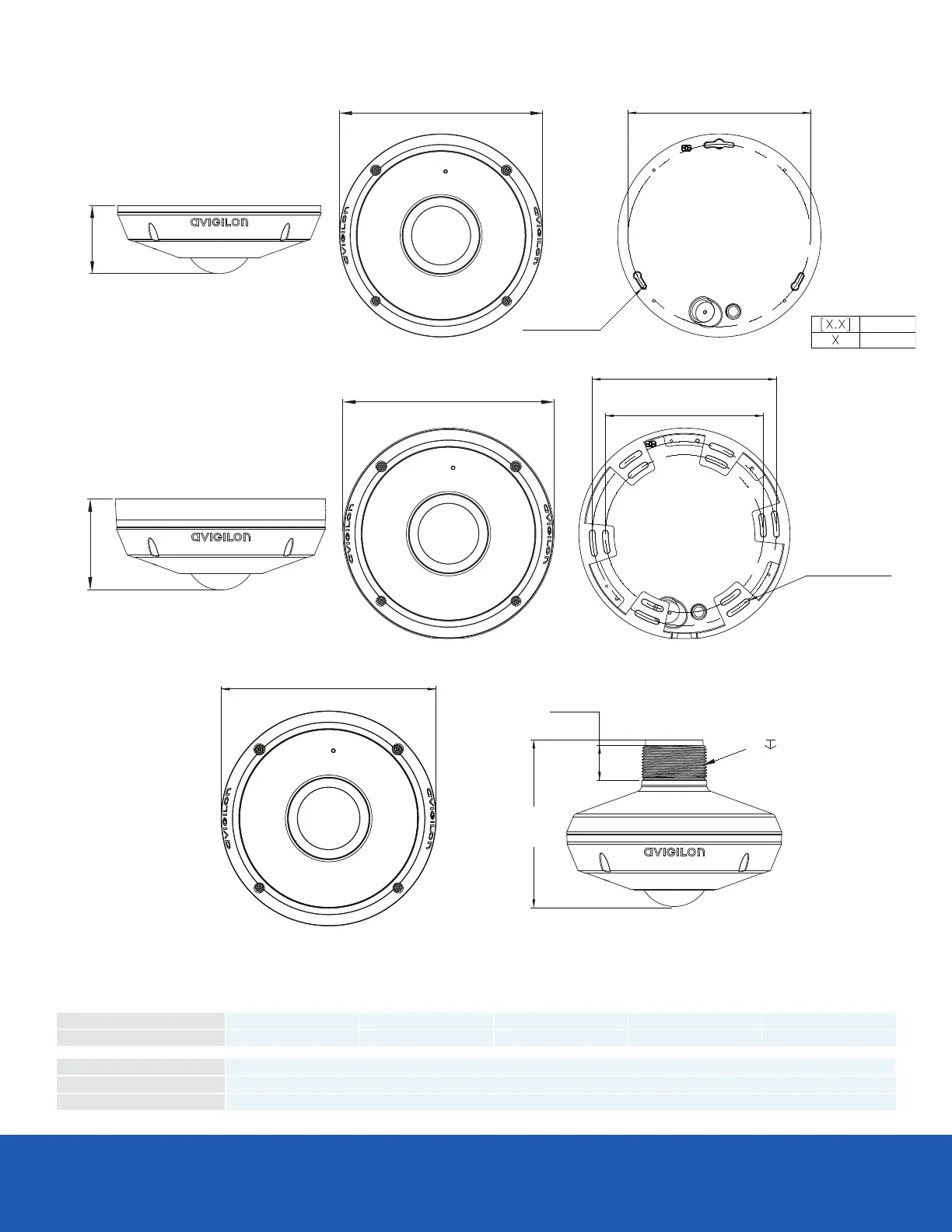

Dimensions

(ØxH)

Camera 160 mm x 51 mm; 6.2” x 2.0”

With bracket 162mm x 70mm; 6.38" x 2.75"

With NPT 160mm x 124mm; 6.31" x 4.89"

Weight Camera 0.826 kg; 1.77 lbs

With bracket 0.94 kg; 2.07 lbs

With NPT 1.138 kg; 2.5 lbs

Body Aluminum

Housing Vandal resistant. Surface mount; or pendant mount with NPT adapter.

Finish Powder coat, RAL 9003

MECHANICAL

Power Consumption 25.5 W max

Power Source VDC: 12 V +/-10%, 2.125 A min., L.P.S. per IEC 60950-1

PoE: IEEE 802.3af Class 3; PoE+: IEEE 802.3at Class 4

Power Connector DC power input adapter

RTC Backup Battery 3V manganese lithium

ELECTRICAL

Operating Temperature -40 °C to +55 °C (-40 °F to 131 °F) with 12 V DC or PoE+ power

-20 °C to +55 °C (-4 °F to 131 °F) with PoE power

IR Illuminator Behavior IR illuminator power is reduced to 8 m (26.2 ft) when PoE is used.

IR illuminator will not turn on if temperature is 45 °C (113 °F) or higher.

Storage Temperature -25°C to +50 °C (-13 °F to 122 °F)

Humidity 0 - 95% non-condensing

ENVIRONMENTAL

NETWORK Network 100BASE-TX

Cabling Type CAT5

Connector RJ-45

ONVIF ONVIF Proﬁle S and Proﬁle T Compliant

Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based authentication

Protocol IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP,UDP, IGMP, ICMP, DHCP, Zeroconf, ARP

Streaming Protocols RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP

Device Management Protocols SNMP v2c, SNMP v3

LENS Lens 1.45 mm, F/2.2

Horizontal Angle of View 180° hemisphere

Field of View 360°


PERFORMANCE

6.0 MP 12.0 MP

Image Sensor 1/1.8” progressive scan CMOS 1/2.3” progressive scan CMOS

Active Pixels (H x V) 2000 x 2000 2992 x 2992

Imaging Area (H x V) 4.8mm x 4.8mm (0.189" x 0.189") 4.6mm x 4.6mm (0.180" x 0.180")

IR Illumination up to 10 m (32.8 ft)

Minimum Illumination 0.13 lux (F2.2) in color mode; 0 lux (F2.2) in monochrome mode with IR 0.49 lux (F2.2) in color mode; 0 lux (F2.2) in monochrome mode with IR

Image Rate H.264 30 fps 20 fps

MJPEG 15 fps 10 fps

Dynamic Range 93 dB 81 dB

3D Noise Reduction Filter Yes Yes

CERTIFICATIONS Certiﬁcations/Directives UL cUL CE ROHS WEEE RCM EAC KC

Safety UL 60950-1 CSA 60950-1 IEC/EN 60950-1 IEC 62471

Environmental IK10 Impact Rating (camera housing only) UL/CSA/IEC 60950-22 IEC 60529 IP66 Rating

Electromagnetic Emissions FCC Part 15

Subpart B Class B

IC ICES-003 Class B EN 55032 EN 61000-6-3 EN 61000-3-2 EN 61000-3-3 KN 32

Electromagnetic Immunity EN 55024 EN 61000-6-1 KN 35

Audio Input/Output Line level I/O and internal microphone (can be enabled)

Audio Compression

Method

G.711 8kHZ

External I/O Terminals Alarm In, Alarm Out

Onboard Storage microSDHC/microSDXC/UHS-1 – minimum class 10 or better recommended

PERIPHERALS

Oct 2019 — Rev 9
