Használati útmutató Ausclimate WDH-930DA

Ausclimate párásító WDH-930DA

Olvassa el alább 📖 a magyar nyelvű használati útmutatót Ausclimate WDH-930DA (14 oldal) a párásító kategóriában. Ezt az útmutatót 6 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra

Letöltés PDF
Oldal 1/14

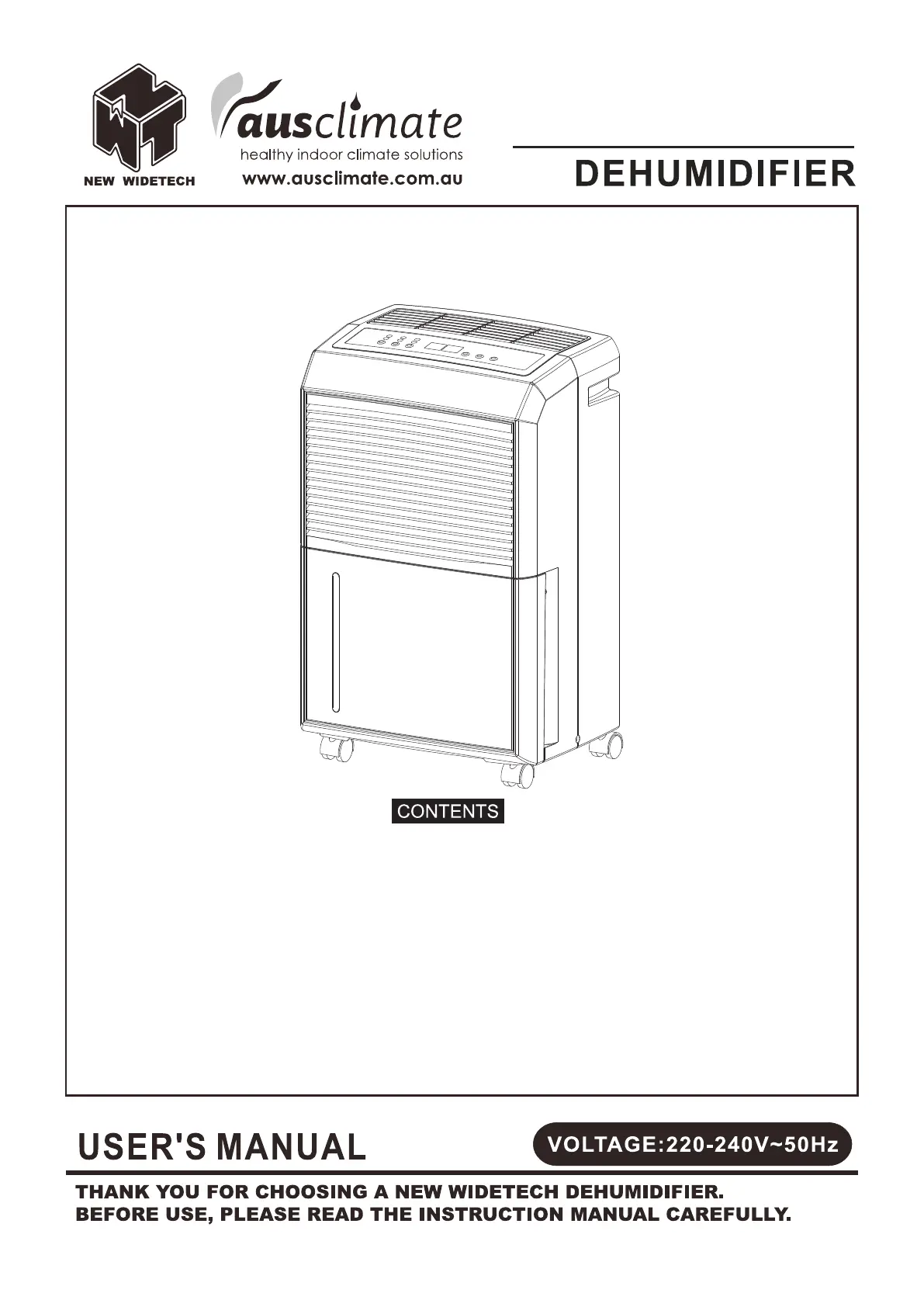

WDH-716DE
WARNING · · · · · · · · · · · · · · · · · · · · · · · · · · 2-3
CAUTIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-5
DESCRIPTION OF COMPONENTS /
FUNCTION EXPLANATION · · · · · · · · · · · · · · · · · · · · · · 6
OPERATING INSTRUCTIONS · · · · · · · · · · · · · · · · · · · · 7
CONTINUOUS DRAINAGE OPTIONS · · · · · · · · · · · · · · 8
MAINTENANCE / EMERGENCY · · · · · · · · · · · · · · · · · · 9
R290 AUTHORISED REPAIRER INSTRUCTIONS · · · 10-13
SPECIFICATIONS · · · · · · · · · · · · · · · · · · · · · LAST PAGE
· · · · · · ·
WARNING
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children shall be supervised to ensure they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, it's service agent or
similarly qualified persons in order to avoid a hazard.
• Only install and operate this appliance as outlined in this instruction manual. Use care at all
times when using this appliance.
• To avoid danger do not modify this appliance in any way.
• Electrical equipment and installations regulated by national legislation must be followed.
• It is essential that the appliance is connected to an efficient earth system checked by a
qualified electrician.
• The use of extension cables is not recommended.
• The air filter should be cleaned at a minimum of once every two weeks.
• Do not place the appliance near any heating appliance.
• The appliance should be transported upright. Any internal water should be emptied before
transporting.
• Do not turn the appliance on for at least one hour after transporting it.
• Flammable substances or pressurised containers (aerosol cans) should be kept a minimum of
50cms away from the appliance.
• The appliance should not be installed in rooms containing sulphur, gas or oil.
• Do not disconnect the appliance by pulling on the power cable; always disconnect the
appliance before any cleaning or maintenance is undertaken.
• Do not store anything on top of the appliance, especially heavy or hot objects.
• Repairs must only be undertaken by authorised service centres. Failure to comply may be
dangerous.
• Do not store the appliance covered with plastic bags.
• Remember the environment when disposing of the appliance packaging around the appliance.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specified for operation. During storage keep ventilation openings clear of
obstruction.
• Cleaning and user maintenance shall not be made by children without supervision.
2
READ THE MANUAL CAREFULLY BEFORE USING THE APPLIANCE
(refer to the rating plate located at rear of the appliance for the type of refrigerant gas used).
Additional warnings for appliances with R290 refrigerant gas
WARNING
• R290 refrigerant gas complies with European environmental directives.
• This appliance contains approx. 0.086 kg of R290 refrigerant gas. The maximum charge
amount is 0.3 kg.
• The minimum rated airflow is 180 m³/h.
• Use only ingredients recommended by the manufacturer for defrosting or cleaning.
• Do not use the appliance in a room with continuously operating sources of ignition (eg. open
flames, an operating gas appliance or an operating electrical heater).
• A surface area greater than 4 m² is necessary for the installation, use and storage of the
appliance.
• Do not pierce or burn the appliance.
• Do not perforate any of the components in the refrigerant circuit.
• Refrigerant gas may be odourless.
• Use care when storing the appliance.
• Stagnation of possible leaks of refrigerant gas in unventilated rooms could lead to fire or an
explosion hazard if the refrigerant comes in contact with electric heaters, stoves or other
sources of ignition.
• Only persons authorised by an accredited agency certifying their competence to handle
refrigerants in compliance with sector legislation should work on refrigerant circuits.
• Maintenance and repairs requiring the assistance of other qualified persons must be carried
out under the supervision of specialists in the use of refrigerants.
3

Termékspecifikációk

Márka: Ausclimate
Kategória: párásító
Modell: WDH-930DA
