Oldal 1/4
Spark 600
Please read the manual before using the product
USER´S
MANUAL
7
Spark 600

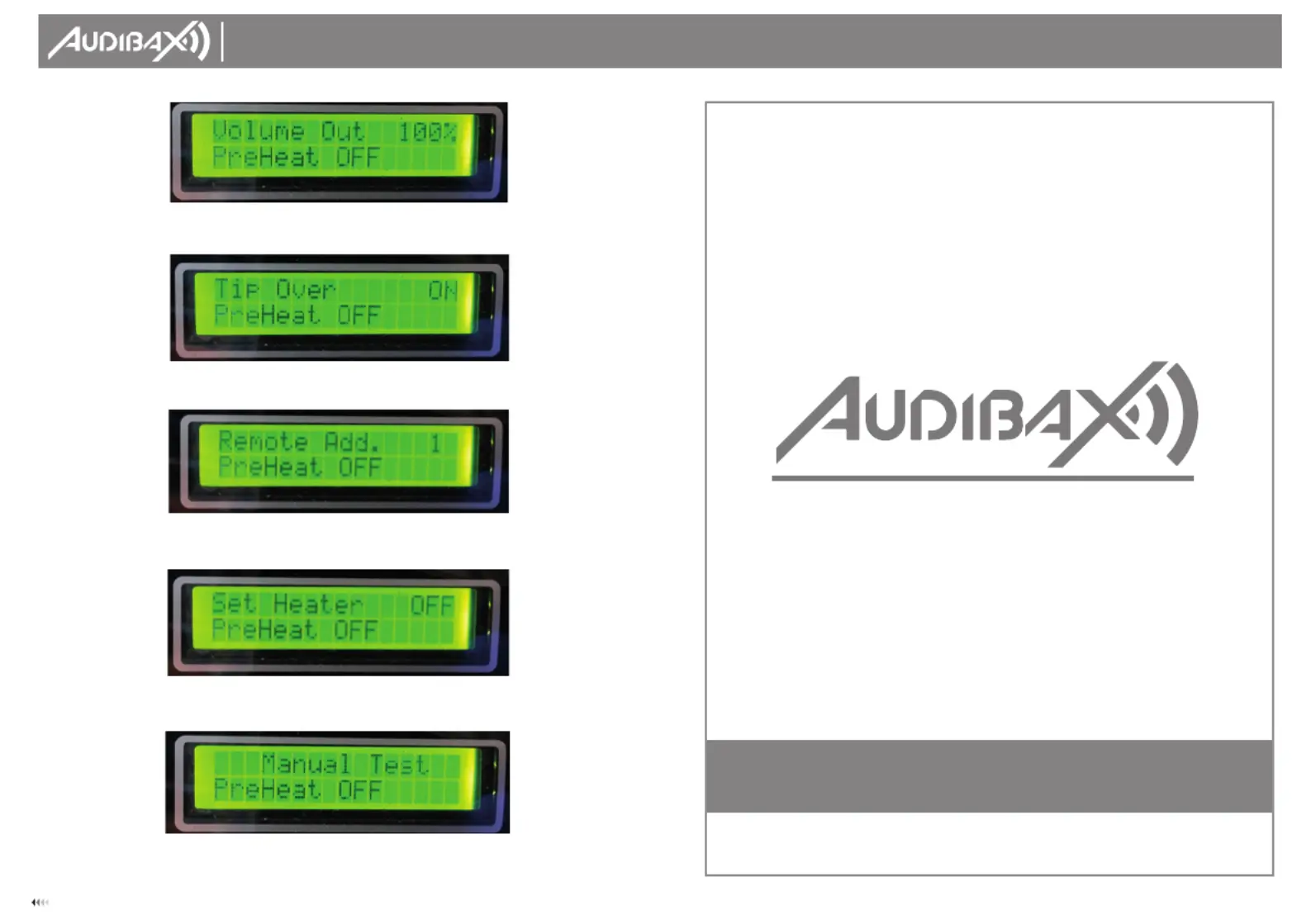

Press to select the volume output (between 0 to 100%)
In the ON position (default and recommended), the device stop working if it is roll over
Select the wireless remote as control. You can assign o group several units under the same
address and control this group from the selected button.
Select this function to initialize the heater. When the temperature reaches the correct value,
the device is prepared to operate.
Press it to make a manual test.
USER´S
MANUAL
Spark 600
1 6
DMX channel
OPERATION
Press MENU to select the DMX mode and set the DMX start channel under this mode, the
remote control does not work.
Control button area:
The display shows the different options in the menu, use the downside buttons to navigate
through the different options:
(MENU): Short press it to switch the setting interfaces
(UP): Increase value.
(DOWN): Reduce value
(ENTER): Confirm and save values.
The LEDs placed in the upper side of the display show the state:
DMX: It lights when DMX signal is present
READY: It lights when the heater reaches the operating temperature
UPDATE: It lights during update process
HEAT: This LED lights during the heating process
The USB port is use for internal firmware update functions.
Wireless remote controller mode:
The unite can be controlled by both DMX and remote controller. If a DMX is applied, wireless
remote controller will not work.
Warning:
- The spark machine must be placed at least 100 cm away from inflammable materials such
as curtains, books, etc. Make sure that the housing cannot be touched by accident.
- Outdoor use is recommended. Can be used indoors respected all security measures.
- During installation, nobody should stand beneath the mounting area.
- Prior to the first use, have the unit checked by a qualified person.
- The unit contains voltage carrying parts. DO NOT open the spark machine
- Never plug or unplug the unit with wet hands.
- If the plug and/or mains lead are damaged, they need to be repaired by a qualified
technician.
- If the unit is damaged to an extent that you can see internal parts, do not plug the unit into
a mains outlet. It needs to be repaired by a qualified technician.
- Only connect this unit to an earthed mains outlet of 220-240Vac/50Hz.
- Always unplug the unit during a thunderstorm or when it is not in use.
- If the unit has not been used for a longer period of time, condensation can occur inside the
housing. Please let the unit reach room temperature prior to use.
- When you unplug the unit from the mains always pull the plug, never the lead.
- In order to prevent dropping of the unit, a safety fastening needs to be installed. This can
be a solid chain, a steel cable, etc. which has to be fastened separately from the mounting
bracket.
- The supplied bracket is the main fixing and must be used to solidly mount the light effect.
- In order to avoid accidents in public premises, the local legal requirements and safety
regulations/warnings must be fulfilled.
- Keep out of the reach of children.
- It is recommended to use Audibax consumables, other consumables may be larger and
may block the system.
- Caution: it is recommended to transport the product vertically and with the consumable
tank empty. Failure to do so will cause problems not covered by the warranty due to
mishanding.
Technical data:
INSTALLTION AND USE
Electrical connections
Connect the fixture to the mains with the enclosed power cable and plug. The earth must
be connected.
DMX connection
Make sure that you use shielded cable and XLR 3 pin connectors.
Power supply
220-240V 50/60Hz
Power
500W
Fountain height
2 m to 5 m
Tank capacity
200g
Max. continuous duration
20 s (100% output)
Control modes
Wireless controller, DMX, manual
DMX channels
2 channels
Dimensions (WxHxD)
200x270x200 mm
Weight
5Kg
Channel
Value
Function
1
0
No sparks
1-255
Out volume from minimum to maximum
2
0-249
Stop heating
250-255
Start heating
Value
Function
Value
Function
ON
Turn ON
Addr 2
Address 2 for remote
OFF
Turn OFF
Addr 3
Address 3 for remote
5s
Output during 5s
High
Maximum output
10s
Output during 10s
Mid
Medium output
20s
Output during 20s
Clear
Clear the remain powder
Addr 1
Address 1 for remote
STOP
Stop output
Spark 600
Por favor, lea el manual antes de usar el producto
MANUAL
DE USUARIO
7
Spark 600
Presione para seleccionar la salida de volumen (entre 0 y 100%)
En la posición ON (predeterminada y recomendada), el dispositivo deja de funcionar si se
vuelca.
Seleccione el control remoto inalámbrico como control. Puede asignar al grupo varias
unidades bajo la misma dirección y controlar este grupo desde el botón seleccionado.
Seleccione esta función para inicializar el calentador. Cuando la temperatura alcanza el
valor correcto, el dispositivo está preparado para funcionar.
Púlselo para hacer una prueba manual.
