Document 90-000 B 84 Algo Communication Products Ltd (604) 454-3792
2017-09-08 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com
8189 SIP Surface Mount Speaker
GETTING STARTED SHEET
Full Configuration Guide Available
Online From
www.algosolutions.com/8 /guide188
Need Help?
(604) 454-3792 or support@algosolutions.com
Document 90-000 B 84 Algo Communication Products Ltd (604) 454-3792
2017-09-08 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com
About the Algo SIP 8189 SIP Surface Mount Speaker
The Surface Mount Speaker is a SIP compliant and multicast capable IP speaker suitable for 8189
voice paging, notification, and background music.
The 6.5” (165mm) coaxial speaker is G.722 wideband capable and music capable using a fullband
codec. An integrated microphone provides talkback capability and ambient noise detection for
automatic level control.
Dual SIP extensions provide both voice paging and notification (ring) capability. One or both
extensions can be registered with any Communication Server (hosted or enterprise) that supports
3rd party SIP Endpoints.
Multiple speakers in a SIP environment require only one speaker to register as a SIP extension.
Multicasting capabilities allow the SIP registered speaker to page and simultaneously stream
multicast audio to the other speakers.
The is configured using central provisioning features or by accessing a web interface using 8189
browsers such as Google Chrome, Firefox, or Internet Explorer.
What Included is
8189 SIP Surface Mount Speaker
White trim ring and speaker grill
Tool for grill removal and reset
Pluggable terminal block for relay input and output
Getting Started Sheet
What is not Included
Optional 1202 Call Button or 1203 Wall Switch
Screws for mounting the back box to ceiling
The full User Guide ( ) 8188 www.algosolutions.com/8188/guide
Getting Started - Quick Install & Test
This guide provides important safety information which should be read thoroughly before
permanently installing the adapter.
1. Connect the 8189 SIP Surface Mount Speaker to an IEEE 802.3af compliant PoE network switch.
The blue light will remain on until boot up is completed about 30 seconds. –
2. After the blue light turns off, press the reset switch (RST) that is hidden behind the speaker grill, to
hear the IP address over the speaker. The IP address may also be discovered by downloading the
Algo locator tool to find Algo devices on your network: www.algosolutions.com/locator
3. Mount the speaker per the instructions in this guide.
Note: The 8189 SIP Surface Mount Speaker harbours the same feature set as the 8188
SIP Ceiling Speaker. Therefore, the 8188 User Guide may be used for configuring the 8189.
For 8189 installation details, please follow the steps outlined in this document.
Document 90-000 B 84 Algo Communication Products Ltd (604) 454-3792
2017-09-08 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com
4. Access the web page by entering the IP address into a browser (Chrome, IE, Firefox etc) and 8189
login using the default password algo.
5. Enter the IP address for the SIP server into the SIP Domain field under the BASIC SETTINGS >
SIP tab.
6. Enter the page SIP extension and password. (Note the speaker supports two SIP extensions. The
page extension auto-answers for paging. The ring extension plays a WAV file over the speaker
without answering.)
7. Make a call to the speaker by dialling the page SIP extension from a telephone.
The speaker should auto-answer, play the
default pre-announce WAV file, and open
a speech path.
8. If the protective grill was removed to
access the Reset button, carefully install re
the grill working around the grill until fully
installed and flush with the housing.
Installation
The back box must be mounted securely
to the ceiling (concrete, wood, steel truss
etc). Appropriate mounting screws or bolts
and the associated fastenings to provide a
secure connection to the ceiling material
are to be provided by the installer.
Although four mounting holes are
provided, some installations may require
additional holes for securing to the ceiling
surface. Conduit connections can provide
additional mounting security. Algo
recommends that a licensed electrician
installs the back box.
Once the back box is mounted, it should
be tested to ensure it can support at least
20kg of weight. Hook the front housing to
the slot on the back box, while connecting
the tether on the speaker assembly to the
back box via a screw adjacent to the slot.
Connect the network cable and test .
The tether should be left in place after
installation to provide additional protection
against falling. Unhook the front housing
from the slot and attach it to the back box
using the provided screws. 8

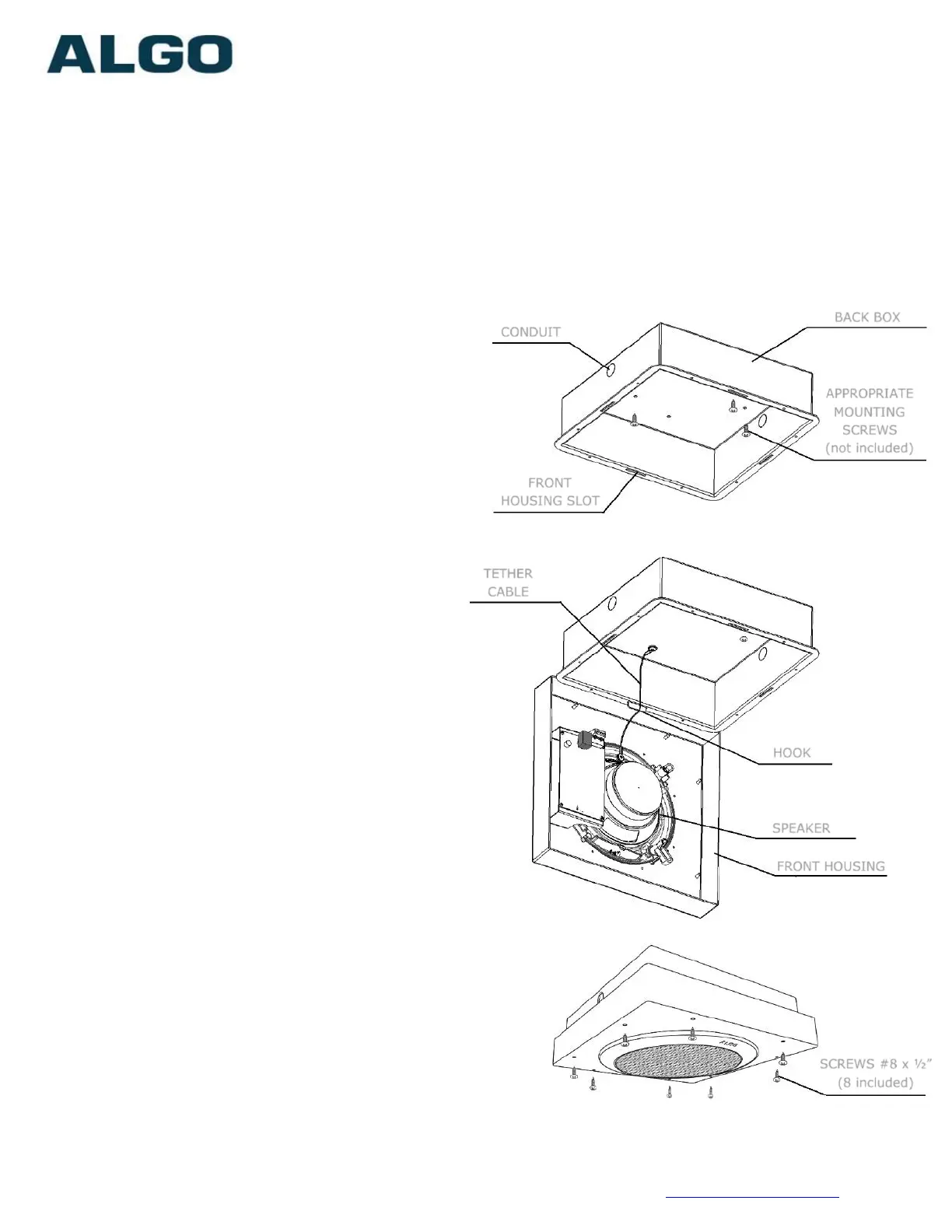

BACK BOX
CONDUIT
APPROPRIATE
MOUNTING
SCREWS
(not included)
FRONT
HOUSING SLOT
TETHER
CABLE
H OOK
SPEAKER
SCREWS #8 x ½”
(8 included)
