WISE-2200-M Startup Manual 1
WISE-2200-M
LoRaWAN RS-485 Modbus I/O Module
Startup Manual
Before installation, please ensure that the following items
have been included in your shipment:
1. 1 x WISE-2200-M module
2. 1 x Mounting bracket
3. 1 x Quick start manual
4. 1 x China RoHS declaration (WISE-2200-MNA only)
5. 1 x Antenna
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Thank you for purchasing the WISE-2200-M module.
This quick start guide is intended to help you deploy your
new module. The guide contains basic information on the
power and application wiring. Should you require additional
instructions, please refer to the user manual.

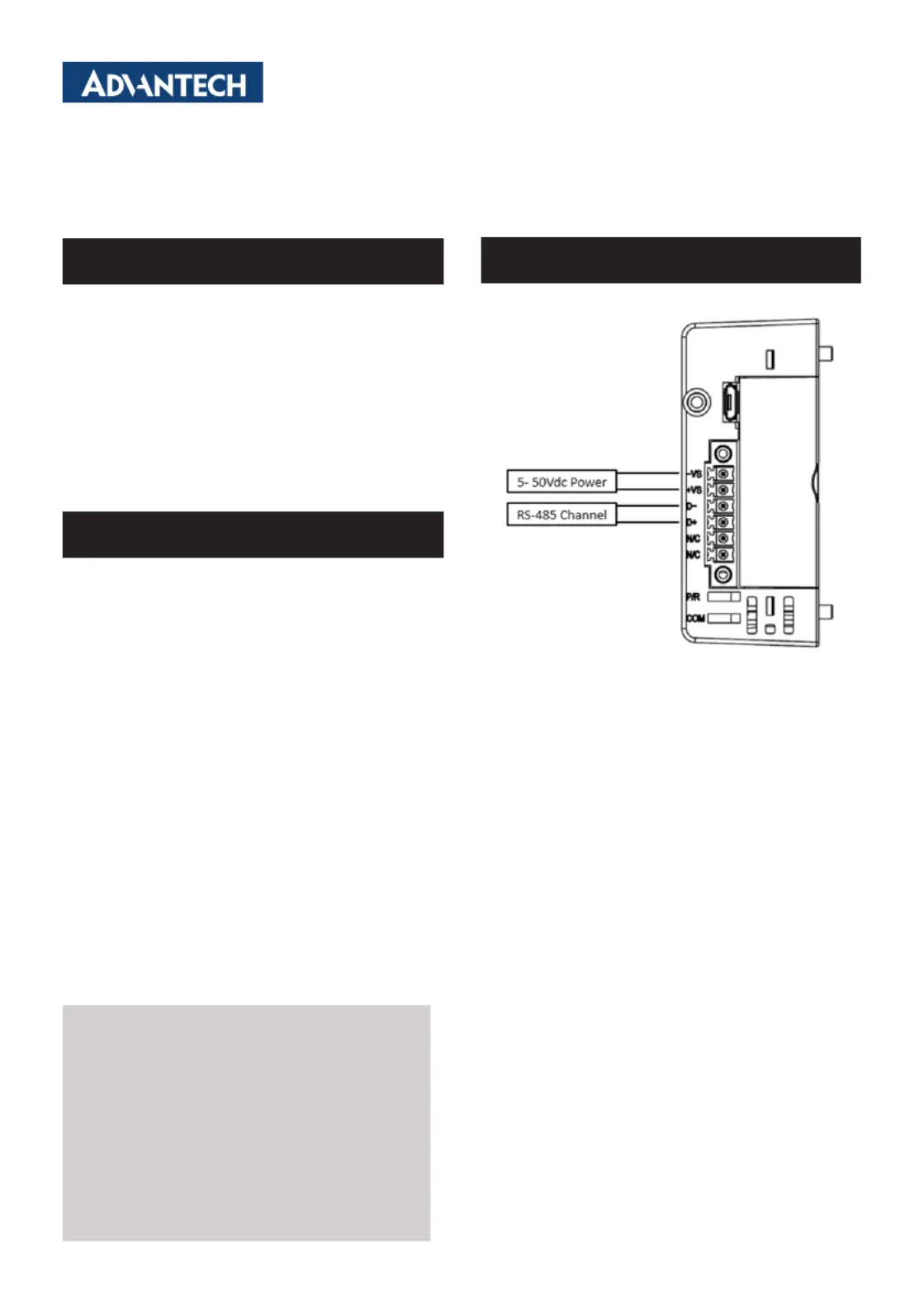

5 – 50 Vdc connect to –VS, +VS channels.
Packing List
For more information on this and other Advantech
products, please visit our website at
http://www.advantech.com
For technical support services, please visit our support
website at
https://www.advantech.com/support
This manual is for the WISE-2200-M.
Part No. 2043220000
Printed in Taiwan
Edition 1
January 2022
Specications
User Manual
2 WISE-2200-M Startup Manual
LED
Indication
Color Behavior
P/R Green Machine turns on when power on
Yellow Turns on when OTAA join unsuc-
cessfully
Blinks when sending data to Gateway
(On 0.2 sec)
Blinks when receiving data from
Gateway (On 0.2 sec)
COM Green Blinks when RX on RS-485 channel
Yellow Blinks when TX on RS-485 channel
Note: USB is only for conguration.

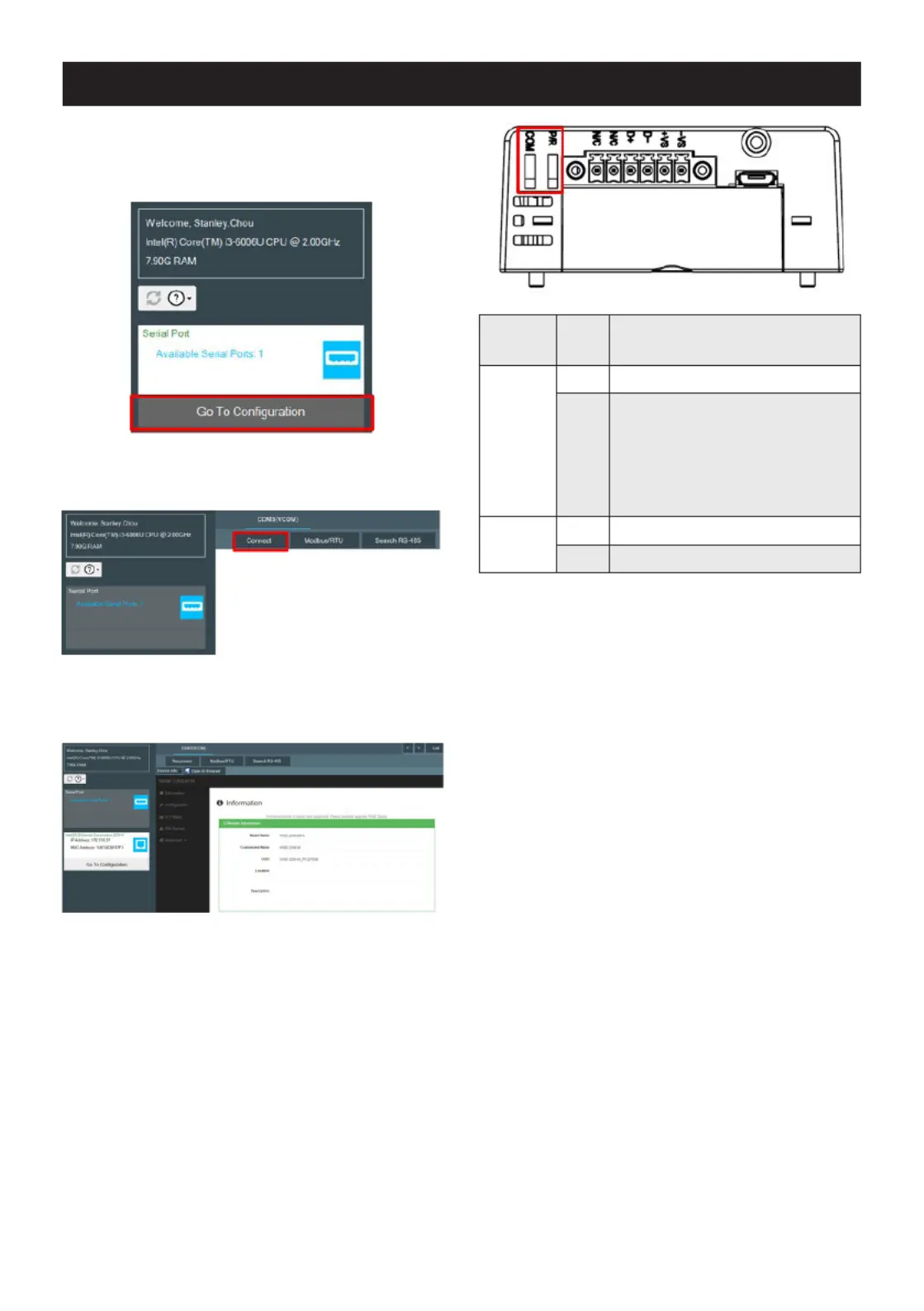

1. Connect the module to your computer via the microUSB
port.
2. Open WISE Studio and click Go To Conguration.
3. Click to link the WISE-2200-M and the web Connect
conguration page will appear
4. Use the web conguration tool in WISE Utility or press
Open In Browser to open the web conguration in any
browser (Google Chrome is recommended).
5. Click to check the status of the module.Information
6. Click for setting detail information, RF Conguration
connection, time, etc on the module.
Connections
