Wall Range Hood Installation
4
Installation
Tutorial Video
*Note: Wall range hoods with single motors will come with a square to 6˝ round transition piece
and will include a back dra damper. e ducting with these range hoods is 6˝.
Dual motor wall hoods will come with a square to 8˝ round transition piece without a back dra
damper. e ducting with these range hoods is 8˝.
*Use rigid ducting wherever possible. Try and minimize the use of elbows. More elbows and lon-
ger runs create higher static pressure. e hood comes with a grounded three prong plug that can
either be direct wired or plugged into a 20 amp. circuit.
A
E
B
F
6
D
C
B C E F
D
A
1. Main Hood With All Lights and
Button Banks Pres-installed
2. Adjustable Stainless Chimney Cover
3. Transition Piece (For 6˝ or 8˝)
4. Bae Filters
5. Flexible Duct (For 6˝ or 8˝)
6. Packet of Screws and Anchors
7. Top Mounting Bracket
8. Grease Cup
Parts Supplied:
Please unpack your range hood when it is delivered
and inspect to ensure all parts are included.
5
Wall Range Hood Installation
1
2
3
4

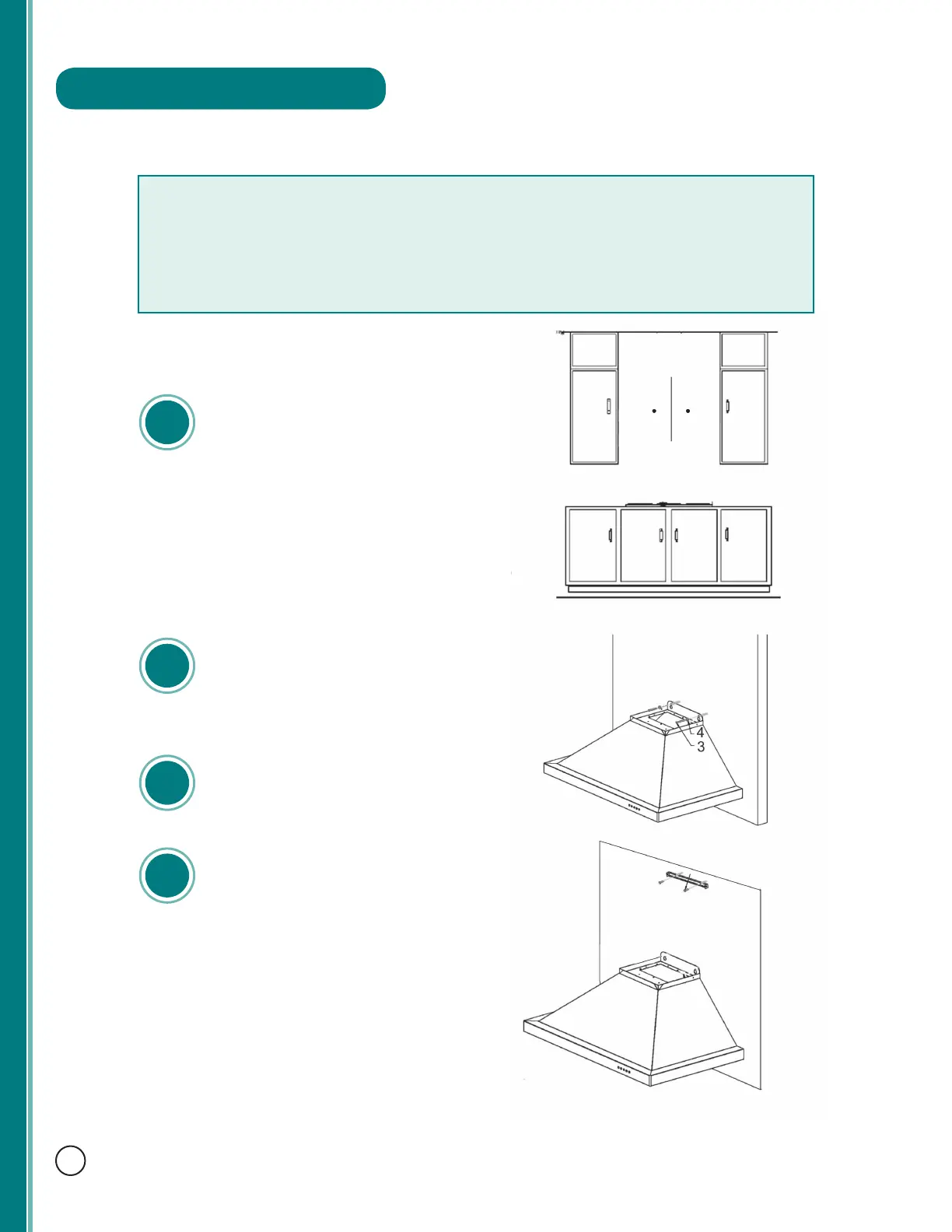

Find the center of the wall where you
are installing the hood. Make sure
there is sucient bracing to hold the
weight of the hood. Mark your center
line and measure out from the center
to nd your two mounting points.
Make sure your mounting points are
level when you mark them. It is rec-
ommended to install the hood direct-
ly into wood supports. (Figure 1)
Mark the mounting points and install
the two mounting screws provided
leaving the heads out ¼ to mount the ˝
hood. (Figure 1)
Mount the main body of the hood to
the two screws and screw into place.
(Figure 2)
Mount the top chimney mounting
bracket centering it above the hood.
(Figure 3)
Figure 1
Figure 2
Figure 3
*e recommended height to install your hood is 30 minimum and 36˝ ˝ maximum
above the cooktop.
*For Outdoor (304 Series) hood installation, the unit must be installed at a minimum
of 36 above the grill. ˝
6
Wall Range Hood Installation
