Olvassa el alább 📖 a magyar nyelvű használati útmutatót Trumeter 7932 (40 oldal) a Meetapparatuur kategóriában. Ezt az útmutatót 2 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra
Oldal 1/40
019511-01 Issue 1.1 03/2007
6 digit programmable counter / timer relay, with
prescaling and EEPROM data storage
6-stelliger programmierbarer Vorwahlzähler/Zeitzähler
mit Vorteiler und EEPROM-Datenspeicherung
Compteur / minuterie , à présélection, programmable,
6 chiffres, avec facteurs d'échelles et mémoire
EEPROM
Relé contador/temporizador programable de 6 dígitos,
con pre-escala y almacenado de datos en EEPROM.
Contatore / timer a relè a 6 cifre programmabile, con
prescala e memorizzazione dati nella EEPROM
Diagrams, Abbildungen, Diagrammes,
Diagramas, Diagrammi
English
Page 2
Deutsch
Seite 8
Français
Page 14
Español
Página 20
Italiano
Pagina 26
Page 35
Seite 35
Pagina 35
WARNING: Read page 32 first.
ACHTUNG: Lesen Sie zuerst Seite 32!
RECOMMANDATION IMPORTANTE:
Reportez-vous tout d'abord à la page 33
ATENCIÓN: Primero lea la página 33
ATTENZIONE: Leggere prima la pagina 34.
7932
The front panel buttons are used to program the counter and to display and set the P1
preset. All the buttons can be disabled by the Keyboard Inhibit input. (see Programming
on page 6).
P1 Preset
The P1 preset can be set at any time. The minimum value possible is 000001. P1 must
be greater than any multiplying prescaler value, or the unit may not operate correctly.
Press SEL, then use the Digit buttons to change P1. The display will flash. Press SEL
again to accept the new value. If SEL is not pressed within 30 seconds of the last
change, P1 will revert to the original value.
In Reset to Zero mode, the change will be accepted immediately.
In Reset to P1 mode, the change will not be accepted until after a Reset.
2

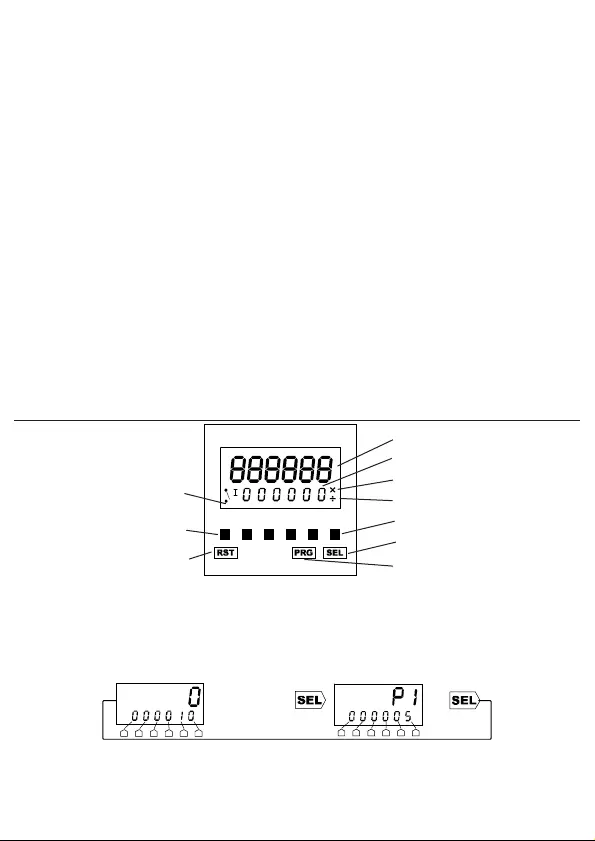

The Front Panel Count or Time
P1 Preset
Digit 1
Multiplying Prescaler
Dividing Prescaler
Select
Program
Reset
Relay State
(showing the state of the
normally open contact)
Digit 6
Specification
Display
Black on green STN LCD, with
yellow/green LED backlight.
Program Storage
Erase/write cycles:1,000,000
Life: 40 years min
Count Range
0 to 999999
Count Pre-scaler
Multiplier 0.00250 to 9.99999
Divider 1 to 99999
Timing Range - see page 7
Timing Acuracy ± 0.3%
Inputs (see )Inputs
High Speed: 10kHz max (electronic)
Duty cycle: 60:40 max
Low Speed: 30Hz max (contact closure)
External Reset response time
Max 2mSec
Relay Contacts (see )Relays
UL Ratings
AC 250V max, DC 125V max
250V AC: 1/6HP max
30V DC: 5A max
General ratings
AC 1250VA max, 300V AC max
250V AC (cosø =1): 5A max
250V AC (cosø =0.4): 3A max
DC 150W max, 220V DC max
30V DC: 5A max
5A resistive load 100,000 operations
2A resistive load 1,000,000 operations
Reaction time: <20ms.
Supply (see Connections)
94 to 240V AC ± 10% 50/60Hz
VA Rating 4VA
or 12 to 24VDC ± 10%
typical current 100mA DC (max)
Installation Category (IEC 664)
Overvoltage category II
(Pollution degree 2 )
Operating temperature
-10°C to +60°C
Storage temperature
-20°C to +70°C
Environmental protection
IP65 (panel mounting) using the sealing
gasket supplied (without Screw-fixed
bezel). If the seal is removed, it must be
replaced with a new one.
See page 39 for cut-out dimensions
Altitude
Up to 2000m
Relative Humidity
80% max up to 31°C, decreasing to 50%
max at 40°C
P1 P1
Count/
Time
Auto Reset (see and on page 35 and on page 36)
When Auto Reset is on, the counter will be automatically reset as follows:
In Reset to Zero mode, the counter will reset to zero when P1 is reached.
In Reset to P1 mode, the counter will reset to P1 when zero is reached.
Front Panel Reset and External Reset (RST / Ext. Reset)
A Reset can be caused by pressing the RST button or by applying a signal to the
External Reset input. Any active relay will be returned to its normal condition.
If the operation of the External Reset is safety critical, it is recommended that the External
Reset signal is derived from an independent power supply which will remain stable if the
7932’s supply is interrupted.
Counter Modes (see page 35)
The diagrams show how the Relay is controlled by the Count, and by RST/Ext. Reset.
The diagrams show how the Count is controlled by the Input signal.
The diagrams show how the Count is reset to zero or P1 by Auto Reset. In all modes, the
Count can be reset at any time by RST/Ext. Reset.
In Reset to Zero mode, the counter can count up to 999999. In Reset to P1 mode, the
counter can count from P1 down to -99999. At these limits, the display will flash until
RST/Ext. Reset.
Counter with Auto Reset on
Note: The relay cannot be set to Latched.
Counter with Auto Reset off
Note: If the relay is set to Latched, it will return to its normal condition at RST/Ext. Reset.
Timer Modes (see page 36)
The diagrams show how the Relay is controlled by the Timer, and by RST/Ext. Reset.
The diagrams show how the Time is controlled by the Input signal and by the Pause
setting.
The diagrams show how the Time is reset to zero or P1 by Auto Reset. In all modes, the
Time can be reset at any time by a RST/Ext. Reset.
In Reset to Zero mode, the timer can time up to 999999. In Reset to P1 mode, the timer
can time from P1 down to zero.
, Timer with Pause enabled
Note: When the Input signal is removed, timing stops. When the Input signal is re-
applied, the unit continues to time from this previous value.
, Timer with Pause disabled
Note: When the Input signal is removed, timing stops. When the Input signal is re-
applied, the unit resets to zero or P1, and starts timing from this value.
, Timer with Auto Reset on
Note: The relay cannot be set to Latched.
, Timer with Auto Reset off
Note: On reaching P1, timing will stop, but a RST/Ext. Reset will restart it.
Note: If the relay is set to Latched, it will return to its normal condition at RST/Ext. Reset.
42
31
43
21
2
1
131
3
