Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 19, 2019 3:38 PM

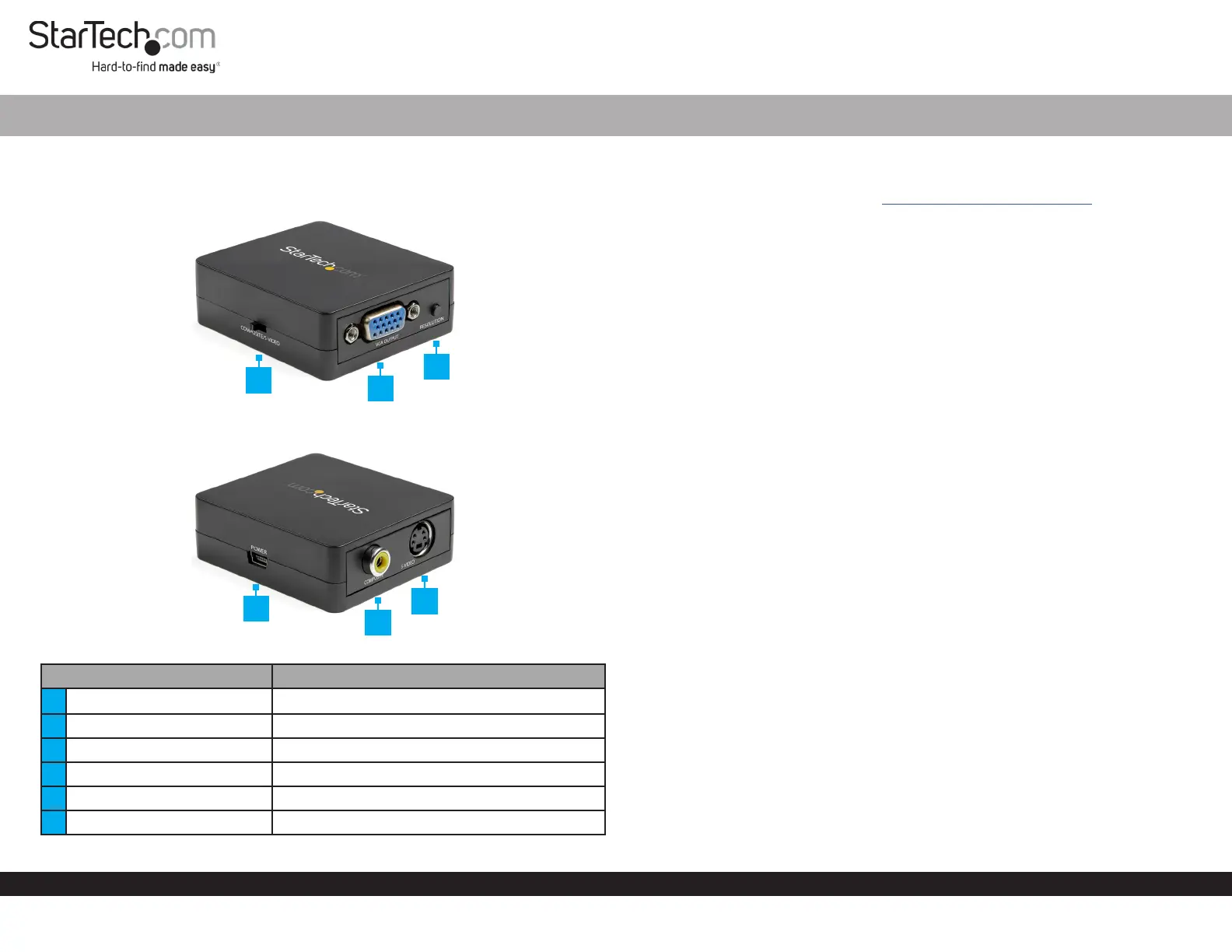

Product Diagram (VID2VGATV3)

Front and Side Prole

Rear and Side Prole

Component Function

1Video Input Selection Switch • Select the Source Device Video Signal

2VGA Output Port • Connect a VGA Video Display Device

3Resolution Selection Button • Select the Output Resolution

4Power Port • Connect a Power Source

5Composite Video Input Port • Connect a Composite Video Source Device

6S-Video Input Port • Connect an S-Video Source Device

Composite and S-Video to VGA Video Converter

Requirements

For the latest requirements, please visit . www.startech.com/VID2VGATV3

• Composite Video or S-Video Source Device x 1

• Composite Video or S-Video Cable x 1

• VGA Video Display Device x 1

• VGA Cable x 1

• USB Power Source x 1

Installation and Operation

1. Ensure all of your are powered o.Devices

2. Determine if you are using a or . Toggle the Composite S-Video Source Device

Video Input Selection Switch Source Device to match your video signal.

3. Connect a to the . Composite Video Cable Composite Video Input Port

Connect an to the . S-Video Cable S-Video Input Port

4. Connect the other end of the to the Composite Video Cable Composite Video

Source Device.

Connect the other end of the to the . S-Video Cable S-Video Source Device

5. Connect a to the on the .VGA Cable VGA Output Port Video Converter

6. Connect the other end of the to the .VGA Cable VGA Video Source Device

7. Connect the to an available and to USB-A to USB Mini Cable USB Power Source

the .Power Port

8. Select the output resolution by pressing the until the Resolution Selection Button

desired resolution is met. Each time you press the the Resolution Selection Button

new resolution settings will appear on the in the upper On Screen Display (OSD)

right-hand corner of the screen.
