Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 26, 2019 2:26 PM

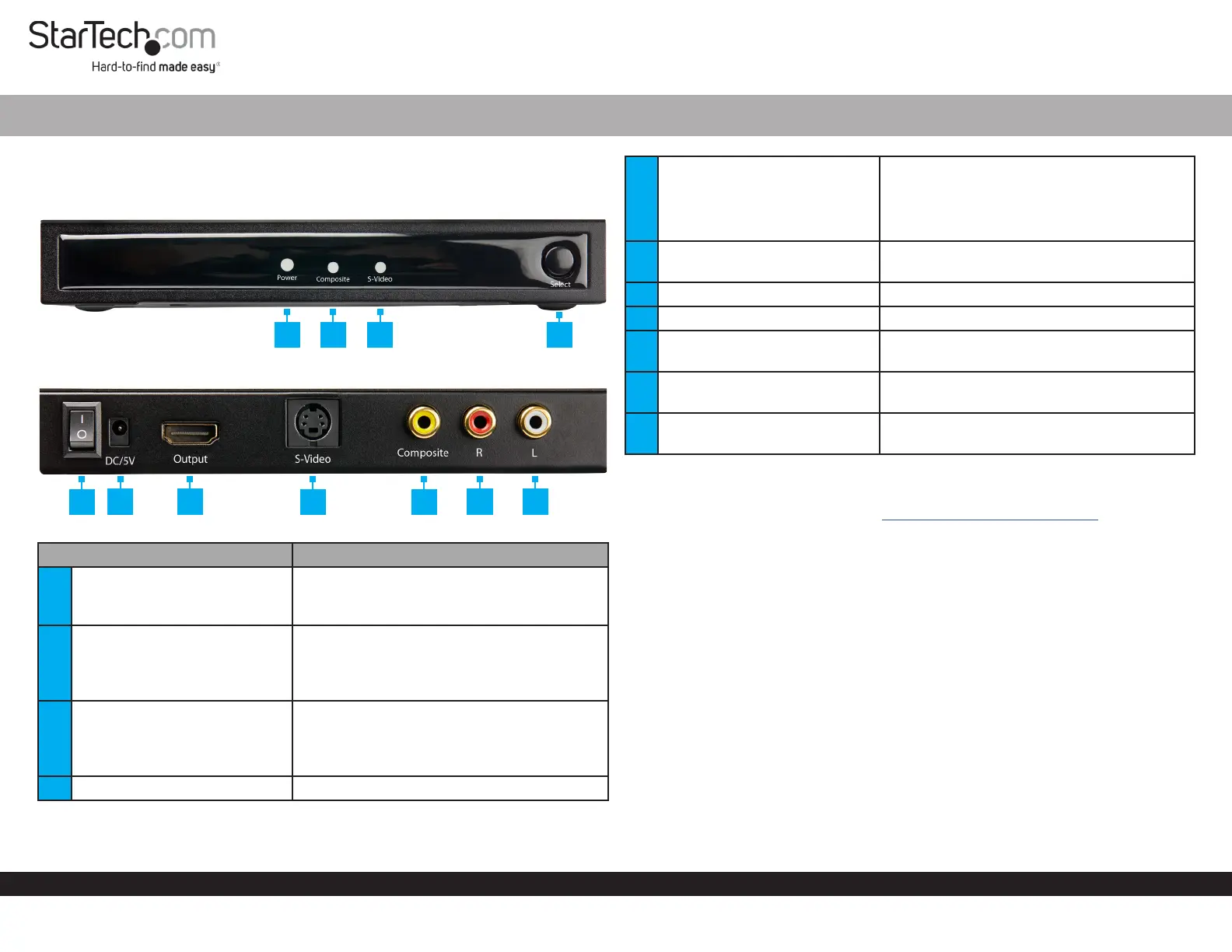

Product Diagrams (VID2HDCON2)

Front View

Rear View

Component Function

1Power LED Indicator

• Solid Red: The is Universal Power Adapter

connected and the is in the On/O Switch

On position

2Composite Video LED Indicator

• Solid Red: The is Universal Power Adapter

connected, the is in the On/O Switch On

position, and the Composite Video Input

Port is selected

3S-Video LED Indicator

• Solid Red: The Universal Power Adapter

is connected, the is in the On/O Switch

On S-Video Input Port position, and the is

selected

4Video Input Selection Button • Select the Source Device Video Signal

Composite and S-Video to HDMI Video Converter

5On/O Switch

• The “ ” icon indicates the positionO O

• The “ ” icon indicates the positionI On

• Toggle the to power the On/O Switch

Video Converter On O or

6DC/5V Power Input Port • Connect a using the Power Source

Universal Power Adapter

7HDMI Output Port • Connect an HDMI Display Device

8S-Video Input Port • Connect an S-Video Source Device

9Composite Video Input Port • Connect a Composite Video Source

Device

10 Right RCA Audio Input Port • Connect an to the Audio Source Right

Audio Channel

11 Left RCA Audio Input Port • Connect an to theAudio Source Left

Audio Channel

Requirements

For the latest requirements, please visit . www.startech.com/VID2HDCON2

• Composite Video or S-Video Source Device x 1

• Composite Video or S-Video Cable x 1

• Audio Source x 1

• RCA Audio Cable x 1

• HDMI Display Device x 1

• HDMI Cable x 1

• Power Source x 1

Installation and Operation

1. Ensure all of the are powered .Devices O

2. Connect a to the on the Composite Video Cable Composite Video Input Port

Video Converter Composite Video Source Device and to a .

Connect an to the on the and S-Video Cable S-Video Input Port Video Converter

to an .S-Video Source Device

321

6 75 8 9 10 11

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

3. Connect the and to theRight (Red) Left (White) RCA Audio Cable Connectors

Right Left RCA Audio Input Ports Video Converter Audio and on the and to an

Source.

Note: Ensure the colors of the and match.Connectors Ports

4. Connect an to the on the and to HDMI Cable HDMI Output Port Video Converter

an .HDMI Display Device

5. Connect the to the on the Universal Power Adapter DC/5V Power Port Video

Converter Power Sourceand to an available .

6. Toggle the to the position. On/O Switch On

7. and the to match your Press Release Video Input Selection Button Source Device

(Composite or S-Video Device) video signal type.

Universal Power Adapter - Power Clips

The comes with 4 dierent Universal Power Adapter Power Clips (NA/JP, UK, EU,

ANZ) North American Power Clip Universal . By default the comes installed on the

Power Adapter Power Clip. Follow the steps below to switch the .

1. Press the , located below the on the PUSH Button Power Clip Universal Power

Adapter.

2. While holding the , slide the upwards.PUSH Button Power Clip

3. Locate the that suits your application.Power Clip

4. Slide the new down into the until you hear it Power Clip Universal Power Adapter

Click.
