USB power source

Power switch 3.5mm analog

and SPDIF

output port

HDMI output port

HDMI input port

Quick start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 08/10/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/HD2A.

Packaging contents

• 1 x HDMI audio extractor

• 1 x USB power cable

• 1 x Toslink adapter

• 1x quick install guide

System requirements

• HDMI source device (e.g. Blu-ray player, computer)

• SPDIF or 3.5mm audio destination device, such as an audio

receiver or speakers

• HDMI cabling for the source device

• SPDIF or 3.5mm audio cabling for the destination device

Operating system requirements are subject to change. For the latest

requirements, please visit www.startech.com/HD2A..

HD2A

HDMI® Audio Extractor

*actual product may vary from photos

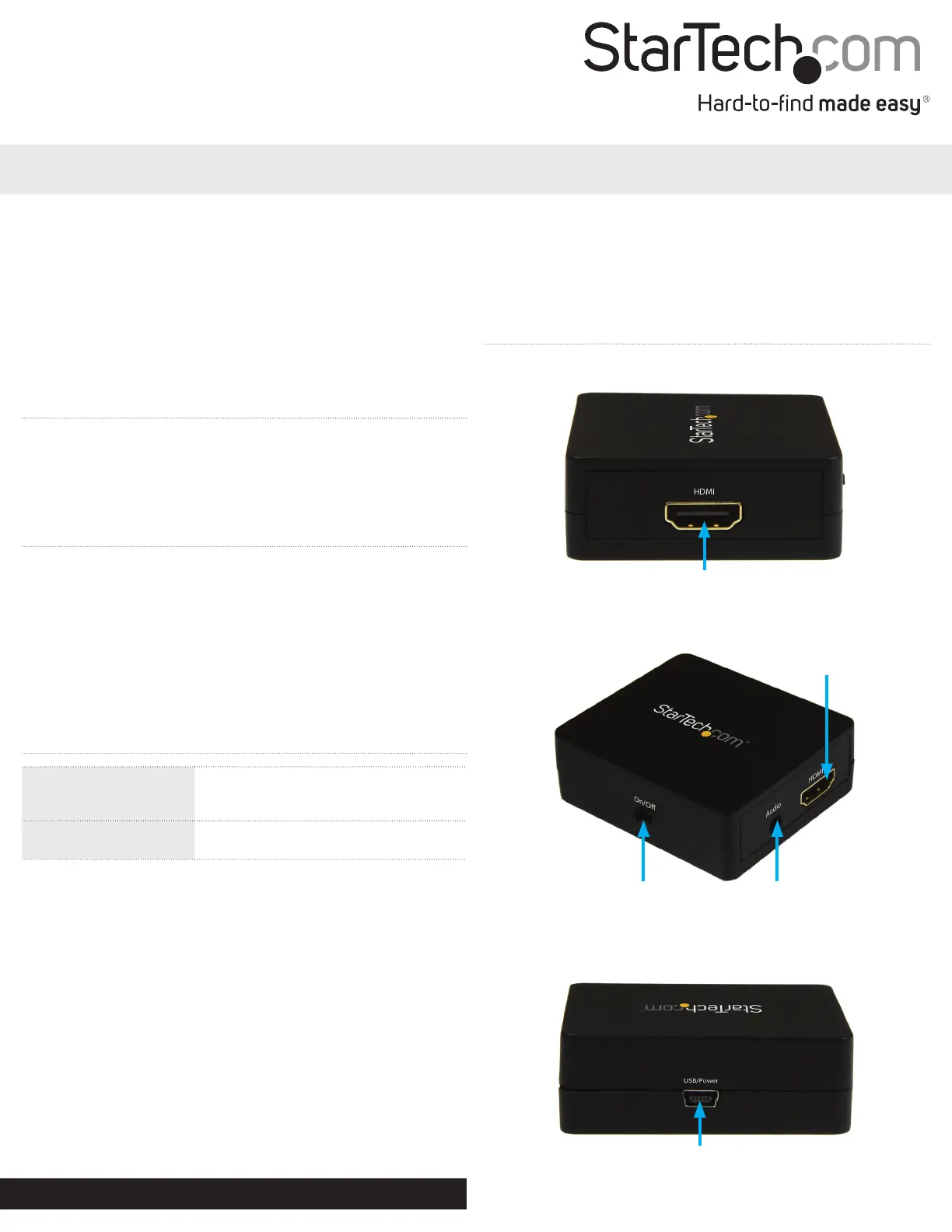

Product Overview

Front View

Left side and back view

Right side view

Operation notes

• The USB power source port must be connected to a USB power

source such as a computer or a USB power adapter. This is required

in all congurations for the adapter to operate.

• For SPDIF audio, connect the included Toslink adapter to the

3.5mm analog and SPDIF output port, then connect your SPDIF

cabling to the adapter.

• If, once connected, the output of your destination device plays

static with no audio, it’s likely your source device is set to bit

stream audio (unprocessed). As a result it will be necessary to

adjust this setting to PCM (Pulse-code modulation) in the output

settings of your audio source device. Please consult the manual

included with your HDMI source device for instructions.

Maximum supported

resolution for video

pass-through

Up to 1920 x 1200 or 1080p

Audio specications SPDIF audio – up to 2.1 surround sound

3.5mm audio – 2-channel stereo

Specications

• If an HDMI audio source that’s higher than 2.1-channel is sent

through the adapter, it will not be audible. It will be necessary to

adjust this setting in your video source to output to 2.1 channel.
