Assembly Instructions for Java Furniture: JFV65 & JFV75
Thank you for Choosing the Java Furniture Line from Sanus Systems. If you have any questions regarding this or any other Sanus
Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you
quickly with any issues regarding assembly or missing parts. Check carefully to make sure none of the parts are missing or defective.
Never use defective parts. Replacement parts for products purchased from an authorized dealer will be shipped directly to you. Please
call Sanus Systems before returning products to retail stores.
Required Tools: Phillips Screw Driver
Note: Check carefully to make sure you have all the hardware listed below.
Hardware: Hardware shown at actual size.
(18) Cam - a (18) Cam Pin - b (26) Dowel - c
(4) Barrel Nut - d (4) Barrel Nut Bolt - e
(8) M6 Bolt - f (8) Rubber Spacer - g (8) Aluminum Spacer - h
(12) Shelf Pin - i (12) Shelf Pin Screw - j (8) Door Protectors - k
(8) Base Bolt - l (10) Carpet Glide - m (1) Allen Key - n
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 11.14.16 (6901-100105)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(1) Top - o
(1) Bottom - p
(1) Right Inside Panel - q (1) Left Inside Panel - r (1) Right Outside Panel - s (1) Left Outside Panel - t
(2) Side Shelf - u (1) Middle Shelf - v
(2) Front Base Rail - w (2) Side Base Rail - x
(2) Leg - y (2) Door - z (3) Back Panel - aa
Note: Cams should
be tightened in a
clockwise motion

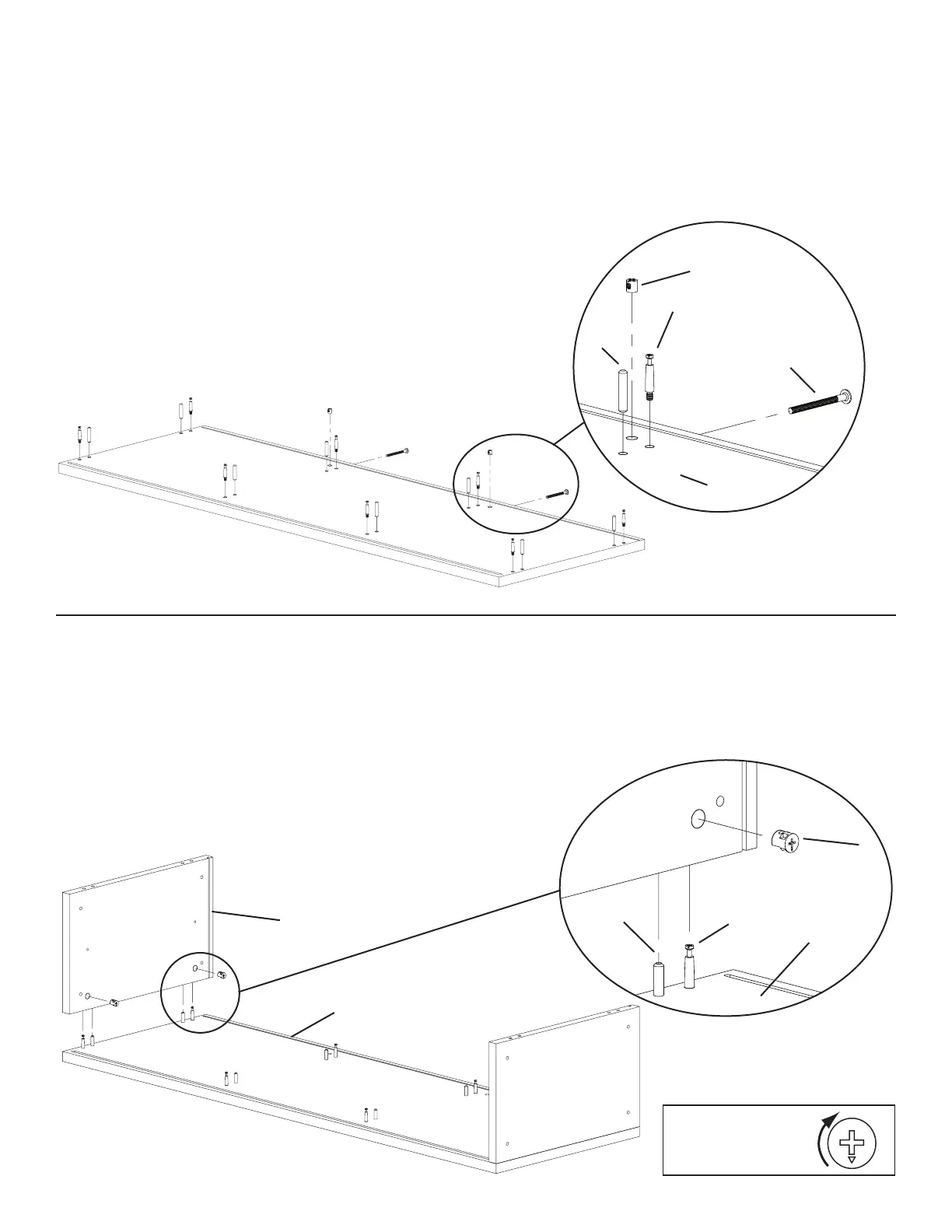

Step 1: Prepare the Top
Place the Top (o) upside down on a soft surface to lessen the chance of scratching. Insert 8 Cam Pins (b) and 8 Dowels (c) into the Top
as seen in Diagram 1. Proceed to tighten each Cam Pin with a Phillips screw driver. Next, orient the Barrel Nut (d) so the hole in its side
faces the hole in the back of the Top. Proceed to insert each Barrel Nut into the hole as shown in the Detailed View of Diagram 1. Then
thread each Barrel Nut Bolt (e) into the hole on the back of the Top, as pictured in the Detailed View of Diagram 1. Tighten each Barrel
Nut Bolt so they protrude a 1/4” from the Top.
Detailed View
d
b
c
e
Diagram 1
o
Step 2: Add Outside Panels
Place each Cam (a) into each Outside Panel (s,t) as shown in Diagram 2. Make sure the arrow on the Cam is pointing toward the hole on
the outside as shown in Detailed View A. Place each Outside Panel on the Top (o), make sure Dowels (c) and Cam Pins (b) align with
the correct holes. The Channel on the back of the Top should be lined up with the Channel in the Outside Panel. Proceed to tighten the
Cams on each Outside Panel in a clockwise motion.
Detailed View
a
Diagram 2
channel c b
o
channel
