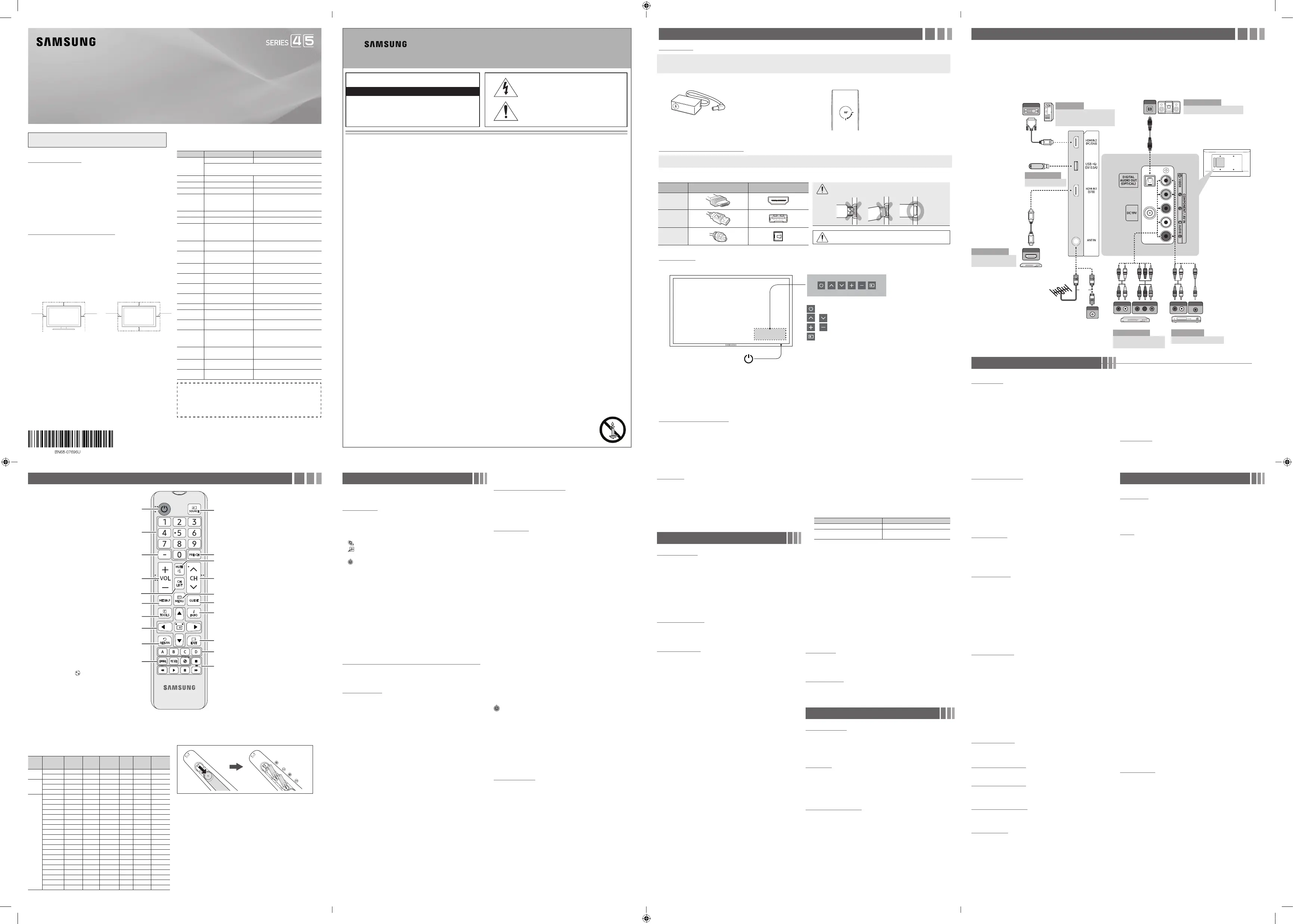

Connections

yFor the best picture and audio quality, connect digital devices using

an HDMI cable.

yIf you connect an external device to the TV that uses an older version

of HDMI, the video and audio may not work. If this occurs, ask the

manufacturer of the device about the HDMI version and, if it is out of

date, request an upgrade.

yBe sure to purchase a certiﬁed HDMI cable. Otherwise, the picture

may not display or a connection error may occur.

yPC/DVI AUDIO IN input is not supported.

yFor an HDMI to DVI cable connection, you must use the HDMI IN

2 (DVI) port.

yConnecting through the HDMI cable may not be supported

depending on the PC.

yIf an HDMI to DVI cable is connected to the port, HDMI IN 2 (DVI)

the audio does not work.

yFor Set-top box connection using HDMI cable, we highly

recommend you to connect the port.HDMI IN 1 (STB)

R W

AUDIO OUT

R-AUDIO-L

COMPONENT OUT

PPYR B

R B

R B G

AUDIO OUT

R-AUDIO-L

VIDEO OUT

WR Y

R YW

OPTICAL

DVI OUT

HDMI OUT

ANT OUT

UN32K4100

model only

TV Rear Panel

TV Side Panel

VCR

AV Device (2)

Using Audio/Video Cables

Blu-ray player

AV Device (3)

Using a Component Cable

(up to 1080p)

AV Device (1)

Using an HDMI Cable

(up to 1080p)

Media Play

Using a USB Drive

Audio Device

Using an Optical (Digital) Cable

Digital Audio System

Blu-ray player / DVD /

cable box / sat box

Using an HDMI Cable or an

HDMI to DVI Cable. Use the PC

speakers for audio.

VHF/UHF Antenna

Cable

Getting Started

Accessories

Power Adapter

(Depending on the country and model)

Adjusting the angle of the plug on the power adapter

Never turn the plug until it exceeds the allowed range on the power adapter.

Input Cables (Sold Separately)

yComposite (AV)

yHDMI

yComponent

yHDMI-DVI

yCoaxial (RF)

Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are shown below.

Cable Plugs Ports/Jacks

HDMI

USB

Optical

Do not plug in opposite or wrong direction. It could

damage the TV port.

Do not plug cables in upside down. Be sure to check the

orientation of the plug before plugging it in.

TV Controller

The TV's Controller on the bottom right side of the TV, lets you control the TV without the remote control.

: Turns the TV on or off.

/ : Changes channels.

/ : Adjusts the volume.

: Displays and selects the available video sources.

Control Menu

Remote control sensor/TV Controller

✎The product color and shape may vary depending on the model.

✎You cannot input the numbers by pressing the TV's controller.

✎If you press it first, the control menu appears. You can select the function by pressing and holding the TV's controller.

✎With the TV's Controller, you cannot perform other operations except for turning the TV on or off, changing the channel, adjusting the volume,

and switching the input source.

Plug & Play (Initial Setup)

When you turn the TV on for the ﬁrst time, a sequence of screens and on-screen prompts will assist you in conﬁguring the TV’s basic settings. Press

the button. is available only when the Input source is set to TV. Set the initial setup following instructions that the TV guides.POWER Plug & Play

✎Connecting the power cord and antenna. (refer to ‘Connections’)

Channel Menu

Seeing Channels

Channel List

Add, delete or set favorite channels and use the program guide for

analog broadcasts and digital broadcasts. Select a channel in the All

Channels Added Channels Favorite Channels Programmed, , or

screen by pressing the buttons, and pressing the ▲/▼ ENTER

button. Then you can watch the selected channel.

■

All Channels: Shows all currently available channels.

■

Added Channels: Shows all added channels.

■*

Favorite Channels: Shows all favorite channels.

■

Programmed: Shows all currently reserved programs.

✎Using the remote control buttons with the Channel List

xGreen ( ): Enlarges or shrinks a channel number.Zoom

xYellow ( ): Selects multiple channel lists. Select desired Select

channels and press the Yellow button to set all the selected

channels at the same time. The

mark appears to the left of

the selected channels.

(Tools Channel List): Displays the option menu. (The Options

menus may differ depending on the situation.)

Channel Status Display icons

: A channel selected.

: A channel set as a Favorite.

)

: A reserved program.

(

: A program currently being broadcast.

Memorizing channels

Antenna (Switch to Cable / Switch to Air

)

Before your television can begin memorizing the available channels, you

must specify the type of signal source that is connected to the TV (i.e.

an or a system).Air Cable

Auto Program

✎When selecting the Cable TV system: Selects the cable system.

STD HRC IRC, and identify various types of cable TV systems.

Contact your local cable company to identify the type of cable

system that exists in your particular area. At this point, the signal

source has been selected.

✎After all the available channels are stored, it starts to remove

scrambled channels. The menu then reappears.Auto Program

✎Press the ENTER

button to stop the channel store during Auto

Program.

How to Stop Auto Programming

1. Press the ENTER

button.

2. Stop Auto Program?A message will ask . Select Yes by pressing

the or button.◄ ►

3. Press the ENTER

button.

Other Features

Clear Scrambled Channel

This function ﬁlters out scrambled channels after is Auto Program

completed. This process may take up to 20~30 minutes.

✎Press the ENTER

button to stop the Clear Scrambled

Channel.

✎This function is only available in mode. Cable

Channel List

Channel List Option Menu

OChannel List →

Set each channel using the menu options. Option menu Channel List

items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels you

want.

✎All deleted channels will be shown on the menu.All Channels

✎A gray-colored channel indicates the channel has been deleted.

✎The menu only appears for deleted channels.Add

✎Delete a channel from the or Added Channels Favorite

Channels menu in the same manner.

■

Add to Favorite / Delete from Favorite

: Set channels you

watch frequently as Favorites.

■

Timer Viewing: You can set a desired channel to be displayed

automatically at the set time; even when you are watching another

channel. Set the current time ﬁrst to use this function.

✎Only memorized channels can be reserved.

✎Reserved programs will be displayed in the menu.Programmed

✎When a digital channel is selected, press the ( ) ►Next Program

button to view the digital program. If you select the ENTER

( ) button on the next program, you can set Schedule Timer

Viewing directly.

■

Channel Name Edit: (analog channels only) Assign your own

channel name.

■

Select All: Select all the channels in the channel list.

■

Deselect All: Deselect all the selected channels.

■

Auto Program: Scans for a channel automatically and stores in the

TV.

Programmed

(in )Channel List

OChannel List Programmed → →

You can view, modify or delete a show you have reserved to watch.

■

Change Info: Change a show you have reserved to watch.

■

Cancel Schedules: Cancel a show you have reserved to watch.

■

Information: Display a show you have reserved to watch. (You can

also change the reservation Information.)

■

Select All / Deselect All: You can select or deselect all channels in

the channel list.

Channel Mode

Change the channel mode directly between and Added Channels

Favorite Channels.

✎The is enabled only when you set Favorite Channels Add to

Favorite.

Fine Tune

(analog channels only)

If the reception is clear, you do not have to ﬁne tune the channel, as this

is done automatically during the search and store operation. If the signal

is weak or distorted, ﬁne tune the channel manually.

✎Fine tuned channels that have been saved are marked with an

asterisk “*” on the right-hand side of the channel number in the

channel banner.

✎To reset the fine-tuning, select .Reset

Picture Menu

Mode

Select your preferred picture type.

✎When connecting a PC, you can only select and Entertain

Standard.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

■

Entertain: Suitable for watching movies and games.

✎Only available when connecting a PC.

Backlight / Contrast / Brightness / Sharpness /

Color / Tint (G/R)

Your television has several setting options for picture quality control.

✎When connecting a PC, you can only make changes to , Backlight

Contrast Brightness Sharpness, and .

Picture Options

✎When connecting a PC, you can only make changes to the Color

Tone Size HDMI Black Level, , and .

■

Color Tone: Adjusts the color tone. The color tone you select is

stored in the TV's memory. When you change the current picture

mode, the stored color tone is applied to the new picture mode

automatically.

✎Cool Standard Picture Mode and are only available when is set

to .Dynamic

■

Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use 16:9 mode

most of the time.

✎The menu is deactivated, when the H. 264 (1080p) DTV is being

played.

16:9: Sets the picture to 16:9 wide mode.

Zoom1: Use for moderate magniﬁcation.

Zoom2: Use for a stronger magniﬁcation.

Wide Fit: Enlarges the aspect ratio of the picture to ﬁt the entire

screen.

4:3: Sets the picture to basic (4:3) mode.

✎Do not watch in 4:3 format for a long time. Traces of borders

displayed on the left, right and center of the screen may cause

image retention (screen burn) which are not covered by the

warranty.

Screen Fit: (DTV) Displays the full image without any cut-off when

HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals

are inputted.

✎HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p

(1280x720)

✎Settings can be adjusted and stored for each external device you

have connected to an input on the TV.

✎Picture Sizes available by Input Source:

Input Source Picture Size

ATV, AV, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3

DTV (1080i), Component (1080i,

1080p), HDMI (720p, 1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit

Custom: Magniﬁes or shrinks 16:9 pictures vertically and/or

horizontally. A magniﬁed or shrunk picture can be moved left, right,

up, and down.

■

Digital Clean View: If the broadcast signal received by your TV is

weak, you can activate the feature to reduce any Digital Clean View

static and ghosting that may appear on the screen.

✎When the signal is weak, try other options until the best picture

is displayed.

■

HDMI Black Level: Selects the black level on the screen to adjust the

screen depth.

✎Available only in mode (RGB signals).HDMI

■

Film Mode: Sets the TV to automatically sense and process ﬁlm

signals from all sources and adjusts the picture for optimum quality.

✎Available in ATV, DTV(interlace), AV, COMPONENT (480i / 1080i)

and HDMI (480i / 1080i).

■

Motion Lighting (Off / On): Reduce power consumption by

brightness control adapted motion.

✎Available in mode only.Standard

Picture Off

Turns off the screen and plays audio through the speakers only. To turn

the screen back on, press any button other than the power and volume

buttons.

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently

selected mode to the default settings.

Sound Menu

Mode

■

Standard: Selects the normal sound mode.

■

Music: Emphasizes music over voices.

■

Movie: Provides the best sound for movies.

■

Clear Voice: Emphasizes voices over other sounds.

Equalizer

(standard sound mode only)

■

Balance L/R: Adjusts the balance between the right and left speaker.

■

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):

Adjusts the level of speciﬁc bandwidth frequencies.

■

Reset: Resets the equalizer to its default settings.

Preferred Language

(digital channels only)

Digital-TV broadcasts are capable of simultaneous transmission of many

audio tracks (for example, simultaneous translations of the program into

foreign languages).

✎You can only select a language from among the ones being

broadcasted.

Multi-Track Sound

(analog channels only)

■

Mono: Choose for channels that are broadcasting in mono or if you

are having difﬁculty receiving a stereo signal.

■

Stereo: Choose for channels that are broadcasting in stereo.

■

SAP: Choose to listen to the Separate Audio Program, which is

usually a foreign-language translation.

✎Depending on the program being broadcast, you can listen to

Mono, Stereo SAP or .

Auto Volume

Because each broadcasting station has its own signal conditions, the

volume may ﬂuctuate each time channel is changed. This feature lets

you automatically adjust the volume of the desired channel by lowering

the sound output when the modulation signal is high or by raising the

sound output when the modulation signal is low.

SPDIF Output

The SPDIF (Sony Philips Digital InterFace) outputs an uncompressed

digital audio signal when you connect the digital audio jack on the back

of the TV to a digital audio in jack on a receiver or home theater.

■

Audio Format: You can select the Digital Audio output (SPDIF)

format. The available Digital Audio output (SPDIF) format may differ

depending on the input source.

■

Audio Delay: Lets you correct timing mismatches between the audio

track and the video when you are watching the TV and listening to

digital audio output from the TV through an external device such as

an AV receiver. When you select , a slider appears. Use Audio Delay

the left and right arrow buttons to adjust the slider. Press ENTER

when done (0ms ~ 250ms).

Speaker Select

If you are listening to the sound track of a broadcast or movie through an

external receiver, you may hear a sound echo caused by the difference in

decoding speed between the TV’s speakers and the speakers attached

to your audio receiver. If this occurs, set the TV to .External Speaker

✎When you set to , the TV’s Speaker Select External Speaker

speakers are turned off. You will hear sound through the external

speakers only. When you set to Speaker Select TV Speaker

both the TV’s speakers and the external speakers are on. You will

hear sound through both.

✎When is set to , the Speaker Select External Speaker VOLUME

and buttons will not operate and the sound settings will MUTE

be limited.

✎If there is no video signal, both the TV’s speakers and the external

speakers will be mute.

Visual Impaired

(digital channels only)

Adds verbal description to the main audio to help the visually impaired.

Dolby Digital Comp

Set Dolby Digital compression mode.

TV Installation Type

This is the feature that set sound ﬁlter to ﬁt into the installation condition

of TV. Adjust TV sound to suit either stand or wall mount Installation.

HDMI Audio Format

You can select the HDMI Audio format. The available HDMI Audio format

may differ depending on the input source.

Sound Reset

■

Reset All: Resets all sound settings to the factory defaults.

Setup Menu

Language

Set the menu language.

✎Choose between , , and .English Español Français

Setting the Time

Time

✎The current time will appear every time you press the button.INFO

■

Clock: Setting the clock is for using various timer features of the TV.

✎If you disconnect the power cord, you have to set the clock again.

Clock Mode: Set the current time manually or automatically.

Clock Set Month Day Year Hour Minute am/pm: Set the , , , , and .

✎Available only when is set to .Clock Mode Manual

Time Zone: Select your time zone.

DST: (Daylight Saving Time) Switches the DST (Daylight Saving Time)

function on or off.

✎DST Time Zone Clock and function is only available when the

Mode Auto is set to .

■

Sleep Timer

Automatically shuts off the TV after a preset period of time. (30, 60,

90, 120, 150 and 180 minutes).

✎To cancel the , select .Sleep Timer Off

■

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the

clock ﬁrst.

On Time / Off Time: Set the hour, minute, am/pm and Activate /

Inactivate. (To activate the timer with the setting you have chosen, set

to .)Activate

Volume: Set the desired volume level.

Contents On Time: When the is activated, you can turn on a speciﬁc

channel or play back contents such as photo or audio ﬁles.

− TV/USB: Select or . (Make sure that an USB device is TV USB

connected to your TV.)

−Antenna: Displays the current antenna source.

−Channel: Select the desired channel.

− Music/Photo: Select the folder containing MP3/JPEG ﬁles on the

USB device.

✎The maximum displayed number of files, including sub folders, in

one folder of USB storage device is 1000.

✎The media may not be playing smoothly when using the device

lower than USB 2.0.

Repeat Once Everyday Mon~Fri Mon~Sat Sat~Sun: Select , , , , or

Manual Manual to set at you convenience. If you select , you can set

up the day you want to activate the timer.

Other Features

Game Mode

When connecting to a game console such as PlayStation™ or Xbox™,

you can enjoy a more realistic gaming experience by selecting the game

menu.

✎Precautions and limitations for game mode

xTo disconnect the game console and connect another external

device, set to in the setup menu.Game Mode Off

xIf you display the TV menu in , the screen shakes Game Mode

slightly.

xGame Mode TV is not available when the input source is set to .

xAfter connecting the game console, set to . Game Mode On

Unfortunately, you may notice reduced picture quality.

LED TV

user manual

Changing the Input Source

Source List

Use to select TV or an external input source such as a DVD player / Blu-

ray player / cable box / STB satellite receiver.

1. Press the SOURCE button.

2. Select a desired external input source.

■

TV / AV / Component / HDMI1 / HDMI2/DVI

✎You can only choose external devices that are connected to the TV.

In the , connected inputs will be highlighted.Source List

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access , press the button in . Name the Edit Name TOOLS Source List

device connected to the input jacks to make your input source selection

easier.

✎When connecting a PC to the port with HDMI cable, HDMI IN 2(DVI)

you should set the TV to mode under .PC Edit Name

✎When connecting a PC to the port with HDMI HDMI IN 2(DVI)

to DVI cable, you should set the TV to mode under DVI PC Edit

Name.

✎When connecting an AV devices to the port with HDMI IN 2(DVI)

HDMI to DVI cable, you should set the TV to mode under DVI Edit

Name.

Information

You can see detailed information about the connected external device.

Warning! Important Safety Instructions

Please read the safety instructions below before installing and using the product.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). THERE

ARE NO USER SERVICEABLE PARTS INSIDE. REFER

ALL SERVICING TO QUALIFIED PERSONNEL.

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

yThe slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to

protect it from overheating, these slots and openings must never be blocked or covered.

- Do not cover the slots and openings with a cloth or other materials.

- Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

- Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

yDo not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

yDo not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of ﬁre or electric shock.

yDo not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool

etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately.

yMake sure to pull out the power cord from the outlet before cleaning.

yThis apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect the environment.

Please contact your local authorities for disposal or recycling information.

yDo not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in ﬁre or electric shock.

yPower-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords

at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.

yTo protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the

antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

yBefore connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.

(depending on the model)

yNever insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

yTo avoid electric shock, never touch the inside of this apparatus. Only a qualiﬁed technician should open this apparatus.

yMake sure to plug the power cord in until it is ﬁrmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do not touch the power

cord with wet hands.

yIf this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized

dealer or service center.

yBe sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially when

children, elderly or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat, or cause the insulation to

deteriorate.

yBe sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substances

or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious damage to your set.

yUse only a properly grounded plug and receptacle.

- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

yTo turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily accessible at all times.

yDo not allow children to hang onto the product.

yStore the accessories (batteries, etc.) in a location safely out of the reach of children.

yDo not install the product in an unstable location such as a shaky self, a slanted ﬂoor, or a location exposed to vibration.

yDo not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

yTo clean the product, unplug the power cord from the power outlet and wipe the product using a soft cloth dipped in a small amount of water. Do not use any

chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the

product.

yDo not expose the apparatus to dripping or splashing.

yDo not dispose of batteries in a ﬁre.

yDo not short circuit, disassemble, or overheat the batteries.

yThere is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.

yWhen using the AC plug that is a dedicated adapter plug provided from Samsung, pay attention to the following:

yInsert the AC plug into the adapter until a "click" sound is heard.

yNever remove the AC plug after insertion. (Cannot be removed)

yDo not insert only the AC plug into an outlet.

yDo not use the provided AC plug with other devices.

yDo not insert plugs other than the provided AC plug into the adapter.

yWhen removing the adapter from an outlet, pull its body vertically.

yDo not insert the adapter into the outlet on the ceiling.

yDo not drop objects or apply shock on the adapter.

yDo not rotate it over the range indicated on the adapter.

yIt may cause electric shock or ﬁre.

yRemove the vinyl cover of the adapter before using the adapter. Otherwise, this may result ﬁre.

yWARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

-02

Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and speciﬁcations

may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such

as TV channel logos, panorama or 4:3 image format, stock or news bars at screen

bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of

LED screen, which will affect image quality. To reduce risk of this effect, please follow

below recommendations:

yAvoid displaying the same TV channel for long periods.

yAlways try to display any image on full screen, use TV set picture format menu for

best possible match.

yReduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

yFrequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to

ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in

the internal temperature of the product.

✎When using a stand or wall-mount, use parts provided by Samsung Electronics

only.

• If you use parts provided by another manufacturer, it may result in a problem

with the product or an injury due to the product falling.

✎The appearance may differ depending on the product.

✎Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

4inches

4inches4inches

4inches

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact

the SAMSUNG customer care center.

Country Customer Care Center Web Site

MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com/mx/support

Dirección: General Mariano Escobedo 476 Piso 8 Col.

Anzures Miguel Hidalgo, Ciudad de México CP 11590

ARGENTINE 0800-555-SAMSUNG(7267) www.samsung.com.ar

URUGUAY 0800-SAMS(7267) www.samsung.com/uy

PARAGUAY 0800-11-SAMS(7267) www.samsung.com/py

BRAZIL 0800-124-421 (Demais cidades

e regiões)

4004-0000 (Capitais e grandes

centros)

www.samsung.com/br/support

CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl/support

BOLIVIA 800-10-7260 www.samsung.com/cl/support

COLOMBIA Bogotá en el 600 12 72

Sin costo en todo el pais 01

8000 112 112

Y desde tu celular #726

www.samsung.com/co/support

COSTA RICA 00-800-1-SAMSUNG

(726-7864) www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

DOMINICAN

REPUBLIC 1-800-751-2676 www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

ECUADOR 1-800-SAMSUNG (72-6786) www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

EL SALVADOR 8000-SAMSUNG (726-7864) www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

GUATEMALA 1-800-299-0033 www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

HONDURAS 800-2791-9111 www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

JAMAICA 1-800-SAMSUNG (726-7864) www.samsung.com/latin_en/support (English)

NICARAGUA 001-800-5077267 www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

PANAMA 800-0101 www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

PERU 080077708 Desde teléfonos

ﬁjos ó públicos

7116800 Desde teléfonos

celulares

www.samsung.com/pe/support

PUERTO RICO 1-800-682-3180 www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

TRINIDAD &

TOBAGO 1-800-SAMSUNG (726-7864) www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

VENEZUELA 0-800-SAMSUNG (726-7864) www.samsung.com/latin/support (Spanish)

www.samsung.com/latin_en/support (English)

(Sólo Mexico)

IMPORTADO POR : SAMSUNG ELECTRONICS MÉXICO S.A. DE C.V.

GENERAL MARIANO ESCOBEDO 476 PISO 8

COL. ANZURES, DELEGACIÓN MIGUEL HIDALGO MÉXICO, DISTRITO

FEDERAL C.P. 11590

TEL : 01 (55) 5747-5100 / 01 800 726 7864

yRemote Control & Batteries (AAA x 2)

yWarranty Card / Regulatory Guide

yAC PLUG-CONVERSION (Depending on the country and model)

yPower Cord (Depending on the country and model)

yOwner’s Instructions

Display Modes (HDMI/DVI Input)

Optimal resolution

4 series 5 series: 1366 x 768@60Hz / :1920 x 1080@60Hz

Mode Resolution Horizontal

Frequency

(KHz)

Vertical

Frequency

(Hz)

Pixel Clock

Frequency

(MHz)

Sync

Polarity

(H / V) 1366 x 768 1920 x 1080

IBM 640 x 350 31.469 70.086 25.175 +/-

720 x 400 31.469 70.087 28.322 -/+

c c

MAC

640 x 480 35.000 66.667 30.240 -/-

c c

832 x 624 49.726 74.551 57.284 -/-

c c

1152 x 870 68.681 75.062 100.000 -/-

VESA

DMT

640 x 480 31.469 59.940 25.175 -/-

c c

640 x 480 37.861 72.809 31.500 -/-

c c

640 x 480 37.500 75.000 31.500 -/-

c c

800 x 600 37.879 60.317 40.000 +/+

c c

800 x 600 48.077 72.188 50.000 +/+

c c

800 x 600 46.875 75.000 49.500 +/+

c c

1024 x 768 48.363 60.004 65.000 -/-

c c

1024 x 768 56.476 70.069 75.000 -/-

c c

1024 x 768 60.023 75.029 78.750 +/+

c c

1152 x 864 67.500 75.000 108.000 +/+

1280 x 720 45.000 60.000 74.250 +/+

c c

1280 x 800 49.702 59.810 83.500 -/+

1280 x 1024 63.981 60.020 108.000 +/+

1280 x 1024 79.976 75.025 135.000 +/+

1366 x 768 47.712 59.790 85.500 +/+

c c

1440 x 900 55.935 59.887 106.500 -/+

1600 x 900RB 60.000 60.000 108.000 +/+

1680 x 1050 65.290 59.954 146.250 -/+

1920 x 1080 67.500 60.000 148.500 +/+

Installing batteries (Battery size: AAA)

✎NOTE

• Use the remote control within 23 feet from TV.

• Bright light may affect the performance of the remote control.

Avoid use when nearby ﬂuorescent lights or neon signs.

• The Color and shape may vary depending on the model.

Remote Control

✎The button names above may differ from the actual names.

✎Some buttons on the remote control may not be available.

✎This remote control has Braille points on the Power, Channel, Volume, and Enter buttons and can be used by visually impaired persons.

Press to select additional channels (digital) being

broadcasted by the same station. For example, to

select channel ‘54-3’, press ‘54’, then press ‘-’ and ‘3’.

Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a speciﬁc feature.

E-MANUAL: Not available.

PIC SIZE: Lets you choose the picture size.

: Turns the on or off.Soccer Mode

Cuts off the sound temporarily.

Not available.

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the direction

on screen.

Changes channels.

Displays the main on-screen menu.

Views the .Media Play

Adjusts the volume.

- 2 -

- 6 -- 5 -

- 3 -

- 7 -

- 4 -

- 8 -

- 1 -

K4100_K5100_ZX_BN68-07696U-02_Eng.indb 1 2016-07-14 오후 2:42:01

Application Menu

Using the Media Play

Enjoy photos, music and/or movie ﬁles saved on a USB

Mass Storage Class (MSC) device.

Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁles to

the jack on the side of the TV.USB

3. When USB is connected to the TV, you can select Media Play (USB)

in menu.Applications

Using the Media Play Menu

1. Press the MENU button. Press the or button to select ▲ ▼

Applications, then press the ENTER

button.

2. Media Play (USB)Press the or button to select ▲ ▼ , then press the

ENTER

button.

3. Videos, Music, Photos, Press the or button to select an icon (◄ ►

Settings), then press the ENTER

button.

✎It might not work properly with unlicensed multimedia files.

✎Need-to-Know List before using Media Play (USB)

xSupported file systems are FAT and NTFS.

xCertain types of USB Digital camera and audio devices may not

be compatible with this TV.

xMedia Play only supports USB Mass Storage Class (MSC)

devices. MSC is a Mass Storage Class Bulk-Only Transport

device. Examples of MSC are Thumb drives and Flash Card

Readers. Devices should be connected directly to the TV’s USB

port. USB HDD is not supported.

xBefore connecting your device to the TV, please back up your files

to prevent them from damage or loss of data. SAMSUNG is not

responsible for any data file damage or data loss.

xA USB device that requires high power (more than 0.5A) may not

be supported.

xDo not disconnect the USB device while it is loading.

xThe higher the resolution of the image, the longer it takes to

display on the screen.

xThe maximum supported JPEG resolution is 15360 x 8640 pixels.

xIf a file is corrupted or the TV does not support the file type, the

“Not Supported File Format” message appears.

xThe TV cannot play MP3 files with DRM that have been

downloaded from a for-pay site. Digital Rights Management

(DRM) is a technology that supports the creation, distribution,

and management of digital content in an integrated and

comprehensive way, including protecting the rights and interests

of content providers, preventing illegal copying of contents, and

managing billings and settlements.

xPTP device is not supported.

xIf an over-power warning message is displayed while you are

connecting or using a USB device, the device may not be

recognized or may malfunction.

xIf the TV has no input during the time set in Auto Protection

Time, the Screensaver will run.

xThe power-saving mode of some external hard disk drives may be

released automatically when your connect them to the TV.

xIf you use a USB extension cable, the TV may not recognize the

USB device or may not be able to read the files on the device.

xIf a USB device connected to the TV is not recognized, the list of

files on the device is corrupted, or a file in the list is not played,

connect the USB device to a PC, format the device, and check

the connection.

xIf a file you deleted from the PC is still found when you run Media

Play, use the “Empty the Recycle Bin” function on the PC to

permanently delete the file.

xPhotos only supports sequential jpeg format.

xThe scene search and thumbnail functions are not supported in

the . Videos

xIf the number of files and folders saved on a USB storage device is

approximately over 4000, the files and folders may not appear and

some folders may not be opened.

xThe maximum displayed number of files, including sub folders, in

one folder of USB storage device is 1000.

xThe media may not be playing smoothly when using the device

lower than USB 2.0.

Videos

1. VideosPress the buttons to select ◄/► , then press the ENTER

button in the menu.Media Play

2. Press the buttons to select the desired video in the ﬁle ◄/►/▲/▼

list.

3. Press the ENTER

button or

∆

(Play) button.

- The selected file is displayed on the top with its playing time.

- If video time information is unknown, playing time and the progress

bar are not displayed.

- During video playback, you can search using the buttons.◄/►

✎In this mode, you can play movie clips contained in a game, but you

cannot play the game itself.

ySupported Subtitle Formats

- External

Name File extension

MPEG-4 timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

- Internal

Name Container Format

Xsub Picture FormatAVI

SubStation Alpha MKV Text Format

Advanced SubStation Alpha MKV Text Format

SubRip MKV Text Format

MPEG-4 Timed text MP4 Text Format

ySupported Video Formats

File

Extension Container ResolutionVideo Codec Frame

rate(fps) Bit rate

(Mbps) Audio

Codec

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.mov

*.3gp

*.vro

*.mpg

*.mpeg

*.ts

*.tp

*.trp

*.mov

*.ﬂv

*.vob

*.svi

*.divx

AVI

MKV

ASF

MP4

3GP

MOV

FLV

VRO

VOB

Motion JPEG 640x480

MAX 30

Dolby Digital

LPCM

ADPCM

(IMA, MS)

AAC

HE-AAC

WMA

Dolby Digital

Plus

MPEG(MP3)

DTS (Core ,

LBR)

G.711(A-

Law, μ-Law)

H.264 BP/

MP/HP

1920x1080 30

H. 264 BP /

MP / HP

Divx 3.11 / 4

/ 5 / 6

MPEG4 SP/

ASP

Window

Media Video

v9(VC1)

MPEG2

MPEG1

*.webm WebM VP8 1920x1080 6~30 20 Vorbis

The picture is black and white. If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.

When changing channels, the picture

freezes or is distorted or delayed.

yIf connected to a cable box, please try to reset it. (Reconnect the AC cord and wait until the cable box reboots. It may take

up to 20 minutes)

ySet the output resolution of the cable box to 1080i or 720p.

Sound Problem Sound TestFirst of all, please perform the to conﬁrm that your TV audio is properly operating.

(Go to - MENU Support - Self Diagnosis - Sound Test)

If the audio is OK, the sound problem may caused by the source or signal.

There is no sound or the sound is too low at

maximum volume.

Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray, etc.) connected to your TV.

The picture is good but there is no sound. yIf you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s

audio option to HDMI when you have a HDMI connected to your TV).

yReboot the connected device by reconnecting the device’s power cable.

The speakers are making an inappropriate

noise.

yCheck the cable connections. Make sure a video cable is not connected to an audio input.

yFor Antenna or Cable connections, check the signal information. A weak signal may cause sound distortion.

yPerform the Sound Test as explained above.

No Picture, No Video

The TV will not turn on. yMake sure the AC power cord is securely plugged into the wall outlet and the TV.

yMake sure the wall outlet is working.

yTry pressing the button on the TV to make sure the problem is not the remote. POWER

If the TV turns on, refer to ‘Remote control does not work’ below.

The TV turns off automatically. yEnsure the is set to in the menu.Sleep Timer Off Time

yIf your PC is connected to the TV, check your PC power settings.

yMake sure the AC power cord is plugged in securely to the wall outlet and the TV.

yWhen you are watching TV connected to an antenna or cable connection, the TV will turn off after 10 - 15 minutes if there

is no signal.

There is no picture/video. yCheck the cable connections. (Remove and reconnect all cables connected to the TV and external devices).

ySet your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For

example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

yMake sure your connected devices are powered on.

yBe sure to select the TV’s correct source by pressing the button on the remote control.SOURCE

yReboot the connected device by reconnecting the device’s power cable.

RF(Cable/Antenna) Connection

The TV is not receiving all channels. yMake sure the coaxial cable is connected securely.

yPlease try Auto Program to add available channels to the channel list.

go to - - then select and make sure the correct Cable TV signal type is set in the MENU Channel Auto Program Auto

menu. There are 3 options. ( , and )STD HRC IRC

yVerify the antenna is positioned correctly.

No Caption on digital channels. yCheck the Caption Setup menu. Try changing to .Caption Mode Service1 CC1

ySome channels may not have caption data.

The picture is distorted: macroblock, error,

small block, dots, pixelization.

yCompression of video contents may cause picture distortion. Especially on fast moving pictures such as sports and action

movies.

yA weak signal can cause picture distortion. This is not a TV problem.

Others

Purple/green rolling horizontal bars and

buzzing noise from the TV speakers with

Component cable connection.

Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates that the set-top-box has

a grounding issue. Replace the Component video cables with an HDMI connection.

The picture will not display in full screen. yHD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents.

yBlack bars on the Top & Bottom will be shown on movies that have aspect ratios different from your TV.

yAdjust the picture size option on your external device or change the TV to full screen.

The remote control does not work. yReplace the remote control batteries with correct polarity (+/–).

yClean the transmission window located on the top of the remote control.

yTry pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control

does not turn the TV on or off, or adjust

the volume.

Program the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set top box user manual for the

SAMSUNG TV code.

A “ ” message Mode Not Supported

appears.

Check the supported resolution of the TV and adjust the external device’s output resolution accordingly. Refer to resolution

settings in this manual.

Caption on the TV menu is greyed out. yYou cannot select in the TV menu when watching content from a device connected via HDMI or Component.Caption

yCaption must be activated on the external device.

There is a plastic smell from the TV. This smell is normal and will dissipate over time.

Other Restrictions

xCodecs may not function properly if there is a problem with the content.

xVideo content does not play or does not play correctly if there is an

error in the content or container.

xSound or video may not work if they have standard bit rates/frame

rates above the TV’s compatibility ratings.

xIf the Index Table is has an error, the Seek (Jump) function will not work.

xWhen playing video over a network connection, the video may not play

smoothly because of data transmission speeds.

xSome USB/digital camera devices may not be compatible with the TV.

xWhile the TV is playing a video at the bit rate of 10 Mbps or higher, the

menu screens may be displayed slowly.

Video Decoder

Supports up to H.264, Level 4.1

H.264 FMO / ASO / RS, VC1 / AP L4 are not supported.

GMC 2 or above is not supported.

Audio Decoder

WMA 10 Pro supports up to 5.1 channels. Supports up to the M2

proﬁle. WMA lossless audio is not supported.

QCELP and AMR NB/WB are not supported.

Vorbis is supported for up to 2 channels.

Dolby Digital Plus is supported for up to 5.1 channels.

The DTS LBR codec is only available for MKV / MP4 /TS containers.

Music

1. MusicPress the buttons to select ◄/► , then press the ENTER

button in the menu.Media Play

2. Press the buttons to select the desired Music in the ﬁle ◄/►/▲/▼

list.

3. Press the ENTER

button or (Play) button.

✎During music playback, you can search using the buttons.◄/►

✎ (REW) and (FF) buttons do not function during play.

✎Only displays the files with MP3 file extensions. Other file extensions

are not displayed, even if they are saved on the same USB device.

✎If the sound is abnormal when playing MP3 files, adjust the

Equalizer Sound in the menu. (An over-modulated MP3 file may

cause a sound problem.)

Photos

1. PhotosPress the buttons to select ◄/► , then press the ENTER

button in the menu.Media Play

2. Press the buttons to select the desired photo in the ﬁle ◄/►/▲/▼

list.

3. Press the ENTER

button or (Play) button.

✎NOTE

- While a photo list is displayed, press the (Play) / ENTER

button on the remote control to start the slide show.

- All files in the file list section will be displayed in the slide show.

- During the slide show, files are displayed in order.

- During the slide show, you can adjust the slide show speed using

(REW) or (FF) button.

- You can move to other file using the buttons.◄/►

ySupported Photo Formats

Image Photo Resolution

JPEG Base-line 15360 x 8704

Progressive 1024 x 768

Other Restrictions

CMYK and YCCK Color space JPEGs are not supported.

Playing Multiple Files

■

Playing selected video/music/photo ﬁles

1. Press the Yellow button in the ﬁle list to select the desired ﬁle.

2. Repeat the above operation to select multiple ﬁles.

✎NOTE

- The

mark appears to the left of the selected files.

- To cancel a selection, press the Yellow button again.

- To deselect all selected files, press the button and select TOOLS

Deselect All.

3. Play Selected ContentsPress the TOOLS button, and then select .

■

Playing the video/music/photo ﬁle group

1. While a ﬁle list is displayed, move to any ﬁle in desired group.

2. Play FolderPress the TOOLS button, and then select .

Media Play - Additional Functions

■

Videos/Music/Photos Play Option menus

When playing a ﬁle, press the button.TOOLS

Category Operation Videos Music Photos

Title You can move the other ﬁle

directly.

Repeat Mode You can play movie and music ﬁles

repeatedly.

c c

Picture Size You can adjust the picture size to

your preference.

Picture Mode You can adjust the picture setting.

c c

Sound Mode You can adjust the sound setting.

ccc

Subtitle Settings

You can play the video with

Subtitles. This function only works

if the subtitles are the same ﬁle

name as the video.

Audio Format You can select the digital audio

output format.

Audio Language

You can change the audio

language if the video has more

than one language.

Stop Slide

Show /

Start Slide Show

You can start or stop a Slide Show.

Slide Show

Speed

You can select the slide show

speed during the slide show.

Background

Music

You can set and select

background music when watching

a Slide Show.

Zoom You can zoom into images in full

screen mode.

Rotate You can rotate images in full

screen mode.

Information You can see detailed information

about the played ﬁle.

ccc

All care protection

1. All care protection will update Picture quality every 5,000 hours.

2. All care protection popup menu will show every 5,000 hours, Max 3

times (5,000/10,000/15,000 hours.)

3. The notiﬁcation or popup menu will be closed by timeout (30 sec.) or

selecting any key on the remote except power key.

✎When user turns the power off and then on again, popup menu

for requesting update is provided again.

✎Popup menu is provided only 3 times including initial popup

menu.

✎Popup menu will show only at TV on time.

Using the Soccer Mode

Soccer Mode

This mode provides optimised condition for watching sports games.

✎When the is , the picture and sound modes are Soccer Mode On

set to automatically.Stadium

Other Information

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the

wall.

For detailed information on installing the wall mount, see the instructions

provided with the wall mount items. Contact a technician for assistance

when installing the wall mount bracket. Samsung Electronics is not

responsible for any damage to the product or injury to yourself or others

if you elect to install the wall mount on your own.

Wall

mount

bracket

Wall Mount Kit Speciﬁcations (VESA)

✎The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the ﬂoor. When

attaching to other building materials, please contact your nearest dealer.

If you install the TV on a ceiling or slanted wall, it may fall and result in

severe personal injury.

✎NOTE

xStandard dimensions for wall mount kits are shown in the table

below.

xWhen purchasing our wall mount kit, a detailed installation manual

and all parts necessary for assembly are provided.

xDo not use screws that do not comply with the VESA standard

screw specifications.

xDo not use screws that are longer than the standard dimension

or do not comply with the VESA standard screw specifications.

Screws that are too long may cause damage to the inside of the

TV set.

xFor wall mounts that do not comply with the VESA standard screw

specifications, the length of the screws may differ depending on

the wall mount specifications.

xDo not fasten the screws too firmly. This may damage the product

or cause the product to fall, leading to personal injury. Samsung is

not liable for these kinds of accidents.

xSamsung is not liable for product damage or personal injury when

a non-VESA or non-specified wall mount is used or the consumer

fails to follow the product installation instructions.

xDo not mount the TV at more than a 15 degree tilt.

xAlways have two people mount the TV on a wall.

Standard dimensions for wall mount kits are shown in the table below.

If you are installing a third-party wall mount, note that the length of the

screws you can use to attach the TV to the wall mount is shown in

column C in the table below.

Product

Family

TV size in

inches

VESA screw hole

specs (A * B) in

millimeters

C (mm) Standard

Screw Quantity

LED-TV

32 100 x 100

19 – 20

40 – 55 200 x 200 M8

Do not install your Wall Mount Kit while

your TV is turned on. It may result in

personal injury due to electric shock.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing onto the TV may cause

the TV to fall. In particular, ensure that your children do not

hang over or destabilize the TV; doing so may cause the TV

to tip over, resulting in serious injuries or death. Follow all

safety precautions provided on the included Safety Flyer. For

added stability, install the anti-fall device for safety purposes,

as follows.

✎When you have to relocate or lift the TV for replacement or cleaning,

be sure not to pull out the stand.

To prevent the TV from falling

✎Since the necessary clamps, screws, and string are not supplied,

please purchase these additionally.

1. Drive the screws into the clamps and ﬁrmly fasten them onto the wall.

Make sure the screws are ﬁrmly ﬁxed into the wall.

2. Remove the screws from the back center of the TV, put the screws

into the clamps, and then fasten the screws onto the TV again.

3. Connect the clamps ﬁxed onto the TV and the clamps ﬁxed onto the

wall with a strong cable and then tie the string tightly.

✎Verify all connections are properly secured. Periodically check the

connections for any sign of fatigue or failure. If you have any doubt

about the security of your connections, contact a professional

installer.

✎Install the TV close to the wall so that it does not fall.

✎It is safe to connect the string so that the clamps fixed on the wall

are equal to or lower than the clamps fixed on the TV. Untie the

string before moving the TV.

Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used

to physically ﬁx the system when using it in a public place. Refer to the

manual provided with the Kensington Lock for additional information on

proper use.

✎Please find a “

” icon on the rear of the TV. The Kensington slot is

beside the “

” icon.

✎The position and color may differ depending on the model.

Program Rating Lock

The feature automatically locks out programs Program Rating Lock

that are deemed inappropriate for children. The user must enter a PIN

(personal identiﬁcation number) before any of the Program Rating Lock

restrictions are set up or changed.

✎Program Rating Lock HDMI Component is not available in or

mode.

✎The default PIN number of a new TV set is “0-0-0-0”.

■

Program Rating Lock: You can block rated TV Programs.

■

TV Parental Guidelines: You can block TV programs depending on

their rating. This function allows you to control what your children are

watching.

■

MPAA Rating: You can block movies depending on their MPAA

rating. The Motion Picture Association of America (MPAA) has

implemented a rating system that provides parents or guardians with

advanced information on which ﬁlms are appropriate for children.

■

Canadian English: You can block TV programs depending on their

Anglophone Canadian.

■

Canadian French: You can block TV programs depending on their

French Canadian rating.

■

Downloadable U.S. Rating: Parental restriction information can be

used while watching DTV channels.

■

Change PIN: The Change PIN screen will appear. Choose any 4 digits

for your PIN and enter it in . Re-enter the same 4 digits Enter New PIN

in . When the Change PIN screen disappears, press Conﬁrm New PIN

the OK button. The TV has memorized your new PIN.

✎If you forget the PIN, press the remote-control buttons in the

following sequence, which resets the pin to “0-0-0-0” : POWER

(off) 8 2 4 (on)→MUTE →→→→POWER

Caption

(On-Screen Text Messages)

■

Caption: You can switch the caption function on or off. If captions are

not available, they will not be displayed on the screen.

✎The feature does not work in or Caption Component HDMI

mode.

■

Caption Mode: You can select the desired caption mode.

Default / CC1~CC4 / Text1~Text4: (analog channels only) The

Analog Caption function operates in either analog TV channel mode

or when a signal is supplied from an external device to the TV.

(Depending on the broadcasting signal, the Analog Caption function

may or may not work with digital channels.)

Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital

channels only) The Digital Captions function works with digital

channels.

✎Service1~6 may not be available in digital caption mode

depending on the broadcast.

■

Digital Caption Options: (digital channels only)

Size: Options include Default, Small, Standard and Large. The default

is Standard.

Font Style: Options include Default and Styles 0 to 7. The default is

Style 0.

Foreground Color: Options include Default, White, Black, Red,

Green, Blue, Yellow, Magenta and Cyan.

You can change the color of the letter. The default is White.

Background Color: Options include Default, White, Black, Red,

Green, Blue, Yellow, Magenta and Cyan. You can change the

background color of the caption. The default is Black.

Foreground Opacity: This adjusts the opacity of text. Options include

Default, Transparent, Translucent, Solid and Flashing.

Background Opacity: This adjusts the opacity of the caption

background. Options include Default, Transparent, Translucent, Solid

and Flashing.

Return to Default: This option sets each Size, Font Style, Foreground

Color, Background Color, Foreground Opacity and Background

Opacity to its default.

✎Digital Caption Options Default are available only when and

Service1~Service6 Caption Mode can be selected in .

✎The Foreground and Background cannot be set to have the same

color.

Boot Logo

Enable/disable displaying the logo while the TV starts up.

Eco Solution

■

Energy Saving: This adjust the brightness of the TV in order to

reduce power consumption.

■

Eco Sensor: (Depending on the country and model) To enhance your

power savings the picture settings will automatically adapt to the light

in the room.

✎This function may not be available, depending on the model.

✎If you adjust the , the will be set to .Backlight Eco Sensor Off

Min. Backlight Eco Sensor On: When is , the minimum screen

brightness can be adjusted manually.

✎If is , the display brightness may change (become Eco Sensor On

slightly darker in most cases) depending on the surrounding light

intensity.

■

No Signal Power Off : Sets how quickly the TV switches to standby

mode, if no picture is being received.

✎Disabled when the PC is in power saving mode.

■

Auto Power Off: The TV will be automatically turned off when no user

operation is received for 4 hours.

Auto Protection Time

If the screen remains idle with a still image for a certain period of

time deﬁned by the user, the screen saver is activated to prevent the

formation of ghost images on the screen.

Support Menu

Self Diagnosis

■

Picture Test: Use to check for picture problems. If the problem

continues to occur, check the color pattern.

■

Sound Test: Use the built-in melody sound to check for sound

problems.

■

Signal Strength: (digital channels only) An HD channel’s reception

quality is either perfect or the channels are unavailable. Adjust your

antenna to increase signal strength.

■

Reset: Reset all settings to the factory defaults.

✎The PIN input screen appears before the setup screen.

✎Enter your 4-digit PIN. Change the PIN using the Change PIN

option.

Software Upgrade

Software Upgrade can be performed by downloading the latest

ﬁrmware from samsung.com to a USB memory device.

Use Mode

You can turn the TV into a display model for retail environments by

setting Use Mode to .Store Demo

✎For all other uses, select .Home Use

✎With , some functions are disabled, and the TV Store Demo

automatically resets itself after a preset amount of time.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you

want to upgrade the software. You can ﬁnd information regarding our call

centers and how to download products and software.

Troubleshooting

If the TV seems to have a problem, ﬁrst review this list of possible problems and solutions. If none of these troubleshooting tips apply, visit samsung.

com, then click on Support, or call Samsung customer service.

Problem Possible Solution

Flickering and Dimming If your Samsung Television is ﬂickering or dimming sporadically, you may need to disable some of its energy efﬁcient features

like the feature. If you follow below step with your remote, you can turn these features off or on.Energy Saving

yEnergy Saving Setup Eco Solution Energy Saving : MENU → → →

yEco Sensor : Setup Eco Solution Eco SensorMENU → → →

✎This function may not be available, depending on the model.

Component Connections /

Screen Color

If you ﬁnd that the color on your Samsung television’s screen is not correct or black and White, ﬁrst run a on Self Diagnosis

the TV to make sure there are no device issues.

ySelf Diagnosis Support Self Diagnosis Picture Test : MENU → → →

If the test is ok, try making sure:

yYour connections are all consistent. For example, if you’ve used the AV In jack on your TV, make sure you have used the AV

Out jack on your video source.

yTry making sure you have connected to the correct jacks. For example, if you use the Component jacks, labeled Pb, Pr, and

Y, to connect your TV and video source, make sure you have connected the blue Pb jack on the video source to the blue Pb

jack on the TV, the red Pr jack on the source to the red Pr jack on the TV.

Screen Brightness If you ﬁnd that the colors on your Samsung TV are correct but just a little too dark or bright, there are some settings you

should check before calling for a repair.

yBacklight Contrast Brightness Sharpness Color Tint (G/R) Picture, , , , , and so on. Go in to “ ” on user Menu then try

adjusting options mentioned above.

Unwanted Powering off If your Samsung TV appears to turn off by itself, there may be an issue with either your Timer settings or your Eco friendly No

Signal Power Off feature.

First make sure you is not accidentally set. The sleep timer allows you the comfort of falling asleep with the TV Sleep Timer

still on but, turns it off after a certain period of time so as not to waste energy.

ySleep Timer Setup Time Sleep Timer : MENU → → →

If the Sleep Timer is not activated, you may have engaged the or feature.No Signal Power Off Auto Power Off

yNo Signal Power Off Setup Eco Solution No Signal Power Off : MENU → → →

yAuto Power Off Setup Eco Solution Auto Power Off : MENU → → →

Trouble Powering On Before Turn on check red light on the right or left bottom of your TV. Press power on button on TV or remote and it

will blink about 5 times before turning on.

If you ﬁnd that you are having trouble powering on your Samsung television, there are a number of things to check before

making a call to the service department.

yIf you happen to be using the TV as a monitor and the stand-by light only blinks for a few seconds when you press the

power button, your PC is in sleep mode. To take your PC out of sleep mode, press a key on your keyboard or move the

mouse. Then try turning your TV on.

If you’re sure your power cord, remote control, and PC are functioning properly, you may be having a cable issue. If you have

a cable or satellite box, your TV may appear to be off because the cable or satellite box is not outputting a signal. To test the

signal output of your cable or satellite box, press the guide or info button on the cable or satellite box remote control. If the

screen displays the guide or info data, the problem is caused by the box.

Stand Assembly If you have any trouble to assemble the stand though you refer to “Install the Stand” mentioned at separate guide.

Cannot ﬁnd channel Re-run plug and play.

Poor picture Picture TestFirst, perform the and to see if your TV is properly displaying the test image.

Go to - - - MENU Support Self Diagnosis Picture Test

If the test image is properly displayed, the poor picture may be caused by the source or signal.

The TV image does not look as good as it

did in the store.

If you have an analog cable/satellite box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high

deﬁnition) picture quality.

Cable/Satellite subscribers: Try HD channels from the channel line up.

Air/Cable Antenna connection: Try HD channels after performing Auto program.

✎Many HD channels are up scaled from SD(Standard Definition) contents.

yAdjust the Cable/Set top box video output resolution to 1080i or 720p.

The picture is distorted: macroblock error,

small block, dots, pixelization.

yCompression of video contents may cause picture distortion, especially on fast moving pictures such as sports and action

movies.

yA weak signal can cause picture distortion. This is not a TV problem.

yMobile phones used close to the TV (within 3.3ft) may cause noise in the picture on analog and digital channels.

Color is wrong or missing. If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or

loose connections may cause color problems or a blank screen.

There is poor color or brightness. yAdjust the Picture options in the TV menu. (Go to )Picture Mode / Color / Brightness / Sharpness

yAdjust the option in the TV menu. (Go to - - - )Energy Saving MENU Setup Eco Solution Energy Saving

yTry resetting the picture to view the default picture setting. (Go to - )MENU Picture - Picture Reset

There is a dotted line on the edge of the

screen.

yIf the picture size is set to , change it to 16:9.Screen Fit

yChange the cable/satellite box resolution.

TV is unavailable in the Signal Strength Self

Diagnosis Test menu.

This function is only available for digital channels from an Antenna / RF / Coax connection.

TV is tilted to the right or left side. Remove the stand base from the TV and reassemble it.

The menu is greyed out Channel

(unavailable).

The menu is only available when you select the TV source. Channel

Your settings are lost after 30 minutes or

every time the TV is turned off.

If TV is in the mode, it will reset audio and picture settings every 30 minutes. Please change from Store Demo Store Demo

mode to mode using the procedure. Press the button to select TV mode, go to Home Use Plug & Play SOURCE MENU →

Setup Plug & Play → →ENTER

You have intermittent loss of audio or video. Check the cable connections and reconnect them.

Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are ﬂexible enough for long

term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

You see small particles when you look

closely at the edge of the frame of the TV.

This is part of the product’s design and is not a defect.

POP (TV’s internal banner ad) appears on

the screen.

Select under mode. For details, refer to (Initial Setup).Home Use Plug & Play Plug & Play

✎This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or

dark pixels on the screen. These pixels will have no impact on the performance of the product.

✎Some functions and pictures shown in this manual are available on specific models only.

✎You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com Support Downloads) by USB.→ →

Storage and Maintenance

✎If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

✎The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using a soft cloth to

prevent scratches.

Do not spray water directly onto the

product. Any liquid that goes into the

product may cause a failure, ﬁre, or electric

shock.

Clean the product with a soft cloth

dampened with in a small amount of water.

Do not use a ﬂammable liquid (e.g. benzene,

thinners) or a cleaning agent.

License

This DivX Certiﬁed® device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, ﬁrst register your device at vod.divx.com. Find your registration code in the DivX VOD

section of your device setup menu.

DivX Certiﬁed® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certiﬁed® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 8,656,183; 8,731,369;

RE45,052.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.

DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+ Digital Out is a trademark

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source Announcement

To send inquiries and requests for questions regarding open sources, contact Samsung via Email (oss.request@samsung.com).

Speciﬁcations

Environmental Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

50°F to 104°F (10°C to 40°C)

10% to 80%, non-condensing

-4°F to 113°F (-20°C to 45°C )

5% to 95%, non-condensing

Model Name UN32K4100 UN40K5100

Display Resolution 1366 x 768 1920 x 1080

Screen Size

(Diagonal)

32" Class

(31,5 measured diagonally)

40" Class

(39,5 measured diagonally)

Sound (Output) 20 W

Dimensions (W x H x D)

Body

With stand

28,7 x 18,5 x 3,1 inches

(728,7 x 468,8 x 78,0 mm)

28,7 x 20,5 x 7,3 inches

(728,7 x 521,7 x 185,3 mm)

35,5 x 21,9 x 3,1 inches

(901,1 x 557,1 x 78,0 mm)

35,5 x 24,5 x 7,5 inches

(901,1 x 621,5 x 191,4 mm)

Weight

Without Stand

With Stand

10,4 lbs (4,7 kg)

10,6 lbs (4,8 kg)

17,9 lbs (8,1 kg)

18,1 lbs (8,2 kg)

Power Requirements

(Mexico Only) 110-127V ~ 50/60Hz

Power Consumption

(Mexico Only) 48 W 76 W

Model Name UN49K5100 UN55K5100

Display Resolution 1920 x 1080

Screen Size

(Diagonal)

49" Class

(48,5 measured diagonally)

55" Class

(54,6 measured diagonally)

Sound (Output) 20 W

Dimensions (W x H x D)

Body

With stand

43,2 x 26,6 x 3,5 inches

(1096,8 x 676,2 x 88,0 mm)

43,2 x 29,2 x 9,1 inches

(1096,8 x 742,8 x 230,2 mm)

48,5 x 29,6 x 3,9 inches

(1232,6 x 752,5 x 98,0 mm)

48,5 x 32,2 x 9,2 inches

(1232,6 x 818,0 x 233,1 mm)

Weight

Without Stand

With Stand

27,8 lbs (12,6 kg)

28,0 lbs (12,7 kg)

34,4 lbs (15,6 kg)

34,6 lbs (15,7 kg)

Power Requirements

(Mexico Only) 110-127V ~ 50/60Hz

Power Consumption

(Mexico Only) 100 W 115 W

✎Design and specifications are subject to change without prior notice.

✎The actual appearance of the TV may differ from the images in this manual, depending on the model.

✎For information about your TV's power requirements and more about power consumption, refer to the label attached to the product.

✎Typical power consumption is measured according to Energy Star Program requirements for televisions.

- 10 -- 9 -

- 14-- 13 -

- 11 -

- 15 -

- 12 -

- 16 -

K4100_K5100_ZX_BN68-07696U-02_Eng.indb 2 2016-07-14 오후 2:42:03

Termékspecifikációk

Márka:	Samsung
Kategória:	nincs kategorizálva
Modell:	UN32K4100AF

Szüksége van segítségre?

Ha segítségre van szüksége Samsung UN32K4100AF, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók nincs kategorizálva Samsung

Samsung AM007AN1PCH Útmutató

30 Március 2025

Samsung AM140HNEPEH Útmutató

29 Március 2025

Samsung AJ052TNMDEG Útmutató

29 Március 2025

Samsung AM005AN1PCH Útmutató

28 Március 2025

Samsung AQ18JWAN Útmutató

28 Március 2025

Samsung VG-TM2180ES Útmutató

27 Március 2025

Samsung RSA1BHMG Útmutató

27 Március 2025

Samsung RS6JA8810B1 Útmutató

16 Március 2025

Samsung AR18TQHQLSI2TN Útmutató

12 Január 2025

Samsung AR18JQFSBWKNMG Útmutató

12 Január 2025

Útmutatók nincs kategorizálva

Legújabb útmutatók nincs kategorizálva

Shure WA555 Útmutató

30 Március 2025

Einhell ESS 9000-T Útmutató

30 Március 2025

Einhell AV 10 Útmutató

30 Március 2025

American DJ POW-R Bar Rack USB Útmutató

30 Március 2025

Vimar EBRP.M Útmutató

30 Március 2025

Acer Vero MST Dock M32 Útmutató

30 Március 2025

FABER CASTELL Wonderful Washi Tape Útmutató

30 Március 2025

FABER CASTELL Mask Making Útmutató

30 Március 2025

FABER CASTELL e-motion Útmutató

30 Március 2025

FABER CASTELL Ultimate Nail Studio Útmutató

30 Március 2025
