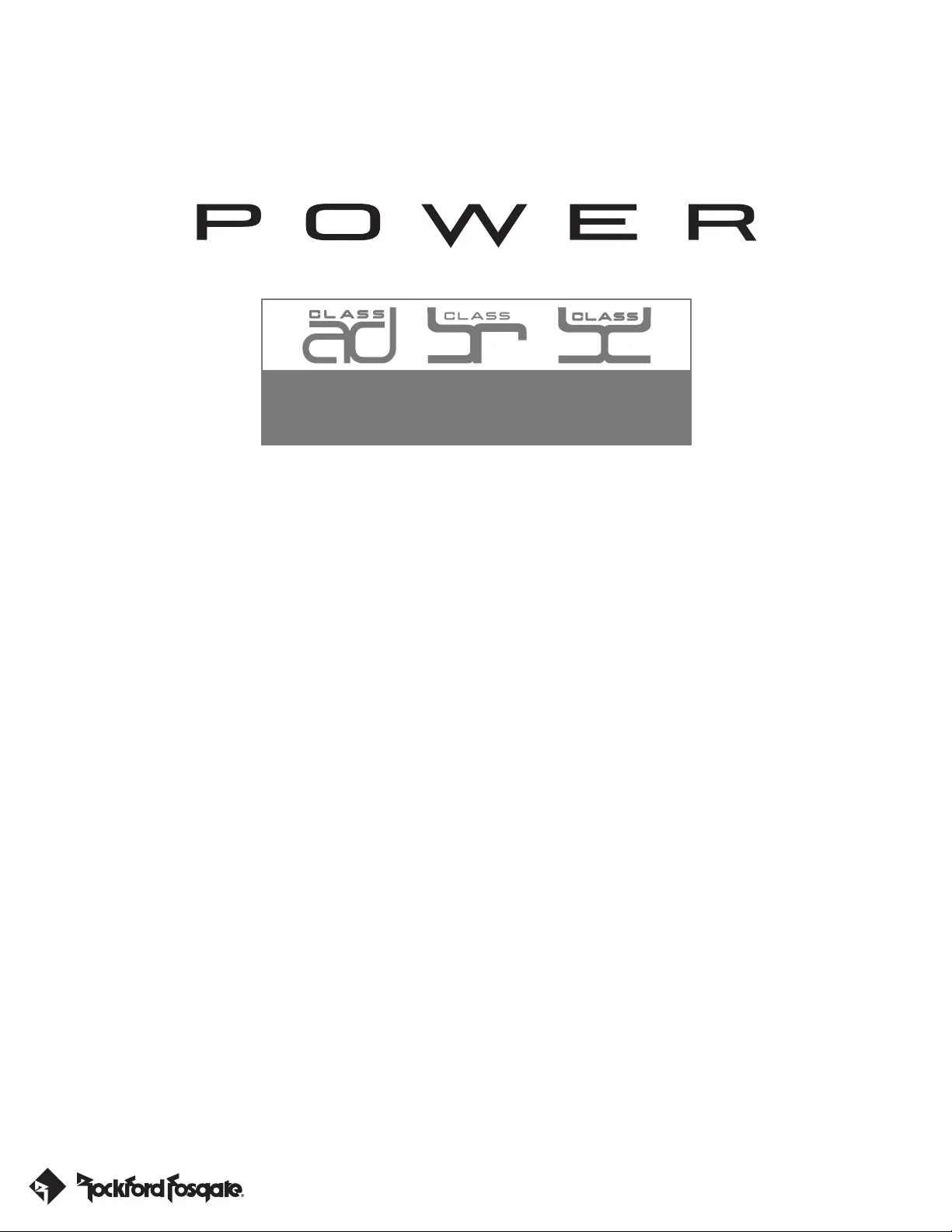

Installation & Operation
AMPLIFIERS
T400X2ad T400X4ad
T500X1br
2
Dear Customer,
Congratulations on your purchase of the world’s finest brand of car audio
products. At Rockford Fosgate we are fanatics about musical reproduc-
tion at its best, and we are pleased you chose our product. Through
years of engineering expertise, hand craftsmanship and critical testing
procedures, we have created a wide range of products that reproduce
music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford
Fosgate product installed by an Authorized Rockford Fosgate Dealer,
as we provide specialized training through Rockford Technical Training
Institute (RTTI). Please read your warranty and retain your receipt and
original carton for possible future use.
Great product and competent installations are only a piece of the puzzle
when it comes to your system. Make sure that your installer is using
100% authentic installation accessories from Rockford Fosgate in your
installation. Rockford Fosgate has everything from RCA cables and
speaker wire to power wire and battery connectors. Insist on it! After all,
your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order
your Rockford accessories, which include everything from T-shirts to
jackets.
Visit our web site for the latest information on all Rockford products;
www.rockfordfosgate.com
or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other
countries, call +001-480-967-3565 or FAX +001-480-966-3983.
Table of Content
If, after reading your manual, you still have questions regarding this prod-
uct, we recommend that you see your Rockford Fosgate dealer. If you need
further assistance, you can call us direct at 1-800-669-9899. Be sure to
have your serial number, model number and date of purchase available
when you call.
Safety
This symbol with “WARNING” is intended
to alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
This symbol with “CAUTION” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
sTo prevent injury and damage to the unit, please read and follow the
instructions in this manual. We want you to enjoy this system, not get
a headache.
sIf you feel unsure about installing this system yourself, have it installed
by a qualified Rockford Fosgate technician.
sBefore installation, disconnect the battery negative (-) terminal to
prevent damage to the unit, fire and/or possible injury.
Introduction
©2014 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered trademarks of Rockford Corporation
in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB may cause
permanent hearing loss. High powered auto sound systems may
produce sound pressure levels well over 130dB. Use common sense
and practice safe sound.
2 Introduction
3 Specifications
4-5 Design Features
6-13 Installation
Installation Considerations
Mounting Locations
Battery and Charging
Wiring the System
14-15 Operation
Clip Indicator Setup
Adjusting Crossover Frequency
2/4 Channel Switch
Punch EQ
16 Troubleshooting
17 Limited Warranty Information
CEA 2006
Power ratings on Rockford Fosgate amplifiers conform
mean your amplifier’s output power ratings are REAL POW
Mode T400X2ad T400X
Rated Power -
Continuous Power
Rating (RMS) Mea-
sured @ 14.4V
200x2 @ 4 ohm
200x2 @ 2 ohm
400x1 @ 4 ohm*
100x4 @ 4 oh
100x4 @ 2 oh
200x2 @ 4 oh
Crossover Slope 12 dB/Oct 12 dB/Oct
Crossover Frequency Variable 50Hz-250Hz Variable 50Hz
Punch EQ Variable 0 -+14dB @
12.5kHz and 0-+18dB
@ 45Hz
Variable 0 -+14
12.5kHz and 0
@ 45Hz
Operating Voltage 9-16VDC 9-16VDC
Frequency Response 20Hz-20kHz 20Hz-20kHz
Battery Fuse Rating
(not supplied)
60A 60A
THD+N @ Rated
Power
<1.0% @ 4 ohm
<1.0% @ 2 ohm
<1.0% @ 4 oh
<1.0% @ 2 oh
Input Sensitivity 150mV-12V 150mV-12V
Input Impedance 20k 20k
S/N Ratio CEA 2006 >90dB >90dB
S/N Ratio @ Rated
Power
>110dB >110dB
Channel Separation >60dB >60dB
Common Mode
Rejection Ratio
>60dB >60dB
Dimensions (LxWxH) 7”
x
4.3”
x
1.6”
(17.8cm x 10.8cm x 4.1 cm)
8.3”
x
4.3”
x
1.6
(21.1cm x 10.8cm x 4
* Rated power when amp
4
+LZPNU-LH[\YLZ
Power/Protect LED
Power LED illuminates bl
LED illuminates yellow if a
is detected at the speaker
red when amplifier overhea
down if this occurs.
Speaker Terminals
The Speaker Terminals are nickel-plated
quick connect wire connectors (+ and -)
will accommodate 10 AWG. (T500X1br)
Signal Input
The RCA inputs are capable of accepting signal from ei-
ther high-level (speaker) to low-level(RCA). When utilizing
high-level for input signal the auto turn-on feature is active.
Output Clip Indicator
The output clip indicator works in conjunction with the in-
put level knob, illuminating to appropriate color depending
on the audio content used for the setup.
Intput Clip Indicator
The input clip indicator works in conjunction with the audio
source volume knob, illuminating red when audio source
reaches it’s clipping point.
Input Level Knob
The input level control is used to match
the output of the audio source.
Punch E
A Gyrato
shift wit
switch o
Power/REM T
The power and
4 AWG, while t
REM terminal is
amplifier when
2/4 Channel Switch
Setting this switch to the 2CH. position, switches the inputs to
a 2-channel mode, allowing connection to only the front inputs
with a 4-channel output. (T400X4ad)
Crossover Switch
Selectable switch for High-Pass (HP) or
All Pass (AP) or Low-Pass (LP)
Variable Crossover
Is a built-in 12dB/octave Butterworth filter with
a crossover point variable from 50Hz to 250Hz.
Remote Punch Level Control
Remotely control the output level of the amplifier.
(T400X2ad & T500X1br)
Remote Punch Level Switch
When activated, this allows the use of a optional remote
Punch Level Controller. (T500X1br)
