Olvassa el alább 📖 a magyar nyelvű használati útmutatót Rockford Fosgate M5-800X4 (2 oldal) a Receiver kategóriában. Ezt az útmutatót 2 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra
Oldal 1/2
2
CH 4
CH

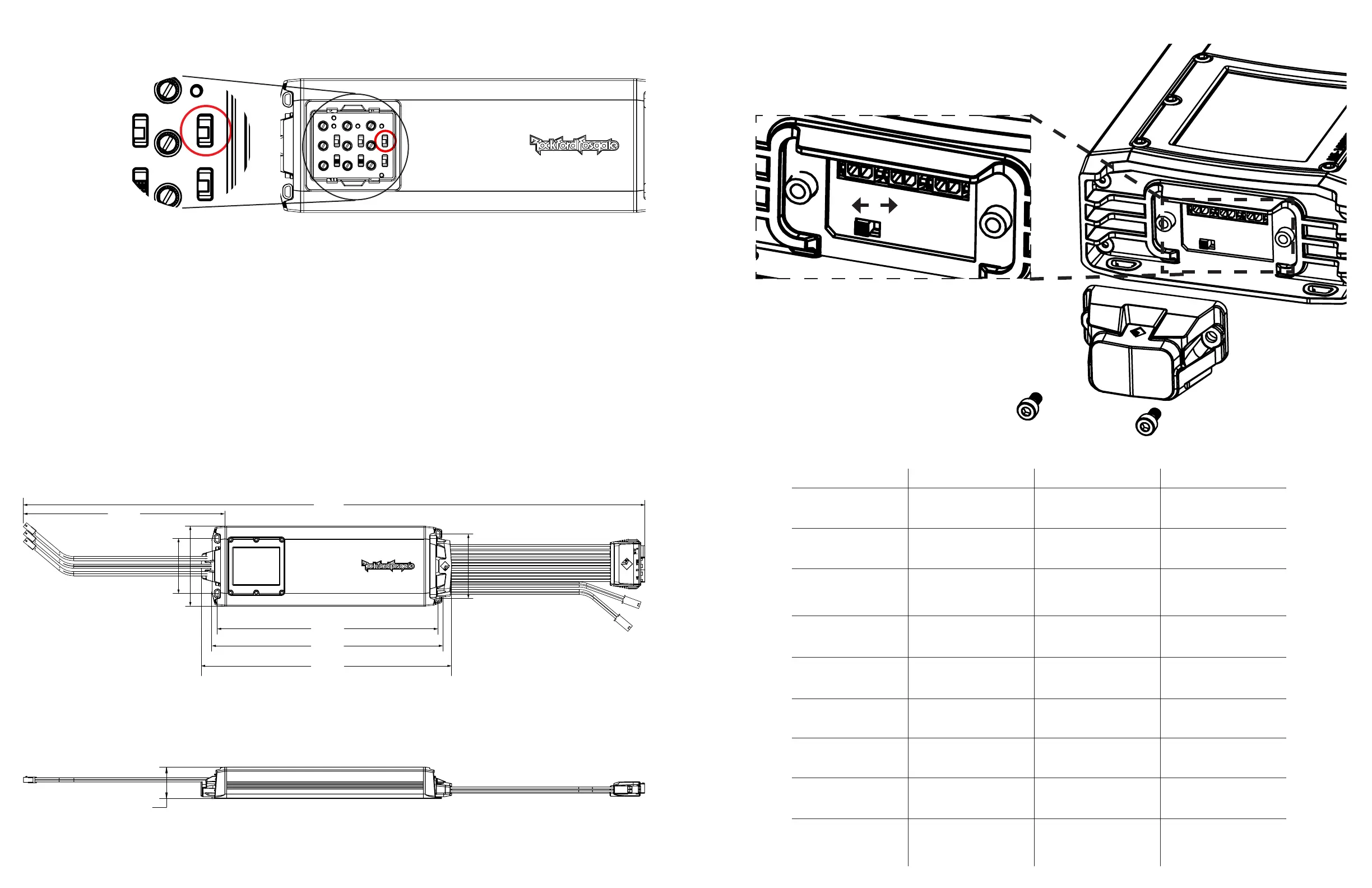

How to adjust 2 channel mode or 4 channel mode on M5-1500X5
The M5-1500x5 comes in 2 channel mode.
1. Using the included 3mm wrench, remove the 2 screws
holding the input wire harness on the control panel side
of the amp.
2. Pull the harness straight out.
3. Flip switch to the right for 4 channel mode.
4. Re-install the harness. Be sure that the gaskets and
O-rings are not damaged before re-installing the harness
M5-800X4
Rockford Fosgate Stages 3 & 4 SXS kits
Front Level - 1 O’Clock
Rear Level - 3 O’Clock
Front/Rear EQ - MIN
Input Switch - 4CH*
Front/Rear Crossover - 80Hz
Front X-over Switch - HP
Rear X-over Switch - LP
PRESET SETTINGS
M5-1000X1
Sub Level - 3 O’Clock
Punch EQ - MIN
Sub X-Over Switch - 80Hz
M5-1500X5
Rockford Fosgate Stage 5 SXS kit
Front /Rear Level - 1 O’Clock
Sub Level - 3 O’Clock
Front/Rear/Sub Punch EQ - MIN
Front/Rear/Sub Crossover - 80Hz
Front/Rear X-over Switch - HP
Sub Input - ON*
Input Switch - 2CH*
The PRESET switch disables the control panel and sets this amp for the best sound to be used with your ROCKFORD
FOSGATE stage kit audio system. Turn the switch OFF to manually adjust this amp.
* Input switches are not controlled via preset switch.
T
C.L.E.A.N.
OUT
INPUT LVL
MIN MAX
ON
OFF
ON
OFF
PUNCH EQ
MIN MAX
LP
OFF
ON
SUB INPUT
Hz
80 200
250
PRESET
PRESET
C.L.E.A.N.
IN
OUT
C.L.E.A.N.
OUT
C.L.E.A.N.
OUT
INPUT LVL
MIN MAX
INPUT LVL
MIN MAX
INPUT LVL
MIN MAX
ON
OFF
ON
OFF
ON
OFF
MIN MINMAX MAX
PUNCH EQ
MIN MAX
LP
AP
HP
LP
AP
HP
OFF
ON
SUB INPUT
FREQ
Hz
50
80 200
250
FREQ
Hz
50
80 200
250
FREQ
Hz
50
80 200
250
PWR
FRONT REAR SUB
PUNCH EQ PUNCH EQ
PRESET
PRESET
PRESET
M5-1500X5
A 1
B
C
A 2
D 1
D 2
A 3
D 3
A 4
Model M5-800X4 M5-1000X1 M5-1500X5
A1 - Overall Amplifier
Length
9.7”
(245.9mm)
9.7”
(245.9mm)
13.4”
(339.7mm)
A2 - Chassis Length 8.4”
(213mm)
8.4”
(213mm)
12.3”
(311.4mm)
A3 - Harness Length
(Input/Output are the
same length)
12”
(304.8mm)
12”
(304.8mm)
12”
(304.8mm)
A4 - Total Length of
Amplifier
33.7”
(855.5mm)
33.7”
(855.5mm)
37.4”
(949.3mm)
B - Chassis Width 4.25”
(108.1mm)
4.25”
(108.1mm)
4.25”
(108.1mm)
C - Chassis Height 1.7”
(42.7mm)
1.7”
(42.7mm)
1.7”
(42.7mm)
D1 - Mounting Length 7.8”
(198.7mm)
7.8”
(198.7mm)
11.8”
(299.2mm)
D2 - Mounting Width 2.9”
(74.5mm)
2.9”
(74.5mm)
2.9”
(74.5mm)
D3 - Mounting Width
(Input side, M5-
1500X5 ONLY)
N/A N/A 3.4”
(86.5mm)
Warranty Information
Rockford Corporation oers a limited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
POWER Amplifiers – 2 Years
BMW® Direct Fit Speakers – 2 Years
PUNCH® & PRIME® Amplifiers – 1 Year
Speakers, Signal Processors, Accessories and Capacitors – 1 Year
All marine, motorcycle, motorsport products - 2 Years
Any Factory Refurbished Product – 90 Days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford
Fosgate dealers in the United States of America. Products purchased by consumers from an
Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor
and not by Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an authorized
Rockford Fosgate dealer in the United States. In order to receive service, the purchaser must provide
Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and
date of purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product
deemed to be equivalent) at Rockford’s discretion.
What is Not Covered
Damage caused by accident, abuse, improper installation, operations, the, water (on non-Element
Ready products).
Any cost or expense related to the removal or re-installation of product.
Service performed by anyone other than Rockford or an authorized Rockford Fosgate service center.
Any product which has had the serial number defaced, altered, or removed.
Subsequent damage to other components.
Any product purchased outside the U.S.
Any product not purchased from an authorized Rockford Fosgate dealer. Refer to rockfordfosgate.com
dealer locator for more detail.
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in
duration to the period of the express warranty set forth above. Some states do not allow limitations
on the length of an implied warranty, so this limitation may not apply. No person is authorized to
assume for Rockford Fosgate any other liability in connection with the sale of the product.
How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return
Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of
product to Rockford.
EU Warranty
This product meets the current EU warranty requirements, see your Authorized dealer for details.
12042020 1230-73116-01C Printed In China
600 South Rockford Drive • Tempe, Arizona 85281 United States
Direct: (480) 967-3565 • Toll Free: (800) 669-9899
rockfordfosgate.com
M5-800X4
M5-1000X1
M5-1500X5
ELEMENT READY™
AMPLIFIERS
Model M5-800X4 M5-1000X1 M5-1500X5
CTA-2006 Dynamic
Power* Rating
125W x 4 @ 4Ohm
200W x 4 @ 2Ohm
400W x 2 @ 4Ohm Bridged
600W x 1 @ 4Ohm
900W x 1 @ 2Ohm
1000W x 1 @ 1Ohm
125W x 4/ 400W x 1 @ 4Ohm
200W x 4/ 700W x 1 @ 2Ohm
700W x 1 @ 1Ohm (Sub Only)
400W p2-x2 @ 4-Ohms Bridged
CTA-2006 Continuous
Power Rating
100W p2-x4 @ 4-Ohm
100W p2-x4 @ 2-Ohm
200W x 2 @ 4Ohm Bridged
500W x 1 @ 4-Ohm
750W x 1 @ 2-Ohm
750W x 1 @ 1-Ohm
100W x 4/ 400W x 1 @ 4-Ohm
100W x 4/ 600W x 1 @ 2-Ohm
600W x 1 @ 1-Ohm (Sub
Only)
THD @ Rated Power <1.0% <1.0% <1.0%
Signal to Noise Ratio >105dB >110dB >105dB 4CH/ >85dB Sub
Frequency Response 10Hz - 50kHz +/- 1dB 30Hz-245Hz +/- 1dB 10Hz - 50kHz +/- 1dB
MIN/MAX Input Voltage 150mV -12Vrms 150mV -12Vrms 150mV -12Vrms
Low-pass Crossover
Freq.
50-250Hz @12dB Per
Octave
50-250Hz @12dB Per
Octave 50-250Hz @12dB Per Octave
High-pass Crossover
Freq.
50-250Hz @12dB Per
Octave N/A 50-250Hz @12dB Per Octave
Infra-sonic Freq. N/A 30Hz @ 12dB Per Octave 30Hz @ 12dB Per Octave
Punch EQ YES YES YES
Signal Sense/DC Oset
Turn On YES YES YES
Power Connections 8 AWG 8 AWG 4 AWG
Fused Rating 100A 120A 200A
Operating Voltage
Range 9-16VDC 9-16VDC 9-16VDC
Topology / Class ad bd Front/Rear ad/ SUB bd
IP Rating IPX6 (Water spray) IPX6 (Water spray) IPX6 (Water spray)
Warranty 2 YEAR 2 YEAR 2 YEAR
Specifications
A
m
p
l
i
fi
e
r
P
o
w
e
r
S
t
a
n
d
a
r
d
C
T
A
-
2
0
0
6
C
o
m
p
l
i
a
n
t
*Dynamic Power indicates actual, usable power delivered by the amplifier to the speakers when listening to music. Dynamic power
ratings are based on CTA-2006 industry standards. Dynamic power has been provided to indicate the actual RMS power output
performance of the amplifier in the real world.
CTA 2006
Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier’s output power ratings are REAL POWER
numbers, not inflated marketing ratings.
What is the IPX6 testing method? It is the rating given aer passing the testing method to show that this product will withstand
water ingression of the given test. Here is the breakdown of everything needed for testing of the IPX6 rating.
A 0.5” (12.5mm) nozzle with 15 psi (100 kPa) outputting 100 liters per min of water from a distance of 9.8’ (3 meters) from all
directions for at least 3 minutes.
