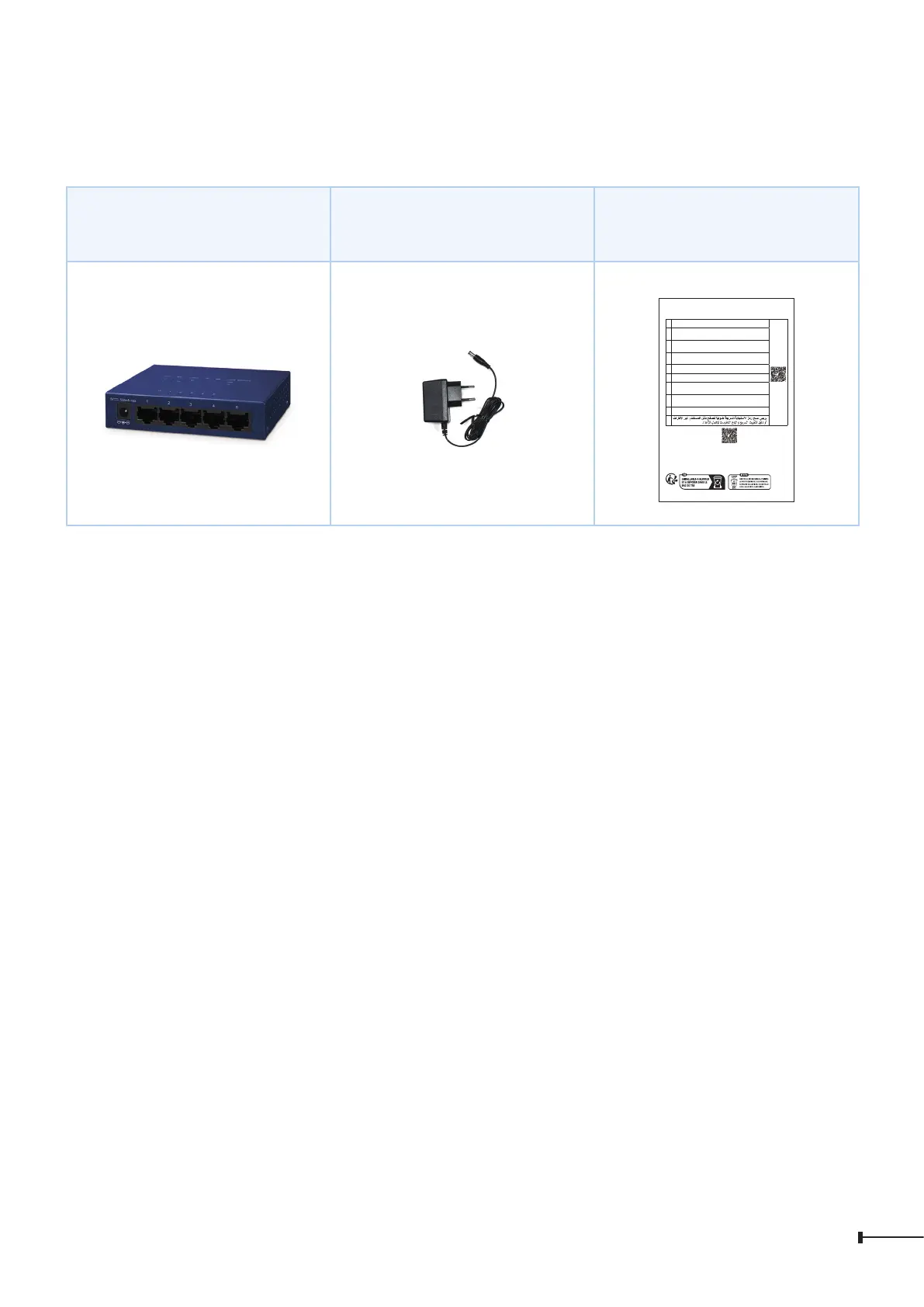

1. Package Contents
Check the contents of your package for the following parts:
Fast Ethernet
Switch x 1
5V DC, 1A Power
Adapter x 1 User's Manual x 1
If any of these are missing or damaged, please contact
your dealer immediately; if possible, retain the carton
including the original packing material, and use them again
to repack the product in case there is a need to return it to
us for repair.
Hardware
● Madeofmetal,desktopsizeandwall-mountdesign
● LEDindicatorsforsystempower,perportLink/Act
● 5VDC,1Aexternalpoweradapter
● Onepoweron/obuttonforenergysavings
● FCC,CEClassBcompliant Power
Note
1.Thedeviceisapower-requireddevice,
meaning it will not work till it is powered.
Ifyournetworksshouldbeactiveall
the time, please consider using UPS
(Uninterrupted Power Supply) for your
device.Itwillpreventyoufromnetwork
data loss or network downtime.
2. In some areas, installing a surge
suppressiondevicemayalsohelptoprotect
your Switch from being damaged by
unregulated surge or current to the Switch
or the power adapter.
4. LED Indicators
LED Color Function
PWR Green
Light Indicates that the Switch is powered
ON.
OFF Indicates that the Switch is powered
OFF.
Link/
ACT Green
Light
Indicates the link through that
port is successfully established at
10/100Mbps.
Blink
IndicatestheSwitchisactively
sendingorreceivingdataoverthat
port.
2. Product Features
 RJ45Interface
● 5/810/100MbpsFastEthernetports
● Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u
100BASE-TXEthernetstandards
● SupportsautoMDI/MDI-Xfunction
Switching
● Hardware-based 10/100Mbps, half/full duplex, ow
controlandauto-negotiation
● Features Store-and-Forward mode with wire-speed
lteringandforwardingrates
● IEEE 802.3x ow control for full duplex operation and
backpressureforhalfduplexoperation
● Integrated address look-up engine, supporting 2K/1K
absoluteMACaddresses(FSD-503/FSD-803)
● Handlesupto1536bytespacketsize
● Automaticaddresslearningandaddressaging
● SupportsCSMA/CDprotocol
3. Switch Front Panel
Figures 3-1and 3-2 showthe front panelsof FSD-503 and
FSD-803,respectively.
PWR 1 2 3 4 5
LNK/ACT
Figure 3-1: FSD-503 Front Panel
PWR 1 2 3 4 5 6 7 8
LNK/ACT
Figure 3-2: FSD-803 Front Panel
5. Switch Rear Panel
Figures 5-1 and 5-2 show the rear panels of FSD-503 and
FSD-803,respectively.
5V
, 1A max.
ON
OFF
12345
Figure 5-1: FSD-503 Rear Panel
5V
, 1A max.
ON
OFF
123458 7 6
Figure 5-2: FSD-803 Rear Panel
6. Installing the Switch
Thispart describeshow toinstall your Fast EthernetSwitch
and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
Note
This Switch does not need software
configuration.
Desktop Installation
ToinstalltheSwitch ondesktop,simply followthe following
steps:
Step 1: Place the Switch on the desk near a power source.
Step 2: Keep some ventilation space between the Switch
and the surrounding objects.
Note
When choosing a location, please keep in
mind the environmental restrictions discussed
in Chapter 7 under Product Specifications.
- 9 - - 11 -
- 10 -
Step 3: ConnectyourSwitchtonetworkdevices.
A. Connect one end of a standard network cable
to the 10/100 RJ45 ports on the rear panel of
the Switch.
B. Connect the other end of the cable to the
network devices such as printer servers,
workstations or routers, etc.
Step 4: Supply power to the Switch.
A. Connect one end of the power cable to the
Switch.
B.Connect the 5V DC power adapter to a
standard wall outlet.
When the Switch receives power, the Power LED should
remain solid Green.
5V
, 1A max.
ON
OFF
123458 7 6
PC/Laptop
xDSL/Cable RouterInternet
5V DC, 1A
Power
001101010
DC
DC
Power Line (DC)
100BASE-TX UTP
7. Product Specications
Product FSD-503 FSD-803
HardwareSpecications
HardwareVersion 4
10/100BASE-TXPorts 5autoMDI/
MDIXports
8autoMDI/
MDIXports
LEDDisplay Oneforpower,oneforLink/
ACTperPort
Enclosure Metal
Dimensions(mm) 155x86x26mm
Weight (g) 306g 316g
PowerRequirements
(Externalpoweradapter) 5VDC,1A
PowerConsumption/
Dissipation
(Fulloperation)
1.8watts/
6.1BTU
2.6watts/
8.8BTU
SwitchSpecications
Switch Processing
Scheme Store-and-Forward
AddressTable 2K 1K
SharedBuer Built-in 448k
FlowControl
Backpressurehalfduplex,
IEEE802.3xpauseframefull
duplex
SwitchFabric 1.0Gbps 1.6Gbps
Throughput
(packet per second) 0.744Mpps 1.19Mpps
MaximumPacketSize 1536bytes
Standards Conformance
Standards Compliance
IEEE802.3(Ethernet)
IEEE802.3u(FastEthernet)
IEEE802.3x(Full-duplexFlow
Control)
Regulatory Compliance FCCPart15ClassB,CE
Environments
Temperature Operating:0~50degreesC
Storage:-10~70degreesC
Humidity
Operating:5%to95%,
Storage:5%to95%
(non-condensing)
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2- - -2- -2219 9518 Fax:886 2219 9528
EC Declaration of Conformity
For the following equipment:
*Type of Product: 5-Port 10/100Mbps Fast Ethernet Switch
8-Port 10/100Mbps Fast Ethernet Switch
*Model Number: FSD- ,503
FSD-803
* Produced by:
Manufacturer‘s Name : Planet Technology Corp.
Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist.,
New Taipei City 231, Taiwan R.O.C.
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
Directive on /E2014/30 U and Low Voltage Directive 2014/35 U./E
For the evaluation regarding the EMC, the following standards were applied:
EN 55032 (2015)
EN 61000-3-2 (2014)
EN 61000-3-3 (2013)
EN 55024 (2010)
EN60950 (2006+A11:2009+A1:2010+A12:2011+A2:2013)-1
Responsible for marking this declaration if the:
Manufacturer Author ized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan R.O.C.
Person responsible for making this declaration
Name, Surname Kent Kang
Position / Title : Director
Taiwan March 3 17, 20
Place Date Legal Signature
8. Customer Support
Thankyouforpurchasing PLANETproducts.You canbrowse
our onlineFAQ resource on PLANET web site rst to check
if it could solve your issue. If you need more support
information,pleasecontactPLANETswitchsupportteam.
PLANETonlineFAQs:
https://www.planet.com.tw/en/support/faq
Switch support team mail address:
support@planet.com.tw
Copyright © PLANET Technology Corp. 2021.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
