Használati útmutató Phoenix Gold Z57CX
Phoenix Gold
Speaker
Z57CX
Olvassa el alább 📖 a magyar nyelvű használati útmutatót Phoenix Gold Z57CX (8 oldal) a Speaker kategóriában. Ezt az útmutatót 3 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra
Oldal 1/8
Models: Z4CX - Z5CX - Z65CX - Z46CX - Z57CX - Z69CX
Z-Series
Coaxial Speakers
Z-Series Haut-parleurs coaxiaux
Z-Series Altavoces Coaxiales
Shallow Mount Design - Flush prole tweeter and a compact basket design for easy installation
Z-Series Cone - High-quality polypropylene cone material for great sounding audio
Butyl Rubber Surround - Excellent durability for prolonged performance and improved lateral
cone stability
Ferrouid Filled Tweeter - Enables enhanced thermal contact for improved reliability and
optimum damping for the voice coil
Design à faible profondeur - Tweeters à prol afeurant et conception compacte pour faciliter
l’installation
Cone de la série Z - Matériau conique en polypropylène d’excellente qualité pour un son parfait
Haut parleur en caoutchouc Butyle - Excellente durabilité pour une performance prolongée et une
meilleure stabilité du cône latéral
Tweeters uides Ferro - Permet un contact thermique amélioré pour une meilleure abilité et un
amortissement optimal pour la bobine mobile
Diseño Bajo del Montaje - Altavoces de Agudos de Alto Perl, con un diseño compacto de cesta
para una instalación sencilla
Cono de Series Z - Material de Cono de Polipropileno de Alta Calidad para un Gran Sistema
de Sonido
Caucho Butílico - Excelente durabilidad para un rendimiento prolongado y una mejor estabilidad
del cono lateral
Altavoces de Agudos recubiertos de Ferrouido - Permite el contacto térmico mejorado para una
mayor abilidad y óptima amortiguación de la bobina de voz
CARACTERÍSTICAS
CARACTÉRISTIQUES
FEATURES
Z-Series Coaxial Speakers
© 2017 Phoenix Gold • www.phoenixgold.com
SPECIFICATION Z4CX Z5CX Z65CX
Peak Power (watts) 120 Watts 140 Watts 160 Watts
Rated Power (watts 30 Watts 35 Watts 40 Watts
Frequency Response 99Hz-20KHz 78Hz-20KHz 75Hz-20KHz
Impedance 4 Ohm 4 Ohm 4 Ohm
Sensitivity 86dB 86dB 87dB
Cone Material Polypropylene Polypropylene Polypropylene
Tweeter PEI PEI PEI
Mounting Depth 43mm (1-11/16”) 44mm (1-3/4”) 46mm (1-13/16”)
Mounting Diameter 103 mm (4-1/16”) 118mm (4-5/8”) 126mm (5”)
Z46CX Z57CX Z69CX
Peak Power (watts) 120 Watts 140 Watts 220 Watts
Rated Power (watts) 30 Watts 35 Watts 55 Watts
Frequency Response 120Hz-20KHz 71Hz-20KHz 85HZ-20KHz
Impedance 4 Ohm 4 Ohm 4 Ohm
Sensitivity 87dB 87dB 88dB
Cone Material Polypropylene Polypropylene Polypropylene
Tweeter PEI PEI PEI
Mounting Depth 50mm (2”) 56mm (2.25”) 70mm (2.75”)
Mounting Diameter 142mm x 89mm
(5.59” x 3.50”)
181mm x 128mm
(7.12” x 5.04”)
155mm x 222mm
(6.10” x 8.74”)
INSTALLATION GUIDELINES
Ensure the audio system is turned off before making any connections to the amplier, speakers or
source unit. Failure to do so could result in permanent damage to the audio system.
When wiring the speakers ensure that the wire is protected from sharp objects and always use rubber
grommets when wiring through metal panels. Ensure all terminals and connections are protected from
the vehicle chassis and from each other as failure to do so could result in permanent damage to the
audio system.
When connecting the speakers to the source unit or ampliers ensure you connect the positive and
negative output wire from the source unit to the corresponding speaker terminals. This will ensure the
audio system will be in phase.

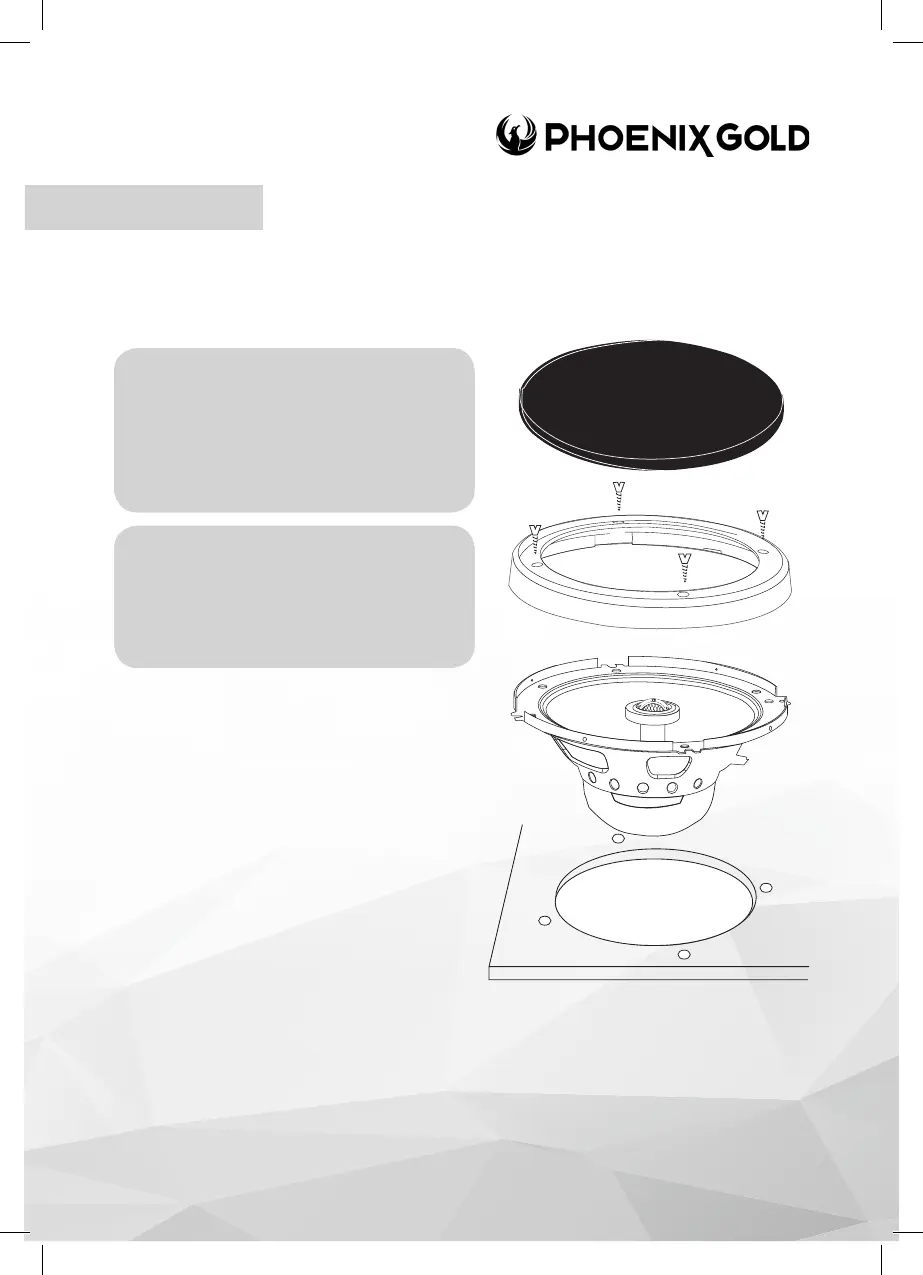

1. Ensure there is adequate clearance and depth for the speaker to be mounted.
2. Use the supplied template to mark out & cut the correct diameter hole.
3. Drill four holes for the mounting screws.
4. Separate the grille from the frame
5. Insert the speaker and grille and afx with the screws provided
6. Complete installation by replacing the grille into the grille frame.
© 2017 Phoenix Gold • www.phoenixgold.com
Z-Series Coaxial Speakers
Z4CX - Z5CX - Z65CX - Z46CX - Z57CX - Z69CX
WARNING
Do not drill mounting holes with speaker in place
as this could allow drill shavings to damage the
voice coil and void the speaker warranty.
CONTENTS
2 x Phoenix Gold Coaxial Speakers
2 x Phoenix Gold Speaker Grilles
1 x Mounting Template
8 x Mounting Screws
1 x User Manual
NOTE
Speaker Wire included with the
component speaker system will only
connect the tweeter to the speaker,
additional wiring is needed to connect
to the audio system.
WARNING:
Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels
over 100dB may cause permanent hearing loss. Please watch for emergency vehicles as warning
signals may not be heard.
