Features
• Injection Molded Aluminum Plated
Polypropylene Cone - Injection molded to be
very light and rigid for excellent signal tracking
• Butyl Rubber Surround - Advanced butyl
rubber surround is more rugged than foam,
resists moisture and UV, and is extremely well
damped
• Silk Dome Tweeter - Provides smooth, detailed
and warm high frequency response
• Interwoven Tinsel Leads - Tinsel leads woven
directly into the spider provide added strength
and reliability
• Rigid Powder Coated Steel Frame - Designed
for precise motor alignment
• Optimized Magnet-Motor Structure - For high
efciency and clarity of sound reproduction
Models: SX5CS, SX6CS, SX65CS
Component Speaker
Set Manual
Manuel de Composantes
Caractéristiques
• Cône en polypropylène plaqué avec
aluminium moulé par injection - pour être très
léger et rigide an d’assurer un excellent suivi
des signaux
• Caisson de basses en caoutchouc butyle - Le
caisson de basse avancé en butyle est plus
robuste que la mousse, résiste à l’humidité et
aux UV, et ore un amorti extrême
• Tweeter à dôme en soie - fournit une réponse
douce, détaillée et chaude à haute fréquence
• Fils clinquant entrelacés - ls clinquant
entrelacés directement dans l’araignée
fournissant un ajustement de la puissance et
une meilleure abilité
• Armature en acier revêtue de poudre rigide -
conçue pour un alignement précis du moteur
• Structure d’aimant-moteur optimisée - pour un
rendement élevé et une clarté de reproduction
sonore
Características
• Cono de polipropileno recubierto con aluminio
moldeado por inyección - El moldeado por
inyección es muy ligero y rígido para un excelente
seguimiento de la señal.
• Cubierta de caucho butílico - El caucho butílico
avanzado es más resistente que la espuma,
resiste la humedad y los rayos UV, y está
extremadamente bien amortiguado
• Tweeter de cúpula de seda - Proporciona una
respuesta de alta frecuencia, suave, detallada y
cálida.
• Cable Oropel entrelazado - Los hilos de oropel
entrelazados directamente dentro de la araña
proporcionan mayor resistencia y conabilidad.
• Bastidor de acero rígido con recubrimiento de
polvo - Diseñado para la alineación precisa del
motor.
• Estructura motor- imán optimizada - Para una
alta eciencia y claridad en la reproducción del
sonido.
SX Component Speaker Set Manual
© 2017 Phoenix Gold • www.phoenixgold.com
BASIC INSTALLATION
Selecting the placement of your new SX Component speakers
could be as easy as using the existing factory locations or may
require you to create a new location. Speaker placement in
the door, dash, or rear deck is the most common. See your
local Phoenix Gold Dealer for additional location and
mounting assistance.
DOORS/REAR DECK
1. Many vehicles already have factory locations (Figure 1)
to house the “DROP IN” feature of the SX Component
speakers. If no existing locations are available or are not
used, check the desired location for adequate cutout
area and any depth obstructions. Make sure to allow
sufcient clearance for window tracks, structural braces,
trunk lid springs, etc.
2. Assuming enough area and depth is available, use the
provided template and trace the speaker cutout and
mounting holes onto the surface of the mounting location.
3. If the mounting surface is not structurally strong enough
TWEETER ADJUSTMENT
The tweeters pivot in their housings. When mounted low in
the door, angle the tweeter up for better high frequency
performance. In rear deck or dashboard installations, angle the
tweeter away from the rear glass to reduce destructive
reections.
CROSSOVER ADJUSTMENT
The crossover provided with the SX component set is optimized
to give the most accurate in-car response. Use only the cross-
over provided; the use of any other crossover may result in
damage to one or more of the SX series components.
to accommodate screws, (i.e. plastic, cardboard) use
the pro vided speed clips which will act as a nut for the
supplied screws.
4. Always provided water protection, if not supplied in the
vehicle. We suggest using a rain shield or equivalent. If in
doubt, please contact your Phoenix Gold Dealer.
SPEAKER INSTALLATION WITHOUT GRILL
Phoenix Gold has provided a foam mounting gasket. When
installing your new component speakers in a factory location
make sure to use the foam mounting gasket as shown in gure
1. For reverse mounted speakers place the foam gasket in
front of the speaker. This will ensure an air tight seal for your SX
speakers.
For more custom applications, or cases where the factory grill
will not be used, a high excursion protective grill has been
provided. When installing your new component speakers with
the provided SX grill use gure 2. Make sure to use
the rubber gasket to get an air tight seal.
Connect the left amplier output to the crossover for the
left component set, and the right amplier output to the
crossover for the right component set. From there connect
your component woofer and tweeters to the corresponding
crossover observing polarity (+ to +, - to -). (gure 3)
CROSSOVER INSTALLATION
We suggest you select a mounting location for the crossovers
within the cab of the vehicle, such as the kick panels or near
the amplier. If crossovers must be mounted in the door, mount
them between the moisture barrier and the innermost door
panel. MOISTURE DAMAGE WILL VOID YOUR WARRANTY.
Figure 1
Mounting the speaker in a factory location.
Figure 2
Mounting the speaker in a custom application.
INPUT MID TWT
INPUT MID TWT
Figure 3 TWEETER TWEETER
AMPLIFIER (NOT INCLUDED)
MID RANGE WOOFER MID RANGE WOOFER
CROSSOVER
CROSSOVER
© 2017 Phoenix Gold • www.phoenixgold.com
SX Component Speaker Set Manual

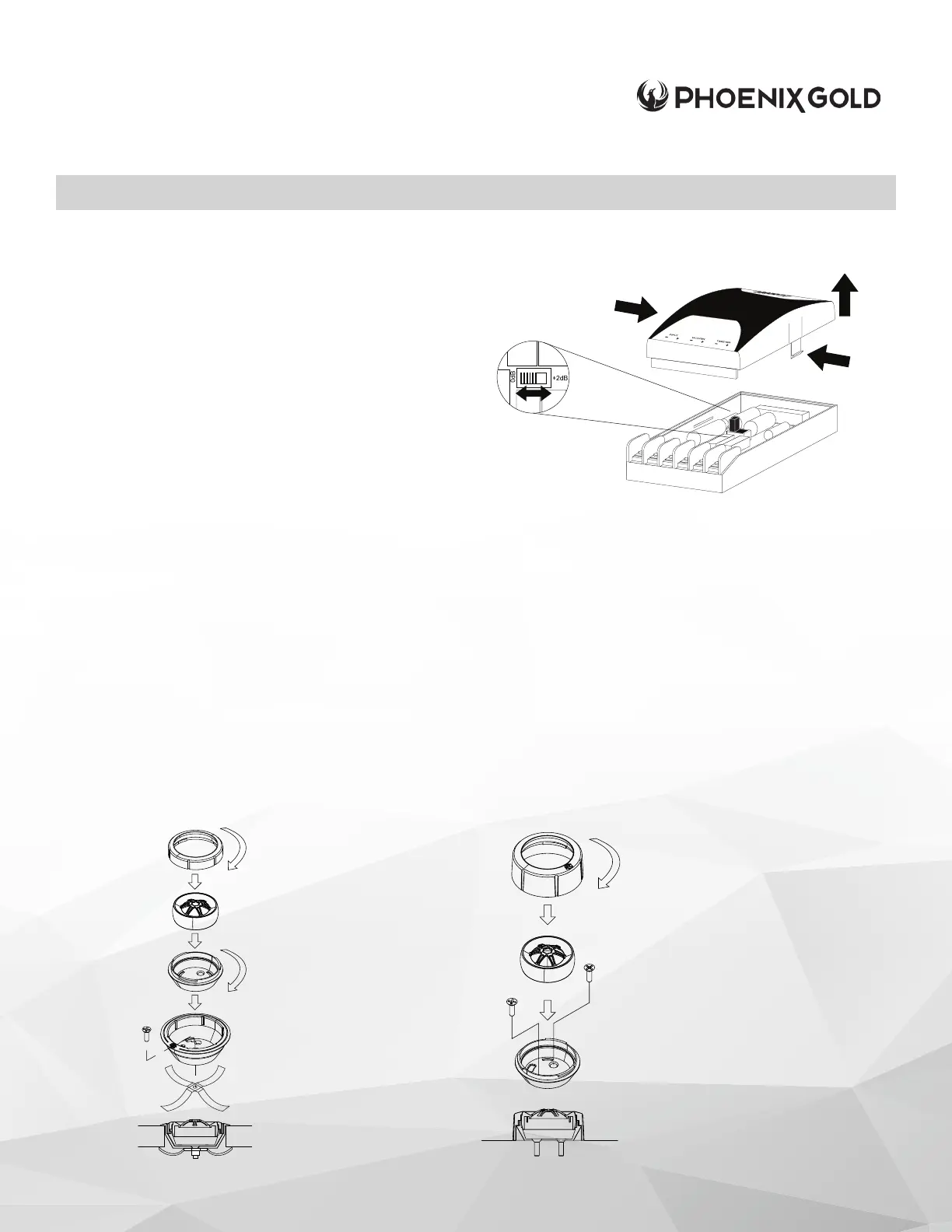

TWEETER ADJUSTMENT SWITCH
When installing your SX Component system you may want
to adjust your tweeter setting to t your specic application.
Phoenix Gold has provided a tweeter adjustment switch in
the SX Component System crossover.To access this switch
you must rst remove the crossover cover by squeezing the
tabs on the side of the unit (Figure 4) and gently twisting the
lid counter clockwise. Once the lid is removed you will see a
switch located in the center of the circuit board. To increase
the tweeter output move the switch to the +2dB position. If this
switch is in the +2dB location and you want to decrease the
tweeter output move the switch to the 0dB position. Once you
have your crossover congured place the lid back into place
by centering the lid over the circuit board and press straight
down until it snaps into place.
You will have to do this for each of the two crossovers included
with this SX Component System. The process is the same for
each.
TWEETER INSTALLATION
With a variety of supplied mounting options, the SX series
tweeter is easy to install in any vehicle. Each SX component set
comes with a ush mount and surface mount installation kit. For
other custom mounting congurations, please contact your
authorized Phoenix Gold Dealer.
Flush Mount: For optimal tweeter installation, use the FLUSH
MOUNT option. The FLUSH MOUNT requires 3⁄4” depth and a
2-1/16” hole in the mounting surface (gure 5)
Surface Mount: Screws are provided for use when cutting a hole
in the door panel or other mounting surface is not an option.
Make sure that the surface mount location is free of passenger
movement that might damage the tweeter. (gure 6)
The SX tweeters pivot in their housings. This allows the user to
align the tweeter during the installation process for optimum
listening results.
For best results, always try to maintain equal path lengths
between the right and the left tweeter and the listening
position. This is usually accomplished by mounting as low
and deep as possible in a kick panel installation, or high and
deep in a dashboard installation. Be cautious in dashboard
installations not to reect the tweeter off of the windshield:
this increases reections and can greatly diminish the overall
system listening quality.
For door panel installations, try to angle the tweeters toward
the listener to optimize high frequency performance.
Figure 4: Tweeter
Switch Adjustment CROSSOVER BASE
CROSSOVER LID
Figure 5
Figure 6
TWEETER ASSEMBLY - FLUSH MOUNT TWEETER ASSEMBLY - SURFACE MOUNT
FLUSH MOUNT RETAINING RING
Slide the retainer ring over the
tweeter housing onto the inner
cup. Rotate the vretainer ring to
lock all three pieces into place.
SURFACE MOUNT RETAINING RING
Slide the retainer ring over the
tweeter housing onto the outer
cup. Rotate the retainer ring to
lock all three pieces into place.
INNER CUP
Once you have the inner portion
assembled slide it into the outer
cup and twist to lock into place.
TWEETER HOUSING
SPRING RETAINER
The spring retainer is what holds
the tweeter in place. Its ngers
clamp against the inside of the
wall you are mounting the
tweeter to.
TWEETER HOUSING
OUTER HOUSING
OUTER CUP
TWEETER
ADJUST
SWITCH
