Manual

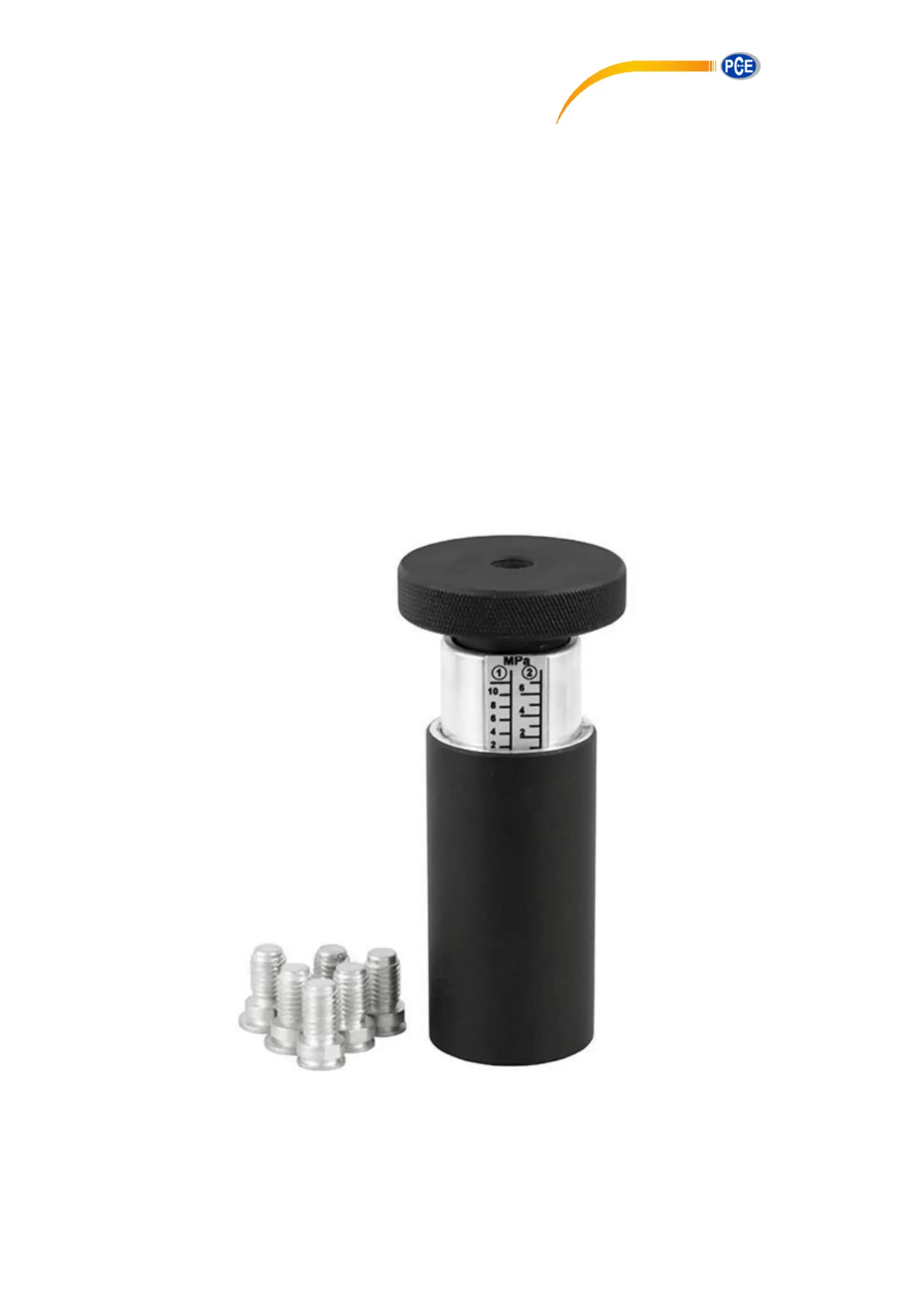

Adhesion Tester PCE-TAT 10
Version 1.0
Date o creation: 15.03.2016f
Date o last change: 17.03.2016f
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
Manual
2
Contents
1 Introduction ............................................................................................................. 2
2 Safety notes ............................................................................................................. 2
3 Specications .......................................................................................................... 3
4 Instructions .............................................................................................................. 3
4.1 Preparation for use ..................................................................................................................... 3
4.2 Operation .................................................................................................................................... 3
5 Disposal ................................................................................................................... 4
6 Contact ..................................................................................................................... 4
6.1 PCE Instruments UK .................................................................................................................. 4
6.2 PCE Americas ............................................................................................................................ 4
1 Introduction
Thank you for purchasing a PCE-TAT 10 from PCE Instruments.
Delivery content
1 x adhesion tester PCE-TAT 10
6 x measuring probes: 3 x no. 1, 3 x no. 2
1 x cutter
1 x wrench
1 x two-component epoxy adhesive
1 x super glue
1 x instruction manual
1 x wooden transport case
2 Safety notes
Please read this manual carefully and completely before you use the device for the rst time. The device
may only be used by qualied personnel and repaired by PCE Instruments personnel. There is no
warranty of damages or injuries caused by non-observance of the manual.
- The device may only be used the approved temperature range. in
-
The case should only be opened by qualified personnel of PCE Instruments.
- The instrument should never be placed with the user interface facing an object ( keyboard side on a e. g.
table ).
- You must not make any technical changes the device. to
- The appliance should only be cleaned with a damp cloth / use only -neutral cleaner. pH
- Maintenance should be solely carried out by the manufacturer. In case of trouble, please contact PCE
Instruments.
- After testing and whenever you want to store the device, release the spring mechanism by turning the
knob until the swivel moves freely in the device body.
- Store the device in a place free of dust, fumes, acids, alkalis and corrosive gases.
- As long as the device is in its case, it can be transported by any means of transport. Please make sure
to adhere to the relevant rules and requirements.
- During transportation, operation and storage, make sure that the device is not subject to impacts,
shocks or moisture.
This user's handbook is published by PCE Instruments without any guarantee.
We expressly point to our general guarantee terms which can be found in our general terms of business.
If you have any questions please ntact PCE Instruments. co
Manual
3
3 Specications
Refractive power
200 kg
Diameter of the measuring heads
15.1 mm (No. 1) and 19.5 (No. 2)
Specic tearing force, MPa
Measuring probe no. 1 up to 10 MPa (100)
Measuring probe no. 2 up to 6 MPa (60)
Scale MPa
1 (No. 1) and 2 (No. 2)
Storage conditions
+5 … +40 °C / ≤80 % RH at 25 °C
Weight
Not more than 1 kg
Dimensions
150 x 70 mm
Dimensions packaging
L180 x W150 x H100 mm
4 Instructions
4.1 Preparation for use
- Clean the surface of the measuring probe and the surface where you want to place the probe,
for example by using ne sand paper.
- Prepare the epoxy adhesive as instructed on the packaging and mix it thoroughly.
- If you use single-component super glue, open the tube.
- Apply the glue to the surface and place the measuring probe on the surface covered with glue, as
described in more detail on the packaging.
- Use the cutter to slightly scratch the area around the measuring probe.
4.2 Operation
- Turn top knob of the adhesion tester counter-clockwise to release the gripping mechanism and the the
spring.
- Now screw the adhesion tester (thread at the bottom) onto the measuring probe until the device reaches
the surface to be tested.
- Turn the top knob clockwise until the measuring head is released from the test surface. You can read
the tearing force from scale 1 or 2, depending on the measuring probe used.
- If the measuring probe has not been separated from the surface, turn the knob counter-clockwise to
release the spring mechanism and remove the device from the measuring probe.
- Separate the measuring head from the surface, using a chisel and hammer.´
- If the measuring probe has been separated from the surface, unscrew it from the device, using the
wrench.
- Clean the surface of the measuring probe from glue and paint residues and splinters.
