Oldal 1/5
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL- 33458
USA
Tel: 410- - 387 7703
Fax: 410-387- 7714
info@pce-americas.com
www.pce-instruments.com/us
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Southampton
Hampshire
United Kingdom, SO31 4RF
Tel: 02380 98703 0
Fax: 02380 98703 9
info@industrial-needs.com
www.pce-instruments.com/english
www.industrial-needs.com
Manual

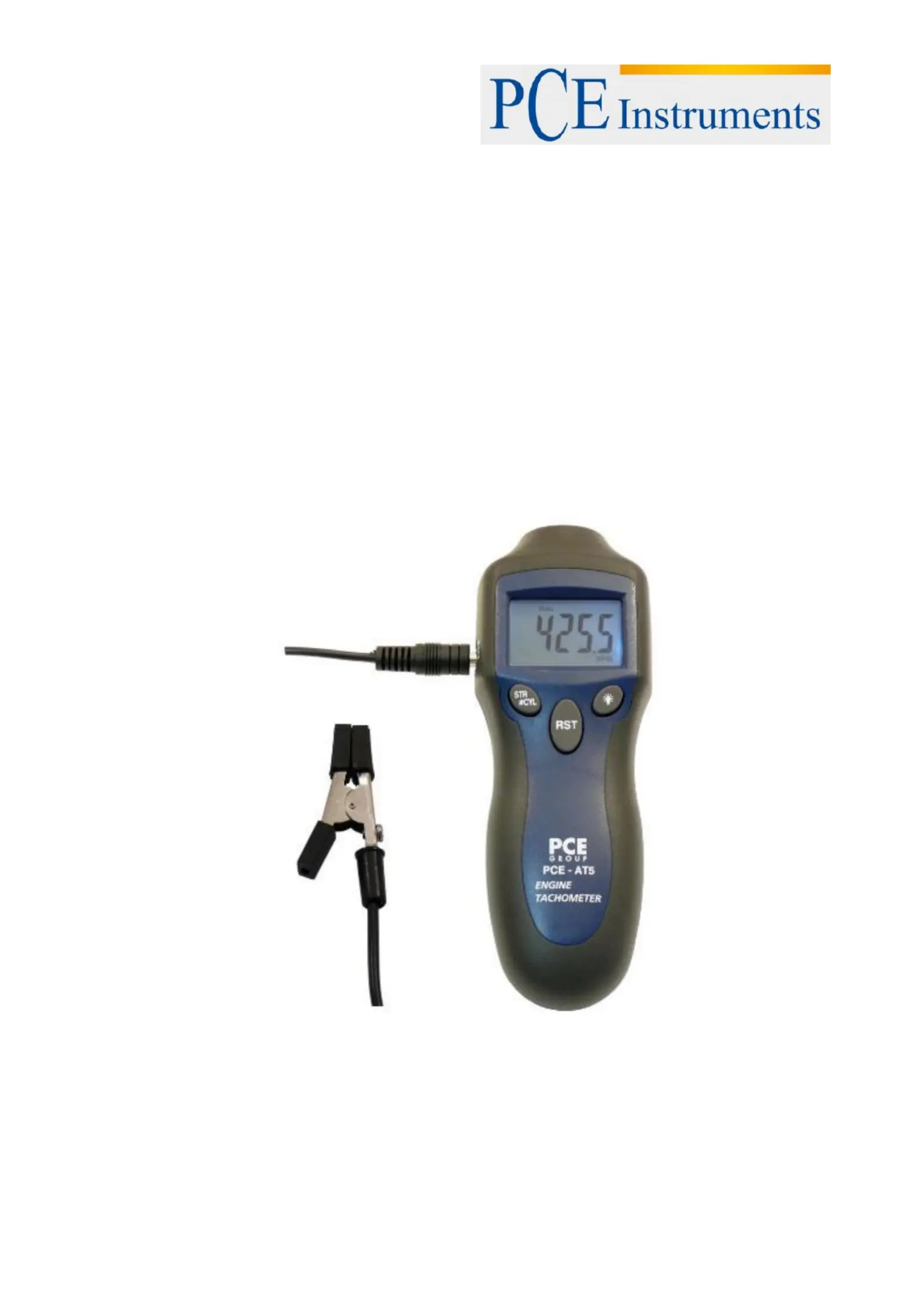

Rotation Meter PCE- 5 AT
Version 2.1
Date of creation: 28/11/2014
Date of last change: 02.06.2016
Manual
2
Table of contents
1 Introduction ............................................................................................................. 3
2 Safety information ................................................................................................... 3
3 Specications .......................................................................................................... 4
3.1 General ................................................................................................................................. 4
3.2 Measuring ranges .................................................................................................................. 4
4 Device description .................................................................................................. 4
4.1 Buttons .................................................................................................................................. 4
4.2 LCD display ........................................................................................................................... 4
5 Instructions .............................................................................................................. 4
6 Contact ..................................................................................................................... 5
6.1 PCE Instruments UK .............................................................................................................. 5
6.2 PCE Americas ....................................................................................................................... 5
Manual
3
1 Introduction
Thank you for purchasing a rotation meter PCE-AT5 from PCE Instruments.
The P -AT 5 rotation meter is a portable and hand-held device to measure the rotation speed in CE
combustion engines with electric ignition. The large digital display shows the ttings (strokes / cylinders) se
as well as the number of revolutions quickly and clearly. By means of the inductive clip which must be put
on the plug lead, revolutions can be tested in few seconds. to its compact size, the PCE-AT 5 digital Due
rotation meter is a very exible tool which can be used not only in workshops. This meter can be used for
two stroke engines with a single cylinder (motorbike, etc.) as well as for four-stroke engines with eight
cylinders. This rotation meter can be used by professional mechanic and also by non-professionals as it s
is very easy to use Users can choose between a display backlight or an integrated torch when working .
under poor lighting conditions.
2 Safety information
Please read this manual carefully and completely before you use the device for the first time. The device
may only be used by qualied personnel and repaired by PCE Instruments personnel. There is no
warranty of damages or injuries caused by non-observance of the manual.
- To avoid injuries and damage, make sure that the test lead does not touch the engine.
- Never touch the engine as there is the risk of burning.
- When not using the device for a long period of time, remove the batteries from the meter.
- The device may only be used in approved temperature range.
- The case must only be opened by qualied personnel of PCE Instruments.
- The instrument should never be placed with the user interface facing an object (e.g. keyboard side on a
table ).
- u must not make any technical changes the device. Yo to
- The appliance should only be cleaned with a damp cloth / use only -neutral cleaner.pH
This manual is published by PCE Instruments without any guarantee.
We expressly refer to our general guarantee terms, they can be found in our general terms of business.
If you have any questions please contact PCE Instruments.
