TX-24FS503E TX-32FS503E TX-40FS503E TX-49FS503E

TX-32FS500E TX-40FS500E TX-49FS500E

TX-32FS403E TX-40FS403E

TX-32FS400E TX-40FS400E

- 2 -

Read first

Before use

• Licence 12

Features

• Home 14

• DVB-via-IP 15

• Easy Mirroring 16

Home

• Information 17

• How to use 19

• Pin to HOME 21

• Option menu 22

Live TV

• How to use 23

• Option Menu 24

Apps

• How to use 26

• Option menu 27

Devices

• How to use 28

• Option menu 29

Watching

Basic

• Basic connection 30

• Selecting channel 33

• Information banner 35

• Subtitle 37

• Last view 38

• Off Timer 39

• Energy saving functions 40

- 3 -

• Adjusting time 42

• Language 43

External equipment

• External connection 44

• Watching external input 47

• Operating with TV’s remote control 49

• HDMI features 51

• HDMI HDR Setting 53

• Valid input signals 54

For best picture

• Viewing Mode 55

• Aspect 57

• Aspect Control Signal 58

• Basic settings 60

• Ambient Sensor 61

• HDR Brightness Setting 62

• Noise reduction settings 63

• Advanced Settings 64

• Option Settings 68

• Screen Settings 70

• Copy Adjustment 71

For best audio

• Sound mode 72

• Basic settings 73

• Volume settings 75

• Voice Guidance Settings 77

• Audio Description 78

• Advanced settings 79

TV Guide

• Using TV Guide 82

• Timer Programming 84

Teletext

• Viewing Teletext 85

- 4 -

•Teletext mode 87

•Teletext Character Set 88

Tuning and editing channels

•Setting menu 89

•Channel List Editor 90

•Favourites Editor 93

•Auto Setup 95

•Manual Tuning 98

•Update Channel List 101

•Signal Condition 102

•Other settings 103

•Selectable satellites 104

Recording

USB HDD setup

•Preparations 105

•Setting for USB HDD 107

Recording current programme

•One Touch Recording 109

•REW LIVE TV 110

Timer Programming

•Setting Timer Programming 112

•Editing Timer Programming 114

•Note 115

Technical information

•USB HDD 116

Media Player

Using Media Player

•Information 117

•Selecting device / mode 119

•Network device 121

- 5 -

Easy List View

•Selecting file 122

•Filtering files 124

Mix Folder View

•Selecting file 125

•Filtering files 127

•Sorting files 128

Playback

•Playback 129

•Slideshow Settings 131

•Video Setup 133

•Audio output settings 134

Recorded TV mode

•Selecting content 135

•Watching recorded TV 136

•Grouping content 138

•Deleting content 139

•Chapter List 140

•Audio output settings 141

Connected device

•Device handling caution 142

•USB devices 143

Supported format

•Photo format 144

•Video format 145

•Music format 148

Network

Internet content

•Information 149

•Selecting internet content 150

•Note 151

- 6 -

DLNA

•In-House streaming 152

•Using DLNA 154

Network connections

•Internet connection 155

•DLNA connection 156

•Note 159

Network settings

•Network Connection 160

•Custom - Wireless 162

•Custom - Wired 165

•Custom - Wireless Access Point 167

•Network Status 168

•TV Name 169

•TV Remote App Settings 170

•Network Link Settings 172

•File Sharing Settings 174

•Mirroring Settings 175

•Control4 Settings 176

•Software Update 177

•New Software Message 178

•Terms of Service and Settings 179

Photos

•Selecting file 180

•Viewing photo 181

•Using Slideshow 182

Videos

•Selecting file 183

•Watching video 184

•Video Setup 186

•Audio output settings 188

Music

•Selecting file 189

- 7 -

•Playing music 190

•Music Setup 191

Supported format

•Photo format 192

•Video format 193

•Music format 196

Functions

Mirroring

•How to use 197

•Mirroring Settings 198

DVB-via-IP

•DVB-via-IP client connection 199

•DVB-via-IP Server Selection 201

•Note 202

VIERA Link “HDAVI Control™”

•Summary of VIERA Link 203

•Preparations 208

•Easy playback 209

•Power on Link 210

•Power off Link 211

•Standby Power Save 212

•Intelligent Auto Standby 213

•VIERA Link Control 214

•Speaker Selection 216

•Note 217

Child Lock

•Using Child Lock 218

•PIN number 219

•Parental Rating 220

Data Service Application

•Using Data Service Application 221

•Privacy Setting 222

- 8 -

• Note 223

Common Interface

• Caution 224

• Using Common Interface 225

Shipping Condition

• Shipping Condition 226

Updating the TV Software

• Information 227

• Auto update 228

• Manual update 229

Setting characters

• Using Numeric buttons 230

Keyboard

• Keyboard 231

Settings

Setting menu

• How to use 232


• Viewing Mode 234

• Basic settings 235

• Ambient Sensor 236

• HDR Brightness Setting 237

• Noise reduction settings 238

• Advanced Settings 239

• Option Settings 240

• Screen Settings 242

• PICTURE Button Setting 243

• Copy Adjustment 244

• Reset to Defaults 245

Sound

• Mode 246

- 9 -

•Basic settings 247

•Volume settings 248

•Voice Guidance Settings 249

•Audio Description 250

•Advanced settings 251

•Reset to Defaults 252

Network

•Network Connection 253

•Network Status 254

•TV Name 255

•TV Remote App Settings 256

•Network Link Settings 257

•File Sharing Settings 258

•Mirroring Settings 259

•Control4 Settings 260

•Other settings 261

Timer

•Off Timer 262

•Timer Programming 263

•Time Zone 264

•Auto Standby 265

•No signal Power off 266

Setup

•Eco Navigation 267

•USB Device Setup 268

•Recording Setup 269

•Child Lock 270

•Tuning Menu 271

•Language 273

•Display Settings 274

•HDMI HDR Setting 275

•Common Interface 276

•VIERA Link Settings 277

•Data Service Application 278

- 10 -

•System Menu 279

•Other Settings 280

Support

Help menu

•Using Help menu 281

FAQs

•Picture 282

•Digital TV 284

•Analogue TV 286

•Sound 287

•HDMI 288

•Network 289

•Other 291

•Detailed information 293

Maintenance

•Care and Cleaning 294

How to use

■ Meaning of signs

OK :

Letters enclosed in brackets indicate remote control buttons.

Menu :

Letters in cyan indicate on-screen display items.

References in this eHELP

You can jump to the page by pressing while the cursor is on the OK

references.

■ Operation guide

= Note =

● Design and specifications are subject to change without notice.

● The images shown in this eHELP are for illustrative purposes only.

● This eHELP covers all models, however, some features may not be

available on certain models.

● Refer to the paper manual and the actual menu in the TV etc. to confirm

your model’s features.

- 11 -

Read first

Before use

Licence

Even if no special notation has been made of company or product

trademarks, these trademarks have been fully respected.

DVB and the DVB logos are trademarks of the DVB Project.

DiSEqC™ is a trademark of EUTELSAT.

DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service

marks, or certification marks of the Digital Living Network Alliance.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc. in the United States and other countries.

HDAVI Control™ is a trademark of Panasonic Corporation.

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby

Laboratories.

Text-To-Speech Powered by Dragon

“PlayReady” is a trademark registered by Microsoft. Please be aware of the

following.

(a) This product contains technology subject to certain intellectual property

rights of Microsoft. Use or distribution of this technology outside of this

product is prohibited without the appropriate license(s) from Microsoft.

- 12 -

(b) Content owners use Microsoft PlayReady™ content access technology to

protect their intellectual property, including copyrighted content. This device

uses PlayReady technology to access PlayReady-protected content and/or

WMDRM-protected content. If the device fails to properly enforce restrictions

on content usage, content owners may require Microsoft to revoke the

device’s ability to consume PlayReady-protected content. Revocation should

not affect unprotected content or content protected by other content access

technologies.

Content owners may require you to upgrade PlayReady to access their

content.

If you decline an upgrade, you will not be able to access content that requires

the upgrade.

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,

(2) the software owned by third party and licensed to Panasonic Corporation,

(3) the software licensed under the GNU General Public License, Version 2.0

(GPL V2.0),

(4) the software licensed under the GNU LESSER GENERAL PUBLIC

LICENSE Version 2.1 (LGPL V2.1), and/or,

(5) open sourced software other than the software licensed under the GPL

V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be

useful, but WITHOUT ANY WARRANTY, without even the implied warranty of

MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please

refer to the detailed terms and conditions thereof shown in the “Software

Licence” menu on this product.

At least three (3) years from delivery of this product, Panasonic will give to

any third party who contacts us at the contact information provided below,

for a charge no more than our cost of physically performing source code

distribution, a complete machine-readable copy of the corresponding source

code covered under GPL V2.0, LGPL V2.1 or the other licenses with the

obligation to do so, as well as the respective copyright notice thereof.

Contact Information: cdrequest@unipf.jp

The source code and the copyright notice are also available for free in our

website below.

http://www.unipf.jp/dl/EUIDTV18/

- 13 -

Features

Home

“Home” is a gateway to the TV programmes, applications and connected

devices.

It provides you an easy way to access all the features.

Home > Home > Information

- 14 -

DVB-via-IP

This TV has DVB-via-IP client function and can connect to DVB-via-IP server

or SAT>IP compatible servers to receive broadcast streaming.

Functions > DVB-via-IP > DVB-via-IP client connection

- 15 -

Easy Mirroring

You can watch and display images of other devices (smartphone, etc.) on the

TV screen using a mirroring function. You can also start the mirroring function

from the other devices without operating the TV.

Functions > Mirroring > How to use

- 16 -

Home

Information

“Home” is a gateway to the TV programmes, applications and connected

devices.

Home is displayed by pressing and it provides you an easy way to HOME

access all the features as shown below (example).

Home

Live TV

– Gateway to TV programmes

Home > Live TV

Apps

– Gateway to various applications (internet content, etc.)

Home > Apps

Devices

– Gateway to connected devices (HDMI equipment, USB device, network

device, etc.)

Home > Devices

- 17 -

= Note =

●Be sure to update the software when a software update notice is displayed

on the TV screen. If the software is not updated, you may not be able to

use Home. You can update the software later manually.

Network > Network settings > Software Update

- 18 -

How to use

From Home, you can access all the features such as TV programmes,

applications and connected devices.

1. Display Home with .HOME

(Example)

● Press / to display the tabs which provide you with the relevant

programme information, recommended content, etc.

● A broadband network environment is required to use internet services.

Network > Network connections > Internet connection

2. Select Live TV / Apps Devices / and press to access.OK

● To watch full-screen TV, select Live TV.

(Example)

= Note =

● Design and specifications are subject to change without notice.

■ Search

You can search for content from various sources.

1. Display Home with .HOME

2. Press to select Search and press to access.OK

● A search history may be displayed and you can select it for keyword

search.

● To delete the search history

1) Select Search or a keyword and press .OPTION

2) Select Delete all histories Delete a history / and press .OK

3. Follow the on-screen instructions.

- 19 -

■Setting

You can set up Home, tabs, etc.

1. Display Home with .HOME

2. Press repeatedly to display the setting tab.

3. Select one of the following items and press to access.OK

Tab Settings / Enable Auto Pin / Disable Auto Pin

4. Follow the on-screen instructions.

Tab Settings

Edits the tabs of Home.

Enable Auto Pin Disable Auto Pin /

Selects whether to automatically add a shortcut for a feature frequently used

on Home.

- 20 -

Pin to HOME

You can add a shortcut for a frequently used feature on Home.

1. Display Home with .HOME

2. Select Live TV / Apps Devices / and press to access.OK

3. Select a feature (TV programme / application / device).

4. Display the option menu with .OPTION

5. Select Pin to HOME and press to set.OK

6. Select the position to add on Home.

●To remove a shortcut from Home, set .Unpin from HOME

Home > Home > Option menu

- 21 -

Option menu

You can customise Home.

1. Display the option menu with .OPTION

2. Select one of the following items and press to access.OK

Unpin from HOME Move /

3. Set the item and press to store.OK

Unpin from HOME

Removes a shortcut from Home.

Move

Arranges the position of the icons.

- 22 -

Live TV

How to use

Live TV is a gateway to the TV programmes.

1. Display Home with .HOME

2. Select Live TV.

(Example)

3. Press OK to access.

(Example)

● For details of watching TV

Watching > Basic

● To add a shortcut icon

Home > Home > Pin to HOME

- 23 -

Option Menu

Confirm or change the current status.

●Display the image full-screen to use this function.

1. Display the option menu with .OPTION

2. Select one of the following items and press to access.OK

Pin to HOME Voice Guidance Settings / / Audio Type / / Multi Video Multi

Audio Sub Channel Subtitle Language Teletext Character / Dual Audio / / /

Set Teletext Language MPX Volume Correction / / /

●The function items vary depending on the TV mode and country you

select.

3. Set the item and press to store.OK

Pin to HOME

Adds a shortcut for a frequently used feature on Home.

Home > Home > Pin to HOME

Voice Guidance Settings

Guidance settings for visually impaired users

Watching > For best audio > Voice Guidance Settings

Audio Type

Set to Audio Description if the programme has Audio Description service,

then you will hear an additional audio track to describe events on screen (if

available).

●For DVB

●To adjust the volume for Audio Description

Watching > For best audio > Audio Description

Multi Video

Selects from a group of multiple videos (if available).

●This setting is not memorised and it returns to the default setting once you

exit the current programme.

●For DVB

Multi Audio

Selects between alternative language or Audio Description for sound tracks (if

available).

- 24 -

● This setting is not memorised and it returns to the default setting once you

exit the current programme.

● For DVB

Dual Audio

Selects stereo / monaural (if available).

● For DVB

Sub Channel

Selects the multifeed programme - sub channel (if available).

● For DVB

Subtitle Language

Selects between alternative subtitle languages or types (if available).

● This setting is not memorised and it returns to the default setting once you

exit the current programme.

● For DVB

Teletext Character Set

Sets the teletext language font.

Watching > Teletext > Teletext Character Set

Teletext Language

Selects between alternative teletext languages (if available).

● This setting is not memorised and it returns to the default setting once you

exit the current programme.

● For DVB

MPX

Selects multiplex sound mode (if available).

Watching > For best audio > Advanced settings

● For Analogue

Volume Correction

Adjusts the volume of each individual channel or input mode.

- 25 -

Apps

How to use

Various applications (internet content, etc.) can be accessed easily from

Apps.

1. Display Home with .HOME

2. Select Apps and press to access.OK

(Example)

● To exit Apps

EXIT

● To add a shortcut icon

Home > Home > Pin to HOME

● You can assign a favourite application to MY APP of the TV’s remote

control.

Home > Apps > Option menu

3. Select an application and press to access.OK

4. Follow the on-screen instructions.

= Note =

● Design and specifications are subject to change without notice.

● Internet apps are provided by their respective service providers, and may

be changed, interrupted, or discontinued at any time.

● A broadband network environment is required to fully use this function.

- 26 -

Option menu

1. Display the option menu with .OPTION

2. Select one of the following items and press to access.OK

Pin to HOME Set as My App Move Lock Unlock Uninstall Show / / / / / /

Info.

3. Set the item and press to store.OK

Pin to HOME

Adds a shortcut for a frequently used feature on Home.

Home > Home > Pin to HOME

Set as My App

Assigns your favourite application to MY APP of the TV’s remote control.

● is displayed on the assigned application.

● To change the assignment, set Set as My App while the cursor is on

another application.

Move

Arranges the position of the applications.

Lock Unlock,

Locks / unlocks a specific application to restrict access (if available).

● Child Lock PIN number is required to access to locked application.

Functions > Child Lock > PIN number

Uninstall

Deletes an application from Apps (if available).

Show Info.

Displays the information about the selected application.

- 27 -

Devices

How to use

Connected devices (HDMI equipment, USB device, network device, etc.) can

be accessed easily from .Devices

1. Display Home with .HOME

2. Select Devices and press to access.OK

(Example)

●To exit Devices

EXIT

●To add a shortcut icon

Home > Home > Pin to HOME

3. Select a device and press to access.OK

●For external equipment

Watching > External equipment

●For USB device, network device for Media Player

Media Player > Using Media Player

●For network equipment for DLNA

Network > DLNA

●For mirroring function

Functions > Mirroring

= Note =

●Design and specifications are subject to change without notice.

- 28 -

Option menu

1. Display the option menu with .OPTION

2. Select one of the following items and press to access.OK

Pin to HOME / Accessibility Switch to Component Switch to Video / / /

Show Info.

3. Set the item and press to store.OK

Pin to HOME

Adds a shortcut for a frequently used feature on Home.

Home > Home > Pin to HOME

Accessibility

Guidance settings for visually impaired users

Watching > For best audio > Voice Guidance Settings

Switch to Component Switch to Video /

You can select and in COMPONENT VIDEO AV.

Show Info.

Displays the information about the selected device.

- 29 -

Watching

Basic

Basic connection

Some features are not available on all models.

Please ensure that the unit is disconnected from the mains socket before

attaching or disconnecting any cables.

● External equipment and cables shown are not supplied with this TV.

■ Satellite dish

Satellite terminal

Satellite cable

Satellite dish

● For DVB-S

● To ensure your satellite dish is correctly installed, please consult your local

dealer. Also consult the received satellite broadcasting companies for

details.

● Selectable satellites and dish alignment to tune DVB-S channels

Watching > Tuning and editing channels > Selectable satellites

- 30 -

■ Aerial

Terrestrial / cable terminal

RF cable

Terrestrial aerial / Cable

● For DVB-C, DVB-T, Analogue

■ DVD Recorder / Blu-ray Recorder, etc.

Terrestrial / cable terminal

RF cable

DVD Recorder / Blu-ray Recorder, etc.

Terrestrial aerial / Cable

HDMI terminal

HDMI cable

- 31 -

■Set top box

HDMI terminal

HDMI cable

Set top box

Cable

= Note =

●For details of DVB-via-IP connections

Functions > DVB-via-IP

●For details of VIERA Link connections

Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

●Please also read the manual of the equipment being connected.

●Keep the TV away from electronic equipment (video equipment, etc.) or

equipment with an infrared sensor, otherwise distortion of image / sound

may occur or operation of other equipment may be affected.

●Use a fully wired HDMI compliant cable.

●Check the terminal type and cable plugs are correct for connection.

- 32 -

Selecting channel

Some features are not available on all models.

1. Select the mode with TV.

DVB-S DVB-C DVB-T DVB-via-IP / / / / Analogue

●Selectable modes vary depending on the channels stored.

2. Select a channel with or .Channel Up / Down Numeric buttons

●Press to select a channel position with 2 or more-digit Numeric buttons

(e.g. 399, press ).

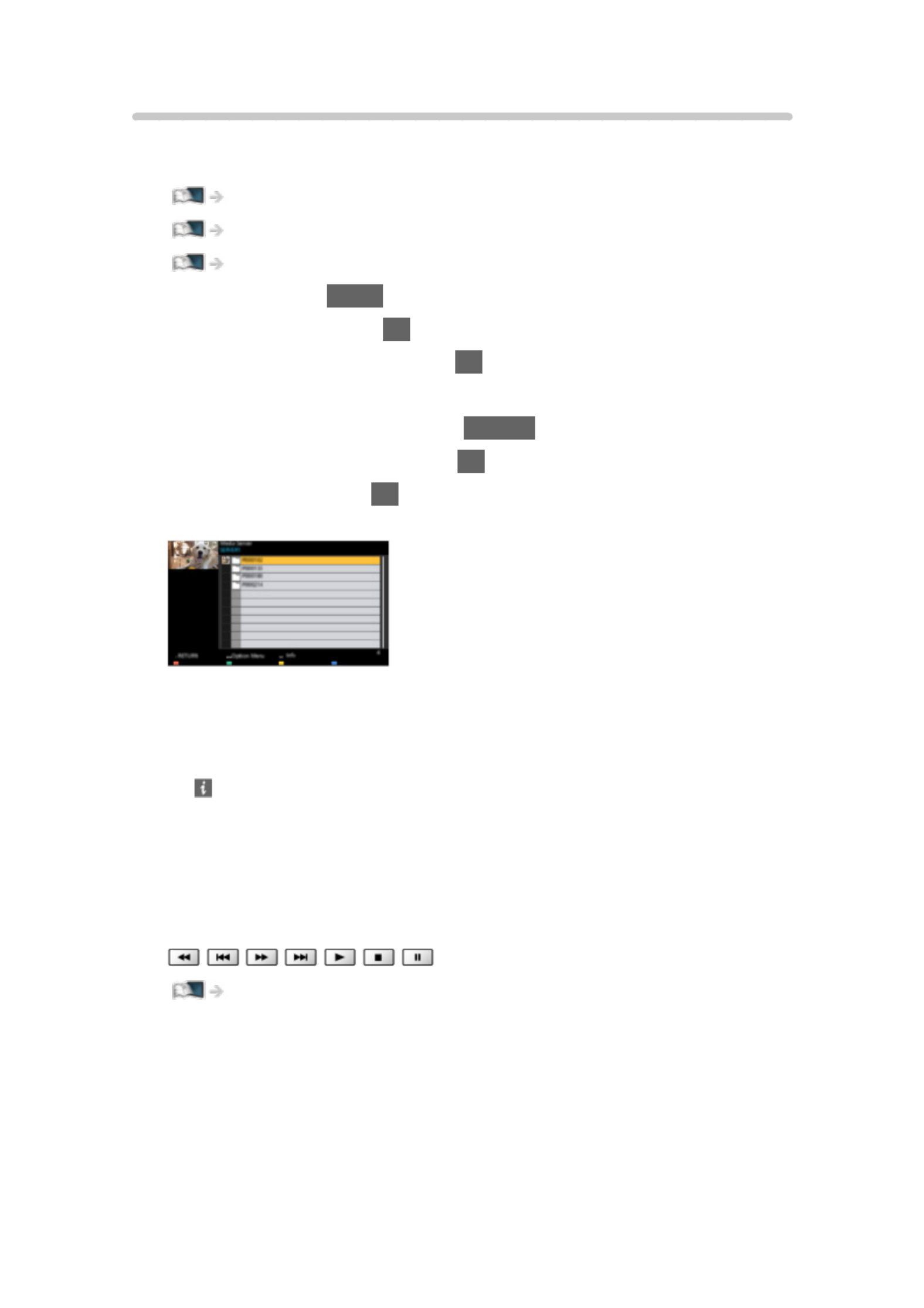

■To select a channel from the channel list

1. Display the channel list with .OK

2. Select a channel from the list and press to watch.OK

●To sort channel names in alphabetical order

(red)

●To change the category

(blue)

■To select a channel using information banner

1. Display information banner with if it is not displayed.

2. Select a channel and press to watch while the banner is displayed.OK

Watching > Basic > Information banner

■To select a channel using TV Guide

1. Display TV Guide with .GUIDE

2. Select the current programme and press to access.OK

– The current programme is displayed on the top left of the screen.

3. Select View and press to watch.OK

Watching > TV Guide > Using TV Guide

●Not valid in Analogue

- 33 -

■To watch pay-TV

●For details of the encrypted channels

Functions > Common Interface > Using Common Interface

●Consult the operator / broadcaster or CI module manufacturer for more

information and conditions of the services.

- 34 -

Information banner

Some features are not available on all models.

Display information banner with .

●Also appears when changing a channel.

(Example)

Channel position and name

Channel type (Radio, HDTV, etc.) / Encrypted channel ( ) / TV mode ( ,

, , , )

Programme

Start time / End time (except Analogue)

Channel position, etc. (Analogue)

Progress time indicator of the selected programme (except Analogue)

Category

●To change the category (DVB)

1) Display the category list with (blue).

2) Select the category and press to change.OK

Current time

Features available / message meanings

Bad signal:

Poor quality TV signal

DD DD+ HE-AAC, , :

Dolby Audio (Dolby Digital, Dolby Digital Plus) or HE-AAC audio track

AD:

Audio Description service available

●This function can aid visually-impaired viewers by providing an

additional audio track to describe events on screen.

Watching > For best audio > Audio Description

Subtitle service available

- 35 -

Teletext service available

Multiple audio available

Multiple video available

Multiple audio and video available

Stereo Mono, :

Audio mode

Data service (Hybrid Broadcast Broadband TV application) available

Functions > > Using Data Service ApplicationData Service Application

1 90 – :

Off Timer remaining time

Watching > Basic > Off Timer

●To confirm another tuned channel

●To watch the channel listed in the banner

●Information on the next programme (DVB)

●Extra information (DVB)

– Press again to hide the banner.

●To hide the banner

EXIT

●To adjust banner timeout, set .Banner Display Timeout

1) Display the menu with .MENU

2) Select Setup Display Settings > > Banner Display Timeout and press

OK to access.

3) Set the item and press to store.OK

- 36 -

Subtitle

Display / hide subtitles (if available) with .STTL

●To select the preferred language for DVB subtitles (if available), set

Preferred Subtitles.

Watching > Basic > Language

●To select the preferred subtitle type

1) Display the menu with .MENU

2) Select Setup Display Settings > > Preferred Subtitle Type and press

OK to access.

3) Select Standard Hard of Hearing / and press to set.OK

– provides aids in understanding and enjoyment with Hard of Hearing

DVB subtitles (depending on the broadcaster).

●Preferred Subtitles 1 / 2 in Language are given priority.

Watching > Basic > Language

= Note =

●If you press STTL in Analogue, the TV switches to teletext service and

calls up a favourite page. Press to return to TV mode.EXIT

- 37 -

Last view

Switch to a previously viewed channel or input mode easily with LAST VIEW.

●Press again to return to the current view.

= Note =

●Switching channel may not be available depending on the condition.

●Watching less than 10 seconds is not reflected in the previously viewed

channel or input mode.

- 38 -

Off Timer

Switch to TV Standby mode automatically after a fixed period.

1. Display the menu with .MENU

2. Select Timer > Off Timer and press to access.OK

3. Select the time in 15-minute increments and press to set.OK

90 75 60 45 30 15 minutes / / / / / / Off ( )

●To cancel, set to or turn the TV off.Off

●The remaining time is displayed on the bottom right of the screen.

●The remaining time will flash on the screen when less than 3 minutes.

- 39 -

Energy saving functions

The TV can be eco-friendly using energy-saving functions.

The TV goes into Standby mode in the following conditions:

● Eco Navigation Set to Eco is set to .

● Off Timer is active.

Watching > Basic > Off Timer

● No operation is performed for 4 hours while Auto Standby On is set to .

● No signal is received and no operation is performed for 10 minutes while

No signal Power off On is set to .

= Note =

● This function does not affect the recording.

■ Auto Standby

1. Display the menu with .MENU

2. Select Timer > Auto Standby and press to access.OK

3. Select On / Off and press to set.OK

Auto Standby

( / )On Off

Automatically turns the TV to Standby mode for energy saving when no

operation is performed for 4 hours.

● Automatic input switching with the connected equipment affects this

function and time-count resets.

● A notification message will appear 3 minutes before going into Standby

mode.

● Changing the default configuration may result in higher energy

consumption of the product.

- 40 -

■No signal Power off

1. Display the menu with .MENU

2. Select Timer No signal Power off > and press to access.OK

3. Select On / Off and press to set.OK

No signal Power off

( / )On Off

Automatically turns the TV to Standby mode to prevent unnecessary power

consumption when no signal is received and no operation is performed for 10

minutes.

●A notification message will appear 3 minutes before going into Standby

mode.

■Eco Navigation

Automatically sets the TV to the most suitable energy-saving mode.

The concerned items and their current settings are displayed. Select Set to

Eco to set them to the energy-saving settings at once.

1. Display the menu with .MENU

2. Select Setup Eco Navigation > and press to access.OK

3. Select Set to Eco and press to set.OK

●Auto Standby No signal Power off Eco Navigation and are active when is

set to .Set to Eco

■Radio Mode

Sets the timer for turning off the screen automatically when a radio channel is

selected.

1. Display the menu with .MENU

2. Select Setup Display Settings Radio Mode > > and press to access.OK

3. Select the time and press to set.OK

20 15 10 5 seconds / / / / Off ( )

●Sound is active even if the screen is turned off. This function is effective in

reducing power consumption when listening to a radio channel.

●Press any buttons except Standby On / Off switch, Volume Up / Down and

MUTE to turn the screen on.

●Not valid in Analogue

- 41 -

Adjusting time

Adjusts the time data.

1. Display the menu with .MENU

2. Select Timer Time Zone > and press to access.OK

3. Set the item and press to store.OK

●The time data are corrected based on GMT.

- 42 -

Language

1. Display the menu with .MENU

2. Select Setup Language > and press to access.OK

3. Select one of the following items and press to access.OK

OSD Language Preferred Audio 1 / 2 Preferred Subtitles 1 / 2 / / /

Preferred Teletext

4. Set the item and press to store.OK

OSD Language

Changes language for on-screen displays.

Preferred Audio 1 / 2

Selects the first and second preferred language for DVB multi audio

(depending on the broadcaster).

Preferred Subtitles 1 / 2

Selects the first and second preferred language for DVB subtitles (depending

on the broadcaster).

●To display subtitles

Watching > Basic > Subtitle

Preferred Teletext

Selects the preferred language for DVB teletext service (depending on the

broadcaster).

- 43 -

External equipment

External connection

These diagrams show our recommendations for connection of your TV to

various pieces of equipment. For other connections, consult the instructions

for each piece of equipment.

●For details of basic connection

Watching > Basic > Basic connection

●Check the terminal type and cable plugs are correct for connection.

●External equipment and cables shown are not supplied with this TV.

■HDMI equipment

HDMI terminal

HDMI cable

Recorder / Player / Set top box / Camcorder / Amplifier with speaker

system

= Note =

●Use a fully wired HDMI compliant cable.

●For details of VIERA Link connections

Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

●Use HDMI2 to connect the TV to an amplifier which has ARC (Audio

Return Channel) function.

- 44 -

■AV devices

AV (COMPONENT) terminals

Component cables

DVD Player, etc.

AV (VIDEO) terminals

Composite cables

Camcorder / Game equipment

■USB devices

USB port

USB cable

USB HDD, etc.

= Note =

●It is recommended to connect the device to the TV’s USB port directly.

- 45 -

●You cannot use two or more of the same kind of USB devices

simultaneously except USB Flash Memory or USB HDD.

●Use USB 2 port for connecting the USB HDD.

●Some USB devices or USB HUB may not be used with this TV.

●You cannot connect any devices by using USB card reader.

■Listening with external speakers

DIGITAL AUDIO

Optical digital audio cable

Amplifier with speaker system

●To enjoy multi-channel sound from external equipment (e.g. Dolby

Audio (Dolby Digital) 5.1ch), connect the equipment to the amplifier. For

information about the connections, read the manuals of the equipment and

amplifier.

●To select the sound output to adjust volume, set TV Speaker Setting.

Watching > For best audio > Volume settings

■Headphones

Headphone jack

3.5 mm stereo mini plug

Headphones

●To adjust volume, set Headphone Volume.

Watching > For best audio > Volume settings

●To select the sound output to adjust volume, set TV Speaker Setting.

Watching > For best audio > Volume settings

- 46 -

Watching external input

Connect the external equipment (VCR, DVD, etc.) and you can watch through

the input.

1. Display the input selection menu with AV.

2. Select the input mode connected to the equipment and press to watch. OK

(The selected mode is displayed on the top left of the screen.)

●You can also select the input pressing AV. Press repeatedly until the

desired input is selected.

●You can select and in COMPONENT VIDEO AV.

●You can label or skip each input mode. Skipped inputs will not be

displayed when AV is pressed. ( )Input Labels

●The remote control is capable of operating the content or external

equipment.

Watching > External equipment > Operating with TV’s remote control

●To return to TV mode

= Note =

●If the external equipment has an aspect adjustment function, set it to .16:9

●For details, read the manual of the equipment or ask your local dealer.

■Input Labels

Accessing the input labels list allows you to change the input name or skip

the input if unconnected, improving identification and selection in the Input

Selection banner.

Watching > Basic > Information banner

1. Display the menu with .MENU

2. Select Setup Display Settings Input Labels > > and press to access.OK

3. Set the item and press to set.OK

●To name each input mode freely, select and set characters User input

(maximum 10 characters).

●To skip the input mode, select .Skip

■Playing Time Display

Set to to display a time period of continuous use in Game Mode on the top On

right of the screen every 30 minutes.

1. Display the menu with .MENU

- 47 -

2. Select Setup Display Settings > > Playing Time Display and press to OK

access.

3. Select On / Off and press to set.OK

●This function is available when is set to .Game Mode On

- 48 -

Operating with TV’s remote control

You can operate the content in Media Player / media server, recording

functions or the connected equipment with the following buttons of this TV’s

remote control.

Playback (VCR / DVD / video content)

Stop the operations

Rewind, view the picture rapidly in reverse (VCR)

Skip to the previous track, title or chapter (DVD / video content)

Rewind, view the picture rapidly in reverse (VCR)

Search backward (DVD / video content)

Fast-forward, view the picture rapidly forward (VCR)

Skip to the next track, title or chapter (DVD / video content)

Fast-forward, view the picture rapidly forward (VCR)

Search forward (DVD / video content)

Pause / Resume

Press and hold to play at slow speed (DVD)

One Touch Recording

Recording > Recording current programme > One Touch Recording

■How to change the code

Each Panasonic product has its own remote control code. Change the code

according to the product for operation.

1. Press and hold Standby On / Off switch during the following operations.

- 49 -

2. Enter the appropriate code as follows with .Numeric buttons

●Codes for each product and features

70: DVD Recorder, DVD Player, Blu-ray Disc Player

71: Player theatre, Blu-ray Disc theatre

72: VCR

73 (default):

Using in USB HDD recording, Media Player, DLNA features or VIERA

Link

3. Press to change.

= Note =

●Confirm if the remote control works correctly after changing the code.

●The codes may be reset to defaults if batteries are replaced.

●Some operations may not be available depending on the equipment.

- 50 -

HDMI features

HDMI (high-definition multimedia interface) is the world’s first complete digital

consumer AV interface complying with a non-compression standard.

HDMI allows you to enjoy high-definition digital images and high-quality

sound by connecting the TV to external equipment.

HDMI-compatible equipment with an HDMI or DVI output terminal, such as a

DVD player, a set top box or game equipment, can be connected to the HDMI

terminal using a fully wired HDMI compliant cable.

Watching > External equipment > External connection

: The HDMI logo is displayed on HDMI-compliant equipment.

■Applicable HDMI features

●Input audio signal:

2ch LPCM, Dolby Audio (Dolby Digital, Dolby Digital Plus)

– Audio settings can be made on in the Sound HDMI Audio Format

Menu.

Watching > For best audio > Advanced settings

●Input video signal:

Matches the output setting of the digital equipment.

Watching > External equipment > Valid input signals

●VIERA Link (HDAVI Control 5)

Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

●Content Type

●Audio Return Channel

– Audio Return Channel (ARC) is a function to send digital sound signals

via an HDMI cable.

– For HDMI2

■DVI connection

If the external equipment has only a DVI output, connect to the HDMI terminal

via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor cable,

connect the audio cable to the audio input terminal (use COMPONENT /

VIDEO audio terminals).

●Enquire HDMI adaptor cable at your local digital equipment retailer shop.

- 51 -

= Note =

●Audio settings can be made on / in the HDMI Audio Format HDMI Input

Sound Menu.

Watching > For best audio > Advanced settings

●If the connected equipment has an aspect adjustment function, set the

aspect ratio to “16:9”.

●These HDMI connectors are “type A”.

●These HDMI connectors are compatible with HDCP (High-Bandwidth

Digital Content Protection) copyright protection.

●Equipment having no digital output terminal may be connected to the input

terminal of component or video to receive analogue signals.

●This TV incorporates HDMI™ technology.

- 52 -

HDMI HDR Setting

1. Display the menu with .MENU

2. Select Setup HDMI HDR Setting > and press to access.OK

3. Set the item and press to store.OK

HDMI HDR Setting

( / )On Off

Set to when the HDR device is connected to the TV.On

●Please turn this function if the image looks unnatural. This may occur Off

in some cases such as compatibility with the connected device or source

images.

●Image may disappear for a few seconds when the setting is changed.

●For HDMI

= Note =

●Supporting HDR does not increase the peak brightness capabilities of the

TV panel.

●The ability to send a non 4K HDR signal via HDMI depends fully on the

playback device.

●The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back

HDR, whereas the HDMI input on this TV support only HDCP1.4;

accordingly not all HDR contents are guaranteed to be enjoyed on the TV.

- 53 -

Valid input signals

■COMPONENT, HDMI

Signal name COMPONENT HDMI

525 (480) / 60i, 60p ○ ○

625 (576) / 50i, 50p ○ ○

750 (720) / 60p, 50p ○ ○

1 125 (1 080) / 60i, 50i ○ ○

1 125 (1 080) / 60p, 50p, 24p ○

○:Applicableinputsignal

= Note =

●Signals other than above may not be displayed properly.

●The above signals are reformatted for optimal viewing on your display.

- 54 -

For best picture

Viewing Mode

1. Display the menu with .MENU

2. Select Picture Viewing Mode > and press to access.OK

3. Select the mode and press to set.OK

Viewing Mode

( / / / Dynamic Normal Cinema True Cinema Custom Sport Game / / / )

Selects your favourite picture mode for each input.

Dynamic:

Improves contrast and sharpness for viewing in a bright room.

Normal:

Normal use for viewing in a normal lighting condition.

Cinema:

Improves the performance of contrast, black and colour reproduction

for watching a film in a darkened room.

True Cinema:

Reproduces the original image quality precisely without any revision.

Custom:

Adjusts each menu item manually to suit your favourite picture quality.

Sport:

Improves picture quality for watching sports, etc.

●The sound mode is automatically set to when Stadium Viewing

Mode Sport is set to . To cancel the linkage of the sound and viewing

mode, set to .Sport Link Off

Watching > For best audio > Basic settings

Game:

Improves picture quality for playing games, etc.

●For HDMI, AV (COMPONENT / VIDEO)

●Game Mode On Viewing Mode is automatically set to when is set to

Game.

Watching > For best picture > Option Settings

- 55 -

●The following items can be adjusted and stored for each mode.

Backlight Contrast Brightness Colour Tint Sharpness Colour / / / / / /

Temperature Vivid Colour / / Adaptive Backlight Control / Ambient Sensor

/ / / / HDR Brightness Setting Noise Reduction MPEG Remaster Dynamic

Range Remaster Clear Motion /

●This function can be memorised respectively for input or TV mode.

■To change the viewing mode with PICTURE

You can change the viewing mode easily only by pressing .PICTURE

1. Display Viewing Mode with .PICTURE

2. Select the mode and press to set.OK

●You can also change the mode by pressing .PICTURE

(Press repeatedly until you reach the desired mode.)

●To set the viewing mode selection

1) Display the menu with .MENU

2) Select Picture PICTURE Button Setting > and press to access.OK

3) Select the viewing mode to set.

- 56 -

Aspect

Changes the aspect ratio (image size).

■To change the aspect ratio manually

1. Display the menu with .MENU

2. Select Picture Screen Settings > and press to access.OK

3. Select Aspect and press to access.OK

4. Set the item and press to store.OK

Auto:

The best ratio is selected automatically according to the “Aspect Control

Signal”.

Watching > For best picture > Aspect Control Signal

16:9:

Directly displays the image at 16:9 without distortion (anamorphic).

4:3:

Displays the image at the standard 4:3 without distortion.

Zoom:

Displays a 16:9 letterbox or 4:3 image without distortion.

= Note =

●Display the image full-screen to use this function completely.

●Aspect mode can be memorised separately for SD (Standard definition)

and HD (High definition) signals.

●Aspect cannot be changed in teletext service.

●Aspect is fixed to in the following conditions:16:9

– is set to .Game Mode On

- 57 -

Aspect Control Signal

Some features are not available on all models.

Programmes usually contain an “Aspect Control Signal”. (Widescreen signal,

Control signal through HDMI terminal)

In Auto mode, aspect mode will appear in the top left of the screen if a

Widescreen signal (WSS) or a Control signal through HDMI terminal is found.

The aspect switches to the appropriate ratio.

Watching > For best picture > Aspect

■Available conditions

●Satellite terminal (WSS only)

Valid input signal format:

DVB-S

●Terrestrial / cable terminal (WSS only)

Valid input signal format:

DVB-C

DVB-T / DVB-T2

PAL B, G, H, I, D, K

SECAM B, G, L, L’, D, K

Invalid input signal format:

PAL 525/60 6.5 MHz

PAL 525/60 6.0 MHz

PAL 525/60 5.5 MHz

M.NTSC 6.5 MHz

M.NTSC 6.0 MHz

M.NTSC 5.5 MHz

- 58 -

●AV (VIDEO) terminals

Valid input signal format:

PAL

SECAM

PAL 525/60

M.NTSC

NTSC

: Control signal through HDMI terminal only

●AV (COMPONENT) terminals (WSS only)

Valid input signal format:

625 (576) / 50i, 50p

Invalid input signal format:

525 (480) / 60i, 60p

750 (720) / 60p, 50p

1 125 (1 080) / 60i, 50i

●HDMI terminal

Valid input signal format:

525 (480) / 60i, 60p

625 (576) / 50i, 50p

750 (720) / 60p, 50p

1 125 (1 080) / 60i, 50i

1 125 (1 080) / 60p, 50p, 24p

●HDMI terminal does not receive WSS signal.

= Note =

●If the screen size looks unusual when a widescreen-recorded programme

is played back on a VCR, adjust the tracking of the VCR. Read the manual

of the VCR.

- 59 -

Basic settings

1. Display the menu with .MENU

2. Select Picture and press to access.OK

3. Select one of the following items and press to access.OK

Backlight Contrast Brightness Colour Tint Sharpness Colour / / / / / /

Temperature Vivid Colour / / Adaptive Backlight Control Dynamic Range /

Remaster Clear Motion /

4. Set the item and press to store.OK

Backlight Contrast Brightness Colour, , , , Tint Sharpness,

Adjusts the levels of these options according to your personal preference.

Colour Temperature

Sets the overall colour tone of the picture (bluer - redder).

Vivid Colour

( / )On Off

Automatically adjusts colours to vivid ones.

Adaptive Backlight Control

Automatically controls the level of backlight according to the images.

Dynamic Range Remaster

( / )On Off

Enhances bright areas of the image closer to the original luminance making

improved picture impact.

●Not valid in the following conditions:

– is set to .Adaptive Backlight Control Off

– is set to .Contrast Control Off

– HDR video signal

Clear Motion

( / )On Off

Makes the moving pictures clearer by controlling the level of backlight.

●Not valid for photo content

- 60 -

Ambient Sensor

1. Display the menu with .MENU

2. Select Picture > Ambient Sensor and press to access.OK

3. Select On / Off and press to set.OK

Ambient Sensor

( / )On Off

●Automatic Brightness Control function

Adjusts picture settings automatically depending on ambient lighting

condition.

●Not valid for HDR video signal

- 61 -

HDR Brightness Setting

1. Display the menu with .MENU

2. Select Picture HDR Brightness Setting > and press to access.OK

3. Select one of the following items and press to access.OK

HDR Auto Brightness / HDR Brightness Enhancer

4. Set the item and press to store.OK

HDR Auto Brightness

( / )On Off

Automatically enhances the luminance when watching an HDR video in a

bright environment.

HDR Brightness Enhancer

Adjusts the luminance when watching an HDR video in a bright environment.

= Note =

●Supporting HDR does not increase the peak brightness capabilities of the

TV panel.

●The ability to send a non 4K HDR signal via HDMI depends fully on the

playback device.

●The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back

HDR, whereas the HDMI input on this TV support only HDCP1.4;

accordingly not all HDR contents are guaranteed to be enjoyed on the TV.

- 62 -

Noise reduction settings

1. Display the menu with .MENU

2. Select Picture Noise Reduction MPEG Remaster > / and press to OK

access.

3. Set the item and press to store.OK

Noise Reduction

( / / / / )Auto Max Mid Min Off

Reduces unwanted picture noise.

●Not valid in the following conditions:

– is set to .1080p Pixel Direct On

– is set to .Game Mode On

MPEG Remaster

( / / / / )Auto Max Mid Min Off

Reduces flicker noise in contoured parts of a picture and block noise.

●Not valid in the following conditions:

– is set to .1080p Pixel Direct On

– is set to .Game Mode On

- 63 -

Advanced Settings

You can adjust and set up the detailed picture settings when Viewing Mode

is set to , Cinema True Cinema Custom or . The settings in True Cinema or

Custom can be stored for each input.

Watching > For best picture > Viewing Mode

1. Select the input mode with AV or TV.

2. Display the menu with .MENU

3. Select Picture Viewing Mode > and press to access.OK

4. Select the mode and press to set.OK

Cinema True Cinema Custom / /

■Adjust the detailed picture settings

1. Display the menu with .MENU

2. Select Picture > Advanced Settings and press to access.OK

3. Select one of the following items and press to access.OK

Contrast Control Colour Gamut White Balance Colour Management / / / /

Gamma Reset to Defaults /

4. Set the item and press to store.OK

■Contrast Control

Contrast Control

( / Custom Auto / Off)

Automatically adjusts the detailed contrast settings. Select to set Custom

Contrast Control Setting manually.

Contrast Control Setting

Adaptive Gamma Control:

Adjusts the gamma curve to make the image brighter.

Black Expander:

Gradually adjusts the shades of black.

Clear White Effect:

Makes the white area clearer.

Reset to Defaults:

Resets items for .Contrast Control Setting

- 64 -

■Colour Gamut

Colour Gamut

( / / )Auto Normal Native

Reproduces image colour precisely according to the colour gamut standards.

Auto:

Automatically adjusts the colour gamut according to the input signal.

Normal:

Displays colours according to the colour gamut.

Native:

Displays deep colours by expanding the colour gamut to its maximum.

●Not valid for photo content

■White Balance

R-Gain G-Gain B-Gain / /

Adjusts the white balance of bright red / green / blue areas.

R-Cutoff G-Cutoff B-Cutoff / /

Adjusts the white balance of dark red / green / blue areas.

More Detailed Adjustment

Adjusts more detailed items for .White Balance

Input Signal Level:

Adjusts the input signal level.

R-Gain G-Gain B-Gain / / :

Adjusts the detailed white balance of bright red / green / blue areas.

Reset to Defaults:

Resets items for .More Detailed Adjustment

Reset to Defaults

Resets to the default settings.White Balance

- 65 -

■Colour Management

R-Hue R-Saturation R-Luminance / /

Adjusts the picture hue / saturation / luminance of red areas.

G-Hue G-Saturation G-Luminance / /

Adjusts the picture hue / saturation / luminance of green areas.

B-Hue B-Saturation B-Luminance / /

Adjusts the picture hue / saturation / luminance of blue areas.

More Detailed Adjustment

Adjusts more detailed items for .Colour Management

C-Hue M-Hue Y-Hue / / :

Adjusts the picture hue of cyan / magenta / yellow areas.

C-Saturation M-Saturation Y-Saturation / / :

Adjusts the saturation of cyan / magenta / yellow areas.

Reset to Defaults:

Resets items for .More Detailed Adjustment

Reset to Defaults

Resets to the default settings.Colour Management

■Gamma

Gamma

Switches the gamma curve.

●Please note the numerical values are reference for the adjustment.

More Detailed Adjustment

Adjusts more detailed items for .Gamma

Input Signal Level:

Adjusts the input signal level.

Gain:

Adjusts the gain of gamma for selected signal level.

- 66 -

Reset to Defaults:

Resets items for .More Detailed Adjustment

Reset to Defaults

Resets to the default settings.Gamma

■Reset to Defaults

Reset to Defaults

Resets Advanced Settings to the default settings.

- 67 -

Option Settings

Some features are not available on all models. Available menu items are displayed on your TV screen.

1. Display the menu with .MENU

2. Select Picture Option Settings > and press to access.OK

3. Select one of the following items and press to access.OK

Game Mode Film Cadence Mode 1080p Pixel Direct HDMI Content / / /

Type / HDMI EOTF Type EOTF Type / / / HDMI RGB Range AV Colour

System 3D-COMB /

4. Set the item and press to store.OK

Game Mode

( / )On Off

Provides suitable images for fast response signals when playing games.

●Not valid in TV mode

●To display a continuous record of time spent using Game Mode, set

Playing Time Display.

Film Cadence Mode

( / / )Auto On Off

Improves vertical resolution for movie images.

●This function is available for interlaced signals (except in Network services

or when is set to ).Game Mode On

1080p Pixel Direct

( / )On Off

Reproduces the original image quality in detail for 1080p (HDMI) input signal.

HDMI Content Type

( / / Graphics Photos Auto / Off)

Adjusts the picture settings of each HDMI input according to the selected

content type.

Auto:

Automatically adjusts the picture settings according to the received

HDMI content if the connected equipment supports HDMI Content

Type.

●To set the availability of each content type for Auto mode, select Auto

Detail Setting.

- 68 -

●For HDMI

HDMI EOTF Type

( / Auto Traditional gamma HLG PQ / / )

Selects the EOTF type for each HDMI input. Set to Auto for general use.

●For HDMI

EOTF Type

( / Auto Traditional gamma HLG PQ / / )

Selects the EOTF type of broadcast or video content.

It works correctly only when the signal corresponds the each EOTF type. Set

to Auto for general use.

●Automatically switches to Auto for broadcast each time another input /

channel is selected.

●For DVB, video content

HDMI RGB Range

( / / )Auto Full Normal

Adjusts the black level of the image for each HDMI input.

●When the black level is not suitable, select .Full

●For HDMI

AV Colour System

( / / / / )Auto PAL SECAM M.NTSC NTSC

Selects optional colour system based on video signals.

●For AV (VIDEO)

3D-COMB

( / )On Off

Makes still or slow moving pictures more vivid.

●Occasionally, while viewing still or slow moving pictures, colour patterning

may be seen. Set to to display sharper and more accurate colours.On

●For PAL / NTSC signal reception in TV mode or from composite

connection

- 69 -

Screen Settings

1. Display the menu with .MENU

2. Select Picture Screen Settings > and press to access.OK

3. Select one of the following items and press to access.OK

Aspect 16:9 Overscan Screen Display / / Zoom Adjustments /

4. Set the item and press to store.OK

Aspect

Changes the aspect ratio (image size).

Watching > For best picture > Aspect

16:9 Overscan

( / )On Off

Selects the screen area displaying the image for 16:9 aspect.

On:

Enlarges the image to hide the edge of the image.

Off:

Displays the image in the original size.

●Set to if noise occurs on the edge of the screen.On

●This function can be memorised for SD (Standard definition) and HD (High

definition) signals respectively.

●Not valid in the following conditions:

– Photo content

– is set to .Game Mode On

Zoom Adjustments

Adjusts the vertical position and size when aspect is set to .Zoom

Screen Display

( / )On Off

Turns the screen off when you select .Off

●This function is effective in reducing power consumption when listening to

the sound without watching the TV screen.

●Press any buttons (except Standby On / Off switch) to turn the screen on.

- 70 -

Copy Adjustment

Copies the picture settings of True Cinema Custom or to those of the other

input mode or Viewing Mode.

1. Display the menu with .MENU

2. Select Picture Destination Viewing Mode > Copy Adjustment > /

Destination Input and press to access.OK

3. Select the destination to copy to and press to set.OK

4. Select Copy Start and press to copy.OK

5. When a confirmation screen is displayed, select and press to set.Yes OK

= Note =

●Option Settings Screen Settings and are not copied.

- 71 -

For best audio

Sound mode

1. Display the menu with .MENU

2. Select Sound Mode > and press to access.OK

3. Select the mode and press to set.OK

Mode

( / / / / )Standard Music Speech Stadium User

Selects your favourite sound mode for each input.

Standard:

Provides the suitable sound quality for all types of scenes.

Music:

Improves sound quality for watching music videos, etc.

Speech:

Improves sound quality for watching news, drama, etc.

Stadium:

Improves sound quality for watching sports, etc.

●The sound mode is automatically set to when Stadium Viewing

Mode Sport is set to . To cancel the linkage of the sound and viewing

mode, set to .Sport Link Off

Watching > For best audio > Basic settings

User:

Adjusts the sounds manually using the equaliser to suit your favourite

sound quality.

●The following items can be adjusted and stored for each mode.

Bass Treble Surround Bass Boost / / /

●For the User mode, is available in the Sound Menu instead of Equaliser

Bass Treble Equaliser and . Select and adjust the frequency.

Watching > For best audio > Basic settings

●This function is effective only for the sound from TV speakers.

- 72 -

Basic settings

1. Display the menu with .MENU

2. Select Sound and press to access.OK

3. Select one of the following items and press to access.OK

Bass Treble Equaliser Balance Surround Bass Boost Sport Link / / / / / /

4. Set the item and press to store.OK

Bass

Adjusts level to enhance or minimise lower, deeper sound output.

Treble

Adjusts level to enhance or minimise sharper, higher sound output.

Equaliser

Adjusts the frequency level to suit your favourite sound quality.

●This function is available when is set to Mode User.

●Select the frequency and adjust the frequency level.

●To enhance the bass sound, raise the level of the lower frequency. To

enhance the treble sound, raise the level of the higher frequency.

●To reset the levels of each frequency to the default settings, select Reset

to Defaults and press .OK

●This function is effective only for the sound from TV speakers.

Balance

Adjusts volume level of right and left speakers.

Surround

( / / )Cinema surround Stadium surround Off

Selects surround sound settings.

Cinema surround:

Provides a suitable sound for watching a film by improving spatial

effects.

Stadium surround:

Provides a dynamic sound for watching sports by improving spatial

effects.

●This function is effective only for the sound from TV speakers.

- 73 -

Bass Boost

( / )On Off

Enhances the effect of bass sounds.

●This function is effective only for the sound from TV speakers.

Sport Link

( / )On Off

Automatically sets the sound mode to when is set to Stadium Viewing Mode

Sport.

- 74 -

Volume settings

1. Display the menu with .MENU

2. Select Sound and press to access.OK

3. Select one of the following items and press to access.OK

Speaker Selection TV Speaker Setting Headphone Volume / / / Auto Gain

Control Volume Correction / / Clear Sound Adjustment

4. Set the item and press to store.OK

Speaker Selection

( / )TV Home Cinema

Enables controlling the theatre speaker with this TV’s remote control by

pointing at the TV’s signal receiver.

TV:

TV speakers are active.

Home Cinema:

The sound is delivered from theatre speakers. Player theatre, Blu-

ray Disc theatre or Amplifier will be automatically turned on if it is in

Standby mode.

●The sound of TV speakers is mute. When the equipment is turned

off, TV speakers will be activated.

●You can use Volume Up / Down MUTE and .

●This function is available when the theatre speakers supporting VIERA

Link function is connected to this TV.

TV Speaker Setting

( / / )TV Speaker Headphone Off

Selects the sound output to adjust volume.

●Sound from TV speaker turns off when or is selected.Headphone Off

Headphone Volume

Adjusts the volume of headphones.

- 75 -

Auto Gain Control

( / )On Off

Automatically regulates large sound level differences between channels and

inputs.

Volume Correction

Adjusts the volume of each individual channel or input mode.

Clear Sound Adjustment

( / )On Off

If the sound from TV speakers is unclear due to installation environment, On

is recommended.

●This function is effective only for the sound from TV speakers.

- 76 -

Voice Guidance Settings

1. Display the menu with .MENU

2. Select Sound Voice Guidance Settings > and press to access.OK

3. Select one of the following items and press to access.OK

Voice Guidance Speed Volume Language User Level Web Browser / / / / /

4. Set the item and press to store.OK

Voice Guidance

( / )On Off

Set to to enable voice guidance of the basic features (on-screen On

messages, etc.) for visually impaired users.

Speed

( / / )Fast Normal Slow

Selects the readout speed for the voice guidance.

Volume

( / / )Max Mid Min

Selects the volume for the voice guidance.

Language

Changes language for the voice guidance.

●All languages may not be available. When the selected language is not

supported, is set to automatically.Language English

User Level

( / )Beginner Expert

Selects the level of verbosity for the voice guidance.

Web Browser

( / )On Off

Set to to enable voice guidance of the network content in web browser On

function.

= Note =

●Voice guidance function may not correspond exactly.

- 77 -

Audio Description

1. Display the menu with .MENU

2. Select Sound > Audio Description and press to access.OK

3. Select one of the following items and press to access.OK

Preferred Audio Type / Volume

4. Set the item and press to store.OK

●For DVB

Preferred Audio Type

( / )Audio Description Standard

Narration settings for visually impaired users

Set to Audio Description to activate the narration sound track when available

on the broadcast.

●The availability of audio description sound track is indicated by AD in the

information banner.

Volume

Adjusts the volume for Audio Description.

- 78 -

Advanced settings

1. Display the menu with .MENU

2. Select Sound and press to access.OK

3. Select one of the following items and press to access.OK

MPX / Audio Preference SPDIF Selection PCM / / HDMI Audio Format /

Optical Level SPDIF Delay HDMI Input / /

4. Set the item and press to store.OK

MPX

Selects multiplex sound mode (if available).

Stereo:

Use this normally.

Mono:

When stereo signal cannot be received

M1 M2 / :

Available while mono signal is transmitted

●For Analogue

Audio Preference

( / / / )Auto Multichannel Stereo MPEG

●Selectable options vary depending on the country you select.

Selects the initial setting for audio tracks.

Auto:

Automatically selects the audio tracks if a programme has two or more

tracks. The priority is given in the following order - Dolby Audio (Dolby

Digital Plus), HE-AAC, Dolby Audio (Dolby Digital), MPEG.

Multichannel:

The priority is given to multi-channel audio track.

Stereo:

The priority is given to stereo (2ch) audio track.

MPEG:

The priority is given to MPEG.

●Dolby Audio (Dolby Digital, Dolby Digital Plus) is the method of coding

digital signals developed by Dolby Laboratories. Apart from stereo (2ch)

audio, these signals can be multi-channel audio.

- 79 -

●HE-AAC is a perceptual coding method used to compress digital audio for

efficient storage and transmission.

●MPEG is an audio compression method that compresses audio to the

smaller size without any considerable loss of audio quality.

●Dolby Audio (Dolby Digital Plus) and HE-AAC are the technologies for HD

(High definition) programmes.

●For DVB

SPDIF Selection

( / / )Auto PCM Dolby Audio

Selects the initial setting for digital audio output signal from DIGITAL AUDIO

and HDMI2 (ARC function) terminals.

●SPDIF is a standard audio transfer file format.

Auto:

Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multi-

channel are output as Dolby Digital Bitstream. MPEG is output as PCM.

PCM:

Digital output signal is fixed to PCM.

Dolby Audio:

Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are

output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

●ARC (Audio Return Channel) is a function of digital audio output using

HDMI cable.

●For DVB, video content

Media Player > Playback > Audio output settings

Network > Videos > Audio output settings

HDMI Audio Format

( / / )Auto Bitstream PCM

Selects the audio format for the HDMI input signal.

Auto:

When the TV speakers are active, audio format is fixed to PCM. When

the sound is delivered from theatre speakers, audio format is fixed to

Bitstream.

Bitstream:

Dolby Audio (Dolby Digital, Dolby Digital Plus) is output as Dolby Audio

Bitstream. Other digital audio output signals are output as PCM.

- 80 -

PCM:

Digital audio signal is output as PCM.

PCM Optical Level

Adjusts the audio level of PCM output from DIGITAL AUDIO and HDMI2 (ARC

function) terminals to equalise with that of the other audio types.

SPDIF Delay

Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2

(ARC function) terminals if the sound does not synchronise the image.

●For DVB

HDMI Input

( / Digital Analogue)

Selects to fit the input signal.

Watching > External equipment > HDMI features

Digital:

When sound is carried via the HDMI cable connection

Analogue:

When sound is not carried via the HDMI-DVI adaptor cable connection

●For HDMI

- 81 -

TV Guide

Using TV Guide

Some features are not available on all models.

TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing

of the programmes currently broadcast and the forthcoming broadcasts over

the next seven days (depending on the broadcaster).

●Not valid in Analogue

1. Select the mode with TV.

DVB-S DVB-C DVB-T DVB-via-IP / / /

2. Display TV Guide with .GUIDE

(Example)

TV screen

Date

Time

Programme

Channel position and name

●To watch the programme

1) Select the current programme and press to access.OK

– The current programme is displayed on the top left of the screen.

2) Select View and press to watch.OK

– To use Timer Programming

Watching > TV Guide > Timer Programming

●To the previous day

(red)

- 82 -

●To the next day

(green)

●To search programme titles and view a list of the searched programmes (if

available)

1) Display the search list with (yellow).

2) Select Search and press to access.OK

3) Enter characters with or , and press Cursor buttons Numeric buttons OK

to set.

4) Press (green) to start searching.

– All the programme titles including the word you set are listed.

– Searching without any characters lists all programmes including

current programmes.

●To view a channel list of the selected category

1) Display the category list with (blue).

2) Select the category and press to view.OK

– To list favourite channels, set Favourites Editor.

Watching > Tuning and editing channels > Favourites Editor

●To view more details of the programme

1) Select the programme.

2) Press to view.

– Press again to return to .TV Guide

●To exit TV Guide

EXIT

= Note =

●When this TV is turned on for the first time, or the TV is switched off for

more than a week, it may take some time before TV Guide is completely

shown.

- 83 -

Timer Programming

This function allows you to select programmes that you want to record to the

USB HDD.

1. Display TV Guide with .GUIDE

2. Select the forthcoming programme and press to access.OK

●You can also set a timer event pressing .

●To check / change / cancel a timer event

Recording > Timer Programming > Editing Timer Programming

●LED turns to orange in Standby mode when Timer Programming is set.

●To return to TV Guide

BACK/RETURN

●If you select the current programme, a confirmation screen asking

whether you want to watch or record the programme appears. Select

Timer Programming USB HDD Rec. and press to set OK to record from

the time you finish the timer event setting.

● is displayed on the TV Guide screen if Timer Programming is set

from .TV Guide

= Note =

●Not valid in Analogue

●Timer Programming only works reliably if correct time information is

received via the signal from the broadcaster or service provider.

●No other channels can be selected while recording of Timer Programming

is in progress.

●When recording programmes to the USB HDD, be sure to format the USB

HDD and enable it to record in .USB Device Setup

Recording > USB HDD setup

- 84 -

Teletext

Viewing Teletext

1. Switch to teletext with TEXT.

● Displays the index page (content varies depending on the broadcaster).

● Current / sub page numbers are displayed on the top left of the screen.

● Time / date is displayed on the top right of the screen.

● Colour bar is displayed on the bottom of the screen.

2. Select the page with , or Cursor buttons Numeric buttons

(coloured buttons).

● To adjust contrast

1) Press MENU three times to display .Contrast

2) Adjust and press to set.OK

● To exit teletext

EXIT

■ Reveal hidden data

1. Press MENU.

2. Reveal with (red).

● Press again to hide.

■ To view a favourite page stored

Press STTL to view a favourite page.

● Call up the page stored on (blue). (List mode)

● Factory setting is “P103”.

■ FULL / TOP / BOTTOM

1. Press MENU.

2. Press (green) to change the layout.

■ Watch TV and teletext in two windows at once

1. Press MENU twice.

- 85 -

2. Set Picture and text On to / Off.

● Operations can be made only in teletext screen.

■ Store frequently viewed pages in the colour bar (List mode)

1. Press (coloured buttons) while the page is displayed.

2. Press and hold .OK

● The stored page number changes to white.

● To change stored pages

1) Press (coloured buttons) to change.

2) Enter a new page number with .Numeric buttons

3) Press and hold .OK

■ View sub page

The number of sub pages is displayed on the top of the screen. Press /

to view sub page. (Only when teletext has more than one page.)

● The number of sub pages varies depending on the broadcaster (up to

79 pages).

● Searching may take time while you are watching TV.

● To view a specific sub page

1) Press MENU.

2) Press (blue).

3) Enter the 4-digit number (e.g. P6, press ).

- 86 -

Teletext mode

Teletext services are the text information provided by the broadcaster.

● The features may vary depending on the broadcaster.

1. Display the menu with .MENU

2. Select Setup Display Settings Teletext > > and press to access.OK

3. Select TOP ( ) / and press to set.FLOF List OK

■ TOP mode (For TOP text broadcasting)

TOP is a particular improvement of the standard teletext service that results in

an easier search and effective guide.

● Fast overview of the teletext information available

● Easy to use step-by-step selection of the topical subject

● Page status information on the bottom of the screen

● Available page up / down

(red) / (green)

● To select among subject blocks

(blue)

● To select next subject within the subject block

(yellow)

(After the last subject, it moves to the next subject block.)

■ FLOF (FASTEXT) mode (For FLOF (FASTEXT) broadcasting)

In FLOF mode, four differently coloured subjects are situated on the bottom of

the screen.

To access more information about one of these subjects, press the

appropriate coloured button.

This facility enables fast access to information on the subjects shown.

■ List mode

In List mode, four differently coloured page numbers are situated on the

bottom of the screen. Each of these numbers can be changed and stored in

the TV’s memory.

Watching > Teletext > Viewing Teletext

- 87 -

Teletext Character Set

Selects teletext language font.

1. Display the menu with .MENU

2. Select Setup Display Settings Teletext Character Set > > and press to OK

access.

3. Select the font and press to set.OK

West:

English, French, German, Greek, Italian, Spanish, Swedish, Turkish,

etc.

East1:

Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.

East2:

Czech, Hungarian, Lettish, Polish, Rumanian, etc.

- 88 -

Tuning and editing channels

Setting menu

Some features are not available on all models. Available menu items are displayed on your TV screen.

You can retune channels, edit channel lists, create your favourite channel

lists, etc.

1. Select the mode with TV.

DVB-S DVB-C DVB-T DVB-via-IP / / / / Analogue

2. Display the menu with .MENU

3. Select Setup Tuning Menu > and press to access.OK

DVB-S Tuning Menu DVB-C Tuning Menu DVB-T Tuning Menu / / / DVB-

via-IP Tuning Menu / Analogue Tuning Menu

● The menu name varies depending on the TV mode.

4. Select one of the functions and press to access.OK

Channel List Editor Favourites Editor / / Auto Setup / Manual Tuning

/ / / / Update Channel List Favourite Network New Channel Message

Service Replacement Signal Condition / / Attenuator / Add TV Signal

● The function items vary depending on the TV mode and country you

select.

- 89 -

Channel List Editor

Some features are not available on all models. Available menu items are displayed on your TV screen.

■ Edit DVB channels

You can edit the list of All DVB Channels by adding / deleting and moving

channels.

● Channels not in all DVB channels list cannot be displayed except in this

function.

1. Select Channel List Editor and press to access.OK

● To swap / move the channel position

1) Press (green) to edit.

2) Set the new position with or , and Cursor buttons Numeric buttons

press (green) to store.

● To delete the channel

(blue)

● To delete all channels

(yellow)

● To add channel

1) Select a channel from .Channels Found

2) Press OK to add it to All DVB Channels.

● To sort channel names in alphabetical order

(red)

● To add all channels to the list (if available)

1) Press (yellow).

2) Press (green) to add all (depending on the broadcaster).

● To add consecutive channels to the list at once (if available)

1) Press (yellow).

2) Make the channel block and press to add.OK

● To change the category of Channels Found

(blue)

2. Press BACK/RETURN OK and to store.

● To exchange channel list (DVB-S)

- 90 -

1) Display the menu with .MENU

2) Select Setup Other Settings Exchange Channel List > > and press OK

to access.

3) Follow the on-screen instructions.

– During the operation, remove USB devices other than the USB Flash

Memory used for this function.

Settings > Setup > Other Settings

■ Skip unwanted Analogue channels

You can hide (skip) unwanted channels. The hidden channels cannot be

displayed except in this function.

1. Select Channel List and press to access.OK

2. Select a channel.

3. Press OK to set / (skip).Reveal Hide

:Reveal

: (skip)Hide

● To reveal all channels (if available)

(yellow)

■ Edit Analogue Channels

● To swap / move the channel position (if available)

1) Press (green) to edit.

2) Set the new position with and press Cursor buttons (green) to

store.

● To retune each channel (Manual Tuning)

(red)

● To rename the channel name

1) Press (blue) to edit.

2) Enter characters (maximum 5 characters) with or Cursor buttons

Numeric buttons OK, and press to set.

- 91 -

3) Press BACK/RETURN to store.

= Note =

● If a VCR is connected only with the RF cable in Analogue, edit .VCR

- 92 -

Favourites Editor

■ List favourite DVB channels

Create your favourite channel lists from various broadcasters (up to 4:

Favourites 1 4 to ).

The favourites lists are available for switching in the information banner and

the TV Guide screen.

Watching > Basic > Information banner

Watching > TV Guide > Using TV Guide

1. Select Favourites Editor and press to access.OK

2. Select a channel to list from all DVB channels.

● appears when the channel is encrypted.

● To display other favourites

(green)

● To sort channel names in alphabetical order

(red)

● To change the category

(blue)

3. Press OK to add it to favourites list.

● To add all channels to the list (if available)

1) Press (yellow).

2) Press (green) to add all.

● To add consecutive channels to the list at once

1) Press (yellow).

2) Make the channel block and press to add.OK

4. Press BACK/RETURN OK and to store.

■ Edit DVB favourites list

You can edit the favourites list while the cursor is on the channel in the

favourites list.

● To move the channel

1) Select the channel.

2) Press (green).

- 93 -

3) Select the new position with .Cursor buttons

4) Press (green) to store.

● To delete the channel

1) Select the channel.

2) Press (blue) to delete.

– Press (yellow) to delete all channels.

● To name the favourites

1) Press (red).

2) Enter characters (maximum 10 characters) with or Cursor buttons

Numeric buttons OK, and press to set.

3) Press BACK/RETURN to store.

- 94 -

Auto Setup

Some features are not available on all models. Available menu items are displayed on your TV screen.

Automatically retunes the channels received in the area.

● This function is available if channel tuning is already performed.

● Only the selected mode is retuned. All the previous tuning settings are

erased.

● Child Lock PIN number is required to retune locked channels.

Functions > Child Lock > PIN number

● If tuning has not been done completely, set Manual Tuning.

Watching > Tuning and editing channels > Manual Tuning

■ DVB-S

1. Select Antenna System and press to access.OK

2. Select One LNB MiniDiSEqC DiSEqC 1.0 Single Cable / / / and press OK

to set.

One LNB:

Compatible with single LNB.

MiniDiSEqC:

Up to 2 LNBs can be controlled.

DiSEqC 1.0:

Up to 4 LNBs can be controlled.

Single Cable:

When using the Single Cable router, up to 32 user bands are available.

● You can receive several satellites if you have DiSEqC control antenna

system.

● This TV supports DiSEqC Version 1.0.

3. Select LNB Configuration and press to access.OK

4. Select LNB Satellite / and set.

1) Set LNB first.

– If you set to , is not selectable.One LNB LNB

– If you set to or , select from LNB AA and MiniDiSEqC Single Cable

AB.

– If you set to , select from LNB AA, AB, BA and BB.DiSEqC 1.0

2) Set Satellite for the selected LNB.

– Select No Satellite if you do not know the connected satellite.

(Available satellite is searched in Auto Setup.)

- 95 -

– Select User defined to set Test Transponder Frequency manually.

– If you set to , additional settings are required. Set Single Cable

SingleCable Version User Band User Band Frequency PIN, , and

(depending on the Single Cable router you use). For details, read

the manual of the Single Cable router.

Watching > Tuning and editing channels > Selectable satellites

5. Press BACK/RETURN to store.

6. Select Auto Setup and press to access.OK

7. Select Search Mode Scan Mode / and press to access.OK

8. Set the item and press to store.OK

● Scan Mode

Quick:

Scans the suitable frequency for the selected satellite.

Full:

Scans the whole frequency range.

● After settings, select and press to search.Start scan OK

9. A confirmation screen is displayed and press to start OK Auto Setup.

(Settings are made automatically.)

● When the operation is completed, the channel at the lowest position will

be displayed.

■ DVB-C, DVB-T, Analogue

1. Select Auto Setup and press to access.OK

2. Set DVB-C Auto Setup Settings and press to store. (DVB-C)OK

● Scan Mode

Quick:

Scans the suitable frequency in your country.

Full:

Scans the whole frequency range.

● Normally set Frequency, and to Symbol Rate Network ID Auto. If Auto

is not displayed or if necessary, enter each value specified by your

cable provider with .Numeric buttons

● After settings, select and press to search.Start scan OK

- 96 -

3. A confirmation screen is displayed and press to start OK Auto Setup.

(Settings are made automatically.)

● When the operation is completed, the channel at the lowest position will

be displayed.

■ DVB-via-IP

● Ensure the network connections and network settings are completed.

Functions > DVB-via-IP > DVB-via-IP client connection

Network > Network settings

1. Select Auto Setup and press to access.OK

2. A confirmation screen is displayed and press to access.OK

3. Select a server from .Server List

4. Select Client Settings and press to access.OK

● Select to use in a home network.Unicast Environment

● Select to use in multi family housing units, hotel, Multicast Environment

hospital, etc. (All servers are selected automatically.)

5. Select Search Channels and press to access.OK

6. Set DVB-via-IP Search Mode and select Start Auto Setup.

● Set DVB-via-IP configuration to tune DVB channels.

● When the operation is completed, the channel at the lowest position will

be displayed.

■ Auto Setup using the buttons on the TV

1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to

display the menu.

2. Set Auto Setup with following control panel buttons.

● Move the cursor / select from a range of options / select the menu item

● Access the menu / store settings after adjustments have been made or

options have been set with INPUT/OK/HOLD for MENU button

- 97 -

Manual Tuning

Some features are not available on all models. Available menu items are displayed on your TV screen.

● Normally use Auto Setup Update Channel List or to retune DVB channels.

● If tuning has not been done completely or for adjusting the direction of the

aerial or dish, use this function. (DVB)

● All DVB channels found are added to Channel List Editor.

■ DVB-S

● Please consult the received satellite broadcasting companies for the

setting.

1. Select Transponder Frequency Symbol Rate Polarisation Modulation / / / /

Service ID and set with or .Cursor buttons Numeric buttons

2. Select Start scan and press to search.OK

■ DVB-C

1. Enter the frequency with .Numeric buttons

● Normally set and to Symbol Rate Service ID Auto.

2. Select Start scan and press to search.OK

■ DVB-T

1. Select a channel and adjust frequency for each channel.

● Set where the level of becomes the maximum.Signal Quality

2. Press OK to search.

■ Analogue

Set Analogue channel manually after Auto Setup.

● Set and , and then perform this function. Sound System Colour System

Normally set to Colour System Auto.

– SC1: PAL B, G, H / SECAM B, G

– SC2: PAL I

- 98 -

– SC3: PAL D, K / SECAM D, K

– F: SECAM L, L’

1. Select the channel position with .Numeric buttons

2. Select the channel with .Channel Up / Down

3. Set Manual Tuning.

4. Select Store and press to set.OK

● Use Fine Tuning to make small adjustments to the tuning of an individual

programme (affected by weather conditions, etc.).

● If a VCR is connected only with the RF cable, select channel position .0

■ DVB-via-IP (DVB-S)

● Please consult the received satellite broadcasting companies for the

setting.

1. Select Transponder Frequency Symbol Rate Polarisation Modulation / / / /

FEC Service ID / and set with or .Cursor buttons Numeric buttons

2. Select Start scan and press to search.OK

■ DVB-via-IP (DVB-C)

1. Select Frequency Bandwidth / / Modulation Type / / / Symbol Rate FEC

Service ID and set with or .Cursor buttons Numeric buttons

● Normally set to Symbol Rate Auto.

2. Select Start scan and press to search.OK

- 99 -

■ DVB-via-IP (DVB-T)

1. Select Frequency Bandwidth Modulation FEC Service ID / / / / and set with

Cursor buttons Numeric buttons or .

2. Select Start scan and press to search.OK

= Note =

● For details of DVB-via-IP connections

Functions > DVB-via-IP > DVB-via-IP client connection

● Not valid when is set to (DVB-via-IP)Client Settings Multicast Environment

- 100 -

Update Channel List

Some features are not available on all models. Available menu items are displayed on your TV screen.

By updating the DVB channel list, you can add new channels, delete removed

channels or change channel names and positions automatically.

● The channel list is updated while keeping your settings in Channel List

Editor, Favourites Editor, , etc.Child Lock

● Depending on the signal condition, the update may not work properly.

● To update DVB-S channels, set and before Search Mode Scan Mode

updating.

1) Select Search Mode Scan Mode / and press to access.OK

2) Set each item and press to store.OK

3) After settings, select and press to search.Start scan OK

= Note =

● Not valid when is set to (DVB-via-IP)Client Settings Multicast Environment

- 101 -

Signal Condition

Selects a channel and checks the signal condition with indicators.

● A good Signal Strength is not an indication of suitable signal reception.

● Vertical lines show the maximum signal value of the selected channel.

● To change the channel

● For DVB

- 102 -

Other settings

Favourite Network

Selects your favourite network for each broadcaster (only available in some

countries).

● For DVB-C, DVB-T

New Channel Message

Selects whether to give a notification message when a new DVB channel is

found or not.

● When a notification message appears, you can perform Update Channel

List pressing .OK

● Not valid in DVB-via-IP

Service Replacement

( / )On Off

Set to to display a message to switch to the available service (only On

available in some countries).

● For DVB-C, DVB-T

Attenuator

( / )On Off

Automatically reduces the DVB-C signal to avoid the interference.

● If the DVB-C signal is too strong, interference may occur. In this case, set

to to weaken the signal automatically.On

Add TV Signal

Adds the TV mode.

● Allows you to add any TV mode which was skipped during initial Auto

Setup.

- 103 -

Selectable satellites

Only for the model supporting the satellite reception

■ Selectable satellites and dish alignment to tune DVB-S

channels

To ensure your satellite dish is correctly installed, please consult your local

dealer.

Also please consult the received satellite broadcasting companies for details.

● Intelsat at 85.2° East

● ABS 1 at 75° East

● Express at 53° East

● Intelsat at 45° East

● Turksat at 42° East

● Hellas at 39° East

● Eutelsat at 36° East

● Eutelsat at 33° East

● Astra at 28.2° East

● Badr at 26° East

● Eutelsat at 25.5° East

● Astra at 23.5° East

● Eutelsat at 21.5° East

● Astra at 19.2° East

● Eutelsat at 16° East

● Hot Bird at 13° East

● Eutelsat at 10° East

● Eutelsat at 9° East

● Eutelsat at 7° East

● Astra at 4.8° East

● Thor at 0.8° West /

Intelsat at 1° West

● Amos at 4° West

● Eutelsat at 5° West

● Eutelsat at 7° West

● Eutelsat at 8° West

● Eutelsat at 12.5° West

● Telstar at 15° West

● SES at 22° West

● Intelsat at 24.5° West

● Hispasat at 30° West

- 104 -

Recording

USB HDD setup

Preparations

You can record the digital TV programmes to the connected USB HDD and

enjoy playing back in various ways.

● Prepare the USB HDD for the exclusive use of recording with this TV.

● Connect the USB HDD to the USB 2 port with the USB cable.

● Be sure to connect the USB HDD to the mains socket.

● To remove the USB HDD safely from the TV, perform Safely remove USB

in .USB Device Setup

Recording > USB HDD setup > Setting for USB HDD

● Check the terminal type and cable plugs are correct for connection.

USB port

USB cable

USB HDD

Mains socket

= Caution =

● All data in the USB HDD will be erased in the following cases:

– When formatting the USB HDD with this TV

Recording > USB HDD setup > Setting for USB HDD

– When formatting the USB HDD to use on PC, etc.

● When the TV is repaired due to a malfunction, you may have to format

the USB HDD again with this TV to use it. (All data will be erased after

formatting.)

● To use the USB HDD with your PC after recording with this TV, format it

again on your PC. (Special operations or tools may be necessary to format

on your PC. For details, read the manual of the USB HDD.)

- 105 -

● The data recorded on the USB HDD with this TV can only be played back

on this TV. You cannot play back its content with another TV (including the

TV of the same model number) or any equipment.

● Do not turn the TV off, pull out the mains plug or remove the USB HDD

during operation (formatting, recording, etc.). Doing so may cause

malfunction of the device or damage the recorded data. (An electric

outage may also be a cause of malfunction.)

= Note =

● Analogue TV programme cannot be recorded on the USB HDD.

● The data broadcasting (MHEG, etc.), radio broadcasting are not recorded,

and also the recording function does not work during the period without

any signal.

● Not all the programmes can be recorded depending on the broadcaster

and service provider.

● Depending on the network condition, recording function may not work

properly in DVB-via-IP.

● You cannot copy the recorded TV programmes of the USB HDD.

● For details of the USB HDD

Recording > Technical information > USB HDD

- 106 -

Setting for USB HDD

Format and set up the USB HDD with this TV in order to use it for recording.

All the USB devices recognised as a mass storage device are listed.

● Please note that USB HDD will be formatted and all data in it will be

erased after this setup.

● Before setting, connect the USB HDD and be sure to turn on the USB

HDD.

Recording > USB HDD setup > Preparations

1. Display the menu with .MENU

2. Select Setup USB Device Setup > and press to access.OK

3. Select the USB HDD for recording and press to start setup.OK

● Some USB HDD may not be displayed.

● To display information of the highlighted device

4. When the caution and confirmation screen for using USB HDD is

displayed, select and press to proceed.Yes OK

5. When a confirmation screen of USB HDD name is displayed, select Yes

and press to set.OK

● The name for the USB HDD is created automatically. If you want to edit

the name, select .Yes

1) Enter characters with or , and press Cursor buttons Numeric buttons

OK to set.

2) Press BACK/RETURN to store.

6. When a confirmation screen to enable USB HDD for recording is

displayed, select and press to set.Yes OK

● If another formatted USB HDD for recording already exists, this

confirmation screen will be displayed to switch to enable this USB HDD

for recording.

● Mode of the USB HDD

: The USB HDD is available for recording / playing back.

Only one USB HDD on the list is available for recording.

: The USB HDD is available for playing back.

- 107 -

● To change the mode

● To edit USB HDD name

(green)

● To format

(red)

● To remove the USB HDD safely from the TV

(yellow)

= Note =

● You can only select one USB HDD for recording at a time.

● You cannot change the settings for the USB HDD while recording is in

progress.

- 108 -

Recording current programme

One Touch Recording

Records the current programme to the USB HDD immediately.

● Confirm the remote control code is “73”.

Watching > External equipment > Operating with TV’s remote control

1. Display the menu with .MENU

2. Select Setup Recording Setup > > One Touch Recording and press to OK

access.

3. Select the maximum recording time / / / / ( ) and 30 60 90 120 180 minutes

press to set.OK

■ To start One Touch Recording

Press to start.

● Other channels cannot be selected while recording is in progress.

■ To stop recording in progress

Press to stop.

■ To play back or delete the recorded content

Recorded TV programmes can be played back in Media Player.

1. Display Home with .HOME

2. Select Devices and press to access.OK

3. Select USB HDD for recording and press to access.OK

Media Player > Recorded TV mode

● Even if One Touch Recording is in progress, you can play back all the

content. (Depending on the USB HDD, playback may not be possible or

the recording may not work properly during playback.)

- 109 -

REW LIVE TV

Records the current programme to the USB HDD constantly within the

maximum recordable time.

● Confirm the remote control code is “73”.

Watching > External equipment > Operating with TV’s remote control

1. Display the menu with .MENU

2. Select Setup Recording Setup > > REW LIVE TV and press to access.OK

3. Select Auto to start REW LIVE TV.

● When you select Auto, recording will start automatically.

● This recording may not start if another recording is in progress, TV signal

condition is bad or there are no images displayed.

■ To operate REW LIVE TV

● To pause

● To search backward (up to 90 minutes)

● After pausing or searching backward, the following buttons are available

for operation.

: Search backward

: Search forward

: Return to the current programme

OK : Playback / Pause

: Search backward / Search forward

: Pause / Resume

: Playback

: Return to the current programme

■ To stop REW LIVE TV

1. Display the menu with .MENU

2. Select Setup Recording Setup > > REW LIVE TV and press to access.OK

3. Select Off to stop REW LIVE TV.

● If you stop REW LIVE TV, the recorded content for will be REW LIVE TV

deleted.

- 110 -

● REW LIVE TV is stopped and the recorded content is deleted

automatically in the following conditions: (Even if stops for REW LIVE TV

the following conditions, as long as the setting is Auto, a new recording

starts automatically in a condition that makes the recording available.)

– Other channels selected

– Locked channel selected

– Invalid channel selected

– No TV signal

– External input selected

– When the full-screen application (TV Guide, Media Player, eHELP, etc.)

is launched

– When the TV enters Standby or is turned off

– When another recording starts

- 111 -

5. Select and set the item (channel, date, start time, end time).

● and can also be entered with .Numeric buttons

(Example)

!: Overlapped timer events

Function ( )USB HDD Rec.

TV mode

: DVB-S

: DVB-C

: DVB-T

: DVB-via-IP

– You cannot change the mode within the menu.

Channel position, channel name, etc.

Date

– : Sunday to SaturdayDaily Sun-Sat

– : Monday to SaturdayDaily Mon-Sat

– : Monday to FridayDaily Mon-Fri

– Weekly Sun / Mon / Tue / Wed / Thu / Fri / Sat: Same time on the

same day every week

Start time / End time / Duration (automatic display)

6. Store with .OK

- 113 -

Editing Timer Programming

1. Display the menu with .MENU

2. Select Timer Timer Programming > and press to access.OK

3. Select the event.

● To change a timer event

– Correct as necessary.

Recording > Timer Programming > Setting Timer Programming

● To delete a timer event

1) Press (red).

2) Press OK to delete.

■ To play back or delete the recorded content

Recorded TV programmes can be played back in Media Player.

1. Display Home with .HOME

2. Select Devices and press to access.OK

3. Select USB HDD for recording and press to access.OK

Media Player > Recorded TV mode

- 114 -

Note

● TV Guide may also be used to set timer event.

Watching > TV Guide > Timer Programming

● Timer Programming can store up to 15 events.

● Timer Programming only works reliably if correct time information is

received via the signal from the broadcaster or service provider.

● For recording using Timer Programming, the TV must be either on or in

Standby.

● No other channels can be selected while recording of Timer Programming

is in progress.

● Recording an encrypted (copy-protected) programme may not be possible.

● Depending on the network condition, recording function may not work

properly in DVB-via-IP.

● When the start time comes, the channel will be switched automatically and

the video and audio signals will be output. 2 minutes before the start time,

a reminder message appears if you are watching TV.

– To remove the message and start the programming, press .OK

– To cancel the programming, press EXIT.

● LED turns to orange in Standby mode when Timer Programming is set.

● “!” identifies that two or more timer events are overlapped. As for the

overlapped recording events, the first event starts and finishes as

programmed. The next event can then start.

● The recording of Timer Programming automatically changes the channel to

the programmed channel a few seconds before the start time.

● For details of the USB HDD

Recording > Technical information

- 115 -

Technical information

USB HDD

■ USB HDD

(for recording the digital TV programmes with this TV)

● The capacity of USB HDD that works with this TV is from 160 GB to 6 TB.

● Connect the USB HDD to the mains socket to record and play back

properly with this TV.

● Use the USB HDD formatted with this TV.

Recording > USB HDD setup > Setting for USB HDD

● Regarding performance, not all USB HDDs are guaranteed.

= Note =

● Data modified with a PC may not be displayed.

● Do not remove the device while the TV is accessing data. Otherwise this

can damage the device or TV.

● Do not touch the pins on the device.

● Do not subject the device to a high pressure or impact.

● Insert the device in the correct direction. Otherwise this can damage the

device or TV.

● Electrical interference, static electricity, or erroneous operation may

damage the data or device.

- 116 -

Media Player

Using Media Player

Information

Media Player allows you to enjoy photo, video or music recorded on the USB

Flash Memory / network device, and content recorded with this TV to the

formatted USB HDD.

(Example)

Easy List View:

Still pictures / moving pictures recorded with digital camera or digital video

camera are played back.

Mix Folder View:

All files grouped by folder are displayed.

Recorded TV mode:

(For exclusive USB HDD) TV programmes recorded on the USB HDD with

this TV are played back.

● During the operation, audio signal is output from DIGITAL AUDIO and

HDMI2 (ARC function) terminals. But no video signals are output. To use

HDMI2 with ARC function, connect an amplifier that has ARC function and

set to use theatre speakers.

Functions > VIERA Link “HDAVI Control™”

● Pictures may not appear correctly on this TV depending on the recording

equipment used.

● Displaying may take some time when there are many files and folders.

● Partially degraded files may be displayed with reduced resolution.

● Picture setting may not work depending on the condition.

● Folder and file names may be different from those on the digital camera or

digital video camera used.

- 117 -

■ To insert or remove the USB Flash Memory

Ensure alignment is straight and complete when inserting or removing.

● To remove the USB Flash Memory safely from the TV, perform Safely

remove USB USB Device Setup in .

1) Display the menu with .MENU

2) Select Setup USB Device Setup > and press to access.OK

3) Select the device and press (yellow) to set.

= Note =

● To connect the USB HDD

Recording > USB HDD setup

● Check the terminal type and devices are correct for connection.

● For details of the devices

Media Player > Connected device

● For details of supported file formats

Media Player > Supported format

- 118 -

Selecting device / mode

1. Insert the USB Flash Memory to the TV.

Media Player > Using Media Player > Information

● To play back content in the USB HDD, ensure the connection and

settings are completed.

Recording > USB HDD setup

● To play back content in the network device, ensure the connection and

settings are completed.

Media Player > Using Media Player > Network device

2. Display Home with .HOME

3. Select Devices and press to access.OK

4. Select the device (USB Flash Memory / USB HDD / network device) and

press to access.OK

● When a confirmation screen about the network device is displayed,

enter / to access.User Password

5. Select Easy List View Mix Folder View / / Recorded TV and press to OK

access.

Easy List View

Media Player > Easy List View

Mix Folder View

Media Player > Mix Folder View

Recorded TV

Media Player > Recorded TV mode

6. The thumbnail view is displayed.

(Example)

● To display / hide information of the highlighted content

= Note =

● Recorded TV is available for content recorded on the USB HDD with this

TV.

● Select the appropriate device and content for playing back each file.

- 119 -

● You can use the following buttons during playback. Confirm the remote

control code is “73”.

Watching > External equipment > Operating with TV’s remote control

- 120 -

Network device

You can enjoy photo, video or music stored in the network devices.

● To enable this function, connect this TV to your home network.

Network > Network connections

Network > Network settings

■ How to set User / Password

1. Display the menu with .MENU

2. Select Network File Sharing Settings Network Device List > > and press

OK to access.

3. Select the network device and press to access.OK

4. Enter User Password / with or , and press Cursor buttons Numeric buttons

OK to set.

● Press to store.BACK/RETURN

● To register the new network device, set / Server Name Shared Folder.

For details, read the manual of the equipment.

5. Select Register and press to set.OK

● To delete the registered device, select and press to set.Delete OK

= Note =

● Regarding performance, not all servers are guaranteed.

● Up to 48 devices can be registered.

- 121 -

Easy List View

Selecting file

Still pictures / moving pictures recorded with digital camera or digital video

camera are played back.

Select the file in the thumbnail view and press to start playback.OK

● If a file or folder is edited or renamed by digital camera, digital video

camera, PC, etc., the thumbnail may not be displayed properly.

: Error display

● To sort by month

1) Display the option menu with .OPTION

2) Select Calendar and press to access.OK

● The preview will start when the title / scene is highlighted in the thumbnail

view if it supports a preview. To turn off the preview, set to Video Preview

Off.

1) Display the option menu with .OPTION

2) Select and press to access.OK

3) Select Video Setup Video Preview > and press to access.OK

4) Select On / Off and press to set.OK

– Images may not be displayed for an instant in the thumbnail view.

Set the preview to solve this.Off

– This function is available in the thumbnail view.

● For details of supported file formats

Media Player > Supported format

● To play back the file

Media Player > Playback > Playback

■ Settings

1. Display the option menu with .OPTION

2. Select and press to access.OK

3. Select one of the following items and press to access.OK

Play Select Repeat Shuffle / /

4. Set the item and press to store.OK

Play Select

Settings for playback file selection

- 122 -

Repeat

( / / )Folder File Repeat Off

Playback repeat

Folder:

Playback repeat within the selected folder

File Repeat:

Playback repeat of the selected one file

Shuffle

( / )On Off

Files are played back at random.

- 123 -

Filtering files

You can filter the files as the content type. (Photo / Video)

1. Display the option menu with .OPTION

2. Select Filter and press to access.OK

3. Select Photo Video / and press to set.OK

4. Select OK and press to change.OK

● To select the music file

Media Player > Mix Folder View > Filtering files

- 124 -

Mix Folder View

Selecting file

Displays the thumbnail of all files which are grouped by folder.

Select the folder / file and press to start playback.OK

: Error display

● The preview will start when the title / scene is highlighted in the thumbnail

view if it supports a preview. To turn off the preview, set to Video Preview

Off.

1) Display the option menu with .OPTION

2) Select and press to access.OK

3) Select Video Setup Video Preview > and press to access.OK

4) Select On / Off and press to set.OK

– Images may not be displayed for an instant in the thumbnail view.

Set the preview to solve this.Off

– This function is available in the thumbnail view.

● For details of supported file formats

Media Player > Supported format

● To play back the file

Media Player > Playback > Playback

■ Settings

1. Display the option menu with .OPTION

2. Select and press to access.OK

3. Select one of the following items and press to access.OK

Play Select Repeat Shuffle / /

4. Set the item and press to store.OK

Play Select

Settings for playback file selection

- 125 -

Repeat

( / / )Folder File Repeat Off

Playback repeat

Folder:

Playback repeat within the selected folder

File Repeat:

Playback repeat of the selected one file

Shuffle

( / )On Off

Files are played back at random.

- 126 -

Filtering files

You can filter the files as the content type. (Photo / Video / Music)

1. Display the option menu with .OPTION

2. Select Filter and press to access.OK

3. Select Photo Video Music / / and press to set.OK

4. Select OK and press to change.OK

- 127 -

Sorting files

You can sort the files in alphabetical / date order.

1. Display the option menu with .OPTION

2. Select Sort and press to access.OK

3. Select Alphabet(A...Z) / Alphabet(Z...A) Date(1...9) Date(9...1) / / and press

OK to change.

- 128 -

Playback

■ Photo playback

To the previous photo

To the next photo

Stop

OK :

Switch the playback mode (Single view / Slideshow).

(blue) :

Rotate

Display / hide the operation guide.

BACK/RETURN :

Return to thumbnail.

■ Video / Music playback

Rewind

Fast forward

Stop

OK :

Pause (displays the time seek bar) / Playback

● To jump to the specified time point

1) Display the time seek bar with .OK

- 129 -

2) While the time seek bar is displayed

Press / :

Search approx. 10 seconds

Press and hold / :

Search rapidly

3) Jump to the specified time point with .OK

(red) :

To the previous title / scene / track

(green) :

To the next title / scene / track

Display / hide the operation guide.

BACK/RETURN :

Return to thumbnail.

= Note =

● To set / for playbackRepeat Shuffle

Media Player > Easy List View > Selecting file

Media Player > Mix Folder View > Selecting file

- 130 -

Slideshow Settings

Set up the settings for Photo mode.

1. Display the option menu with .OPTION

2. Select Slideshow Settings with .OK

3. Select one of the following items and press to access.OK

Screen Mode Interval Back Ground Music / /

4. Set the item and press to store.OK

Screen Mode

( / )Normal Zoom

Selects enlarged or normal viewing.

● Depending on the photo size, the photo may not be fully enlarged to fill the

screen (e.g. portrait style picture).

Interval

( / / )Long Normal Short

Selects slideshow interval.

Back Ground Music

( / Off Type1 Type2 Type3 Type4 Type5 User / / / / / / Auto)

Selects the background music during Photo mode.

Type1 - 5:

Music files installed on this TV at the factory settings are played back.

Auto:

Music files stored in the current device are played back.

● If there is no available music data, no sound is played back.

User:

Music files in the device registered by yourself are played back.

● If no music files have been registered or the device which had

registered music files is removed, no sound is played back.

● To register music

1) Select the music file and press to access.OK

● Depending on the condition of the device, select folders until you

reach the desired music file.

- 131 -

2) Select File Folder / and press to set.OK

File:

The selected music file is registered.

Folder:

All the music files in the folder which contains the selected music file

are registered.

= Note =

● Picture quality may be degraded depending on the slideshow setting.

● Picture setting may not work depending on the slideshow setting.

- 132 -

Audio output settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL

AUDIO or HDMI2 (ARC function) terminal.

● To confirm or change the current sound status

Media Player > Playback > Video Setup

1. Display the menu with .MENU

2. Select Sound SPDIF Selection > and press to access.OK

3. Select Auto PCM / / Dolby Audio and press to set.OK

SPDIF Selection

( / / )Auto PCM Dolby Audio

Selects the initial setting for digital audio output signal from DIGITAL AUDIO

and HDMI2 (ARC function) terminals.

● SPDIF is a standard audio transfer file format.

Auto:

Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multi-

channel are output as Dolby Digital Bitstream. MPEG is output as PCM.

PCM:

Digital output signal is fixed to PCM.

Dolby Audio:

Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are

output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

● ARC (Audio Return Channel) is a function of digital audio output using

HDMI cable.

- 134 -

Recorded TV mode

Selecting content

● For exclusive USB HDD

● To play back content in the USB HDD, ensure the connection and settings

are completed.

Recording > USB HDD setup

1. Content list of the selected device is displayed in Recorded TV mode.

● Remaining capacity of the selected device is displayed on the top right.

(This value may not be accurate depending on the condition.)

● Content list is displayed as All Not Viewed or .

All:

All the recorded TV programmes are listed.

Not Viewed:

Content not played back yet are listed.

● Icons are displayed.

: Content not played back yet (Once you play back the content, this

icon will disappear.)

: Protected content cannot be deleted.

: Currently recording (You can play back this recording content.)

: Group of content

2. Select the content and press to start playback.OK

● If you have stopped the last playback halfway, a confirmation screen

may be displayed to select whether to start from where you stopped

last time or from the beginning.

● If the content has multiple programmes with different parental ratings,

the highest restriction is applied to the content. Once you unlock the

restriction, all the programmes in the content can be played back.

● For details of supported file formats

Media Player > Supported format > Video format

- 135 -

Watching recorded TV

■ Playback

● To operate playback

: Manual skip

– Press to skip forward approx. 30 seconds.

– Press and hold to skip backward approx. 15 seconds.

: Rewind

: Fast forward

: Stop

OK : Pause (displays the time seek bar) / Playback

● To jump to the specified time point

1) Display the time seek bar with .OK

2) While the time seek bar is displayed

Press / :

Search approx. 10 seconds

Press and hold / :

Search rapidly

3) Jump to the specified time point with .OK

● To display / hide the operation guide and information banner

● To repeat between the starting point “A” and finishing point “B”

(blue)

(Set “A” and “B” in order.)

– The points are reset by pressing again or by other operations.

● To the previous / next chapter

(red) / (green)

– A recorded content is automatically divided into chapters (approx.

5 minutes for each).

● To change aspect

Watching > For best picture > Aspect

● To display the subtitle (if available)

STTL

- 136 -

● To confirm or change the current status (if available)

Home > > Option MenuLive TV

● To return to list

BACK/RETURN

- 137 -

Deleting content

1. Select the content to edit and press (blue) to tick in the content list.

2. Delete the content with (red).

3. When a confirmation screen is displayed, select and press to set.Yes OK

- 139 -

Audio output settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL

AUDIO or HDMI2 (ARC function) terminal.

● To confirm or change the current sound status

Media Player > Playback > Video Setup

1. Display the menu with .MENU

2. Select Sound SPDIF Selection > and press to access.OK

3. Select Auto PCM / / Dolby Audio and press to set.OK

SPDIF Selection

( / / )Auto PCM Dolby Audio

Selects the initial setting for digital audio output signal from DIGITAL AUDIO

and HDMI2 (ARC function) terminals.

● SPDIF is a standard audio transfer file format.

Auto:

Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multi-

channel are output as Dolby Digital Bitstream. MPEG is output as PCM.

PCM:

Digital output signal is fixed to PCM.

Dolby Audio:

Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are

output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

● ARC (Audio Return Channel) is a function of digital audio output using

HDMI cable.

- 141 -

Connected device

Device handling caution

● Data modified with a PC may not be displayed.

● Do not remove the device while the TV is accessing data. Otherwise this

can damage the device or TV.

● Do not touch the pins on the device.

● Do not subject the device to a high pressure or impact.

● Insert the device in the correct direction. Otherwise this can damage the

device or TV.

● Electrical interference, static electricity, or erroneous operation may

damage the data or device.

● Back up the recorded data at regular intervals to prevent data

deterioration, data damage or erratic operation of the TV. Panasonic is not

liable for any deterioration or damage of recorded data.

- 142 -

USB devices

● It is recommended to connect the device to the TV’s USB port directly.

● Some USB devices or USB HUB may not be used with this TV.

● You cannot connect any devices using a USB card reader.

■ USB Flash Memory

USB Flash Memory format:

FAT16, FAT32 or exFAT

● USB HDDs formatted on a PC are not guaranteed to work in Media Player.

■ USB HDD

● The capacity of USB HDD that works with this TV is from 160 GB to 6 TB.

● Connect the USB HDD to the mains socket to record and play back

properly with this TV.

● Use the USB HDD formatted with this TV.

Recording > USB HDD setup > Setting for USB HDD

● Regarding performance, not all USB HDDs are guaranteed.

- 143 -

Supported format

Photo format

■ Supported Photo formats

● JPEG (.jpg, .jpeg)

Sub-sampling:

4:4:4, 4:2:2, 4:2:0

Image resolution (pixel):

8 × 8 to 30 719 × 17 279

● DCF and EXIF standards

● Progressive JPEG is not supported.

= Note =

● Some files may not be played back even if they fulfil these conditions.

● Some files may not be played back correctly depending on the resolution,

etc.

● Do not use multi-byte characters or other special codes for file names.

● Connected devices may become unusable with this TV if the file or folder

names are changed.

- 144 -

Video format

■Supported Video formats

●AVI (.avi)

Video codec:

H.264, MPEG1, MPEG2, MPEG4, VC-1, WMV9

Audio codec:

AAC, ADPCM, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC,

LPCM, MP3, WMA, WMA Pro

●MP4 (.f4v, .m4v, .mp4)

Video codec:

H.264, H.265 (HEVC), MPEG1, MPEG2, MPEG4

Audio codec:

AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, MP3

●This TV supports this container recorded with Panasonic products. For

details, read the manual of the products.

●MKV (.mkv)

Video codec:

H.264, H.265 (HEVC), MPEG1, MPEG2, MPEG4

Audio codec:

AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, MP3,

Vorbis

●ASF (.asf, .wmv)

Video codec:

MPEG4, VC-1, WMV9

Audio codec:

AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM,

MP3, WMA, WMA Pro

●Copy-protected files cannot be played back.

- 145 -

●FLV (.flv)

Video codec:

H.264

Audio codec:

AAC, MP3

●3GPP (.3gp, .3g2)

Video codec:

H.264, MPEG4

Audio codec:

AAC, HE-AAC

●PS (.mod, .mpg, .mpeg, .vob, .vro)

Video codec:

H.264, MPEG1, MPEG2, VC-1

Audio codec:

AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM,

MP3

●TS (.mts, .m2ts, .tp, .trp, .ts, .tts)

Video codec:

H.264, H.265 (HEVC), MPEG1, MPEG2, VC-1

Audio codec:

AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, MP3

●WebM (.webm)

Video codec:

VP9

Audio codec:

Vorbis

- 146 -

Music format

■Supported Music formats

●MP3 (.mp3)

●AAC / Apple Lossless (.m4a)

●Copy-protected files cannot be played back.

●FLAC (.flac)

●WMA / WMA Pro (.wma)

●Copy-protected files cannot be played back.

●LPCM (.wav)

= Note =

●Some files may not be played back even if they fulfil these conditions.

●Do not use multi-byte characters or other special codes for file names.

●Connected devices may become unusable with this TV if the file or folder

names are changed.

- 148 -

Network

Internet content

Information

You can access some specific websites supported by Panasonic, and enjoy

internet content such as videos, games, communication tools, etc. from Apps.

(Example)

●A broadband network environment is required to use this function. Ensure

the network connections and network settings are completed.

Network > Network connections

Network > Network settings

- 149 -

Selecting internet content

1. Display Apps with APPS.

●For details of Apps

Home > Apps

●Depending on the usage conditions, it may take a while to read all the

data.

2. Select the desired item and press to access.OK

(Example)

●To exit Apps

EXIT

●You can connect a keyboard for character input in the applications. You

can also use the keyboard for TV operation.

Functions > Keyboard

- 150 -

Note

●If you cannot access the internet content, check the network connections

and settings.

Network > Network connections

Network > Network settings

●Design and specifications are subject to change without notice.

●Not all the features of the websites are available.

●Be sure to update the software when a software update notice is displayed

on the TV screen. If the software is not updated, you may not be able to

use Apps. You can update the software later manually.

Network > Network settings > Software Update

●The services through Apps are operated by their respective service

providers and such service may be discontinued either temporarily or

permanently without notice. Therefore, Panasonic will make no warranty

for the content or the continuity of the services.

●Content may not be available depending on the country you select.

●Content may be presented in specific languages.

●Depending on the connection environment, the internet connection may be

slow or may not be successful.

- 151 -

DLNA

In-House streaming

This TV is a DLNA Certified™ product.

DLNA® (Digital Living Network Alliance) is a standard that makes DLNA

Certified digital electronics easier and more convenient to use on a home

network. To learn more, visit www.dlna.org.

●To enable this function, connect this TV to your home network.

Network > Network connections

Network > Network settings

■Playback of sharing content stored in the media server

Store photo, video or music content into the DLNA Certified media server

connected to your home network. And then you can enjoy the content on this

TV.

(Example)

●For details of watching and operating content on this TV

Network > DLNA > Using DLNA

●For details of supported file formats

Network > Supported format

- 152 -

■Playback of sharing content on this TV with the DMC (Digital

Media Controller) network equipment

You can enjoy content stored in the media server by controlling with the DMC

network equipment connected to your home network.

●To use this function with your smartphone or PC, set TV Remote App

Settings of this TV.

Network > Network settings > TV Remote App Settings

And you need to install the application for controlling this TV on your

smartphone.

Support > FAQs > Detailed information

For the operations, refer to the support information of the application.

■Sharing the content of this TV with another piece of network

equipment

You can enjoy the content of this TV with another network equipment

connected to your home network.

Available content:

●Photo, video or music content of this TV

Available network equipment:

●DLNA Certified TV

●Smartphone, etc.

●To use this function with your smartphone, you need to install the

application for controlling this TV on your smartphone.

Support > FAQs > Detailed information

For the operations, refer to the support information of the application.

●To use this function with another DLNA Certified TV, set Network Link

Settings of this TV.

Network > Network settings > Network Link Settings

●Only 1 piece of other equipment can share the content of this TV.

= Note =

●This function is not available when the TV is turned off with Mains Power

On / Off switch.

- 153 -

Using DLNA

To use DLNA® features, ensure the preparations of the media server, network

connections and network settings are completed.

Network > DLNA > In-House streaming

Network > Network connections

Network > Network settings

1. Display Home with .HOME

2. Select Devices and press to access.OK

3. Select the media server and press to access.OK

●To display / hide information of the highlighted media server

1) Display the option menu with .OPTION

2) Select Show Info. and press to access.OK

4. Select the file and press to access.OK

(Example)

●Depending on the condition of media server, you may need to select

the folder before selecting the file.

●To display / hide information of the highlighted file

= Note =

●Non-playable files are also listed but cannot be selected.

●You can use the following buttons during playback. Confirm the remote

control code is “73”.

Watching > External equipment > Operating with TV’s remote control

- 154 -

Network connections

Internet connection

A broadband network environment is required to use internet services.

●If you do not have any broadband network services, please consult your

retailer for assistance.

●Dial-up internet connections cannot be used.

●Required speed (effective): at least 1.5 Mbps for SD (Standard Definition)

and 6 Mbps for HD (High Definition) picture quality, respectively. If the

transfer speed is not enough, content may not be played back properly.

■Wireless connection

Built-in wireless LAN (Rear of the TV)

Access point

Internet environment

■Wired connection

ETHERNET terminal

LAN cable (Shielded)

●Use Shielded Twist Pair (STP) LAN cable.

Internet environment

- 155 -

DLNA connection

To use DLNA features, you need a home network environment and you can

operate the features without a broadband network environment.

●A broadband network environment is required to use internet services.

Network > Network connections > Internet connection

■Wireless connection (For DLNA and internet service)

Built-in wireless LAN (Rear of the TV)

Access point

Hub / Router

Internet environment

Smartphone, etc.

DLNA Certified media server (PC, etc.)

- 156 -

■Wireless connection (For DLNA)

●To use the TV as a wireless access point

Network > Network settings > Custom - Wireless Access Point

DLNA Certified media server (PC, etc.)

Smartphone, etc.

- 158 -

Note

●Ensure to use a LAN straight cable.

●Set up and connect equipment required for the network environment. You

cannot make such settings on this TV. Read the manual of the equipment.

●If your modem has no broadband router functions, use a broadband router.

●If your modem has broadband router functions but there are no vacant

ports, use a hub.

●Ensure that the broadband routers and hubs are compatible with

10BASE-T / 100BASE-TX.

●If you use the equipment compatible only with 100BASE-TX, category 5 or

later LAN cables are required.

●Contact your Internet Service Provider (ISP) or telecommunications

company for further assistance regarding the network equipment.

●Confirm the terms and conditions of the contracts with your Internet

Service Provider (ISP) or telecommunications company. Depending on the

contracts, additional fees may be charged or multiple connections to the

internet may be impossible.

●Turn the TV off with Mains Power On / Off switch, then turn it on again

when changing or making the network connection again.

●Depending on the network condition, the content may not be played back

properly.

●For details of DVB-via-IP connections

Functions > DVB-via-IP > DVB-via-IP client connection

- 159 -

■Quick setup - Wired

1. Display the menu with .MENU

2. Select Network Network Connection > and press to access.OK

3. Select Quick setup and press to access.OK

4. Automatically setup is done and is displayed.Network Status

Network > Network settings > Network Status

5. Select Exit and press to set.OK

●To set manually

Network > Network settings > Custom - Wired

= Note =

●To deactivate wireless, set to and confirm the network Easy Mirroring Off

connection type is set to .Wired

- 161 -

Custom - Wired

Ensure the connections are completed before starting network setup.

Network > Network connections

1. Display the menu with .MENU

2. Select Network Network Connection Custom Wired > > > and press to OK

access.

3. is displayed.IP/DNS Settings

Acquire IP Address / Acquire DNS Address

●Auto is recommended.

●Available settings are displayed automatically.

●To set manually, select and set / / IP Address Subnet Mask Default

Gateway / DNS Address.

Proxy Settings

●It is not required for normal household use.

●Some internet services may not be available depending on the proxy

setting.

Proxy:

This is the address of the relay server which is connected between the

browser and the target server to send data to the browser.

1) Select Proxy and press to access.OK

2) Enter the address with or , and Cursor buttons Numeric buttons

press to set.OK

3) Press BACK/RETURN to store.

Proxy Port:

This number is also specified by the provider with the proxy address.

1) Select Proxy Port.

2) Enter the number with .Numeric buttons

3) Press BACK/RETURN to store.

- 165 -

4. Select Network Status and press to access.OK

Network > Network settings > Network Status

5. Select Exit and press to set.OK

= Note =

●To deactivate wireless, set to and confirm the network Easy Mirroring Off

connection type is set to .Wired

- 166 -

Custom - Wireless Access Point

You can use the TV as a wireless access point and connect the network

equipment without an access point.

●Confirm the PIN code, network settings of the equipment before starting

setup. For details, read the manual of the equipment.

1. Display the menu with .MENU

2. Select Network Network Connection Custom > > > Wireless Access Point

and press to access.OK

3. Select Connect to device in WPS and press to access.OK

●To set manually, select (see below).Change settings

4. Select and set / and press to access.WPS(Push button) WPS(PIN) OK

WPS(Push button):

Set up the equipment for . For details, read the WPS(Push button)

manual of the equipment.

WPS(PIN):

Enter the PIN code of the equipment.

●If the connection fails, check the settings and positions of the

equipment. And then, follow the on-screen instructions.

■Change settings

You can set up , Network Name(SSID) Encryption key, and Wireless type

Channel setting method manually.

Follow the on-screen instructions and set manually.

●Set to reset the items for .Reset settings Change settings

= Note =

●You cannot connect the internet service while the TV is set to Wireless

Access Point.

●You can connect up to 7 devices. But the transfer rate varies according to

communication environment or the numbers of connected equipment.

●To confirm the current network settings

Network > Network settings > Network Status

●Ensure the equipment to connect supports WPS for this setup.

●WPS: Wi-Fi Protected Setup™

- 167 -

Network Status

Displays and checks the network status (MAC Address, current network

settings, etc.).

1. Display the menu with .MENU

2. Select Network Network Status > and press to access.OK

3. Automatically testing is done and is displayed.Network Status

Try Again:

Performs automatic testing of the network connection for the TV and

displays the current status again.

Status Details:

Displays the detailed network status (SSID, security settings, etc.).

●For information about the network connection, select .Help

- 168 -

Software Update

Accesses the specific website to update the TV’s software if any updates are

available.

1. Display the menu with .MENU

2. Select Network Software Update > and press to access.OK

3. Follow the on-screen instructions.

●A broadband network environment is required to use this function.
