RATE - At minimum position, sweeps are gradual and
uid. As the Rate control is inc reased , movement
becomes tighter and more focused . At maximum
position, the modulated sound becomes rapid and
transitions to hard, percussive pulsing.
TYPE - The lower position subtracts feedback from the
input signal mixer and output dry signal, creating a
more vocal sound. In the upper position, feedback is
positively summed with the input signal and dry
signal, producing a more traditional flanger sound.

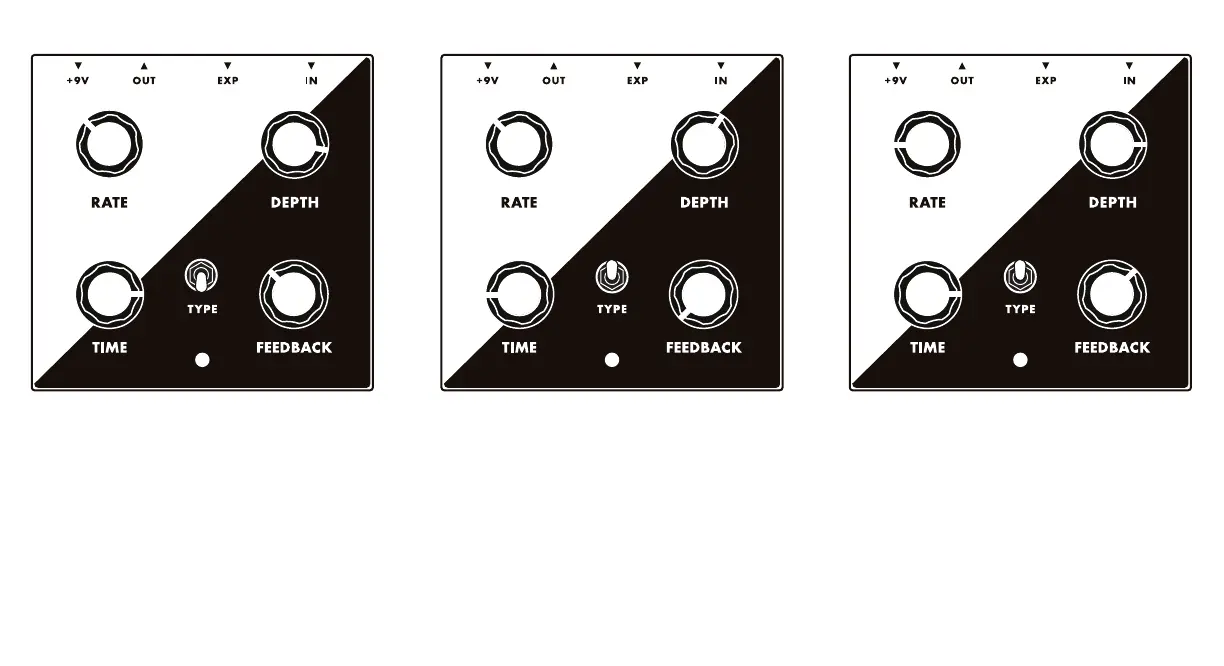

CLASSIC FLANGE
TIME - At maximum position you can craft traditional
or vocal, metallic flange sounds. As the Time control
position is reduced, delay time is increased and
sounds become thicker and warmer. At minimum
position, the MF FLANGE is capable of approaching
analog chorus style sounds.
EXPRESSION PEDAL INPUT - The Expression Pedal
input is assigned to the Time control. Use a Moog EP-3
expression pedal to manually sweep through the delay
frequency range of the MF FLANGE.
EERIE CHORUS
DEPTH - Determines the amount of modulation applied
to the delay time. As Depth is increased, the sound
transitions from light motion and phasing all the way
into massive multi-octave sweeps.
MONO/STEREO SWITCH - To access both outputs (in
bypass), remove the bottom of the MF FLANGE and set
the switch to Stereo. Use a 1/4” TRS to TS splitter cable.
WARNING: When set to Stereo in bypass, excessive
loading may occur. To avoid this, set the switch to Mono.
A stereo output will be present when the effect is on.
PHASE CLONE
FEEDBACK - This control brings focus and resonance
to the sweep of a sound. At minimum position, sweeps
are smooth and neutral. At medium position, sweeps
begin to peak musically. At maximum position, the
sound of a sweep becomes rigid and metallic.
Try experimenting with a TRS to TS adapter on the
output for even more tonal possibilities. The left side
(tip) outputs “combing feedback”, while the right side
(ring) outputs “peaking feedback”.
SPECS
SIGNAL PATH: 100% Analog
BYPASS TYPE: True Bypass
POWER: +9VDC
WEIGHT: 18oz (0.5kg)
ENCLOSURE: Cast Aluminum
DIMENSIONS: D=5.75” (14.4 cm) W=3.25” (8.3 cm)
H=2.25” (5.8 cm)
DELAY TIME: <0.512mS 16mS (.324mS 20mS with Modulation)
LFO RATE: <.03Hz – >11Hz
LFO SHAPE: Exponentiated Triangle (Bipolar Additive)
EXPRESSION: Controls Time (Max Input: +5VDC 60% Sweep Max)
INPUT IMPEDANCE: >1MΩ
OUTPUT IMPEDANCE: <1KΩ
MAX INPUT LEVEL: +7dBμ
MAX OUTPUT LEVEL: +10dBμ
CURRENT: 20mA Nominal / 30mA Max
OUTPUT STEREO: Type Switch Up LEFT (Mono) = Dry+Wet
Type Switch Up RIGHT = Dry - Wet
REGISTRATION
Register your Minifooger to activate your warranty.
WWW.MOOGMUSIC.COM /REGISTER
Moog Music warrants that its products will be free from
defects in materials and workmanship, and shall conform
to specifications current at the time of shipment, for a
period of one year from date of purchase. For complete
warranty details visit www.moogmusic.com/warranty.
HEAVY MOD (Use EP-3 To Sweep Time Knob)
