USER MANUAL NW-PE100M
Trouble shooting
When the device encountered with troubles, it can be solved by the methods below:
1. Make sure the device is installed correctly referring to the requirements;
2. Make sure RJ45 cable is good contacted without open circuit; the cable design complies with
EIA/TIA568A or 568B international standards.
3. Each PoE port can provides max 15W to PoE devices, so please don’t connect with the PoE device which
is more than 15W.
4. Replace the trouble device with a normal working NW-PE100M to check if the device is damaged.
5. If all the above methods still don’t work, please contact with manufacturer directly.
PoE Extend
Long Distance PoE and
Extension Sol
Technical Specification
Port
Power Supply Mode
Transmission Media
Output Wattage
Bandwidth
Standard
Status Indicator
Dimensions (mm)
Weight
Operating Environment
One RJ45 port for PoE input, one RJ45 port for PoE output
Powered via PoE input port, support Mid-Span and End-Span
Cat5e/6 standard UTP cable
15.4w(max)
10/100Mbps
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/100BASE-FX, IEEE802.3az,
IEEE802.3af
PoE Indicator, Link/ActIndicator
83.0L x 51.5W x 24.0H
88.6g
Working Temperature: -10°C ~ 55°C
Storage Temperature: -40°C ~ 85°C
Humidity (non-congeal): 5% ~ 95%
Features
Provide two ports : one PoE input and one PoE output
Bandwidth: 10/100Mbps
Input Voltage: 48-57V
Complies with IEEE802.3 10BASE-T, IEEE802.3u, 100BASE-TX/100BASE-FX,
IEEE802.3az, IEEE802.3af
Easy to install and operate on walls or on the desktops.
Support overheating and short circuit protection as well as over-voltage
and over-load protection.
Overview
PoE extender can extend power and ethernet signals to 100m over UTP cable to connect PD devices
compatible with IEEE802.3 af/at (such as IP camera) and supply power to PD devices compatible with
IEEE802.3af/at. This PoE extender is widely used in video surveillance and office net cabling system. Max 3
pieces could be cascaded and transmit max up to 400 meter with PoE switch.

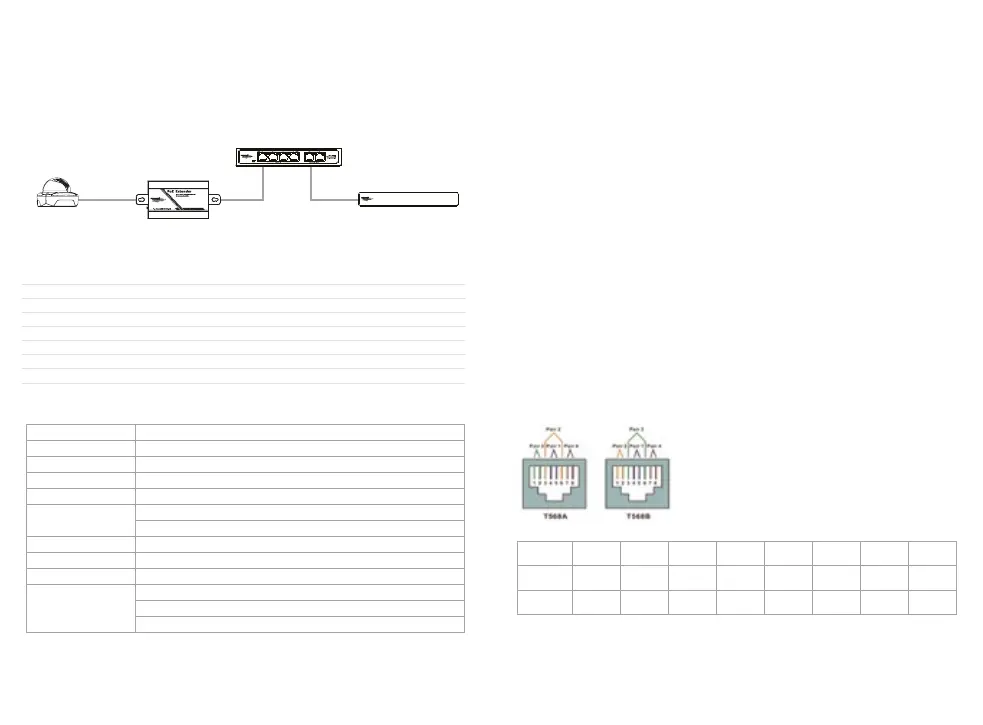

Typical applications diagram is as below:
Note: If any changes with product specification, forgive without prior notice
1. As transmission distance has certain relation with the cable, so you are suggested to use standard
cat5e/6 cable for longest distance needed.
Installation
Before installation, please check the following equipment and accessories, if there are any missing, please
contact with your supplier.
- n°1 NW-PE100M
- n°1 User manual
1. Before installation, please turn off the power of all signal sources and the monitor in case of the damage
to transmission device.
2. Using ONE network cableto connect with PoE input port and switch, as well as powered devices such as
IP camera via the other port.
3. Check whether installation is correct and the device undamaged. Before power on NW-PE100M, make
sure that all connections are reliable.
4. Confirm all network devices are powered and can work normally.
Making methods of RJ45 connector
Required tools: wire crimpers, network cable tester.
The wire sequence of RJ45l connector must complies with international standard of EIA/TIA 568A or
EIA/TIA 568B.
1. Strip about 2cm’s of insulating jacket to let 4 pairs UTP can be seen.
2. Separate 4 pairs UTP cable, and try to straighten each pair.
3. Arrange 8 cables with correct line sequence of EIA/TIA 568A or EIA/TIA 568B.
4. Cut thread residue and leave 1.5cm wire which exposed outside the insulating layer, and ensure 8 wires
are straight and neat.
5. Put 8 wires in RJ 45 connector, then press with wire crimpers.
6. Repeat above five steps , make the other side of UTP cable; Then using the cable tester to test whether
the cat5e/6 works normally.
PoE Camera
PoE Extender
PoE Switch
NVR
T568A
T568B
1
white
greeen
white
orange
2
greeen
orange
3
white
orange
white
green
4
blue
blue
5
white
blue
white
blue
6
orange
green
7
white
brown
white
brown
8
brown
brown
Note:
Ports of this device support Auto MDI/MDIX, so the different
wire sequence at two sides of the cable is
allowed when using RJ45 port for transmission.
