Használati útmutató Ledlenser SEO 7R

Ledlenser Lampa SEO 7R

Olvassa el alább 📖 a magyar nyelvű használati útmutatót Ledlenser SEO 7R (56 oldal) a Lampa kategóriában. Ezt az útmutatót 6 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra

Letöltés PDF
Oldal 1/56

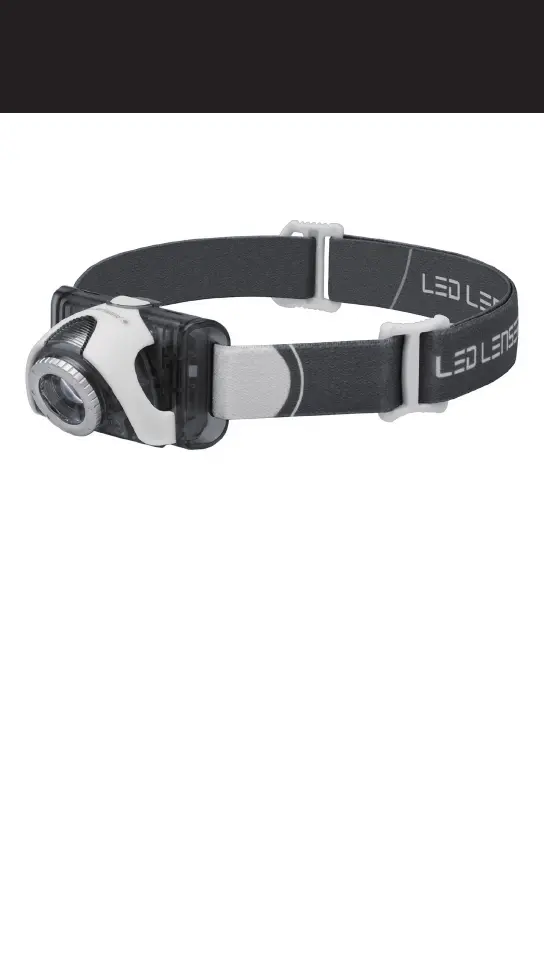

LED LENSER® * SEO 7R
Operating instructions
Bedienungsanleitung
Instrucciones de uso
Mode d‘emploi
Gebruiksaanwijzing
Istruzioni per l‘uso
Käyttöohje
Bruksanvisning
Руководство по эксплуатации
수동
取扱説明書
手册
1
2
LED LENSER® * SEO 7R
English ........................................... 02-06
Deutsch .......................................... 07-11
Español .......................................... 12-18
Français ......................................... 17-21
Nederlands................................... 22-26
Italian.............................................. 27-30
Suomi ............................................. 31-34
Svenska ......................................... 35-38
Pусский ......................................... 39-44
한국어 ............................................ 45-48
日本語 ............................................ 49-51
中文 ................................................. 52-54
01
02
English | Page 02-06 GB
We are delighted that you have purchased one
of our products.
These are usage instructions to help you
familiarise yourself with your new purchase.
All the documents accompanying the product
must be read attentively before using the
product, preserved carefully and if the product
is transferred to a third party, the documents
must be handed over as well. This ensures that
maximum benefit is drawn from the product
and questions from users are anticipated
before they arise.
Above all, comply with the warnings and safety
instructions and dispose of the packaging
material properly.
Additional information for SEO with TEST IT
function
Your LED LENSER SEO 7R headlamp with the
item no. 6107-R (item no. 6007-R: No TEST IT
function ) is packaged with a TEST IT function.
This allows users to test the brightness while
the product is still in the package. For testing,
simply push the yellow TEST IT button on the
front of the package. When testing, please do
not look directly into the light.
The TEST IT button is connected to the battery
housing of the SEO 7R via two wires and should
be removed prior to use.
To remove the TEST IT button and wires,
open the battery housing and remove the 3
x AAA batteries (see also “Changing of the
Accumulator-Pack / NiMH-Accumulator /
Alkaline batteries” further below). Separate
the two TEST IT button wires from the battery
housing by pulling on each wire until it releases
from the battery housing. Insert the 3 x AAA
batteries respectively accumulators noting
the correct polarity. Close the battery housing.
Please dispose and recycle the packaging and
TEST IT button with the wires according to the
local regulations.
Product
LED LENSER
6007-R SEO 7RLED LENSER®
6107-R SEO 7R (Blister)LED LENSER®
Version of the operating manual: 1.1
1. Battery set:
- 1 x Accumulator-Pack (scope of delivery of
6007-R and 6107-R) or
- 3 x Alkaline batteries AAA/LR03/Micro (1.5 V
DC) (scope of delivery of 6107-R) or
- 3 x NiMH-Accumulator AAA/LR03/Micro (1.2
V DC) (not scope of delivery)
2. Switching on and off
In the upper part of the headlamp housing of
the SEO 7R, between battery box and the part
with the reflector lens, there is the switch
button. This switch button is used to turn
the SEO 7R on. It is also used to activate the
various Light Programs and Lighting Functions
(see section 5) and to switch between white
light and red light (see Point 5). In addition,
you can also activate the “Transport Lock” (see
Point 7).
3. Focus
In the front, narrower region of the headlamp
housing is the reflector lens through which the
light of the white LED (see Point 5.1) is focused.
The reflector lens is held by a plastic ring. You
can rotate that plastic ring using two fingers,
and thus adjust the focus quickly and easily.
This so-called Speed Focus allows to adjust
the angle of the white light beam continuously.
Depending on whether you want to illuminate
an area in the distance or in front of you, you
also can adjust the angle of light beam to the
horizontal. For this you can simply tilt the part
of the head lamp, which contains the reflector
lens and the white LED. The screening allows
using also intermediate positions.
4. Smart Light Technology (SLT)
The SEO 7R is equipped with our Smart
Light Technology (SLT). Thanks to the use
of a microcontroller, the light output of the
LED can be controlled and the user can use
various Light Programs and Light Functions.
By using a single switch it was possible to
design the interface to be simple and user-
friendly. The SEO 7R can give the user light
in different ways. There are thus two Energy
Modes, two Light Programs and a number of
Light Functions available. To switch the pocket
torch on and off and to select the various Light
Functions etc., the switch (see Point 2) has to
be used.
What basically applies is that the brightness
of the SEO 7R is monitored by the in-built
temperature control unit.
5. Light Programs and Light Functions
In the SEO 7R are two LEDs (LED = ight L
E Dmitting iode) installed.
The white LED is very strong, ideal for normal
use, for example if the Speed Focus or the
adjustment of the angle of light beam to the
horizontal should be used. This very bright
white light might be not good when your eyes
have become accustomed through the so-
called dark adaptation to low ambient light.
Otherwise than with the use of the white light,
it remains the current adjustment of the eye
to low brightness obtained when the red light
of the second LED is used. The focus and the
angle of the light to the horizontal of the red
LED, which is located laterally next to the
reflector-lens, can not be adjusted.
In order to switch between the white and the
red LED, when the SEO 7R is off, press and
hold the switch button for 2 seconds. The
head lamp will change from red to white or
from white to red, and then release the switch
button before the lights go out, because if you
press too long the switch button you activate
the "Transport Lock“ (see section 7)!
The points below deal with the Light Functions
of the white LED (Light Program White / Point
5.1) and the red LED (Light Program "Red Night
Vision“ / Point 5.2).
5.1 Light Program White
If the Lighting Program White is enabled (see
Point 5), you can use the white, focusable light
of the head lamp.
When the switch button is pressed, if the SEO
7R is off, the head lamp glows in the Light
Function Power at full brightness. When you
switch a second time within 2 seconds, the SEO
