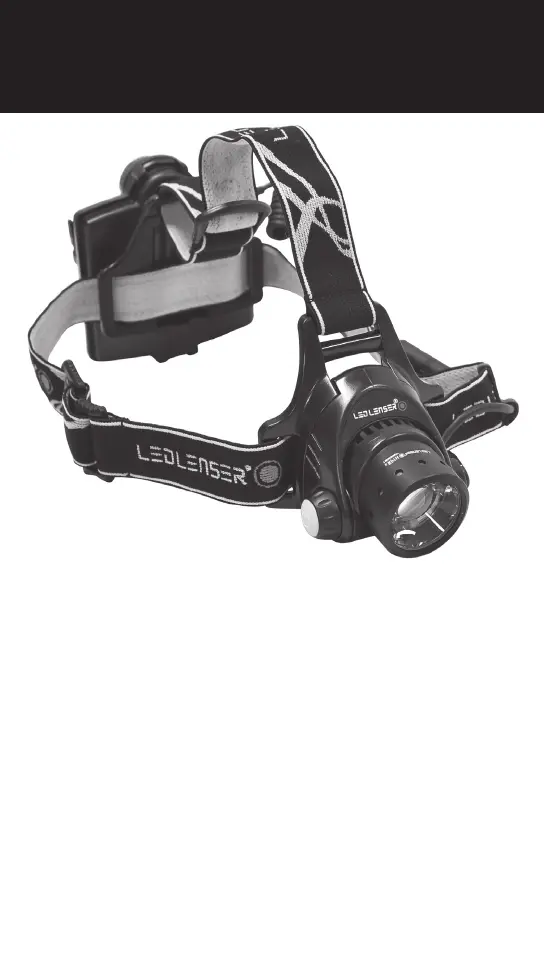

LED LENSER® * h14R.2
Operating instructions
Bedienungsanleitung
Instrucciones de uso
Mode d‘emploi
Gebruiksaanwijzing
Istruzioni per l‘uso
Käyttöohje
Bruksanvisning
Руководство по эксплуатации
수동
取扱説明書
手册
LED LENSER® * h14R.2
English ........................................... 02-05
Deutsch .......................................... 06-10
Español .......................................... 11-15
Français ......................................... 16-20
Nederlands................................... 21-24
Italian.............................................. 25-28
Suomi ............................................. 29-32
Svenska ......................................... 33-36
Pусский ......................................... 37-41
한국어 ............................................ 42-45
日本語 .................................. 46-48
中文 ...................................... 49-51
01
We are delighted that you have purchased one
of our products.
These are usage instructions to help you
familiarize yourself with your new purchase.
All the documents accompanying the product
must be read attentively before using the
product, preserved carefully and if the product
is transferred to a third party, the documents
must be handed over as well. This ensures that
maximum benefit is drawn from the product
and questions from users are anticipated before
they arise.
Above all, comply with the warnings and safety
instructions and dispose of the packaging
material properly.
Additional Information for H14R.2 with “TEST IT”
Function Your LED LENSER® H14R.2 headlamp
is packaged with a “TEST IT” function (item no.
7399-R). This allows users to test the brightness
while the product is still in the package. For
testing, simply push the yellow “TEST IT” button
on the front of the package. When testing,
please do not look directly into the light. The
“TEST IT” button is connected to the battery
housing of the H14R.2 via two wires and should
be removed prior to use. To remove the “TEST-
IT” button and wires, open the battery box rear
cover separate the two “TEST IT” button wires
from the battery housing by pulling it until it
releases from the battery housing. Close the
battery box. Please dispose and recycle the
packaging and “TEST IT” button with the wires
according to the local regulations.
Product
7299-R, LED LENSER® H14R.2
7399-R, LED LENSER® H14R.2 (Blister)
Version of the operating manual: 1.6
1. Battery set:
1 x Li-ion battery pack 7.4V 2200mAh 16.28Wh
4 x AA alkaline battery (Blister)
2. ON and OFF
There are two switches on the H14R.2. The
“front switch” is located on the right part of the
headlamp housing. This button is used to turn
the H14R.2 ON/OFF. It is also used to activate
the various Light Programs, “Lighting Functions”
(see section 5) and to active the “Transport
Lock” functions (see section 7).
The “Multi-function Wheel” switch with push
function is located on the upper part of the
battery box. This allows you to adjust the
brightness and flashing rate infinitely and to
change the “Light Programs” (see section 5).
3. Focus
In the front, narrower region of the headlamp
housing is the reflector lens located. This lens
focused the light of the white LED through our
patented "Advanced Focus System".
The reflector lens is held by an alu. housing.
You can pull and push the front housing by two
fingers, and thus adjust the focus quickly and
easily. This is our speed Focus, which allows the
adjustment of the light beam’s focus.
You also can adjust the hinge of the headlamp,
depending on whether you want to illuminate an
area in the distance or in front of you. For this,
you simply tilt the part of the lamp head, which
containing the reflector lens and the white LED.
The gradual detent allows also intermediate
positions.
4. Smart Light Technology (SLT)
Smart Light Technology (SLT) is a program that
consists of computer optimized microcontrollers
which allows our products to have various
lighting functions. The H14R.2 is equipped with
this technology and is therefore able to use
various Light Programs and Functions. The front
switch at the right side of the lamp head can
turn the lamp On and Off, change the brightness,
and turn on functions like the “Boost” light
function and others. Pressing the “Multi-function
Wheel" switch on the upper part of the battery
box can turn on the red light. This “Multi-function
Wheel" switch can also be rotated to further
adjust the brightness and blink frequency of
your headlamp light.
5. Light Programs and Light Functions
Function of the front light (White LED)
By selecting one of the three "Light Programs"
(1 "Easy Low", 2 "Easy Power" or 3 "Signal") and
one of the three "Light Functions", (“Power”,
“Low Power” or “Signal”), you make a decision
on the setting of the white LED on the front part
of the head lamp (Light Program White). The
default mode is the Light Program “Easy low”.
Below function only can active when the product
is not connected with adaptor and the Transport
Lock function is deactivated.
To switch between the three "Light Programs",
you have to press the "Multi-function Wheel"
switch (rotary switch) on the back of the battery
box for at least 5 seconds. A correct activation
confirms the lamp with a corresponding number
of flashes (1x, 2x or 3x). Immediately after the
setting of the chosen "Light program", the lamp
is switched on.
Boost mode (30 second)
If you push the front switch for 2 second, when
the product is non-connected with the adaptor
and the “Transport Lock” have been deactivate,
the product will go to BOOST mode. Please
release the switch when you go to Boost mode.
If you push the switch longer than 5 seconds
than the product will go to “Transport Lock”
function (please find in point 7), after 30 seconds
the BOOST mode will go automatically to the
previous function setting.
5.1 Light Program one – “Easy Low”: In this
mode, the lamp starts with the “Low Power”
function (dimmed light) by pressing the front
switch once. Press the front switch twice within
2 second to turn into the Light Function “Power”
(full light). A further press will turn off the lamp.
5.2 Light Program two - Easy power: In this
mode, the lamp starts with the Light Function
“Power” (full light) by pressing the front switch
once. Press the front switch twice within 2
second to turn on into the “Low Power” function
(dimmed light). A further press will turn off the
lamp.
5.3 Light Program three - Signal: In this
Program, the lamp starts with the Light Function
02
English | Page 02-05 GB
