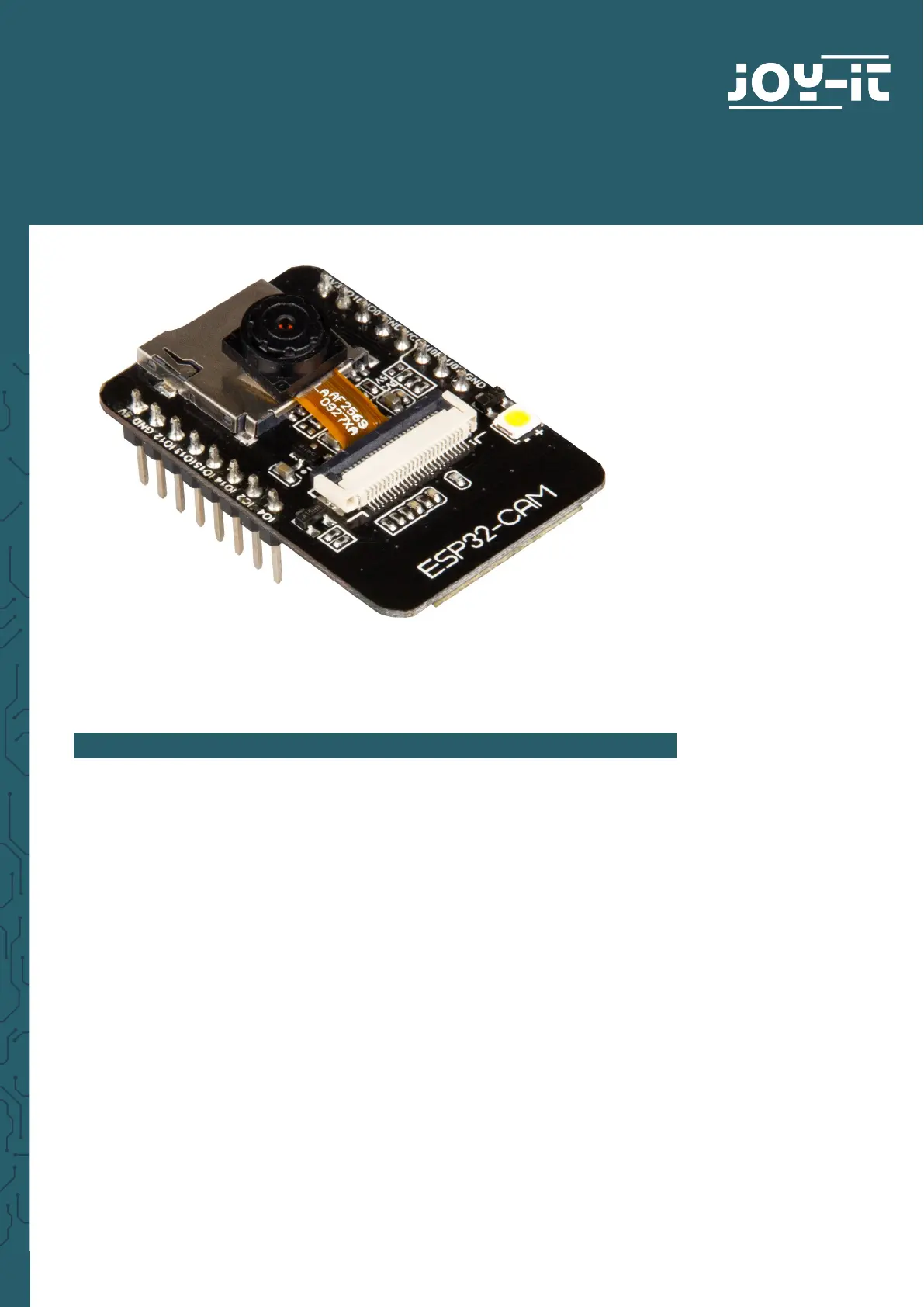

ESP32 CAMERA MODULE
SBC ESP32 Cam- -
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
2. PINOUT
The following pins are internally connected to the SD card slot:
IO14: CLK
IO15: CMD
IO2: Data 0
IO4: Data 1 (also connected to the on board LED)-
IO12: Data 2
IO13: Data 3
To put the device into flash mode, IO0 must be connected to GND.
5V
GND
IO12
IO13
IO15
IO14
IO2
IO4 GND
IO1 / U0T
IO3 / U0R
VCC
GND
IO0
IO16
3,3V
LED (IO4)
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
2. SETTING UP THE DEVELOPMENT ENVIRONMENT
You can program the camera module using the Arduino IDE.
If you do not have the IDE installed on your computer, you can download it
here.
Aer you have installed the development environment, you can open it to
prepare you for using the camera module.
Go to zu File > Preferences-
Add the URL: https://dl.espressif.com/dl/package_esp32_index.json
under Additional Board Manager URLs.
Multiple URLs can be separated with a comma.
