THANK YOU

for purchasing JBL Grand Touring

®Series

automotive speakers. We’ve organized

this manual to make your installation

as simple and trouble-free as possible.

Please read it thoroughly before proceeding.

Remember to keep your sales receipt and this manual

in a safe place so both are available for future reference.

multielements

owner’s manual

INSTALLATION WARNINGS AND TIPS

ABOUT THESE

INSTRUCTIONS

Installation of automotive stereo com-

ponents can require extensive experi-

ence with a variety of mechanical and

electrical procedures. Although these

instructions explain how to install

Grand Touring Series multielement

speakers in a general sense, they do

not show the exact installation meth-

ods for your particular vehicle. If you

do not feel you have the experience,

do not attempt the installation yourself,

but instead ask your authorized JBL

car audio dealer about professional

installation options.

LOUD MUSIC AND

HEARING

Playing loud music in an automobile

can hinder your ability to hear traffic

as well as permanently damage your

hearing. The maximum volume levels

achievable with JBL speakers, com-

bined with high power amplification,

may exceed safe levels for extended

listening. We recommend using low

volume levels when driving. JBL

accepts no liability for hearing loss,

bodily injury, or property damage

as a result of use or misuse of this

product.

REAR DECK

PRECAUTION

In some cars, fuel tanks may be

located directly beneath the rear

deck. Before installation, make sure

there is adequate speaker basket

clearance before considering this

location!

INSTALLATION TIPS

• Always wear protective eyewear

when using any tools.

• Turn off all audio components and

other electrical devices before you

start. Disconnect the (–) negative

lead from your vehicle’s battery.

• Keep speakers in their package

until final installation. When moving

a speaker, always rest it with the

cone or dome facing up. Never use

force to install any speaker.

• Check clearances on both sides of

a planned mounting surface before

drilling any holes or installing any

screws. Remember that the screws

can extend behind the surface.

• At the installation sites, locate

and make a note of all fuel lines,

hydraulic brake lines, vacuum lines

and electrical wiring. Use extreme

caution when cutting or drilling in

and around these areas.

• Before drilling or cutting holes, use

a utility knife to remove unwanted

fabric or vinyl, to keep material

from snagging in a drill bit or saw.

• For door installations, check the

clearance with the windows

throughout the range of the win-

dow’s travel, and verify that a

mounted speaker will not interfere

with the window crank or power

window mechanism.

• If mounting speakers elsewhere,

check for clearance around rear

deck torsion bars, glove box or

other structural elements.

• Do not mount speakers where they

will get wet.

INSTALLATION

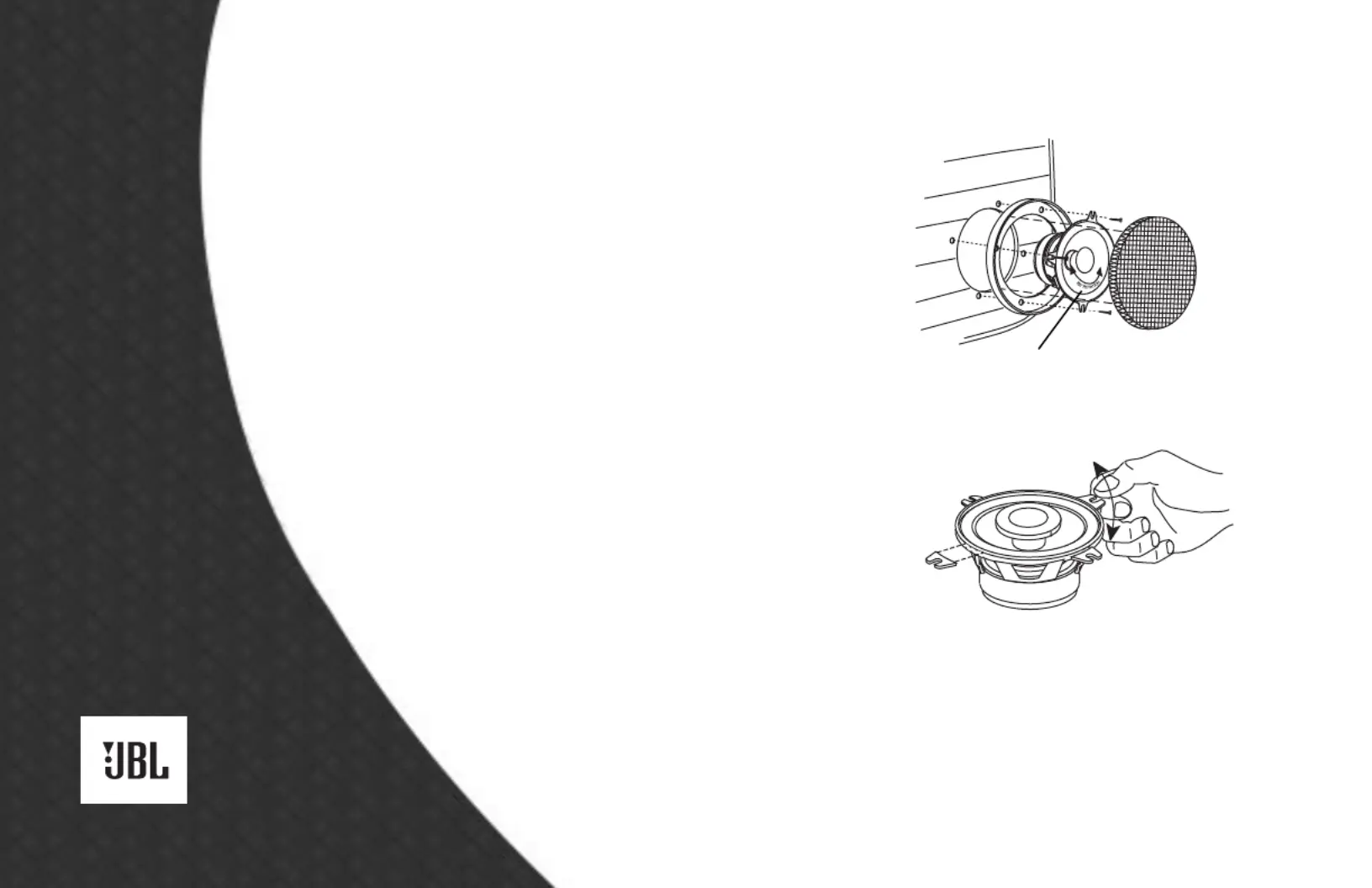

Figure 1. Mounting the GTO426, GTO526, GTO626, GTO636, GTO926 or GTO936

using the supplied grille.

Figure 2. Modifying the GTO426 to be installed in locations requiring fewer than

four mounting “ears.”

NOTE: Grip the tab (preferably with pliers) and bend to detach it from the

speaker.

Rotate tweeter so it is angled toward the

listener using the UniPivot™

(patent no. 6,002,780)

feature on the GTO526, GTO626, GTO926 and GTO8626.

INSTALLATION

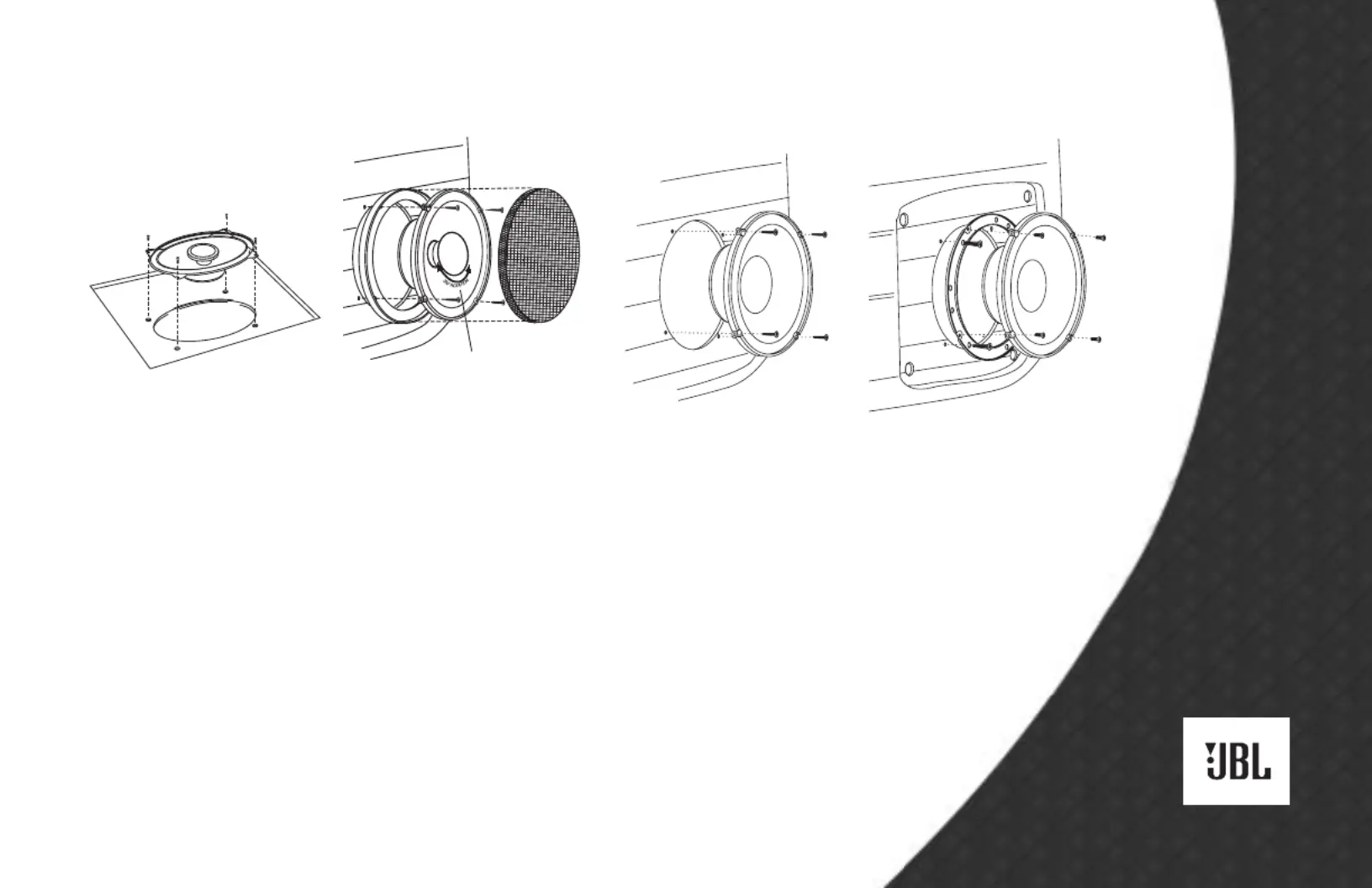

Figure 4. Mounting the GTO626 or GTO636 using

the supplied grilles.

Figure 6. Mounting the GTO626 and GTO636 in

standard speaker locations.

Figure 3. Mounting the GTO8626 and GTO6426.

NOTE: The GTO8626 and GTO6426 speakers

are designed to be installed under factory

grilles. Consequently, no grilles are packaged

with these models.

NOTE: The GTO326 mounts similarly.

Rotate tweeter so it is angled

toward the listener using the

UniPivot™ (patent no. 6,002,780)

feature on the GTO526, GTO626,

GTO926 and GTO8626.

NOTE: The GTO626 and GTO636 use an

adapter to fit a variety of different 6" open-

ings. Select an appropriate adapter ring and

secure it to the vehicle using the sheet-metal

screws provided, then attach the speaker to

the ring with the machine screws.

Figure 5.

Mounting the GTO626 or GTO636 in 165mm

speaker locations.
