THANK YOU

for purchasing JBL GTO16t automotive

tweeters. We’ve organized this manual to

make your installation as simple and trouble-

free as possible. Please read it thoroughly before

proceeding. Remember to keep your sales receipt

and this manual in a safe place so both are available

for future reference.

tweeter

owner’s

manual

INSTALLATION WARNINGS AND TIPS

ABOUT THESE

INSTRUCTIONS

Installation of automotive stereo

components can require extensive

experience with a variety of mech-

anical and electrical procedures.

Although these instructions explain

how to install JBL GTO16t tweeters in

a general sense, they do not show the

exact installation methods for your

particular vehicle. If you feel you do

not have the experience, do not

attempt the installation yourself but,

instead, ask your authorized JBL car

audio dealer about professional instal-

lation options.

LOUD MUSIC AND

HEARING

Playing loud music in an automobile

can permanently damage your

hearing, as well as hinder your ability

to hear traffic. The maximum volume

levels achievable with JBL speakers,

combined with high power amplifica-

tion, may exceed safe levels for

extended listening. We recommend

using low volume levels when driving.

JBL accepts no liability for hearing

loss, bodily injury, or property

damage as a result of use or misuse

of this product.

ABOUT THE FILTER

Passive filter design involves precise

circuit design and component selec-

tion. Moreover, a well-designed filter

circuit provides an intended electrical

response, when combined with the

electrical properties of the speaker,

to provide a particular acoustic

response. Each enclosed filter has

been optimized to provide a flat

response when used with a

JBL GTO16t tweeter.

Do not use another brand or type of

passive crossover, or connect more

than one tweeter to a crossover.

Doing so may damage the tweeter.

INSTALLATION TIPS

• Always wear protective eyewear

when using any tools.

• Turn off all audio components and

other electrical devices before you

start. Disconnect the negative (–)

lead from your vehicle’s battery.

• Keep speakers in their package

until final installation. When moving

a speaker, always rest it with the

cone or dome facing up. Never use

force to install any speaker.

• Check clearances on both sides of

a planned mounting surface before

drilling any holes or installing any

screws. Remember that the screws

can extend behind the surface.

• At the installation sites, locate

and make a note of all fuel lines,

hydraulic brake lines, vacuum lines

and electrical wiring. Use extreme

caution when cutting or drilling in

and around these areas.

• Before drilling or cutting holes, use

a utility knife to remove unwanted

fabric or vinyl to keep material from

snagging in a drill bit or saw.

• For door installations, check the

clearance with the windows

throughout the range of the win-

dow’s travel, and verify that a

mounted speaker will not interfere

with the window crank or power-

window mechanism.

• If mounting speakers elsewhere,

check for clearance around rear-

deck torsion bars, glove box or

other structural elements.

• Do not mount speakers where they

will get wet.

SPEAKER PLACEMENT

ABOUT PLACEMENT

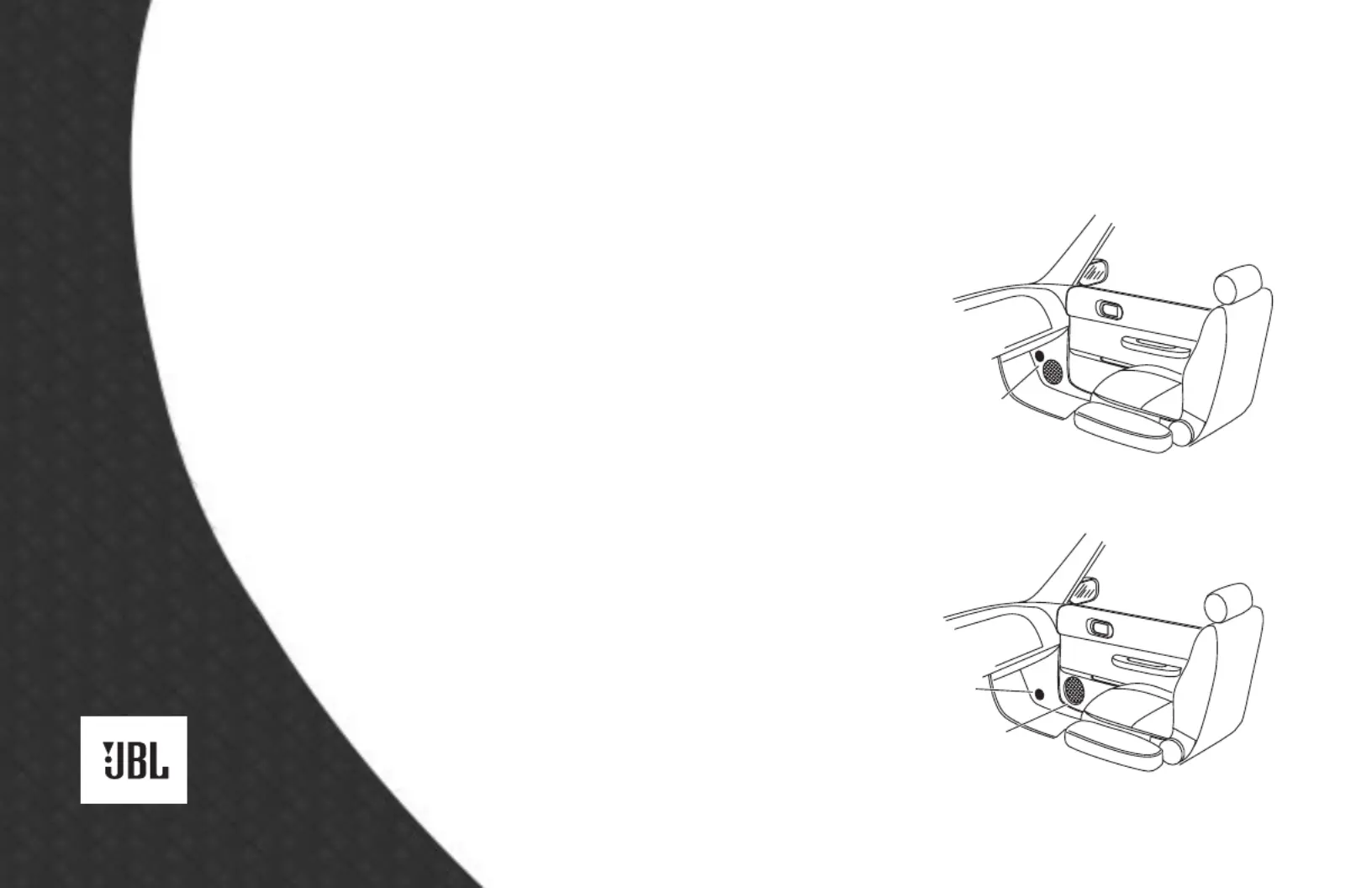

Figures 1 and 2 show possible speaker placements, with Figure 1 being more

desirable. We recommend using the kick panel for mounting to obtain the best

staging and imaging in most vehicles.

Figure 1. Mounting the woofer and tweeter in the kick panel.

Figure 2. Mounting the woofer in the door and the tweeter in the kick panel.

Tweeter

and woofer

on kick panel

Tweeter

on kick panel

Woofer in factory

door location

TWEETER INSTALLATION

(–) SMALL LUG

(+) LARGE LUG

BLACK

RED

RED (+)

BLACK (–)

1. Slide screw up or

down to adjust

tweeter angle.

4. Securely tighten

the large hand nut.

2. Tighten nut and

washer to lock

angle settings.

3. Rotate entire assembly

to aim angled tweeter

toward listener.

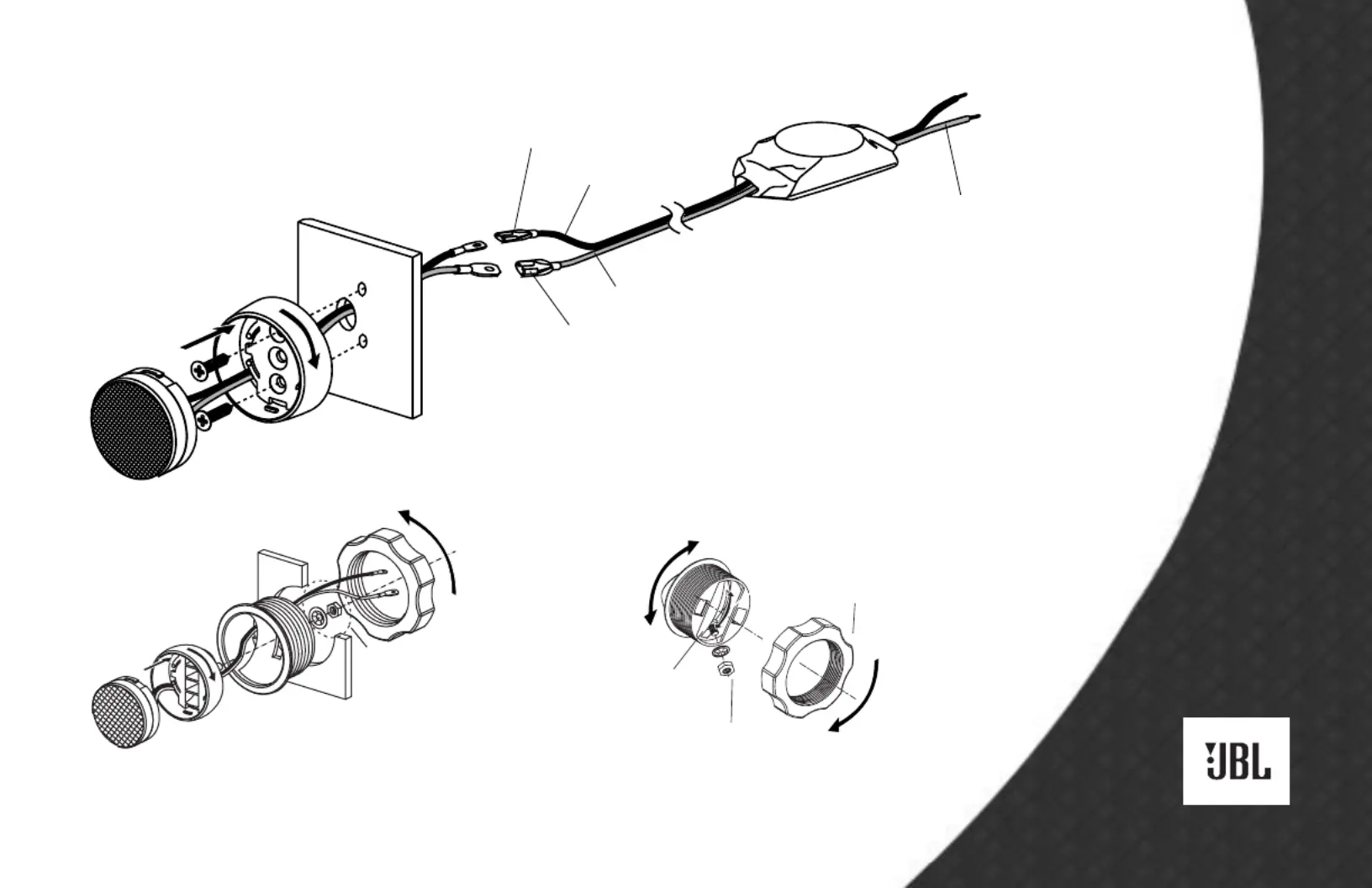

Figure 4. Mounting the tweeter

using the I-Mount™ (patent no.

5,859,917) flush-mounting kit.

Also see Figure 5.

Figure 5. Aiming the tweeter at a

desired listening position.

Figure 3. Surface-mounting the

tweeter and connecting the

crossover.
