Oldal 1/4

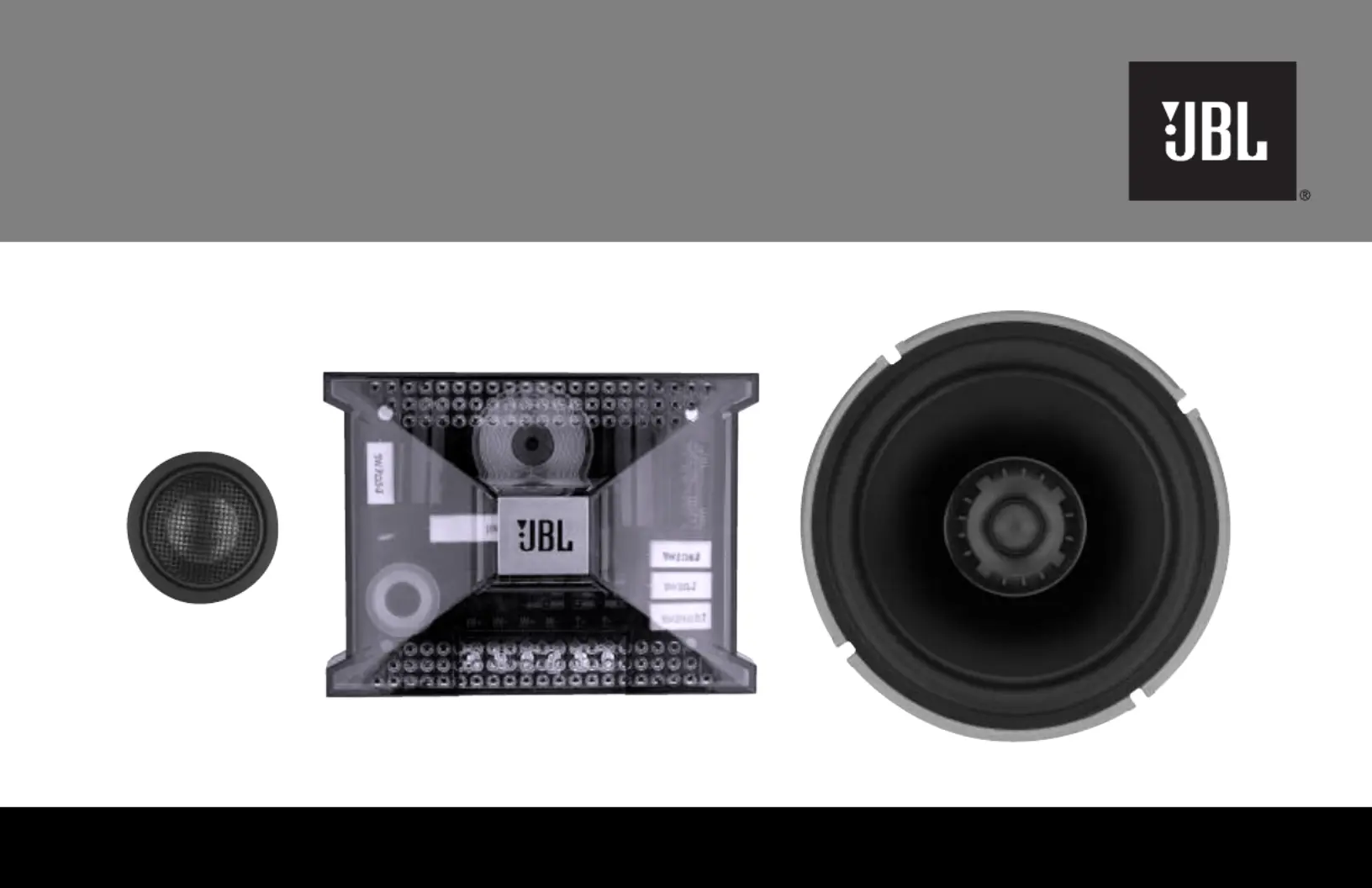

C508GTi MkII

C608GTi MkII

PROFESSIONAL-GRADE AUTOMOTIVE

COMPONENT SPEAKER SYSTEM

OWNER’S MANUAL

G E N U I N E J B L

THE OFFICIAL BRAND

OF LIVE MUSIC.

WWW.JBL.COM

ABOUT THESE

INSTRUCTIONS

Installation of automotive stereo compo-

nents can require extensive experience

with a variety of mechanical and electrical

procedures. Although these instructions

explain how to install GTi component

systems in a general sense, they do not

show the exact installation methods for

your particular vehicle. If you do not feel

you have the experience, do not attempt

the installation yourself – instead, ask

your authorized JBL car audio dealer

about professional installation options.

LOUD MUSIC

AND HEARING

Playing loud music in an automobile can

hinder your ability to hear trac, as well

as permanently damage your hearing. The

maximum volume levels achievable with

JBL speakers, combined with high power

amplication, may exceed safe levels for

extended listening. We recommend using

low volume levels when driving. JBL

accepts no liability for hearing loss, bodily

injury or property damage as a result of

use or misuse of this product.

A NOTE ABOUT SYSTEM

PERFORMANCE

For the best performance possible, the

GTi components should be used with a

two-channel amplier with output power

of at least 50W RMS per channel. The

passive crossover contains impedance-

compensating circuitry and has been

computer-optimized for the attest

possible frequency response with the

tweeter ush-mounted, on-axis with

the listener. The combined responses

of the speakers and passive crossover

constitute a 4th-order Linkwitz-Reily

acoustic alignment and cannot be

duplicated with any electronic crossover

currently available for car audio use.

Consequently, bi-amping a GTi component

system with an electronic crossover is not

recommended.

SPEAKER PLACEMENT

Figures 1–4 show possible speaker

placements in the order of most desirable

to least desirable. Kick-panel mounting

will provide the best staging and imaging

in most vehicles.

TWEETER

on dash

WOOFER

in factory-

door location

TWEETER

on kick panel

WOOFER

in factory-

door location

TWEETER

and

WOOFER

on kick panel

WOOFER

in factory-

door location

T WEETER

in high/forward

l ocation on door

Figure 1. Mounting the woofer and

tweeter in the kick panels

Figure 2. Mounting the woofer in the

door and the tweeter in the kick panel

Figure 3. Mounting the woofer and

tweeter in the doors

Figure 4. Mounting the woofer in the

door and the tweeter in the dash

INSTALLATION WARNINGS AND TIPS

–

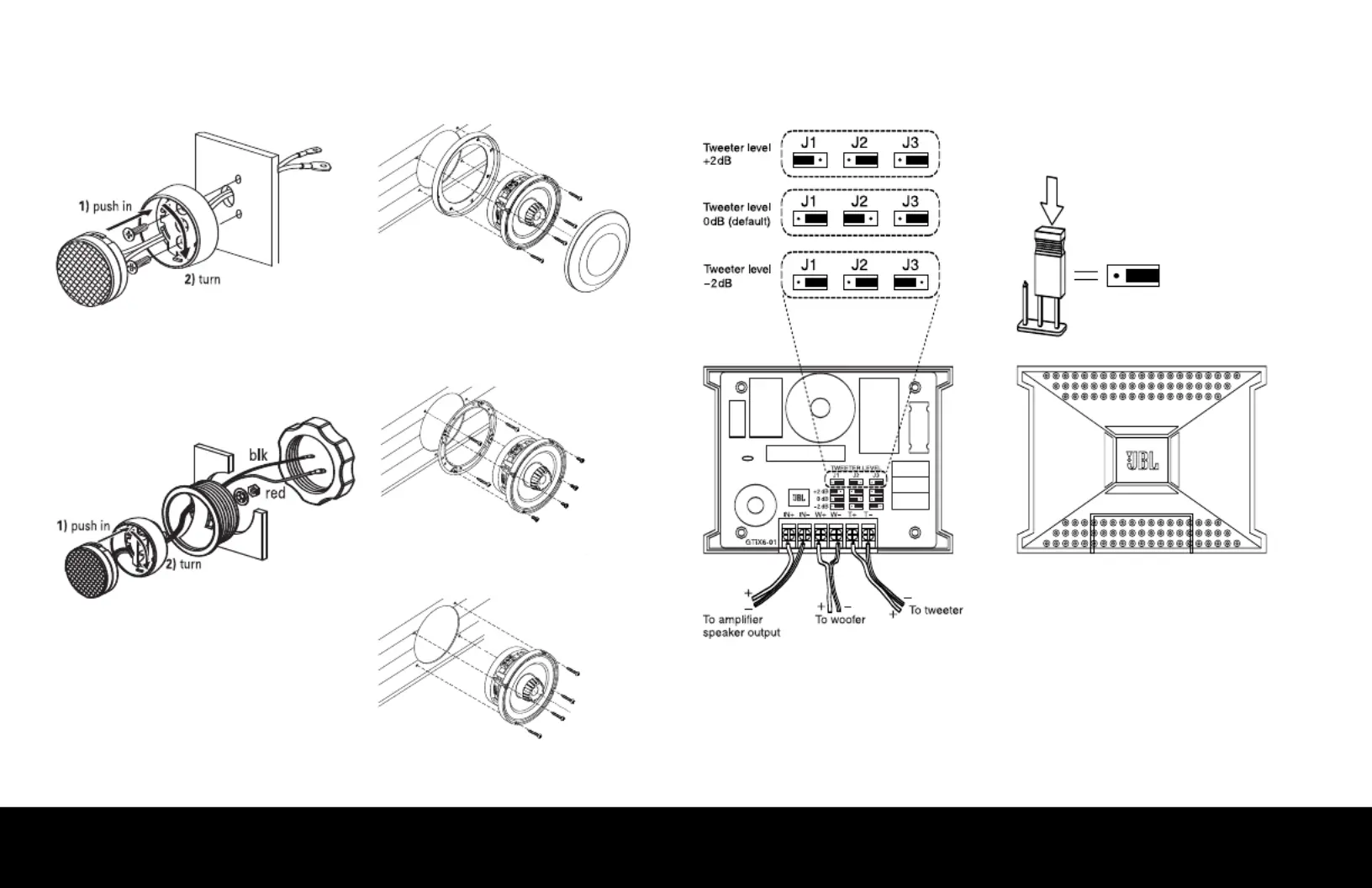

Figure 5. Surface-mounting the tweeter:

rst push in (1), then turn (2)

Figure 6. Flush-mounting the tweeter:

rst push in (1), then turn (2)

WOOFER INSTALLATIONTWEETER INSTALLATION

Figure 7. Mounting the C508GTi or C608GTi

woofer where there is no factory speaker

location. To mount the C508GTi in factory

locations, omit the grille and grille tray.

Figure 8. Mounting the C608GTi woofer in

standard 5-1/4" holes (in many Japanese

and American automobiles)

Figure 9. Mounting the C608GTi woofer

in 165mm holes (in many European and

American automobiles)

ELECTRICAL CONNECTIONS AND CROSSOVER ADJUSTMENTS

Figure 10. Connecting the speakers and

the amplier to the crossover

Figure 11. Adjust the crossover using the

jumpers provided

INSTALLATION
