HP Pavilion dv6 Entertainment PC

Maintenance and Service Guide

Document Part Number: 577850-001

September 2009

This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides

comprehensive information on identifying computer features, components, and spare parts; troubleshooting

computer problems; and performing computer disassembly procedures.

AMD, AMD Athlon, AMD Sempron, AMD Turion, and ATI Mobility Radeon are trademarks of Advanced Micro Devices, Inc.

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel is a trademark or registered

trademark of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and Windows Vista are

U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in

the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an

additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: September 2009

Document Part Number: 577850-001

Safety warning notice

ÅWARNING: To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly

on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface,

such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow

the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the

AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of

Information Technology Equipment (IEC 60950).

Maintenance and Service GuideMaintenance and Service Guide 1

Contents

1 Product description

2 External component identification

Top components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Buttons, speakers, and fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

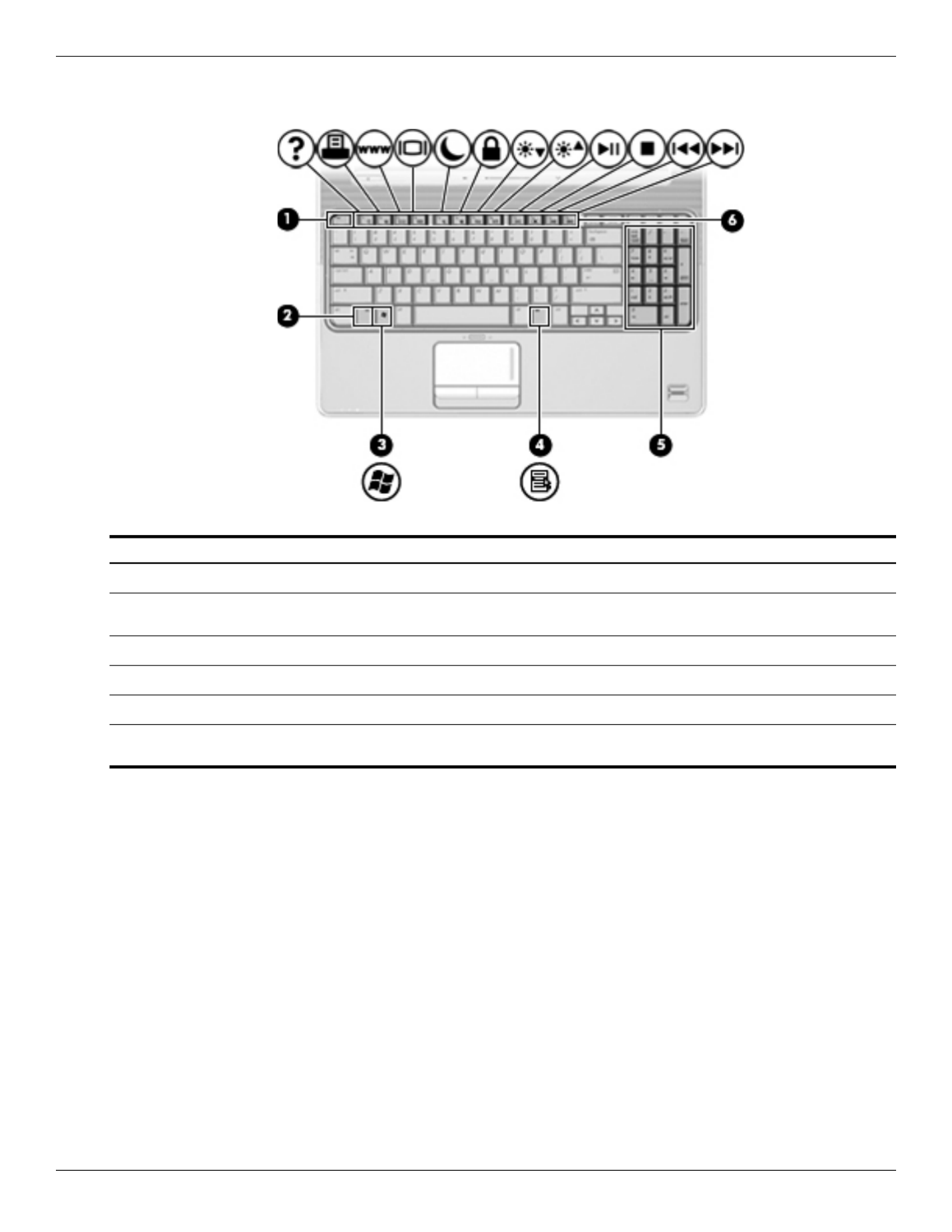

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Front components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Rear component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Right-side components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Left-side components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Bottom components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

Display components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

Wireless antennas (select models only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

Additional hardware components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

3 Illustrated parts catalog

Serial number location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Computer major components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Display assembly components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

Cable Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–10

Miscellaneous parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

Sequential part number listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

4 Removal and replacement procedures

Preliminary replacement requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Service considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Grounding guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Component replacement procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Serial number location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Computer feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Webcam/microphone module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Optical drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Memory module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

TV tuner module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

RTC battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14

Hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–15

WLAN module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–17

2 Maintenance and Service GuideMaintenance and Service Guide

Contents

Switch cover and keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20

Power button board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–23

Bluetooth module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–24

Display assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–25

Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–29

Top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–30

Modem module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–33

Audio/infrared board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–34

USB board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–35

Power connector cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–36

System board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–37

TV tuner module cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–39

Modem module cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–40

Fan/heat sink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–41

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–44

5 Setup Utility

Starting the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

Using the Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

Changing the language of the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

Navigating and selecting in the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Display system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Restoring default settings in the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Exiting the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Setup Utility menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Security menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

System Configuration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

6 Specifications

Computer specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

15.6-inch WXGA display specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

Hard drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

Blu-ray ROM DVD±RW SuperMulti DL Drive specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications. . . . . . . . . . . . . . . . . . . . 6–4

System DMA specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

System interrupt specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

System I/O address specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

System memory map specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

7 Screw listing

Phillips PM2.0×3.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

Phillips PM2.5×3.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3

Phillips PM2.5×4.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

Phillips PM2.5×6.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–6

Phillips PM2.5×5.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–7

Phillips PM2.5×7.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

Phillips PM3.0×3.5 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–11

Contents

Maintenance and Service GuideMaintenance and Service Guide 3

8 Backup and Recovery

Creating recovery discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–1

Backing up your information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Using Windows Backup and Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Using system restore points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Performing a recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Recovering using the recovery discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Recovering using the partition on the hard drive (select models only) . . . . . . . . . . . . . . . . . . . . . . . . 8–4

9 Connector pin assignments

1394 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

Audio-in (microphone). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

Audio-out (headphone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–2

External monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–2

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–3

RJ-11 (modem). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4

RJ-45 (network) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4

Universal Serial Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–5

10Power cord set requirements

Requirements for all countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1

Requirements for specific countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2

11Recycling

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1

Index

Maintenance and Service GuideMaintenance and Service Guide 1–1

Product description

Category Description

Computers

with discrete

graphics

Computers

with UMA

graphics

Product Name HP Pavilion dv6 Entertainment PC

Processors AMD Turion™ II Ultra Dual-Core Mobile processors:

M640, 2.6-GHz with 2-MB L2 cache ✔ ✔

M620, 2.5-GHz with 2-MB L2 cache ✔ ✔

M600, 2.4-GHz with 2-MB L2 cache ✔ ✔

AMD Turion II Dual-Core Mobile processors:

M520, 2.3-GHz with 1-MB L2 cache ✔ ✔

M500, 2.2-GHz with 1-MB L2 cache ✔ ✔

AMD Athlon™ II Dual-Core Processor for Notebook PCs

M320, 2.1-GHz with 1-MB L2 cache ✔ ✔

M300, 2.0-GHz with 1-MB L2 cache ✔ ✔

AMD Sempron™ processor:

M100, 2.0-GHz with 512-GB L2 cache ✔ ✔

Chipset Northbridge: AMD RX881 Chipset ✔

Northbridge: AMD RX880M Chipset ✔

Southbridge: SB710 ✔ ✔

Graphics ATI Mobility Radeon™ HD 4650 (M96) with 1 GB of dedicated video

memory

✔

ATI Mobility Radeon HD 4530 (M92) with 512 MB of dedicated video

memory

✔

AMD internal graphics with 128-MB SidePort video memory ✔

Unified memory architecture (UMA) with shared video memory (ATI

Radeon HD 4200 graphics):

■Up to 251 MB for = 1024-MB system RAM

■Up to 358 MB for > 2048-MB system RAM

■Memory size changes dynamically

✔

■Support for BD playback with HD Decode, and DX10 ✔ ✔

Panel 15.6-inch WXGA (1366 × 768) BrightView LED ✔ ✔

Support for lighted logo on display enclosure ✔ ✔

Typical brightness 200 nits ✔ ✔

(Continued)

1–2 Maintenance and Service Guide

Product description

Webcam Standard VGA camera ✔ ✔

Fixed (no tilt) ✔ ✔

Activity LED ✔ ✔

640 × 480 by 24 frames per second ✔ ✔

Memory 2 customer-accessible/upgradeable memory module slots ✔ ✔

Supports dual-channel memory ✔ ✔

PC2-6400, 800-MHz, DDR2 ✔ ✔

Supports up to 8 GB of system RAM in the following configurations:

■8192-MB total system memory (4096 MB × 2, dual-channel)

■6144-MB total system memory (2048 MB × 1 + 4096 MB × 1)

■4096-MB total system memory (2048 × 2, dual-channel)

■3072-MB total system memory (2048 × 1024)

■2048-MB total system memory (1024 × 2, dual-channel)

■2048-MB total system memory (2048 × 1)

■1024-MB total system memory (1024 × 1)

✔ ✔

Hard drives Supports all Serial ATA (SATA) 9.5-mm, 6.35-cm (2.50-inch) hard

drives

✔ ✔

Supports one hard drive ✔ ✔

Support for HP ProtectSmart Hard Drive Protection ✔ ✔

Single hard drive configurations:

■500-GB, 7200-rpm

■500-GB, 5400-rpm

■320-GB, 7200-rpm

■320-GB, 5400-rpm

■250-GB, 7200-rpm

■250-GB, 5400-rpm

✔ ✔

Optical drives Fixed (removal of 1 screw required) ✔ ✔

12.7-mm tray load ✔ ✔

Serial ATA ✔ ✔

Supports the following drives:

■DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

■Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer

Drive

✔ ✔

Microphone 2 omnidirectional microphones, dual-array with appropriate software

(supports beam forming, echo cancellation, and noise suppression)

✔ ✔

Audio HD Audio ✔ ✔

Supports Microsoft® Premium Requirements ✔ ✔

Pavilion-branded Altec Lansing speakers ✔ ✔

Modem 56K V.92 data/fax modem (select models only) ✔ ✔

Supports all worldwide certification requirements ✔ ✔

(Continued)

Category Description

Computers

with discrete

graphics

Computers

with UMA

graphics

Product description

Maintenance and Service Guide 1–3

Ethernet Integrated Realtek 10/100/1000 network interface card (NIC) ✔

Integrated Realtek 10/100 NIC ✔

Wireless Integrated wireless local area network (WLAN) options by way of

wireless module:

■Atheros 9285G 802.11b/g + Bluetooth® with two antennas

■Broadcom BCM4312 802.11b/g + Bluetooth with two antennas

■Atheros 9280AGN 802.11a/b/g/n + Bluetooth

■Broadcom 4322 AGN 802.11a/b/g/draft-n WLAN module (plus

Bluetooth)

■Intel Wi-Fi Link 5100 802.11a/b/g WLAN module

■Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module

✔ ✔

TV Tuner Integrated DVB-T TV tuner (select models only) ✔

Support for TV tuner antennas for both DVB-T and ATSC/NTSC ✔ ✔

External media card One ExpressCard 54 slot ✔ ✔

Digital Media Slot supports SD, MMC, MS, MSP, xD. Supports mini

versions of SD, MMC, MS Duo with adapter (purchased separately)

✔ ✔

Internal card

expansion

Two Mini Card slots

■One slot for WLAN

■One slot for TV tuner

Ports VGA, 15-pin supporting 1920 × 1200 resolution at 75Hz ✔

VGA, 15-pin supporting 1600 × 1200 resolution at 75Hz ✔

Hot Plug/Unplug and auto-detect for correct output to wide-aspect vs.

standard-aspect video

✔ ✔

High-Definition Multimedia Interface (HDMI) v1.3b supporting 1080p

with HDCP key

✔ ✔

eSATA port combo with fourth USB port ✔ ✔

Four USB 2.0 ports ✔ ✔

IEEE 1394a ✔

RJ-11 modem (select models only) ✔ ✔

RJ-45 Ethernet ✔ ✔

Consumer infrared ✔ ✔

MCX connector for TV antennas (select models only) ✔ ✔

Two stereo headphone jacks (audio-out) ✔ ✔

Microphone input (audio-in) ✔ ✔

AC adapter plug ✔ ✔

Docking Expansion port 3 supports the HP Notebook Expansion Base and HP

Notebook QuickDock

✔ ✔

Keyboard/pointing

devices

16-inch full-size keyboard with numeric keypad ✔ ✔

Standard IMR keyboard ✔ ✔

TouchPad supports 2-way scrolling ✔ ✔

(Continued)

Category Description

Computers

with discrete

graphics

Computers

with UMA

graphics

1–4 Maintenance and Service Guide

Product description

UV painted keyboard (select models only) ✔ ✔

Textured (non-painted) keyboard (select models only) ✔ ✔

Taps enabled as default ✔ ✔

Power requirements 90-W AC adapter ✔

65-W AC adapter ✔

6-cell 2.55-Ah Li-ion battery with target life of 2.75 hours ✔

6-cell 2.55-Ah Li-ion battery with target life of 3.5 hours ✔

6-cell 2.20-Ah Li-ion battery with target life of 2.2 hours ✔

6-cell 2.20-Ah Li-ion battery with target life of 3 hours ✔

12-cell 8.80-Ah Li-ion battery with target life of 4.5 hours ✔

12-cell 8.80-Ah Li-ion battery with target life of 6 hours ✔

Security Security cable slot ✔ ✔

Fingerprint reader (select models only) ✔ ✔

Operating system Preinstalled:

Windows® 7 ✔ ✔

Windows 7 Basic (32 bit) ✔ ✔

Windows 7 Basic (64 bit) ✔ ✔

Windows 7 Home Premium (32 bit) ✔ ✔

Windows 7 Home Premium (64 bit) ✔ ✔

Windows 7 Professional (64 bit) ✔ ✔

Serviceability End-user replaceable parts:

AC adapter ✔ ✔

Battery (system) ✔ ✔

Hard drive ✔ ✔

Memory module ✔ ✔

Optical drive ✔ ✔

Mini Card components ✔ ✔

Category Description

Computers

with discrete

graphics

Computers

with UMA

graphics

Maintenance and Service Guide 2–1

External component identification

Top components

TouchPad

Item Component Function

1TouchPad light ■White: TouchPad is enabled.

■Amber: TouchPad is disabled.

2TouchPad* Moves the pointer and selects or activates items on the screen.

3Left TouchPad button* Functions like the left button on an external mouse.

4TouchPad on/off button Enables/disables the TouchPad.

5TouchPad vertical scroll zone Scrolls up or down.

6Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. To view or change device preferences, select Start > Devices and Printers. Then,

right-click the device representing your computer, and select Mouse settings.

2–2 Maintenance and Service Guide

External component identification

Lights

Item Component Description

1Power lights (2)* ■On: The computer is on.

■Blinking: The computer is in the Sleep state.

■Off: The computer is off or in Hibernation.

2Battery light ■On: A battery is charging.

■Blinking: A battery that is the only available power source has

reached a low battery level. When the battery reaches a critical

battery level, the battery light begins blinking rapidly.

■Off: If the computer is plugged into an external power source, the

light is turned off when all batteries in the computer are fully

charged. If the computer is not plugged into an external power

source, the light stays off until the battery reaches a low battery

level.

3Drive light ■Blinking: The hard drive or optical drive is being accessed.

■Amber: HP ProtectSmart Hard Drive Protection has temporarily

parked the hard drive.

4Caps lock light On: Caps lock is on.

5Volume mute light ■White: Computer sound is on.

■Amber: Computer sound is off.

6 Volume down light On: The volume scroll zone is being used to decrease speaker

volume.

7 Volume up light On: The volume scroll zone is being used to increase speaker

volume.

8Wireless light ■Blue: An integrated wireless device, such as a wireless local area

network (WLAN) device and/or a Bluetooth® device, is turned on.

■Amber: All wireless devices are turned off.

9Num lock light On: The integrated numeric keypad is enabled, or num lock is

enabled on a connected optional numeric keypad.

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The

power light on the front of the computer is visible whether the computer is open or closed.

External component identification

Maintenance and Service Guide 2–3

Buttons, speakers, and fingerprint reader

Item Component Description

1 Speakers (2) Produce sound.

2Power button* ■When the computer is off, press the button to turn on the computer.

■When the computer is on, press the button briefly to initiate Sleep.

■When the computer is in the Sleep state, press the button briefly to exit

Sleep.

■When the computer is in Hibernation, press the button briefly to exit

Hibernation.

If the computer has stopped responding and Windows® shutdown

procedures are ineffective, press and hold the power button for at least 5

seconds to turn off the computer.

To learn more about power settings, select Start > Control Panel > System

and Security > Power Options.

3 Volume mute button Mutes and restores speaker sound.

4 Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease volume and

to the right to increase volume. You can also tap the minus (-) sign on the

scroll zone to decrease volume, or tap the plus (+) sign on the scroll zone to

increase volume.

5 Wireless button Turns the wireless feature on or off, but does not establish a wireless

connection.

✎A wireless network must be set up in order to establish a wireless

connection.

6Fingerprint reader (select models

only)

Allows a fingerprint logon to Windows, instead of a password logon.

*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help

and Support.

2–4 Maintenance and Service Guide

External component identification

Keys

Item Component Function

1 esc key Displays system information when pressed in combination with the fn key.

2 fn key Executes frequently used system functions when pressed in combination with

a function key or the esc key.

3 Windows logo key Displays the Windows Start menu.

4 Windows applications key Displays a shortcut menu for items beneath the pointer.

5 Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.

6 Function keys Execute frequently used system functions when pressed in combination with

the fn key.

External component identification

Maintenance and Service Guide 2–5

Front components

Item Component Description

1 Power light ■On: The computer is on.

■Blinking: The computer is in the Sleep state.

■Off: The computer is off or in Hibernation.

2 Battery light ■On: A battery is charging.

■Blinking: A battery that is the only available power source has reached a

low battery level. When the battery reaches a critical battery level, the

battery light begins blinking rapidly.

■Off: If the computer is plugged into an external power source, the light is

turned off when all batteries in the computer are fully charged. If the

computer is not plugged into an external power source, the light stays off

until the battery reaches a low battery level.

3 Drive light ■Blinking: The hard drive or optical drive is being accessed.

■Amber: HP ProtectSmart Hard Drive Protection has temporarily parked the

hard drive.

4Consumer infrared lens Receives a signal from the remote control.

5Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array

microphone, or monaural microphone.

6Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo speakers,

headphones, ear buds, a headset, or television audio.

✎This table describes factory settings. For information about changing factory settings, refer to the user guides located in

Help and Support.

2–6 Maintenance and Service Guide

External component identification

Rear component

Right-side components

Component Function

Vent Enables airflow to cool internal components.

✎The computer fan starts up automatically to cool internal components

and prevent overheating. It is normal for the internal fan to cycle on and

off during routine operation.

Item Component Function

1Optical drive light Blinking: The optical drive is being accessed.

2Optical drive Reads optical discs and, on select models, also writes to optical discs.

3USB ports (2) Connect optional USB devices.

4TV antenna/cable jack (select models

only)

Connects a TV antenna, a digital cable device, or a satellite device that

receives standard or high-definition TV broadcasts.

5 RJ-11 (modem) jack (select models

only)

Connects a modem cable.

6Security cable slot Attaches an optional security cable to the computer.

✎The security cable is designed to act as a deterrent, but it may not

prevent the computer from being mishandled or stolen.

7Power connector Connects an AC adapter.

External component identification

Maintenance and Service Guide 2–7

Left-side components

Item Component Function

1External monitor port Connects an external VGA monitor or projector.

2Expansion port 3 Connects the computer to an optional docking device or an optional

expansion product.

✎The computer has only one expansion port. The term expansion port 3

describes the type of expansion port.

3 RJ-45 (network) jack Connects a network cable.

4HDMI port Connects an optional video or audio device, such as a high-definition

television or any compatible digital or audio component.

5eSATA/USB port (select models only) Connects an optional high-performance eSATA component, such as an

eSATA external hard drive, or connects an optional USB device.

✎Depending on your computer model, the computer may include a USB

port only.

6 USB port Connects an optional USB device.

71394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as a camcorder.

8ExpressCard slot Supports optional ExpressCard/54 cards.

9Digital Media Slot Supports the following optional digital card formats:

■Memory Stick (MS)

■Memory Stick Pro (MSP)

■MultiMedia Card (MMC)

■Secure Digital (SD) Memory Card

■Secure Digital High Capacity (SDHC) Memory Card

■xD-Picture Card (XD)

■xD-Picture Card (XD) Type H

■xD-Picture Card (XD) Type M

Maintenance and Service Guide 3–1

Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model number description

provided on the service tag.

Component Description

1 Product name This is the product name affixed to the front of the computer.

2 Serial number (s/n) This is an alphanumeric identifier that is unique to each product.

3 Part number/ product number (p/n) This number provides specific information about the product’s hardware

components. The part number helps a service technician to determine what

components and parts are needed.

4 Model description This is the alphanumeric identifier used to locate documents, drivers, and support

for the computer.

5 Warranty period This number describes the duration of the warranty period for the computer.

3–2 Maintenance and Service Guide

Illustrated parts catalog

Computer major components

3–4 Maintenance and Service Guide

Illustrated parts catalog

(13) Power connector cable 533465-001

(14) Processor (includes replacement thermal material)

AMD Turion II Ultra Dual-Core Mobile Processor (2-MB L2 cache)

■M640, 2.60-GHz 576256-001

■M620, 2.50-GHz 576255-001

■M600, 2.40-GHz 576254-001

AMD Turion II Dual-Core Mobile Processor (1-MB L2 cache)

■M520, 2.30-GHz 583055-001

■M500, 2.20-GHz 576253-001

AMD Athlon II Dual-Core Processor for Notebook PCs (1-MB L2 cache)

■M320, 2.10-GHz 576252-001

■M300, 2.00-GHz 578024-001

AMD Sempron Processor (512-KB L2 cache)

■M100, 2.00-GHz 576251-001

(15) WLAN module

Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use in all countries and regions 482957-001

Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions 480985-001

Atheros 9285G 802.11b/g (plus Bluetooth, with antennas)

■For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the

U.S. Virgin Islands

518436-001

■For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,

Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bosnia and Herzegovina,

Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,

Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia,

Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Djibouti,

Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial

Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,

Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,

Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,

Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan,

Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia,

Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the

Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,

Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,

Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria,

Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People’s Republic of

China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania,

Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the

Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,

South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent

and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan,

Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,

Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan,

Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

518436-002

(Continued)

Item Description Spare Part Number

Illustrated parts catalog

Maintenance and Service Guide 3–5

Atheros 9280AGN 802.11a/b/g/n (plus Bluetooth)

■For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the

U.S. Virgin Islands

518437-001

■For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the

U.S. Virgin Islands for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and

Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas,

Bahrain, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bosnia and Herzegovina,
