Maintenance and Service Guide
HP EliteDesk 705 G2 Small Form Factor
© Copyright 2015 HP Development Company,
L.P.
AMD is a trademark of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel, Celeron, and
Pentium are trademarks of Intel Corporation in
the U.S. and other countries. Microsoft and
Windows are trademarks of the Microsoft
group of companies.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition (September 2015)
Document Part Number: 822866-001
Product notice
This user guide describes features that are
common to most models. Some features may
not be available on your computer.
Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to
http://www.microsoft.com for details.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a full refund subject to the
refund policy of your seller.
For any further information or to request a full
refund of the price of the computer, please
contact your seller.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place
the device directly on your lap or obstruct the device air vents. Use the device only on a hard, surface. Do at
not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs
or clothing, to block Also, do not allow the AC adapter to contact the skin or a soft surface, such as airow.
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits by the International Standard for Safety of Information Technology dened
Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product features ........................................................................................................................................... 1
Standard features ........................................................................................................................... 1conguration
Front panel components ........................................................................................................................................ 2
Rear panel components ......................................................................................................................................... 3
Serial number location .......................................................................................................................................... 4
2 Illustrated parts catalog ................................................................................................................................ 5
Small Form Factor (SFF) chassis spare parts ........................................................................................................ 5
Computer major components ............................................................................................................. 5
Misc parts ............................................................................................................................................. 7
Drives ................................................................................................................................................... 9
3 Routine care, SATA drive guidelines, and disassembly preparation .................................................................. 11
Electrostatic discharge information .................................................................................................................... 11
Generating static ............................................................................................................................... 11
Preventing electrostatic damage to equipment ............................................................................... 12
Personal grounding methods and equipment .................................................................................. 12
Grounding the work area ................................................................................................................... 12
Recommended materials and equipment ........................................................................................ 13
Operating guidelines ........................................................................................................................................... 13
Routine care ......................................................................................................................................................... 14
General cleaning safety precautions ................................................................................................ 14
Cleaning the Computer Case ............................................................................................................. 14
Cleaning the keyboard ....................................................................................................................... 14
Cleaning the monitor ......................................................................................................................... 15
Cleaning the mouse ........................................................................................................................... 15
Service considerations ......................................................................................................................................... 15
Power supply fan ............................................................................................................................... 15
Tools and software Requirements .................................................................................................... 15
Screws ............................................................................................................................................... 16
Cables and connectors ...................................................................................................................... 16
Hard Drives ........................................................................................................................................ 16
Lithium coin cell battery .................................................................................................................... 16
SATA hard drives .................................................................................................................................................. 17
SATA hard drive cables ......................................................................................................................................... 17
SATA data cable ................................................................................................................................. 17
v
SMART ATA drives ................................................................................................................................................ 17
Cable management .............................................................................................................................................. 18
4 Removal and replacement procedures – small form factor (SFF) chassis .......................................................... 19
Preparation for disassembly ............................................................................................................................... 19
Access panel ......................................................................................................................................................... 20
Front bezel ........................................................................................................................................................... 20
Front bezel security ............................................................................................................................................. 21
Slim optical drive bezel blank .............................................................................................................................. 22
Memory ................................................................................................................................................................ 23
DIMMs ................................................................................................................................................ 23
DDR3/DDR3L-SDRAM DIMMs ............................................................................................................. 23
Populating DIMM sockets .................................................................................................................. 23
Installing DIMMs ................................................................................................................................ 24
Expansion card ..................................................................................................................................................... 26
Drives ................................................................................................................................................................... 30
System board connections ................................................................................................................ 31
Drive positions ................................................................................................................................... 32
Installing and Removing Drives ........................................................................................................ 32
Removing a 9.5mm slim optical drive ............................................................................ 34
Installing a 9.5mm slim optical drive ............................................................................. 35

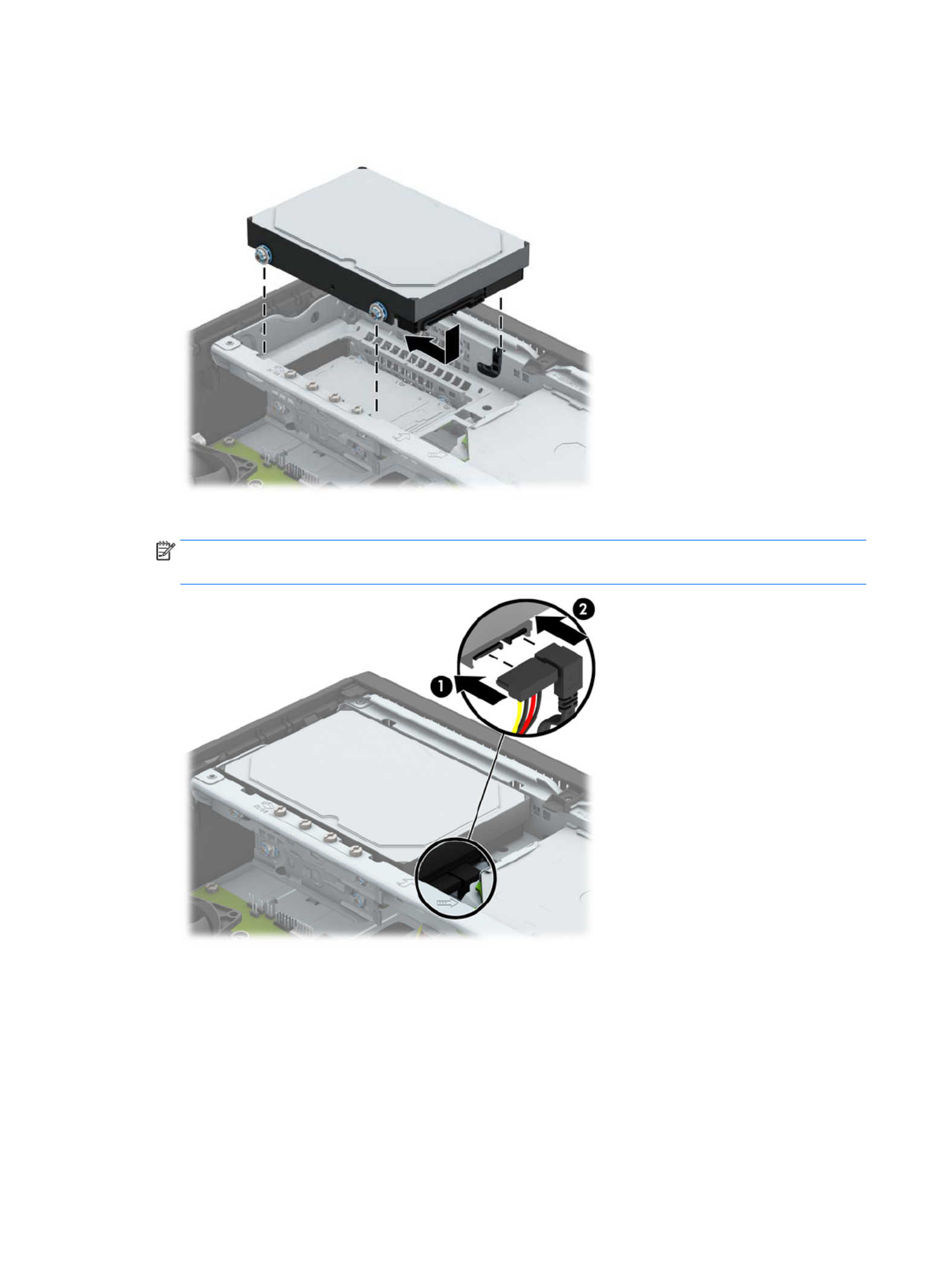

Removing and replacing a primary 3.5-inch hard drive ................................................. 36
Removing a secondary 3.5-inch hard drive .................................................................... 39
Installing a secondary 3.5-inch hard drive ..................................................................... 40
Removing a 2.5-inch hard drive ...................................................................................... 42
Installing a 2.5-inch hard drive ....................................................................................... 43
Drive power cable ................................................................................................................................................ 46
Small .......................................................................................................................................................... 47bae
Fan ............................................................................................................................................................. 48bae
Hood lock ............................................................................................................................................................. 49
Front I/O assembly ............................................................................................................................................... 51
Power switch ........................................................................................................................................................ 53
Speaker ................................................................................................................................................................ 54
Fan sink ................................................................................................................................................................ 55
Processor ............................................................................................................................................................. 56
Power supply ....................................................................................................................................................... 58
System board ....................................................................................................................................................... 60
System board callouts ....................................................................................................................... 61
Using the Small Form Factor Computer in a Tower Orientation ......................................................................... 62
vi
5 Computer Setup (F10) Utility ........................................................................................................................ 63
Computer Setup (F10) Utilities ............................................................................................................................ 63
Using Computer Setup (F10) Utilities ................................................................................................ 63
Computer Setup–Main ....................................................................................................................... 65
Computer Setup—Security ............................................................................................................... 67
Computer Setup—Advanced ............................................................................................................. 69
Recovering the Settings ............................................................................................................... 73Conguration
6 Troubleshooting without diagnostics ............................................................................................................ 74
Safety and comfort .............................................................................................................................................. 74
Before you call for technical support .................................................................................................................. 74
Helpful hints ........................................................................................................................................................ 75
Solving general problems .................................................................................................................................... 76
Solving power problems ...................................................................................................................................... 80
Solving hard drive problems ................................................................................................................................ 81
Solving media card reader problems ................................................................................................................... 83
Solving display problems .................................................................................................................................... 84
Solving audio problems ....................................................................................................................................... 89
Solving printer problems ..................................................................................................................................... 91
Solving keyboard and mouse problems .............................................................................................................. 92
Solving Hardware Installation Problems ............................................................................................................. 94
Solving Network Problems .................................................................................................................................. 95
Solving memory problems .................................................................................................................................. 98
Solving CD-ROM and DVD problems .................................................................................................................. 100
Solving USB drive problems ..................................................................................................................... 102ash
Solving front panel component problems ........................................................................................................ 103
Solving Internet access problems ..................................................................................................................... 103
Solving software problems ............................................................................................................................... 105
7 POST error messages and diagnostic front panel LEDs and audible codes ....................................................... 106
POST numeric codes and text messages .......................................................................................................... 106
Interpreting system validation diagnostic front panel LEDs and audible codes .............................................. 111
8 Password security and resetting CMOS ........................................................................................................ 113
Resetting the password jumper ........................................................................................................................ 113
Changing a Setup or Power-On password ......................................................................................................... 114
Deleting a Setup or Power-On password .......................................................................................................... 115
Clearing and resetting the CMOS ....................................................................................................................... 115
vii
9 HP PC Hardware Diagnostics ....................................................................................................................... 117
Why run HP PC Hardware Diagnostics ............................................................................................................... 117
How to access and run HP PC Hardware Diagnostics ........................................................................................ 117
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................. 117
10 System backup and recovery ..................................................................................................................... 119
Backing up, restoring, and recovering in Windows 10 ...................................................................................... 119
Creating recovery media and backups ............................................................................................ 119
Creating HP Recovery media (select products only) .................................................... 119
Using Windows tools ....................................................................................................................... 121
Restore and recovery ...................................................................................................................... 121
Recovering using HP Recovery Manager ...................................................................... 121
What you need to know before you get started ........................................ 121
Using the HP Recovery partition (select products only) ............................ 122
Using HP Recovery media to recover ......................................................... 122
Changing the computer boot order ............................................................ 123
Removing the HP Recovery partition (select products only) ..................... 123
Backing up, restoring, and recovering in Windows 8.1 or Windows 8 .............................................................. 123
Creating recovery media and backups ............................................................................................ 123
Restoring and recovering using Windows tools ............................................................................. 124
Using Reset when the system is not responding ......................................................... 124
Recovery using the Windows recovery USB drive ............................................... 125ash
Recovery using Windows operating system media (purchased separately) ............... 125
Backing up, restoring, and recovering in Windows 7 ........................................................................................ 125
Creating recovery media ................................................................................................................. 126
Creating recovery media using HP Recovery Manager (select models only) ............... 126
Creating recovery discs with HP Recovery Disc Creator (select models only) ............. 127
Creating recovery discs .............................................................................. 128
Backing up your information ........................................................................................ 128
System Restore ............................................................................................................................... 129
System Recovery ............................................................................................................................. 129
System Recovery when Windows is responding .......................................................... 129
System Recovery when Windows is not responding .................................................... 130
System Recovery using recovery media (select models only) ..................................... 130
Using HP Recovery Disc operating system discs (select models only) ........................ 131
Appendix A Battery replacement ................................................................................................................... 133
Appendix B Power Cord Set Requirements ...................................................................................................... 136
General Requirements ....................................................................................................................................... 136
viii
Japanese Power Cord Requirements ................................................................................................................. 136
Country-Specic Requirements ........................................................................................................................ 137
Appendix C Statement of Volatility ................................................................................................................ 138
Appendix D ............................................................................................................................. 140Specications
SFF .............................................................................................................................................. 140Specications
Index ........................................................................................................................................................... 141
ix
x
1 Product features
Standard featuresconguration
Features may vary depending on the model. For support assistance and to learn more about the hardware
and software installed on your computer model, run the HP Support Assistant utility.
NOTE: This computer model can be used in a tower orientation or a desktop orientation.
Standard features 1conguration
Front panel components
Drive may vary by model. Some models have a bezel blank covering the slim optical drive bay.conguration
1 Slim Optical Drive (optional) 6 Headphone Connector
2 USB 2.0 Charging (powered) Port (black) 7 Dual-State Power Button
3 USB 2.0 Port (black) 8 Hard Drive Activity Light
4 USB 3.0 Ports (blue) 9 SD Card Reader (optional)
5 Microphone/Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you want to
use the connector for a microphone line-In device or a headphone. You can the connector at any time by recongure
double-clicking the Audio Manager icon in the Windows taskbar.
NOTE: The USB 2.0 Charging Port also provides current to charge a device such as a Smart Phone. The charging current is
available whenever the power cord is plugged into the system, even when the system is o.
NOTE: The Power On Light is normally white when the power is on. If it is red, there is a problem with the ashing
computer and it is displaying a diagnostic code.
2 Chapter 1 Product features
Rear panel components
1 PS/2 Mouse Connector (green) 7 PS/2 Keyboard Connector (purple)
2 Serial Connector 8 DisplayPort Monitor Connectors
3 RJ-45 Network Connector 9 VGA Monitor Connector
4 USB 2.0 Ports with Wake from S4 feature (black) 10 USB 3.0 Ports (blue)
5 Line-In Audio Connector (blue) 11 USB 2.0 Ports (black)
6 Power Cord Connector 12 Line-Out Connector for powered audio
devices (green)
NOTE: An optional second serial port and an optional parallel port are available from HP.
If using a USB keyboard, HP recommends connecting the keyboard to one of the USB 2.0 ports with the wake from S4 feature.
The wake from S4 feature is also supported on the PS/2 connectors if enabled in BIOS F10 Setup.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the
connector for a line-in device or a microphone. You can the connector at any time by double-clicking the Audio recongure
Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and the
integrated graphics on the system board may be used at the same time. However, for such a only the display conguration,
connected to the discrete graphics card will display POST messages.
The system board graphics can be disabled by changing settings in Computer Setup.
Rear panel components 3
Serial number location
Each computer has a unique serial number and a product ID number that are located on the exterior of the
computer. Keep these numbers available for use when contacting customer service for assistance.
4 Chapter 1 Product features
2 Illustrated parts catalog
Small Form Factor (SFF) chassis spare parts
Computer major components
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Item Description
(1) Access panel
(2) Front bezel
*Bezel blank
(3) System board (includes replacement thermal material)
Small Form Factor (SFF) chassis spare parts 5
Item Description
(4) Power supply
200W, 92% ecient
200W, 85% ecient
200W, standard
(5) Fan sink (includes replacement thermal material)
(PC3-12800, 1600-MHz)Memory modules
8-GB
4-GB
2-GB
(include replacement thermal material)Processors
AMD A10-8850B, 3.9 GHz
AMD A10-8750B, 3.6 GHz
AMD A10-7800B, 3.57 GHz
AMD A8-8650B, 3.2 GHz
AMD A8-7600B, 3.1 GHz
AMD A6-8550B, 3.7 GHz
AMD A6-8350B, 3.5 GHz
AMD A4-7300B, 3.8 GHz
6 Chapter 2 Illustrated parts catalog
Misc parts
Item Description
(1) Fan bae
(2) Rear bae
(3) Solenoid lock
(4) Front I/O assembly
(5) Speaker
(6) Power switch
(7) SATA drive power cable
(8) SATA data cable, 14 inch, 1 straight end, 1 angled end
(9) Printer port, PCI card
(10) nVIDIA GT730 Grayling 2 GB DDR3 PCIex8
(11) Serial port, PCI card
Small Form Factor (SFF) chassis spare parts 7
Item Description
*Chassis stand
*Center strip kit
*M.2 USB cable
*SATA SS power extension, 20 inch cable
*Slim optical drive bezel blank
* Hard drive conversion bracket, 2.5-inch to 3.5-inch
* Hood sensor
* HP Business PC Security Lock
*Rubber foot
*Secure Digital (SD) card reader
*Keyed cable lock
*Grommet, hard drive isolation, blue
*DisplayPort cable
* USB 3.1 Type Cx1 PCIe p18-x1 card
* PCIe to M.2 adapter
* WLAN module caddy card + Bluetooth
* Wireless antenna for use with WLAN modules
*Adapters
2.5-inch for card reader
DisplayPort to HDMI 1.4
DisplayPort to VGA
DisplayPort to DVI
DVI to VGA
DVI-I to VGA
USB-C to USB 3.0
*Mouse
PS2, optical
USB, laser
USB, optical
Antimicrobial
Washable
Wireless
HP USB Hardened
*Keyboards
8 Chapter 2 Illustrated parts catalog
Item Description
PS/2
PS/2 slim
USB
HP USB slim
HP USB Conferencing
Wireless keyboard, mouse, and dongle
USB/PS2 Washable
Smart card
Drives
Description
Hard drives/Solid-state drives
2-TB, 7200-rpm
1-TB, 7200-rpm, 3.5-inch
1-TB, 7200-rpm, 2.5-inch
1-TB, hybrid SSD, 3.5-inch or 2.5-inch
500-GB, 7200-rpm, 2.5-inch, SED
500 GB, 7200 rpm, 3.5-inch or 2.5-inch
500-GB, 7200-rpm, 2.5-inch, OPAL2, self-encrypting drive (SED)
500-GB, 5400-rpm, 2.5-inch, FIPS
500-GB, hybrid SSD, 2.5-inch or 2.5-inch
500-GB, 5400-rpm, 2.5-inch, 5 mm
512 GB Solid-state Drive (SSD)
512-GB Solid-state Drive (SSD), M.2, 2280SS, PCIe
256-GB Solid-state Drive (SSD), self-encrypting (SED)
256-GB Solid-state Drive (SSD)
256-GB Solid-state Drive (SSD), TLC
256-GB Solid-state Drive (SSD), M.2, 2280SS, PCIe
180 GB Solid-state Drive (SSD)
180 GB Solid-state Drive (SSD), OPAL2, MLC
128-GB Solid-state Drive (SSD), self-encrypting drive (SED)
128-GB Solid-state Drive (SSD)
128-GB Solid-state Drive (SSD), TLC
Small Form Factor (SFF) chassis spare parts 9
Description
128-GB Solid-state Drive (SSD), M.2, 2280SS, PCIe
120-GB Solid-state Drive (SSD)
120-GB Solid-state Drive (SSD), OPAL2, MLC
Optical drives
Blu-ray BD-Writer XL Drive
DVD±RW drive
DVD-ROM drive
Grommet, hard drive isolation, blue
10 Chapter 2 Illustrated parts catalog
3 Routine care, SATA drive guidelines, and
disassembly preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the system
board. You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Electrostatic discharge information
A sudden discharge of static electricity from your or other conductor can destroy static-sensitive nger
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device
exposed to electrostatic discharge (ESD) may not appear to be at all and can work perfectly aected
throughout a normal cycle. The device may function normally for a while, but it has been degraded in the
internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt silicon junctions.
Generating static
The following table shows that:
●Dierent activities generate amounts of static electricity.dierent
●Static electricity increases as humidity decreases.
Relative Humidity
Event 55% 40% 10%
Walking across carpet
Walking across vinyl oor
Motions of bench worker
Removing DIPs from plastic tube
7,500 V
3,000 V
400 V
400 V
15,000 V
5,000 V
800 V
700 V
35,000 V
12,000 V
6,000 V
2,000 V
Removing DIPs from vinyl tray
Removing DIPs from Styrofoam
Removing bubble pack from PCB
Packing PCBs in foam-lined box
2,000 V
3,500 V
7,000 V
5,000 V
4,000 V
5,000 V
20,000 V
11,000 V
11,500 V
14,500 V
26,500 V
21,000 V
These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE: 700 volts can degrade a product.
Electrostatic discharge information 11
Preventing electrostatic damage to equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of
sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric
components and accessories.
●To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
●Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.
●Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●Place items on a grounded surface before removing them from their container.
●Always be properly grounded when touching a sensitive component or assembly.
●Avoid contact with pins, leads, or circuitry.
●Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive
foam.
Personal grounding methods and equipment
Use the following equipment to prevent static electricity damage to equipment:
●Wrist straps are straps with a maximum of one-megohm ± 10% resistance in the ground cords. exible
To provide proper ground, a strap must be worn snug against bare skin. The ground cord must be
connected and snugly into the banana plug connector on the grounding mat or workstation.t
●Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with
most types of shoes or boots. On conductive or dissipative mats, use them on both feet with oors oor
a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method Voltage
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
1,500
7,500
15,000
Grounding the work area
To prevent static damage at the work area, use the following precautions:
●Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to the
work surface and properly grounded tools and equipment.
●Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate. Handle
them only at static-free work areas.
●Turn power and input signals before inserting and removing connectors or test equipment.o
●Use made of static-safe materials when must directly contact dissipative surfaces.xtures xtures
●Keep work area free of nonconductive materials such as ordinary plastic assembly aids and Styrofoam.
●Use service tools, such as cutters, screwdrivers, and vacuums, that are conductive.eld
12 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
Recommended materials and equipment
Materials and equipment that are recommended for use in preventing static electricity include:
●Antistatic tape
●Antistatic smocks, aprons, or sleeve protectors
●Conductive bins and other assembly or soldering aids
●Conductive foam
●Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●Static-dissipative table or mats with hard tie to groundoor
●Field service kits
●Static awareness labels
●Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●Material handling packages
●Conductive plastic bags
●Conductive plastic tubes
●Conductive tote boxes
●Opaque shielding bags
●Transparent metallized shielding bags
●Transparent shielding tubes
Operating guidelines
To prevent overheating and to help prolong the life of the computer:
●Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented sides
of the computer and above the monitor to permit the required airow.
●Never restrict the into the computer by blocking any vents or air intakes. Do not place the airow
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airow.
●Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign matter
can block the vents and limit the Be sure to unplug the computer before cleaning the air vents.airow.
●Never operate the computer with the cover or side panel removed.
●Do not stack computers on top of each other or place computers so near each other that they are subject
to each other’s re-circulated or preheated air.
●If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be
provided on the enclosure, and the same operating guidelines listed above will still apply.
●Keep liquids away from the computer and keyboard.
Operating guidelines 13
●Never cover the ventilation slots on the monitor with any type of material.
●Install or enable power management functions of the operating system or other software, including
sleep states.
Routine care
General cleaning safety precautions
1. Never use solvents or ammable solutions to clean the computer.
2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then use
the cloth on the component.
3. Always unplug the computer when cleaning with liquids or damp cloths.
4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5. Disconnect the keyboard before cleaning it.
6. Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General cleaning safety precautions on page 14 before cleaning the computer.
To clean the computer case, follow the procedures described below:
●To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with a cloth
or swab dampened with clear water.
●For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will evaporate
quickly and not leave a residue.
●After cleaning, always wipe the unit with a clean, lint-free cloth.
●Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents and
limit the airow.
Cleaning the keyboard
Follow all safety precautions in General cleaning safety precautions on page 14 before cleaning the keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the Computer
Case on page 14.
When cleaning debris from under the keys, review all rules in General cleaning safety precautions on page 14
before following these procedures:
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under the
keys.
●Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●Canned, pressurized air may be used to clean debris from under the keys. Caution should be used as too
much air pressure can dislodge lubricants applied under the wide keys.
14 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
●If you remove a key, use a specially designed key puller to prevent damage to the keys. This tool is
available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are
improperly removed or installed, the keyboard may not function properly.
●Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed out. Be
careful not to wipe away lubricants necessary for proper key functions. Use tweezers to remove any
bers conned or dirt in areas. Allow the parts to air dry before reassembly.
Cleaning the monitor
●Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into the
housing and damage a component. Never use solvents or liquids on the monitor.ammable
●To clean the monitor body follow the procedures in Cleaning the Computer Case on page 14.
Cleaning the mouse
Before cleaning the mouse, ensure that the power to the computer is turned o.
●Clean the mouse ball by removing the retaining plate and the ball from the housing. Pull out any rst
debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●To clean the mouse body, follow the procedures in Cleaning the Computer Case on page 14.
Service considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power supply fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is when o
the computer is in “Standby,” “Suspend,” or modes. “O”
You must disconnect the power cord from the power source before opening the computer to prevent system
board or component damage.
Tools and software Requirements
To service the computer, you need the following:
●Torx T-15 screwdriver
●Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●Phillips #2 screwdriver
●Diagnostics software
●Tamper-resistant T-15 wrench
Service considerations 15
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads and may
be of lengths. If an incorrect screw is used during the reassembly process, it can damage the unit. HP dierent
strongly recommends that all screws removed during disassembly be kept with the part that was removed,
then returned to their proper locations.
CAUTION: Metric screws have a black U.S. screws have a silver and are used on hard drives only.nish. nish
CAUTION: As each subassembly is removed from the computer, it should be placed away from the work area
to prevent damage.
Cables and connectors
Most cables used throughout the unit are cables. These cables must be handled with care to at, exible
avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal from
the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the
cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts
being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location during the
reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies
to failed drives as well as replacement spares.
●If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging
and label the package “Fragile: Handle With Care.”
●Do not remove hard drives from the shipping package for storage. Keep hard drives in their protective
packaging until they are actually mounted in the computer.
●Avoid dropping drives from any height onto any surface.
●If you are inserting or removing a hard drive, turn the computer. Do not remove a hard drive while the o
computer is on or in standby mode.
●Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
●Do not use excessive force when inserting a drive.
●Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic elds
such as monitors or speakers.
Lithium coin cell battery
The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime
of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this guide for
instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of and chemical burn if the battery is re
handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or or re,
expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the battery.
16 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the general
household waste. In order to forward them to recycling or proper disposal, please use the public collection
system or return them to HP, their authorized partners, or their agents.
SATA hard drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable 7/7
Number of pins in power cable 15
Maximum data cable length 39.37 in (100 cm)
Data interface voltage 400-700 mVdierential
Drive voltages 3.3 V, 5 V, 12 V
Jumpers for drive N/Aconguring
Data transfer rate 6.0 Gb/s
SATA hard drive cables
SATA data cable
Always use an HP approved SATA 6.0 Gb/s cable as it is fully backwards compatible with the SATA 1.5 Gb/s
drives.
Current HP desktop products ship with SATA 6.0 Gb/s hard drives.
SATA data cables are susceptible to damage if Never crease a SATA data cable and never bend it overexed.
tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
SMART ATA drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers
have built-in drive failure prediction that warns the user or network administrator of an impending failure or
crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as
reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is
imminent, it generates a fault alert.
SATA hard drives 17
Cable management
Always follow good cable management practices when working inside the computer.
●Keep cables away from major heat sources like the heat sink.
●Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these are not
designed to take excessive pressure on them.
●Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when the parts
are moved.
●When folding a ribbon cable, never fold to a sharp crease. Sharp creases may damage the wires.at
●Some ribbon cables come prefolded. Never change the folds on these cables.at
●Do not bend any cable sharply. A sharp bend can break the internal wires.
●Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●Never crease a SATA data cable.
●Do not rely on components like the drive cage, power supply, or computer cover to push cables down
into the chassis. Always position the cables to lay properly by themselves.
18 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
4 Removal and replacement procedures –
small form factor (SFF) chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service. After
completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all
components operate properly.
NOTE: Not all features listed in this guide are available on all computers.
Preparation for disassembly
See Routine care, SATA drive guidelines, and disassembly preparation on page 11 for initial safety procedures.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Close any open software applications.
3. Exit the operating system.
4. Remove any compact disc or media card from the computer.
5. Turn the computer and any peripheral devices that are connected to it.o
CAUTION: Turn the computer before disconnecting any cables.o
Regardless of the power-on state, voltage is always present on the system board as long as the system
is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in
the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a
unit.
6. Disconnect the power cord from the electrical outlet and then from the computer.
7. Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing. Keep all
screws with the units removed.
CAUTION: The screws used in the computer are of thread sizes and lengths; using the wrong dierent
screw in an application may damage the unit.
8. If the computer is on a stand, remove the computer from the stand.
Preparation for disassembly 19
Access panel
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Pull up the access panel handle (1), and then lift the panel the computer (2).o
To install the access panel, reverse the removal procedure.
Front bezel
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Lift up the three tabs on the side of the bezel (1), and then rotate the bezel the chassis (2).o
To install the front bezel, reverse the removal procedure.
20 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Front bezel security
The front bezel can be locked in place by installing a security screw provided by HP. To install the security
screw:
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. If you do not have a 6-32 standard screw, remove one of the four silver 6-32 standard screws located on
top of the drive cage. Refer to Installing and Removing Drives on page 32 for an illustration of the 6-32
standard screw locations.
4. Install the 6-32 security screw through the middle front bezel release tab to secure the front bezel in
place.
5. Replace the computer access panel.
6. If the computer was on a stand, replace the stand.
7. Reconnect the power cord and any external devices, and then turn on the computer.
8. Lock any security devices that were disengaged when the access panel was removed.
Front bezel security 21
Slim optical drive bezel blank
On some models, there is a bezel blank covering the slim optical drive bay. Remove the bezel blank before
installing an optical drive. To remove the bezel blank:
1. Remove the access panel (Access panel on page 20).
2. Remove the front bezel (Front bezel on page 20).
3. To remove the slim optical drive bezel blank, press inward on the three retaining tabs that hold the bezel
blank in place (1), and then rotate the bezel blank the front bezel (2).o
NOTE: After removing the slim optical drive bezel blank and installing a slim optical drive, you can install an
optional bezel trim piece (available from HP) that surrounds the front of the slim optical drive.
22 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Memory
Description
8-GB, PC3-12800
4-GB, PC3-12800
2-GB, PC3-12800
The computer comes with low power double data rate 3 synchronous dynamic random access memory
(DDR3L-SDRAM) dual inline memory modules (DIMMs). It also supports standard DDR3-SDRAM DIMMS.
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs. These
memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum memory
support, you can populate the system board with up to 32-GB of memory in a high-performing congured
dual channel mode.
DDR3/DDR3L-SDRAM DIMMs
For proper system operation, the DIMMs must be:
●industry-standard 240-pin
●unbuered non-ECC PC3-12800 DDR3/DDR3L-1600 MHz-compliant
●1.5 volt DDR3-SDRAM DIMMs or 1.35 volt DDR3L-SDRAM (Low Power) DIMMs
The DIMMs must also:
●support CAS latency 11 DDR3/DDR3L 1600 MHz (11-11-11 timing)
●contain the mandatory JEDEC SPD information
In addition, the computer supports:
●512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●single-sided and double-sided DIMMs
●DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with p33-x4 SDRAM are not supported
NOTE: The system will not operate properly if you install unsupported DIMMs.
Populating DIMM sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled
DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B. Sockets DIMM3
and DIMM4 operate in memory channel A.
The system will automatically operate in single channel mode, dual channel mode, or mode, depending ex
on how the DIMMs are installed.
NOTE: Single channel and unbalanced dual channel memory will result in inferior graphics congurations
performance.
Memory 23
●The system will operate in single channel mode if the DIMM sockets are populated in one channel only.
●The system will operate in a higher-performing dual channel mode if the total memory capacity of the
DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The technology and
device width can vary between the channels. For example, if Channel A is populated with two 1-GB
DIMMs and Channel B is populated with one 2-GB DIMM, the system will operate in dual channel mode.
●The system will operate in mode if the total memory capacity of the DIMMs in Channel A is not equal ex
to the total memory capacity of the DIMMs in Channel B. In mode, the channel populated with the ex
least amount of memory describes the total amount of memory assigned to dual channel and the
remainder is assigned to single channel. For optimal speed, the channels should be balanced so that the
largest amount of memory is spread between the two channels. If one channel will have more memory
than the other, the larger amount should be assigned to Channel A. For example, if you are populating
the sockets with one 2-GB DIMM, and three 1-GB DIMMs, Channel A should be populated with the 2-GB
DIMM and one 1-GB DIMM, and Channel B should be populated with the other two 1-GB DIMMs. With this
conguration, 4-GB will run as dual channel and 1-GB will run as single channel.
●In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain
before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to
the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing
memory modules while voltage is present may cause irreparable damage to the memory modules or system
board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important
to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from
having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before beginning
these procedures, ensure that you are discharged of static electricity by briey touching a grounded metal
object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the
module.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate up the internal drive bay housing to access the memory module sockets on the system board.
24 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
4. Open both latches of the memory module socket , and insert the memory module into the socket .(1) (2)
NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab
on the memory socket.
Populate the black DIMM sockets before the white DIMM sockets.
For maximum performance, populate the sockets so that the memory capacity is spread as equally as
possible between Channel A and Channel B. Refer to Populating DIMM sockets on page 23 for more
information.
5. Push the module down into the socket, ensuring that the module is fully inserted and properly seated.
Make sure the latches are in the closed position .(3)
6. Repeat steps 4 and 5 to install any additional modules.
7. Replace the access panel.
8. If the computer was on a stand, replace the stand.
9. Reconnect the power cord and turn on the computer.
10. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the computer.
Memory 25
Expansion card
Description
nVIDIA GT730 Grayling 2 GB DDR3 PCIex8
USB 3.1 Type Cx1 PCIe p36-x1 card
Printer port, PCI card
Serial port, PCI card
PCIe to M.2 adapter
Intel PRO/1000 NIC
WLAN 802.11 a/b/g/n + Bluetooth 4.0 module
WLAN 802.11 (7265NV) a/b/g/n 2x2 + Bluetooth 4.0 module
WLAN 802.11 (7265AN) a/b/g/n 2x2
WLAN module caddy card + Bluetooth
M.2 USB cable
Wireless antenna for use with WLAN modules
The computer has two PCI Express p36-x1 expansion sockets, one PCI Express x16 expansion socket, and one PCI
Express x16 expansion socket that is downshifted to a p36-x4 socket.
NOTE: The PCI Express sockets support only low cards.prole
You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 socket.
For dual graphics card the (primary) card must be installed in the PCI Express x16 socket congurations, rst
that is NOT downshifted to a x4.
To remove, replace, or add an expansion card:
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Locate the correct vacant expansion socket on the system board and the corresponding expansion slot
on the back of the computer chassis.
26 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
4. Release the slot cover retention latch that secures the slot covers by lifting the tab on the latch and
rotating the latch to the open position.
5. Before installing an expansion card, remove the expansion slot cover or the existing expansion card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be attached to
the expansion card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion slot
cover on the back of the chassis. Pull the slot cover straight up then away from the inside of the
chassis.
Expansion card 27
b. If you are removing a PCI Express p38-x1 card, hold the card at each end, and carefully rock it back and
forth until the connectors pull free from the socket. Pull the expansion card straight up from the
socket (1) then away from the inside of the chassis to release it from the chassis frame (2). Be sure
not to scrape the card against the other components.
c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull free
from the socket. Pull the expansion card straight up from the socket then away from the inside of
the chassis to release it from the chassis frame. Be sure not to scrape the card against the other
components.
6. Store the removed card in anti-static packaging.
7. If you are not installing a new expansion card, install an expansion slot cover to close the open slot.
CAUTION: After removing an expansion card, you must replace it with a new card or expansion slot
cover for proper cooling of internal components during operation.
28 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
8. To install a new expansion card, hold the card just above the expansion socket on the system board then
move the card toward the rear of the chassis (1) so that the bracket on the card is aligned with the open
slot on the rear of the chassis. Press the card straight down into the expansion socket on the system
board (2).
NOTE: When installing an expansion card, press on the card so that the whole connector seats rmly
properly in the expansion card socket.
9. Rotate the slot cover retention latch back in place to secure the expansion card.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system board, if
needed.
11. Replace the computer access panel.
12. If the computer was on a stand, replace the stand.
13. Reconnect the power cord and any external devices, and then turn on the computer.
Expansion card 29
14. Lock any security devices that were disengaged when the access panel was removed.
15. Recongure the computer, if necessary.
Drives
Description
Hard drives/Solid-state drives
2-TB, 7200-rpm
1-TB, 7200-rpm, 3.5-inch
1-TB, 7200-rpm, 2.5-inch
1-TB, hybrid SSD, 3.5-inch or 2.5-inch
500-GB, 7200-rpm, 2.5-inch, SED
500 GB, 7200 rpm, 3.5-inch or 2.5-inch
500-GB, 7200-rpm, 2.5-inch, OPAL2, self-encrypting drive (SED)
500-GB, 5400-rpm, 2.5-inch, FIPS
500-GB, hybrid SSD, 2.5-inch or 2.5-inch
500-GB, 5400-rpm, 2.5-inch, 5 mm
512 GB Solid-state Drive (SSD)
512-GB Solid-state Drive (SSD), M.2, 2280SS, PCIe
256-GB Solid-state Drive (SSD), self-encrypting (SED)
256-GB Solid-state Drive (SSD)
256-GB Solid-state Drive (SSD), TLC
256-GB Solid-state Drive (SSD), M.2, 2280SS, PCIe
180 GB Solid-state Drive (SSD)
180 GB Solid-state Drive (SSD), OPAL2, MLC
128-GB Solid-state Drive (SSD), self-encrypting drive (SED)
128-GB Solid-state Drive (SSD)
128-GB Solid-state Drive (SSD), TLC
128-GB Solid-state Drive (SSD), M.2, 2280SS, PCIe
120-GB Solid-state Drive (SSD)
120-GB Solid-state Drive (SSD), OPAL2, MLC
Optical drives
DVD±RW drive
DVD-ROM drive
Blu-ray BD-Writer XL Drive
30 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
System board connections
Refer to the following illustration and table to identify the system board connectors for your model.
No. System Board Connector System Board Label Color Component
1 PCI Express x16 Gen 2
downshifted to a x4
X4PCIEXP white Expansion Card
2 PCI Express p41-x1 Gen 2 X1PCIEXP2 black Expansion Card
3 PCI Express p41-x1 Gen 2 X1PCIEXP1 black Expansion Card
4 PCI Express x16 Gen 3 X16PCIEXP black Expansion Card
5 Serial Port COMB black Optional Second Serial Port
6 DIMM4 (Channel A) DIMM4 white Memory Module
7 DIMM3 (Channel A) DIMM3 black Memory Module
8 DIMM2 (Channel B) DIMM2 white Memory Module
9 DIMM1 (Channel B) DIMM1 black Memory Module
10 SATA 3.0 SATA2 light blue Any SATA Device other than the Primary
Hard Drive
11 SATA 3.0 SATA1 light blue Any SATA Device other than the Primary
Hard Drive
12 SATA 3.0 SATA0 dark blue Primary Hard Drive
13 Battery BAT black Battery
Drives 31
Drive positions
1 9.5mm slim optical drive bay
2 3.5-inch primary hard drive bay
3 3.5-inch secondary hard drive bay
4 2.5-inch hard drive bay
NOTE: The drive on your computer may be than the drive conguration dierent
conguration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Installing and Removing Drives
When installing drives, follow these guidelines:
●The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA connector on
the system board labeled SATA0.
●Connect secondary hard drives and optical drives to one of the light blue SATA connectors on the system
board (labeled SATA1 and SATA2).
32 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
●HP has provided extra 6-32 hard drive mounting screws installed on the top of the hard drive cage (1) for
installing a hard drive into the 3.5-inch secondary hard drive bay. If you are replacing a hard drive,
remove the mounting screws from the old drive and install them in the new drive.
NOTE: You can also use one of the extra mounting screws to secure the front bezel (see Front bezel
security on page 21 for more information).
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn the computer, and o
unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic such as elds
monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label the
package “Fragile: Handle With Care.”
Drives 33
Removing a 9.5mm slim optical drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive, push the green
release latch on the right rear side of the drive toward the center of the drive (3), and then slide the drive
forward and out of the bay through the front bezel (4).
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid
damaging the cable.
34 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Installing a 9.5mm slim optical drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel if you are installing a drive in a bay covered by a bezel blank, then remove the
bezel blank. See Front bezel on page 20 for more information.
4. Align the small pin on the release latch with the small hole on the side of the drive and press the latch
rmly onto the drive.
5. Slide the optical drive through the front of the chassis all the way into the bay so that it locks in place
(1), and then connect the power cable (2) and data cable (3) to the rear of the drive.
6. Connect the opposite end of the data cable to one of the light blue SATA connectors on the system
board.
NOTE: Refer to System board connections on page 31 for an illustration of the system board drive
connectors.
Drives 35
7. Replace the front bezel if it was removed.
8. Replace the computer access panel.
9. If the computer was on a stand, replace the stand.
10. Reconnect the power cord and any external devices, and then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
Removing and replacing a primary 3.5-inch hard drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you
can transfer the data to the new hard drive.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
36 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
4. Pull the release lever next to the rear of the hard drive outward (1). While pulling the release lever out,
slide the drive back until it stops, and then lift the drive up and out of the bay (2).
5. To install a hard drive, you must transfer the mounting screws from the old hard drive to the new hard
drive.
Drives 37
6. Align the mounting screws with the slots on the chassis drive cage, press the hard drive down into the
bay, and then slide it forward until it stops and locks in place.
7. Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: The data cable for the primary hard drive must be connected to the dark blue connector on the
system board labeled SATA0 to avoid any hard drive performance problems.
8. Replace the computer access panel.
9. If the computer was on a stand, replace the stand.
10. Reconnect the power cord and any external devices, and then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
38 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Removing a secondary 3.5-inch hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the drive cage to its upright position.
4. Disconnect the power cable (1) and data cable (2) from the rear of the hard drive. Press the latch on the
side of the drive cage (3), and then slide the drive out of the drive bay (4).
5. If you are installing a new drive, refer to Installing a secondary 3.5-inch hard drive on page 40. If you
are not installing a new drive, rotate the drive cage down and replace the access panel.
Drives 39
Installing a secondary 3.5-inch hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Install four silver 6-32 mounting screws on the sides of the drive (two on each side).
NOTE: HP has supplied four extra silver 6-32 mounting screws installed on the chassis next to the
primary 3.5-inch hard drive bay. Refer to Installing and Removing Drives on page 32 for an illustration of
the location of the extra mounting screws.
When replacing a drive, transfer the four mounting screws from the old drive to the new drive.
4. Rotate the drive cage to its upright position.
40 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
5. Slide the drive into the drive bay (1), and then connect the power cable (2) and data cable (3) to the rear
of the hard drive.
NOTE: If the drive is a secondary hard drive, connect the other end of data cable to one of the light
blue SATA connectors on the system board. If the drive is the primary hard drive, connect the other end
of the data cable to the dark blue SATA connector on the system board.
6. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
7. Replace the computer access panel.
8. If the computer was on a stand, replace the stand.
9. Reconnect the power cord and any external devices, and then turn on the computer.
10. Lock any security devices that were disengaged when the access panel was removed.
Drives 41
Removing a 2.5-inch hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the drive cage to its upright position.
4. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
42 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
5. Pull outward on the release lever at the rear of the drive (1) then slide the drive back until it stops and
pull it down and out of the drive bay (2).
6. If you are installing a new drive, refer to Installing a 2.5-inch hard drive on page 43. If you are not
installing a new drive, rotate the drive cage down and replace the access panel.
Installing a 2.5-inch hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Install four black and blue M3 isolation mounting guide screws (two on each side of the drive).
NOTE: M3 metric isolation mounting guide screws can be purchased from HP.
When replacing a drive, transfer the four mounting screws from the old drive to the new drive.
Drives 43
4. Rotate the drive cage to its upright position.
5. Align the mounting screws on the drive with the J-slots on the sides of the drive bay. Press the drive up
into the drive bay then slide it forward until it locks in place.
44 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
6. Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: If the 2.5-inch hard drive is the primary drive, connect the other end of the data cable to the
dark blue SATA connector on the system board labeled SATA0 . If it is a secondary hard drive, connect the
other end of the data cable to one of the light blue SATA connectors on the system board.
7. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
8. Replace the computer access panel.
9. If the computer was on a stand, replace the stand.
10. Reconnect the power cord and any external devices, and then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
Drives 45
Drive power cable
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the drive cage to its upright position.
4. Disconnect the cable from the system board connector labeled SATAPWR0.
5. Disconnect the cable from the hard drive and the optical drive.
6. Remove the cable from the clips on the base pan and on the drive cage, and then remove the drive
power cable from the computer.
To reinstall the drive power cable, reverse the removal procedure.
46 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Small bae
The small sits between the fan sink and the rear of the computer.bae
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the upward.bae
4. Pull the away from the rear of the computer to disengage the clips on the from the rear of bae bae
the computer.
Small 47bae
To install the small reverse the removal procedure.bae,
Fan bae
The fan sits on top of the fan sink.bae
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the power cable from the clips on top of the bae.
4. Lift the the fan sink and out of the computer.bae o
To install the fan reverse the removal procedure.bae,
48 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Hood lock
The hood lock is attached to the rear of the chassis.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. On the rear of the computer, remove the security screw that secures the lock.
NOTE: The security screw requires a special security wrench to remove.
4. From the inside of the computer, lift the hood lock out of the computer..
To install the hood lock, reverse the removal procedure.
When installing the hood lock, on the inside rear of the computer, insert the clips on the back of the lock into
the slots on the computer rear panel , and then rotate the lock down into place .(1) (2)
Hood lock 49
50 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Front I/O assembly
The front I/O assembly is attached to the front of the chassis with one screw. Push the assembly into the
chassis to remove.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel (Front bezel on page 20).
4. Rotate the drive cage to its upright position.
5. Disconnect the cables from the system board as follows:
(1) Yellow connector labeled FRONT_USB
(2) Blue connector labeled FRONT AUD
(3) Blue connector labeled FRONT_USB3.0
6. Remove the cables from the three clips built into the basepan .(4)
7. Remove the Torx T15 screw that secures the assembly to the front of the chassis.(1)
Front I/O assembly 51
8. Press the tab on the right side of the assembly , and then push the assembly into the computer.(2)
9. Remove the front I/O assembly from the inside of the computer.
To install the front I/O assembly, reverse the removal procedure.
NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly. Proper
cable routing prevents damage to the cables and allows the drive cage to close properly.
52 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Power switch
The power switch is attached to the left, front of the chassis.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel (Front bezel on page 20).
4. Rotate the drive cage to its upright position.
5. From the inside of the front of the chassis, press the tab at the top of the power switch and push the (1)
top of the power switch away from the front of the chassis .(2)
6. Remove the cable from the clips built into the bottom of the chassis, then and disconnect the power
switch cable from the system board connector labeled PB/LED.
7. Remove the power switch assembly from the inside of the computer.
Power switch 53
To install the power switch, reverse the removal procedures.
Speaker
The speaker is attached to the front of the chassis under the rotating drive cage.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel (Front bezel on page 20).
4. Rotate the drive cage to its upright position.
5. From the outside, front of the chassis, remove the two Torx T15 screws that secure the speaker.
6. From the inside of the chassis, disconnect the speaker cable from the white system board labeled SPKR,
and the remove the speaker from the chassis.
To install the speaker, reverse the removal procedures.
54 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
Fan sink
CAUTION: The bond between the fan sink and the processor may be very tight.
If the computer will power on, before removing the fan sink, turn on the computer until it warms the fan sink.
Warming the heat sink lessens the bond between the fan sink and the processor, thereby making separating
them easier.
Make sure not to pull the processor out of the socket when you lift the fan sink, especially if you cannot warm
the fan sink prior to removal. Inadvertently removing the processor can damage the pins.
The fan sink is secured atop the processor with four captive Torx screws. The fan sink does not include a fan.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the drive cage to its upright position.
4. Rotate the small into the upright position (bae Small on page 47bae ).
5. Remove the fan (bae Fan on page 48bae ).
6. Disconnect the fan cable from the system board connector labeled CPUFAN , and then loosen the four (1)
captive screws that secure the fan sink to the system board tray.(2)
CAUTION: Fan sink retaining screws should be removed in diagonally opposite pairs (as in an X) to even
the downward forces on the processor. This is especially important as the pins on the socket are very
fragile and any damage to them may require replacing the system board.
7. Lift the fan sink from atop the processor and set it on its side to keep from contaminating the work (3)
area with thermal grease.
When reinstalling the fan sink, make sure that its bottom has been cleaned with an alcohol wipe and fresh
thermal grease has been applied to the top of the processor.
Fan sink 55
CAUTION: Fan sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly
seat the fan sink on the processor to avoid damage that could require replacing the system board.
Failure to install the may cause the computer to overheat.bae
Processor
Description
AMD A10-8850B, 3.9 GHz
AMD A10-8750B, 3.6 GHz
AMD A10-7800B, 3.57 GHz
AMD A8-8650B, 3.2 GHz
AMD A8-7600B, 3.1 GHz
AMD A6-8550B, 3.7 GHz
AMD A6-8350B, 3.5 GHz
AMD A4-7300B, 3.8 GHz
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the drive cage to its upright position.
4. Rotate the small into the upright position (bae Small on page 47bae ).
5. Remove the fan (bae Fan on page 48bae ).
6. Remove the heat sink (Fan sink on page 55).
7. Rotate the locking lever to its full open position .(1)
56 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
8. Carefully lift the processor from the socket .(2)
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling
them could cause irreparable damage. Once pins are damaged it may be necessary to replace the
system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to the
processor’s solder connections.
To replace the processor, reverse the removal procedures.
NOTE: After installing a new processor onto the system board, always update the system ROM to ensure
that the latest version of the BIOS is being used on the computer. The latest system BIOS can be found on the
Web at: http://h18000.www1.hp.com/support/les.
Processor 57
Power supply
Description
Power supply, 200W, 92% ecient
Power supply, 200W, 85% ecient
Power supply, 200W, standard
WARNING! To reduce potential safety issues, only the power supply provided with the computer, a
replacement power supply provided by HP, or a power supply purchased as an accessory from HP should be
used with the computer.
WARNING! Voltage is always present on the system board when the computer is plugged into an active AC
outlet. To avoid possible personal injury and damage to the equipment the power cord should be
disconnected from the computer and/or the AC outlet before opening the computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the drive cage up.
4. Disconnect all power cables from the system board as follows:
●(1): PWR
●(2): PWRCMD
●(3): PWRCPU
58 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
5. From the outside, rear of the chassis, remove the three Torx T15 that secure the power supply to the
back of the chassis.
6. From the inside of the chassis, push the release lever at the front of the power supply , slide the (1)
power supply forward, and then remove it from the chassis .(2)
To install the power supply, reverse the removal procedure.
CAUTION: When installing the power supply cables, make sure they are properly positioned so they are not
cut by the drive cage and are not pinched by the rotating power supply.
Power supply 59
System board
NOTE: All system board spare part kits include replacement thermal material.
NOTE: System board appearance may vary.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the small into the upright position (bae Small on page 47bae ).
4. Remove the fan (bae Fan on page 48bae ).
5. Rotate the drive cage to its upright position.
6. When replacing the system board, make sure the following components are removed from the defective
system board and installed on the replacement system board:
●Memory modules ( )Memory on page 23
●Expansion cards (Expansion card on page 26)
●Heat sink (Fan sink on page 55)
●Processor (Processor on page 56)
7. Disconnect all cables connected to the system board, noting their location for reinstallation.
8. Remove the eight Torx T15 screws that secure the system board to the chassis.
9. Slide the system board toward the front of the computer to disengage the I/O panel, and then lift the
system board out of the computer.
When reinstalling the system board, insert the I/O panel back into the slots in the rear of the chassis, and rst
then align the board with the chassis screw holes.
NOTE: When replacing the system board, you must change the chassis serial number in the BIOS.
60 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
PWRCPU White 4-pin processor power SATA2 Light blue Any SATA Device other
than primary hard drive
CPU Black Processor SATA1 Light blue Any SATA Device other
than primary hard drive
CPUFAN White Processor fan SPKR White Speaker
DIMM1 Black Memory module SATA0 Dark blue Hard drive
DIMM2 White Memory module FRONT USB Yellow Front I/O
DIMM3 Black Memory module BATTERY Black RTC battery
DIMM4 White Memory module FRONT AUD Blue Front I/O
PSWD Green Clear system passwords X4PCIEXP Black Expansion card
PB/LED Black Front I/O/power switch X1PCIEXP2 Black Expansion card
PWRCMD White Power supply X1PCIEXP1 Black Expansion card
SATAPWR0 Black Drives X16PCIEXP White Expansion card
PWR White 6-pin main power HLCK Black Hood lock
CMOS Yellow Reset CMOS COMB Black Optional second serial port
FRONT USB3.0 Blue Front I/O/power switch HSENSE White Hood sensor
System board 61
Using the Small Form Factor Computer in a Tower Orientation
The Small Form Factor computer can be used in a tower orientation. The HP logo plate on the front bezel is
adjustable for either desktop or tower orientation.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Orient the computer so that its right side is facing down and place the computer in the optional stand.
NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the optional tower
stand.
3. Reconnect the power cord and any external devices, and then turn on the computer.
NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains clear
and free of obstructions.
4. Lock any security devices that were disengaged when the access panel was removed.
62 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
5 Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●Change factory default settings.
●View the system including settings for processor, graphics, memory, audio, storage, conguration,
communications, and input devices.
●Modify the boot order of bootable devices such as hard drives, optical drives, or USB media devices.ash
●Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test (POST)
messages. Post Messages Disabled suppresses most POST messages, such as memory count, product
name, and other non-error text messages. If a POST error occurs, the error is displayed regardless of the
mode selected. To manually switch to Post Messages Enabled during POST, press any key (except F1
through ).F12
●Establish an Ownership Tag, the text of which is displayed each time the system is turned on or
restarted.
●Enter the Asset Tag or property number assigned by the company to this computer.identication
●Enable the power-on password prompt during system restarts (warm boots) as well as during power-on.
●Establish a setup password that controls access to the Computer Setup (F10) Utility and the settings
described in this section.
●Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or embedded NIC,
so that they cannot be used until they are unsecured.
●Enable or disable removable media boot ability.
●Solve system errors detected but not automatically during the Power-On Self-Test conguration xed
(POST).
●Replicate the system setup by saving system information on a USB device and restoring it conguration
on one or more computers.
●Enable or disable DriveLock security (when supported by drive).
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system. To access the
Computer Setup Utilities menu, complete the following steps:
1. Turn on or restart the computer.
2. Repeatedly press when the monitor light turns green to access the utility.F10
You can also press to a menu that allows you to access options available at startup, Esc dierent
including the Computer Setup utility.
NOTE: If you do not press at the appropriate time, you must restart the computer and again F10
repeatedly press when the monitor light turns green to access the utility.F10
Computer Setup (F10) Utilities 63
3. A choice of four headings appears in the Computer Setup Utilities menu: Main, Security, Advanced, and
UEFI Drivers.
NOTE: Selecting UEFI Drivers restarts the computer into the 3rd party option ROM management
application. You can access this application directly by pressing during startup.F3
4. Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys
to select the option you want, then press Enter. To return to the Computer Setup Utilities menu, press
Esc.
5. To apply and save changes, select > .Main Save Changes and Exit
●If you have made changes that you do not want applied, select .Ignore Changes and Exit
●To reset to factory settings or previously saved default settings (some models), select Apply
Factory Defaults and Exit. This option will restore the original factory system defaults.
NOTE: Not all settings shown in the following sections are available for all models
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup (F10) changes
because the CMOS could become corrupted. It is safe to turn the computer only after exiting the F10 Setup o
screen.
64 Chapter 5 Computer Setup (F10) Utility
Computer Setup–Main
NOTE: Support for Computer Setup options may vary depending on the hardware specic conguration.
Table 5-1 Computer Setup—Main
Option Description
System Information Lists all information in following list if Advanced System Information is selected. Lists smaller subset if
Basic System Information is selected.
●Product name
●Installed memory size
●Processor type
●Processor cache size (L1/L2/L3)
●Processor speed
●MicroCode Revision
●Processor Stepping
●DIMM size (for each installed module)
●System BIOS version
●Integrated Video BiOS Revision
●Born On Date
●Serial Number
●SKU number
●UUID (Universally Unique Identier)
●Asset Tracking Number
●Feature Byte
●Build ID
●Product Family
●System Board ID
●System Board CT
●Integrated MAC Address
System Diagnostics Starts HP PC Hardware Diagnostics UEFI.
Lets you perform the following functions:
●Memory Test
●Hard Drive Check
●Language
Update System BIOS Lets you update the system BIOS. BIOS update binary (BIN) must be located on the system hard drive les
or on a removable USB drive under the “Hewlett-Packard\BIOS\New” folder or under the “EFI\HP\BIOS
\New” folder.
Set Machine Unique Data Lets you update the following values:
●Feature Byte
●Build ID
Computer Setup (F10) Utilities 65
Table 5-1 Computer Setup—Main (continued)
●Serial Number
●SKU Number
●Product Family
●System Board CT
●Product Name
System IDs Lets you clear the following values:
●Asset Tracking Number
●Ownership Tag
Replicated Setup Backup current settings to USB device
Saves system to a formatted USB media device.conguration ash
Restore current settings from USB device
Restores system from a USB media device.conguration ash
Save Custom Defaults Saves the current system settings as the default.conguration
Apply Custom Defaults
and Exit
Applies the currently selected default settings and clears any established passwords.
Apply Factory Defaults
and Exit
Restores the factory system settings as the default.conguration
Ignore Changes and Exit Exits Computer Setup without applying or saving any changes.
Save Changes and Exit Saves changes to system or default settings and exits Computer Setup.conguration
Suppress POST Errors Suppresses most system messages during POST (Power On Self Test).
POST error messages are displayed on the display during the Power On Self Test if the BIOS encounters a
problem while starting the computer. A POST error message will only display on screen if the computer is
capable of booting this far. If the POST detects an error before this point, a beep code is generated
instead.
66 Chapter 5 Computer Setup (F10) Utility
Computer Setup—Security
NOTE: Support for Computer Setup options may vary depending on the hardware specic conguration.
Table 5-2 Computer Setup—Security
Option Description
Set up BIOS
Administrator Password
Lets you set and enable a BIOS administrator password, which includes the following privileges:
●Manage other BIOS users
●Full access to BIOS policy and settings
●Control BIOS access of other users by setting security level
●Unlock the computer when other BIOS users fail the preboot authentication.
NOTE: Creating a BIOS user disables the Fast Boot option.
NOTE: If the password is set, it is required to change Computer Setup options, the ROM, and make ash
changes to certain plug and play settings under Windows.
Change BIOS
Administrator Password
(This selection is active
only if a BIOS
administrator password is
set.)
Lets you change the BIOS administrator password.
You must know the current password to be able to change it.
Password Policy Let you set the guidelines for a valid password. Options include:
●Password minimum length
●Requires at least one symbol
●Requires at least one number
●Requires at least one upper case character
●Requires at least one lower case character
●Allow spaces
Clear Password Jumper
Select ‘Honor’ to engage or ‘Ignore’ to disengage the password jumper. Default is ‘Honor’.
Security Conguration Lets you activate HP SureStart.
Verify Boot Block on ever Boot
Select to enable HP SureStart.
BIOS Data Recovery Policy
Select ‘Automatic’ or ‘Manual’ to determine data recovery process.
TPM Embedded Security TPM Device
Lets you set the Trusted Platform Module as available or hidden.
TPM State
Select to enable the TPM.
TPM Clear
Select to reset the TPM to an unowned state. After the TPM is cleared, it is also turned To temporarily o.
suspend TPM operations, turn the TPM instead of clearing it.o
Computer Setup (F10) Utilities 67
Table 5-2 Computer Setup—Security (continued)
CAUTION: Clearing the TPM resets it to factory defaults and turns it You will lose all created keys and o.
data protected by those keys.
Set Up BIOS Power-On
Password
Lets you set and enable a BIOS power-on password. The power-on password prompt appears after a
power cycle or reboot. If the user does not enter the correct power-on password, the unit will not boot.
Change BIOS Power-On
Password
(This selection is active
only if a BIOS power-on
password is set.)
Lets you change the BIOS power-on password.
You must know the current password to be able to change it.
DriveLock Allows you to assign or modify a master or user password for hard drives. When this feature is enabled,
the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully
entered, the hard drive will remain inaccessible until one of the passwords is successfully provided during
a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one drive that supports the DriveLock feature is
attached to the system.
CAUTION: Be aware that these settings take place immediately. A save is not necessary.
CAUTION: Be sure to document the DriveLock password. Losing a DriveLock password will render a drive
permanently locked.
After you select a drive, the following options are available:
Set DriveLock Master Password. Sets the drive’s master password but does not enable DriveLock.
Enable DriveLock. Sets the drive’s user password and enables DriveLock.
Secure Erase Lets you select a hard drive to completely erase.
Once a hard drive has been erased with a program that utilizes Secure Erase commands, no rmware le
recovery program, partition recovery program, or other data recovery method will be able to extract data
from the drive.
Save/Restore MBR of the
system hard drive
Enabling this feature will save the Master Boot Record (MBR) of the system hard drive. If the MBR gets
changed, the user will be prompted to restore the MBR. Default is disabled.
The MBR contains information needed to successfully boot from a disk and to access the data stored on
the disk. Master Boot Record Security may prevent unintentional or malicious changes to the MBR, such as
those caused by some viruses or by the incorrect use of certain disk utilities. It also allows you to recover
the "last known good" MBR, should changes to the MBR be detected when the system is restarted.
When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the current
bootable disk while in MS-DOS or Windows Safe Mode.
NOTE: Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot
prevent changes that may occur while the operating system is running.
Restores the backup Master Boot Record to the current bootable disk. Default is disabled.
Only appears if all of the following conditions are true:
●MBR security is enabled
●A backup copy of the MBR has been previously saved
●The current bootable disk is the same disk from which the backup copy was saved
CAUTION: Restoring a previously saved MBR after a disk utility or operating system has the modied
MBR, may cause the data on the disk to become inaccessible. Only restore a previously saved MBR if you
are that the current bootable disk's MBR has been corrupted or infected with a virus.condent
Smart Cover Cover Lock (Lock/Unlock)
Default is ‘Unlock’.
68 Chapter 5 Computer Setup (F10) Utility
Table 5-2 Computer Setup—Security (continued)
Cover Removal Sensor (Disabled/Notify user/Administrator password)
Lets you disable the cover sensor or what action is taken if the computer cover was removed. congure
Default is ‘Disabled’.
NOTE: Notify user alerts the user that the sensor has detected that the cover has been removed.
Administrator Password requires that the password be entered to boot the computer if the sensor
detects that the cover has been removed.
System Management
Command
Allows authorized personnel to reset security settings during a service event. Default is enabled.
Restore Security
Settings to Default
Restoring settings to default requires the BIOS Administrator password.
Computer Setup—Advanced
NOTE: Support for Computer Setup options may vary depending on the hardware specic conguration.
Table 5-3 Computer Setup—Advanced (for advanced users)
Option Heading
Select Language Lets you select the language of the menus in F10 Setup.
Select Keyboard Layout Lets you select language for the keyboard.
Boot Options Startup Menu Delay(sec)
Enabling this feature will add a delay to the POST process. This delay is sometimes needed user-specied
for hard disks on some PCI cards that spin up very slowly, so slowly that they are not ready to boot by the
time POST is The POST delay also gives you more time to select to enter Computer (F10) nished. F10
Setup. Default is ‘0’.
Select the devices that the computer can boot from, as well as other options, including:
●Fast Boot. Default is disabled.
●CD-ROM Boot. Default is enabled.
●Network (PXE) Boot. Default is enabled.
●SD Boot. Default is enabled.
●Netclone BIOS Boot. Default is disabled.
●Prompt on Memory Size Change. Default is enabled.
●Prompt on Fixed Storage Change. Default is disabled.
●Display Diagnostic URL. Default is enabled.
●UEFI Boot Order. Default is enabled.
●Specify the order in which UEFI boot sources (such as a internal hard drive, USB hard drive, USB
optical drive, or internal optical drive) are checked for a bootable operating system image. Each
device on the list may be individually excluded from or included for consideration as a bootable
operating system source.
UEFI boot sources always have precedence over legacy boot sources.
●Legacy Boot Order
Specify the order in which legacy boot sources (such as a network interface card, internal hard drive,
USB optical drive, or internal optical drive) are checked for a bootable operating system image. Each
Computer Setup (F10) Utilities 69
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
device on the list may be individually excluded from or included for consideration as a bootable
operating system source.
Specify the order of attached hard drives. The hard drive in the order will have priority in the rst
boot sequence and will be recognized as drive C (if any devices are attached).
NOTE: To drag a device to a preferred place, press Enter. To remove the device from consideration as a
bootable device, press .F5
You can use to disable individual boot items, as well as disable UEFI boot and/or legacy boot.F5
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system has
started.
Shortcut to Temporarily Override Boot Order
To boot from a device other than the default device in Boot Order, restart the computer one time specied
and press (to access the boot menu) and then (Boot Order), or only (skipping the boot menu) Esc F9 F9
when the monitor light turns green. After POST is completed, a list of bootable devices is displayed. Use
the arrow keys to select the preferred bootable device and press Enter. The computer then boots from the
selected non-default device for this one time.
Secure Boot
Conguration
Congure Legacy Support and Secure Boot
Legacy Support – Lets you turn all legacy support on the computer, including booting to DOS, running o
legacy graphics cards, booting to legacy devices, and so on.
Secure Boot – Lets you make sure an operating system is legitimate before booting to it, making Windows
resistant to malicious from preboot to full OS booting, preventing attacks. UEFI and modication rmware
Windows Secure Boot only allow code signed by pre-approved digital to run during the certicates
rmware and OS boot process.
Default is ‘Legacy Support Enable and Secure Boot Disable’.
Secure Boot Key Management
Lets you manage the custom key settings.
Clear Secure Boot Keys
Lets you delete any previously loaded custom boot keys. Clearing keys will disable secure boot. Default is
disabled.
Reset Security Boot keys to factory defaults
Default is disabled.
System Options Onboard RAID (enable/disable)
Lets you enable onboard RAID. Default is disabled.
Max SATA Speed (6.0 Gbps/3.0Gbps)
Lets you set the maximum SATA drive speed to either 3.0 Gbps or 6.0 Gbps. The default is ‘6.0 Gbps’.
USB 3.0 (XHCI) (enable/disable)
Lets you enable the eXtensible Host Controller Interface (xHCI). If enabled, the USB 3.0 ports are routed to
the xHCI controller before booting to OS. If disabled, the USB 3.0 ports are routed to the EHCI controller
before booting to OS. The default is disabled.
After Power Loss state). Default is Power Setting this option to:(o/on/previous o.
●Power the computer to remain powered when power is restored.o—causes o
●Power on—causes the computer to power on automatically as soon as power is restored.
●Previous state—causes the computer to power on automatically as soon as power is restored, if it
was on when power was lost.
SVM CPU VIrtualization (enable/disable)
70 Chapter 5 Computer Setup (F10) Utility
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Controls the virtualization features of the processor. Changing this setting requires turning the computer
o and then back on. Default is disabled.
Allow PCIe/PCI SERR# Interrupt (enable/disable)
Allows PCI devices to report PCI/PCIe System Error signals, such as address parity errors, data parity
errors, and critical errors other than parity. Default is enabled.
Power Button Override (disable/4 sec/15 sec)
Lets you disable or enable and select the number of seconds you have to hold down the power button for
it to override the system. Default is ‘4 sec’.
Built-In Device Options Embedded LAN Controller
Select to show the device in the operating system. Default is enabled.
Wake On LAN
Lets you either disable the Wake On LAN feature, or where the computer boots, including the congure
network or hard drive. Default is Boot to Network.
Embedded WWAN Device
Select to enable.
Video Memory Size
Use this option to manage graphics memory allocation. The value you choose is allocated permanently to
graphics and is unavailable to the operating system. For example, if you set this value to 512M on a
system with 2 GB of RAM, the system always allocates 512 MB for graphics and the other 1.5 GB for use by
the BIOS and operating system. Default is ‘Auto’ which sets memory allocation to 512 MB.
Audio Device
Select to show the device in the operating system. Default is enabled.
Internal Speakers (does not external speakers)aect
Select to show the device in the operating system. Default is enabled.
Integrated Microphone
Select to show the device in the operating system. Default is enabled.
Integrated Camera
Use this option to disable the integrated video controller when another video controller is present in the
system. Default is enabled.
Increase Idle Fan Speed(%)
Sets idle fan speed percentage. This setting only changes the minimum fan speed. The fan is still
automatically controlled.
Fingerprint Device
Select to show the device in the operating system. Default is enabled.
Touch Panel
Select to show the device in the operating system. Default is enabled.
Port Options Allows you to hide the following ports from the operating system:
●Serial port A
●SATA0
●SATA1
●SATA2
Computer Setup (F10) Utilities 71
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
●Front USB ports
●Rear USB ports
●Media card reader
Restrict USB Devices
Specify the following categories of USB devices to enable:
●Allow all USB devices
●Allow only keyboard and mouse
●Allow all but storage devices and hubs.
Option ROM Launch
Policy
These policies control whether the Legacy Option ROM or the UEFI driver is loaded. Default is ‘All UEFI’.
Congure Option ROM Launch Policy
●All legacy
●All UEFI
●All UEFI except video
Power Management
Options
Runtime Power Management (enable/disable)
Allows certain operating systems to reduce processor voltage and frequency when the current software
load does not require the full capabilities of the processor. Default is enabled.
Extended Idle Power States (enable/disable)
Allows certain operating systems to decrease the processors power consumption when the processor is
idle. Default is enabled.
S5 Maximum Power Savings (enable/disable)
Enabling this feature reduces the power of the system as much as possible in the S5 state. Power is
removed from the wake up circuitry, the expansion slots, and any management features while in S5.
Default is disabled.
SATA Power Management (enable/disable)
Enables or disables SATA bus and/or device power management. Default is enabled.
PCI Express Power Management (enable/disable)
Enabling this option permits the PCI Express links to use Active Power State Management (ASPM) to enter
lower power states while not in use. Default is enabled.
Unique Sleep State Blink Rates (enable/disable)
This feature is designed to provide a visual indication of what sleep state the system is in. Each sleep
state has a unique blink pattern. Default is disabled.
NOTE: A normal shutdown goes to the S4 state.
S0 (On) = Solid white LED.
S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (white LED) — repeated
cycles of 3 blinks and a pause.
S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (white LED) —
repeated cycles of 4 blinks and a pause.
S5 (Soft = LED is O) o.
Power On from Keyboard Ports (enable/disable)
Enables or disables waking from S3 due to any keyboard activity. Default is disabled.
USB Charging Port Function (enable/disable)
72 Chapter 5 Computer Setup (F10) Utility
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Enables or disables the charging capability of the USB charging port. Default is enabled.
Congurations Allows you to use F10 Setup to check for BIOS updates and apply them using either a manual selection or
an automatically scheduled check upon boot-up.
NOTE: If Windows BitLocker Drive Encryption (BDE) is enabled, HP requires that BDE be suspended
temporarily before the BIOS is You must get the BDE recovery password and PIN before ashed.
suspending BDE. After updating the BIOS, you can resume BDE.
Update Source (HP/Custom)
Selects hp.com or a locally managed custom address to serve BIOS updates. Default is ‘HP’.
Update Address.
If ‘Custom’ is selected for , enter the URL of the locally managed server.Update Source
Update BIOS via Network (Enabled/Disable)
Enables or disables the network BIOS update scheduler. Default is ‘Enable’.
Automatic Update Frequency (Daily, Weekly, Monthly)
If ‘Enable’ is selected for , sets the frequency of checks to the BIOS update Update BIOS via Network
server. If a newer version of BIOS is available on the network server, the system will prompt to update the
BIOS. Default is ‘Daily’.
Automatic BIOS Update Setting
If ‘Enable’ is selected for , during the next boot, checks whether an updated Update BIOS via Network
BIOS is available and installs only updates. This value is independent of the specied Automatic Update
Frequency setting.
Available include:congurations
●Check and install all BIOS updates automatically
●Check and install only important updates automatically
●Check for BIOS updates but let me decide whether to install them
Default is ‘Check and install all BIOS updates automatically’.
Check for updates now Select to check for the latest BIOS release revision on the network. Lets you decide whether to download
the BIOS image and update the system.
Scheduled Power-On This feature wakes the system up from a powered state at a date and time.o specied
Recovering the SettingsConguration
This method of recovery requires that you perform the rst Save to Removable Media command with the
Computer Setup (F10) Utility before is needed. (See Restore Computer Setup–Main on page 65 in the
Computer Setup—File table.)
NOTE: It is recommended that you save any computer settings to a USB media modied conguration ash
device and save the device for possible future use.
To restore the insert the USB media device with the saved and perform the conguration, ash conguration
Restore from Removable Media command with the Computer Setup (F10) Utility. (See Computer Setup–Main
on page 65 in the Computer Setup—File table.)
Recovering the Settings 73Conguration
6 Troubleshooting without diagnostics
This chapter provides information on how to identify and correct minor problems, such as USB devices, hard
drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems with the
computer, refer to the tables in this chapter for probable causes and recommended solutions.
NOTE: For information on error messages that may appear on the screen during Power-On Self-Test specic
(POST) at startup, refer to POST error messages and diagnostic front panel LEDs and audible codes
on page 106.
Safety and comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment may
result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/ergo for
more information on choosing a workspace and creating a safe and comfortable work environment. For more
information, refer to the Safety & Regulatory Information guide.
Before you call for technical support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the exact
problem before calling for technical support.
●Run the HP diagnostic tool.
●Run the hard drive self-test in Computer Setup. Refer to Computer Setup (F10) Utility on page 63 for
more information.
●Check the Power LED on the front of the computer to see if it is red. The lights are error ashing ashing
codes that will help you diagnose the problem. Refer to POST error messages and diagnostic front panel
LEDs and audible codes on page 106 for more information.
●If the screen is blank, plug the monitor into a video port on the computer if one is available. Or, dierent
replace the monitor with a monitor that you know is functioning properly.
●If you are working on a network, plug another computer with a cable into the network dierent
connection. There may be a problem with the network plug or cable.
●If you recently added new hardware, remove the hardware and see if the computer functions properly.
●If you recently installed new software, uninstall the software and see if the computer functions properly.
●Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When booting
the operating system, use “Last Known Conguration.”
●Refer to the comprehensive online technical support at http://www.hp.com/support.
●Refer to Helpful hints on page 75 in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with self-
solve diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's online chat
feature. Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online support
information, software and drivers, proactive and worldwide community of peers and HP experts.notication,
74 Chapter 6 Troubleshooting without diagnostics
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that your
service call is handled properly:
●Be in front of your computer when you call.
●Write down the computer serial number, product ID number, and monitor serial number before calling.
●Spend time troubleshooting the problem with the service technician.
●Remove any hardware that was recently added to your system.
●Remove any software that was recently installed.
●Restore the system from the Recovery Disc Set that you created or restore the system to its original
factory condition in System Software Requirement Disks (SSRD).
CAUTION: Restoring the system will erase all data on the hard drive. Be sure to back up all data before les
running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized service provider
or dealer.
Helpful hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
●Check that the computer and monitor are plugged into a working electrical outlet.
●Check that the voltage select switch (some models) is set to the appropriate voltage for your region
(115V or 230V).
●Check that the computer is turned on and the white power light is on.
●Check that the monitor is turned on and the green monitor light is on.
●Check the Power LED on the front of the computer to see if it is red. The lights are error ashing ashing
codes that will help you diagnose the problem. Refer to POST error messages and diagnostic front panel
LEDs and audible codes on page 106 for more information.
●Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●Check all cable connections for loose connections or incorrect connections.
●Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for at
least four seconds then press the power button again to restart the computer. If the system will not shut
down, unplug the power cord, wait a few seconds, then plug it in again. The computer will restart if it is
set to power on automatically as soon as power is restored in Computer Setup. If it does not restart,
press the power button to start the computer.
●Recongure the computer after installing a non-plug and play expansion board or other option. See
Solving Hardware Installation Problems on page 94 for instructions.
●Be sure that all the needed device drivers have been installed. For example, if you are using a printer,
you need a driver for that model printer.
●Remove all bootable media (CD/DVD or USB device) from the system before turning it on.
Helpful hints 75
●If you have installed an operating system other than the factory-installed operating system, check to be
sure that it is supported on the system.
●If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed (embedded
video on some models only) and a single monitor, the monitor must be plugged into the monitor
connector on the source selected as the primary VGA adapter. During boot, the other monitor connectors
are disabled and if the monitor is connected into these ports, the monitor will not function. You can
select which source will be the default VGA source in Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
Solving general problems
You may be able to easily resolve the general problems described in this section. If a problem persists and you
are unable to resolve it yourself or if you feel uncomfortable about performing the operation, contact an
authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect
the power cord from the wall outlet and allow the internal system components to cool before touching.
Cannot access the Computer Setup (F10) Utility when booting the computer.
Cause Solution
The Computer Setup (F10) Utility is set to “fast boot” causing the
F10 access screen to display too when booting the briey
computer.
Before turning on the computer, press and hold . Turn on the F10
computer and continue to hold until the Computer Setup F10
(F10) Utility is displayed.
- or –
Follow the Windows instructions for rebooting the computer into
the Computer Setup (F10) Utility.
Computer appears locked up and will not turn when the power button is pressed.o
Cause Solution
Software control of the power switch is not functional. Press and hold the power button for at least four seconds 1.
until the computer turns o.
2. Disconnect the power cord from the electrical outlet.
Computer will not respond to keyboard or mouse.
Cause Solution
Computer is in Sleep state. To resume from Sleep state, press the power button.
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
System has locked up. Restart computer.
76 Chapter 6 Troubleshooting without diagnostics
Computer date and time display is incorrect.
Cause Solution
RTC (real-time clock) battery may need to be replaced.
NOTE: Connecting the computer to a live AC outlet prolongs the
life of the RTC battery.
Reset the date and time under Control Panel (Computer Setup
can also be used to update the RTC date and time). If the problem
persists, replace the RTC battery. See the Removal and
Replacement section for instructions on installing a new battery,
or contact an authorized dealer or reseller for RTC battery
replacement.
To access Control Panel in Windows 7, select , and then Start
select Control Panel.
To access Control Panel in Windows 8.1, from the Start screen,
type , and then select c Control Panel from the list of
applications.
To access Control Panel in Windows 10, type in control panel
the taskbar search box, and then select Control Panel.
Cursor will not move using the arrow keys on the keypad.
Cause Solution
The key is turned on. Press the key. The Num Lock light must be if you Num Lock Num Lock o
want to use the arrow keys on the keypad. You can also disable or
enable the Num Lock key in Computer Setup at > Advanced
Device Options.
There is no sound or sound volume is too low.
Cause Solution
System volume may be set low or muted. Check the Computer Setup settings to make sure the 1.
internal system speaker is not muted (this setting does not
aect the external speakers).
2. Make sure the external speakers are properly connected and
powered on and that the speakers' volume control is set
correctly.
3. Use the system volume control available in the operating
system to make sure the speakers are not muted or to
increase the volume.
Cannot remove computer cover or access panel.
Cause Solution
Smart Cover Lock, featured on some computers, is locked. Unlock the Smart Cover Lock using Computer Setup.
In case of forgotten password, power loss, or computer
malfunction, you must manually disable the Smart Cover lock . A
key to unlock the Smart Cover Lock is not available from HP. Keys
are typically available from a hardware store.
Solving general problems 77
Poor performance.
Cause Solution
for suggestions on how to improve performance by
adjusting parameters in the application.
2. Add more memory.
3. Upgrade the graphics solution.
Cause unknown. Restart the computer.
Computer powered automatically and the Power LED red four times and then white two times.o ashes
Cause Solution
Processor thermal protection activated:
A fan may be blocked or not turning.
OR
The heat sink is not properly attached to the processor.
1. Ensure that the computer air vents are not blocked and the
processor cooling fan is running.
2. Open the access panel, press the power button, and see if
the processor fan (or other system fan) spins. If the fan does
not spin, make sure the fan cable is plugged onto the system
board header.
3. If fan a plugged in and not spinning, replace it.
System does not power on and the LEDs on the front of the computer are not ashing.
Cause Solution
System unable to power on. Press and hold the power button for less than 4 seconds. If the
hard drive LED turns white, then:
1. If equipped with a voltage selector, check that the voltage
selector (located on the rear of the power supply) is set to
the appropriate voltage. Proper voltage setting depends on
your region.
2. Remove the expansion cards one at a time until the 5V_aux
light on the system board turns on.
3. Replace the system board.
OR
Press and hold the power button for less than 4 seconds. If the
hard drive LED does not turn on white then:
1. Check that the unit is plugged into a working AC outlet.
2. Open the access panel and check that the power button
cable is properly connected to the system board.
3. Check that the power supply cables are properly connected
to the system board.
4. Check to see if the 5V_aux light on the system board is
turned on. If it is turned on, then replace the power button
assembly.
5. If the 5V_aux light on the system board is then replace o,
the power supply.
6. Replace the system board.
Solving general problems 79
Solving power problems
Common causes and solutions for power problems are listed in the following table.
Power supply shuts down intermittently.
Cause Solution
If equipped with a voltage selector, voltage selector switch on
rear of computer chassis (some models) not switched to correct
line voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
Power supply will not turn on because of internal power supply
fault.
Replace the power supply.
Computer powered automatically and the Power LED red four times and then white two times.o ashes
Cause Solution
Processor thermal protection activated:
A fan may be blocked or not turning.
OR
The heat sink is not properly attached to the processor.
1. Ensure that the computer air vents are not blocked and the
processor cooling fan is running.
2. Open the access panel, press the power button, and see if
the processor fan (or other system fan) spins. If the fan does
not spin, make sure the fan cable is plugged onto the system
board header.
3. If fan a plugged in and not spinning, replace it.
Computer powered automatically and the Power LED red three times and then white four times.o ashes
Cause Solution
Power failure (power supply is overloaded). If equipped with a voltage selector, check that the voltage 1.
selector, located on the rear of the power supply (some
models), is set to the appropriate voltage. Proper voltage
setting depends on your region.
2. Open the access panel and ensure the power supply cable is
seated into the connector on the system board.
3. Check if a device is causing the problem by removing ALL
attached devices (such as hard drives or optical drives and
expansion cards). Power on the system. If the system enters
POST, then power and replace one device at a time and o
repeat this procedure until failure occurs. Replace the device
that is causing the failure. Continue adding devices one at a
time to ensure all devices are functioning properly.
4. Replace the power supply.
5. Replace the system board.
80 Chapter 6 Troubleshooting without diagnostics
Solving hard drive problems
Hard drive error occurs.
Cause Solution
Hard disk has bad sectors or has failed. In Windows 7, click , click , and right-click on 1. Start Computer
a drive. Select , and then select the Properties Tools tab.
Under click .Error-checking Check Now
In Windows 8.1, on the Start screen type , and then select e
File Explorer from the list of applications. In the left
column, expand , right-click on a drive, select Computer
Properties Tools, and then select the tab. Under Error
checking Check click .
In Windows 10, type in the taskbar search box, and file
then select from the list of applications. In the File Explorer
left column, expand , right-click on a drive, select This PC
Properties Tools, and then select the tab. Under Error
checking Check click .
2. Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause Solution
Either the directory structure is bad or there is a problem with a
le.
In Windows 7, click , expand Start Computer, and right-click on a
drive. Select , and then select the Properties Tools tab. Under
Error-checking Check Now click .
In Windows 8.1, on the Start screen type , and then click e File
Explorer from the list of applications. In the left column, expand
Computer, right-click on a drive, select Properties, and then
select the Tools Error checking Check tab. Under click .
In Windows 10, type in the taskbar search box, and then file
select from the list of applications. In the left File Explorer
column, expand , right-click on a drive, select , This PC Properties
and then select the Tools Error checking Check tab. Under click .
Drive not found (identied).
Cause Solution
Cable could be loose. Check cable connections.
The system may not have automatically recognized a newly
installed device.
See directions in the reconguration Solving Hardware
Installation Problems on page 94 section. If the system still
does not recognize the new device, check to see if the device is
listed within Computer Setup. If it is listed, the probable cause is a
driver problem. If it is not listed, the probable cause is a hardware
problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under > Advanced Power-On
Options.
Solving hard drive problems 81
Drive not found (identied).
Cause Solution
The device is attached to a SATA port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure Device Available is
selected for the device's SATA port in > .Security Device Security
Drive responds slowly immediately after power-up. Run Computer Setup and increase the POST Delay in Advanced >
Power-On Options.
Nonsystem disk/NTLDR missing message.
Cause Solution
The system is trying to start from the hard drive but the hard
drive may have been damaged.
▲Perform Drive Protection System (DPS) testing in system
ROM.
System missing or not properly installed. Insert bootable media and restart the computer.les 1.
2. Boot to the windows installation media and select the
recovery option. If only a restore kit is available, then select
the File Backup Program option, and then restore the
system.
3. Install system for the appropriate operating system.les
Hard drive boot has been disabled in Computer Setup. Run the Computer Setup utility and enable the hard drive entry in
the Storage Boot Order > list.
Bootable hard drive is not attached as in a multi-hard drive rst
conguration.
If attempting to boot from a hard drive, ensure it is attached to
the system board dark blue SATA connector.
Bootable hard drive is not listed in the Boot Order. Run the Computer Setup utility and select rst Storage Boot Order >
and ensure the bootable hard drive is listed immediately under
the entry.Hard Drive
Computer will not boot from hard drive.
Cause Solution
The device is attached to a SATA port that has been hidden in
Computer Setup.
1. Check SATA cable connections.
2. Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in > Security Device
Security.
Boot order is not correct. Run the Computer Setup utility and change boot sequence in
Storage Boot Order > .
Hard Drive's “Emulation Type” is set to “None.” (some models) Run the Computer Setup utility and change the “Emulation Type”
to “Hard Disk” in the device's details under Storage Device >
Conguration.
Hard drive is damaged. Observe if the front panel Power LED is blinking RED and if any
beeps are heard. See POST error messages and diagnostic front
panel LEDs and audible codes on page 106 to determine possible
causes for the blinking red and beep codes.
See the Worldwide Limited Warranty for terms and conditions.
82 Chapter 6 Troubleshooting without diagnostics
Computer seems to be locked up.
Cause Solution
Program in use has stopped responding to commands. Use the task manager to close programs that do not 1.
respond.
2. Attempt the normal Windows “Shut Down” procedure. If this
fails, press the power button for four or more seconds to
turn the power. To restart the computer, press the power o
button again.
Solving media card reader problems
Media card will not work in a digital camera after formatting it in Windows.
Cause Solution
By default, Windows will format any media card with a capacity
greater than 32MB with the FAT32 format. Some digital cameras
use the FAT (FAT16 & FAT12) format and can not operate with a
FAT32 formatted card.
Either format the media card in the digital camera or select FAT
le system to format the media card in a computer with Windows.
A write-protected or locked error occurs when attempting to write to the media card.
Cause Solution
Media card is locked. Locking the media card is a safety feature
that prevents writing to and deleting from an SD/Memory
Stick/PRO card.
If using an SD card, make sure that the lock tab located on the
right of the SD card is not in the locked position. If using a Memory
Stick/PRO card, make sure that the lock tab located on the bottom
of the Memory Stick/PRO card is not in the locked position.
Can not write to the media card.
Cause Solution
The media card is a read-only memory (ROM) card. Check the manufacturer’s documentation included with your card
to see if it writable. Refer to the previous section for a list of
compatible cards.
Media card is locked. Locking the media card is a safety feature
that prevents writing to and deleting from an SD/Memory
Stick/PRO card.
If using an SD card, make sure that the lock tab located on the
right of the SD card is not in the locked position. If using a Memory
Stick/PRO card, make sure that the lock tab located on the bottom
of the Memory Stick/PRO card is not in the locked position.
Unable to access data on the media card after inserting it into a slot.
Cause Solution
The media card is not inserted properly, is inserted in the wrong
slot, or is not supported.
Ensure that the card is inserted properly with the gold contact on
the correct side. The green LED will light if inserted properly.
Solving media card reader problems 83
Do not know how to remove a media card correctly.
Cause Solution
The computer’s software is used to safely eject the card. In Windows 7, click , select , right-click on the Start Computer
corresponding drive icon, and then select . Pull the card out Eject
of the slot.
In Windows 8.1, on the Start screen, type , and then click e File
Explorer from the list of applications. Expand Computer, right-
click on the corresponding drive icon, and then select . Pull Eject
the card out of the slot.
In Windows 10, type in the taskbar search box, and then file
select from the list of applications. In the left File Explorer
column, expand , right-click on the corresponding drive This PC
icon, and then select . Pull the card out of the slot.Eject
NOTE: Never remove the card when the green LED is ashing
After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized by the
computer.
Cause Solution
The operating system needs time to recognize the device if the
reader was just installed into the computer and you are turning
the PC on for the time.rst
Wait a few seconds so that the operating system can recognize
the reader and the available ports, and then recognize the media
inserted in the reader.
After inserting a media card in the reader, the computer attempts to boot from the media card.
Cause Solution
The inserted media card has boot capability. If you do not want to boot from the media card, remove it 1.
during boot or do not select the option to boot from the
inserted media card during the boot process.
2. During POST (Power On Self-Test), press to modify the F9
boot menu.
3. Change the boot sequence in F10 Computer Setup.
Solving display problems
If you encounter display problems, see the documentation that came with the monitor and to the common
causes and solutions listed in the following table.
Blank screen (no video).
Cause Solution
Monitor is not turned on and the monitor light is not on. Turn on the monitor and check that the monitor light is on.
Bad monitor. Try a monitor.dierent
The cable connections are not correct. Check the cable connection from the monitor to the computer and
to the electrical outlet.
84 Chapter 6 Troubleshooting without diagnostics
Blank screen (no video).
Cause Solution
You may have a screen blanking utility installed or energy saver
features are enabled.
Press any key or click the mouse button and type your password
(if set).
System ROM is corrupted; system is running in Boot Block
Emergency Recovery Mode (indicated by eight beeps).
Reash the system ROM with the latest BIOS image.
You are using a monitor and it will not sync at the xed-sync
resolution chosen.
Be sure that the monitor can accept the same horizontal scan rate
as the resolution chosen.
Computer is in Sleep state. Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Monitor cable is plugged into the wrong connector. Systems may have a monitor connection on both the
motherboard or an add-in card. Try moving the monitor
connection to a connector on the back of the computerdierent
Monitor settings in the computer are not compatible with the
monitor.
1. In Control Panel, select from the list, then Category View by
under , select Appearance and Personalization Adjust
screen resolution.
To access Control Panel in Windows 7, click , and then Start
select Control Panel.
To access Control Panel in Windows 8.1, from the Start
screen, type , and then select c Control Panel from the list of
applications.
To access Control Panel in Windows 10, type control
panel in the taskbar search box, and then select Control
Panel from the list of applications.
2. Expand the box, and then use the sliding control Resolution
to reset the resolution.
Monitor is to use an input that is not active. Use the monitor's on-screen menu controls to select the input congured
that is being driven by the system. Refer to the monitor's user
documentation for more information on the on-screen controls
and settings.
Blank screen and the power LED Red times, once every second, followed by a two second pause, and the computer ashes ve
beeps times. (Beeps stop after iteration but LEDs continue ve fth ashing.)
Cause Solution
Pre-video memory error. Reseat DIMMs. Power on the system.1.
2. Replace DIMMs one at a time to isolate the faulty module.
3. Replace third-party memory with HP memory.
4. Replace the system board.
Solving display problems 85
Blank screen and the power LED Red six times, once every second, followed by a two second pause, and the computer ashes
beeps six times. (Beeps stop after iteration but LEDs continue fth ashing.)
Cause Solution
Pre-video graphics error. For systems with a graphics card:
1. Reseat the graphics card (if applicable). Power on the
system.
2. Replace the graphics card (if applicable).
3. Replace the system board.
For systems with integrated graphics, replace the system board.
Blank screen and the power LED Red seven times, once every second, followed by a two second pause, and the computer ashes
beeps seven times. (Beeps stop after iteration but LEDs continue fth ashing.)
Cause Solution
System board failure (ROM detected failure prior to video). Replace the system board.
Monitor does not function properly when used with energy saver features.
Cause Solution
Monitor without energy saver capabilities is being used with
energy saver features enabled.
Disable monitor energy saver feature.
Dim characters.
Cause Solution
The brightness and contrast controls are not set properly. Adjust the monitor brightness and contrast controls.
Cables are not properly connected. Check that the graphics cable is securely connected to the
graphics card (if applicable) or video connector and the monitor.
Blurry video or requested resolution cannot be set.
Cause Solution
If the graphics controller was upgraded, the correct graphics
drivers may not be loaded.
Install the video drivers included in the upgrade kit.
Monitor is not capable of displaying requested resolution. Change requested resolution.
Graphics card is bad. Replace the graphics card.
86 Chapter 6 Troubleshooting without diagnostics
The picture is broken up, rolls, jitters, or ashes.
Cause Solution
The monitor connections may be incomplete or the monitor may
be incorrectly adjusted.
1. Be sure the monitor cable is securely connected to the
computer.
2. In a two-monitor system or if another monitor is in close
proximity, be sure the monitors are not interfering with each
other’s electromagnetic by moving them apart.eld
3. Fluorescent lights or fans may be too close to the monitor.
Monitor needs to be degaussed. Degauss the monitor. Refer to the documentation that came with
the monitor for instructions.
Image is not centered.
Cause Solution
Position may need adjustment. Press the monitor's Menu button to access the OSD menu. Select
ImageControl/ Horizontal Position Vertical Position or to adjust
the horizontal or vertical position of the image.
“No Connection, Check Signal Cable” displays on screen.
Cause Solution
Monitor video cable is disconnected. Connect the video cable between the monitor and computer.
CAUTION: Ensure that the computer power is while o
connecting the video cable.
“Out of Range” displays on screen.
Cause Solution
Video resolution and refresh rate are set higher than what the
monitor supports.
Restart the computer and enter Safe Mode. Change the settings to
a supported setting then restart the computer so that the new
settings take eect.
To enter Safe Mode in Windows 7:
1. Restart the computer.
2. Press and hold the key as your computer restarts, before F8
the Windows logo appears. If the Windows logo appears,
you must restart the computer and try again.
3. On the Advanced Boot Options screen, use the arrow keys to
highlight the safe mode option you want, and then press
Enter.
4. Log on to your computer with a user account that has
administrator rights.
When your computer is in safe mode, displays in Safe Mode
the corners of your monitor. To exit safe mode, restart your
computer and let Windows start normally.
To enter Safe Mode in Windows 8.1:
Solving display problems 87
“Out of Range” displays on screen.
Cause Solution
1. Press the + to open the Settings charm.Windows logo l
2. Select , select , and then under Change PC Settings General
Advanced startup Restart now, click .
3. Select Troubleshoot, select , select Advanced options
Startup Settings Restart, and then click .
4. Use the function keys or number keys to select the safe
mode option you want.
When your computer is in safe mode, displays in Safe Mode
the corners of your monitor. To exit safe mode, restart your
computer and let Windows start normally.
To enter Safe Mode in Windows 10:
1. Log into the computer using an Administrator account.
2. Type in the taskbar search box, and then select msconfig
mscong from the list of applications.
3. Click the tab, select Boot Safe boot OK and then click .
High pitched noise coming from inside a panel monitor.at
Cause Solution
Brightness and/or contrast settings are too high. Lower brightness and/or contrast settings.
Fuzzy focus; streaking, ghosting, or shadowing horizontal scrolling lines; faint vertical bars; or unable to center the eects;
picture on the screen panel monitors using an analog VGA input connection only).(at
Cause Solution
Flat panel monitor’s internal digital conversion circuits may be
unable to correctly interpret the output synchronization of the
graphics card.
1. Select the monitor’s Auto-Adjustment option in the
monitor’s on-screen display menu.
2. Manually synchronize the Clock and Clock Phase on-screen
display functions. To download a SoftPaq that will assist you
with the synchronization, go to the following Web site,
select the appropriate monitor, and download either
SP32347 or SP32202: http://www.hp.com/support
Graphics card is not seated properly or is bad (some models). Reseat the graphics card.1.
2. Replace the graphics card.
Certain typed symbols do not appear correct.
Cause Solution
The font you are using does not support that particular symbol. Use the Character Map to locate and select the appropriate
symbol. You can copy the symbol from the Character Map into a
document.
88 Chapter 6 Troubleshooting without diagnostics
Certain typed symbols do not appear correct.
Cause Solution
In Windows 7, click , select Start All Programs, select , Accessories
select System Tools Character Map, and then select .
In Windows 8.1, on the Start screen, type , and then select ch
Character Map from the list of applications.
In Windows 10, type in the taskbar search box, and then select ch
Character Map from the list of applications.
Solving audio problems
If the computer has audio features and you encounter audio problems, see the common causes and solutions
listed in the following table.
Sound cuts in and out.
Cause Solution
Processor resources are being used by other open applications. Shut down all open processor-intensive applications.
Sound does not come out of the speaker or headphones.
Cause Solution
Software volume control is turned down or muted. Double-click the Speaker icon on the taskbar, then make sure
that is not selected and use the volume slider to adjust the Mute
volume.
NOTE: In Windows 8.1, the taskbar is available at the bottom of
the Desktop screen.
Audio is hidden in Computer Setup. Enable the audio in Computer Setup: > > Security Device Security
System Audio.
The external speakers are not turned on. Turn on the external speakers.
The audio device may be connected to the wrong jack. Ensure that the device is connected to the correct jack on the
computer. The rear audio jack output is the green receptacle. The
speakers should be plugged into the line-out jack and the
headphones should be plugged into the headphone jack.
External speakers plugged into the wrong audio jack on a recently
installed sound card.
See the sound card documentation for proper speaker connection.
The rear audio jack output is the green receptacle.
Headphones or devices connected to the line-out connector mute
the internal speaker.
Turn on and use headphones or external speakers, if connected,
or disconnect headphones or external speakers.
Computer is in Sleep state. Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Internal speaker is disabled in Computer Setup. Enable the internal speaker in Computer Setup. Select > Advanced
Device Options Internal Speaker > .
Solving audio problems 89
Sound does not come out of the speaker or headphones.
Cause Solution
The application is set to use a audio device than dierent
speakers.
Some graphics cards support audio over the DisplayPort
connection (if applicable), so multiple audio devices may be listed
in Device Manager. Make sure the correct device is being used.
To access Device Manager in Windows 7, click Start Control , select
Panel, and then select .Device Manager
To access Device Manager in Windows 8.1, from the Start screen,
type , select cControl Panel from the list of applications, and then
select .Device Manager
To access Device Manager in Windows 10, type device
manager in the taskbar search box, and then select Device
Manager from the list of applications.
Some applications can select which audio output device is used. Make sure the application has selected the correct audio device.
The operating system controls may be set to use a audio dierent
device as the default output device than what is expected.
Set the operating system to use the correct audio device.
Sound from headphones is not clear or mued.
Cause Solution
Headphones are plugged into the rear audio output connector.
The rear audio output connector is for powered audio devices and
is not designed for headphone use.
Plug the headphones into the headphone connector on the front
of the computer.
Computer appears to be locked up while recording audio.
Cause Solution
The hard disk may be full. Before recording, make sure there is enough free space on the
hard disk. You can also try recording the audio in a le
compressed format.
Line-in jack is not functioning properly.
Cause Solution
Jack has been in the audio driver or application recongured
software.
In the audio driver or application software, the jack or recongure
set the jack to its default value.
There is no sound or sound volume is too low.
Cause Solution
The application is set to use a audio device than dierent
speakers.
Some graphics cards support audio over the DisplayPort
connection (if applicable), so multiple audio devices may be listed
in Device Manager. Make sure the correct device is being used.
To access Device Manager in Windows 7, click Start Control , select
Panel, and then select .Device Manager
90 Chapter 6 Troubleshooting without diagnostics
There is no sound or sound volume is too low.
Cause Solution
To access Device Manager in Windows 8.1, from the Start screen,
type , select cControl Panel from the list of applications, and then
select .Device Manager
To access Device Manager in Windows 10, type device
manager in the taskbar search box, and then select Device
Manager from the list of applications.
Some applications can select which audio output device is used. Make sure the application has selected the correct audio device.
The operating system controls may be set to use a audio dierent
device as the default output device than what is expected.
Set the operating system to use the correct audio device.
Solving printer problems
If you encounter printer problems, see the documentation that came with the printer and to the common
causes and solutions listed in the following table.
Printer will not print.
Cause Solution
Printer is not turned on and online. Turn the printer on and make sure it is online.
The correct printer drivers for the application are not installed. Install the correct printer driver for the application.1.
2. Try printing using the MS-DOS command:
DIR C:\ > [printer port]
where is the address of the printer being [printer port]
used. If the printer works, reload the printer driver.
To run MS-DOS commands, press the Windows key + , type rcmd
in the box, and then click .Open OK
If you are on a network, you may not have made the connection
to the printer.
Make the proper network connections to the printer.
Printer may have failed. Run printer self-test.
Printer will not turn on.
Cause Solution
The cables may not be connected properly. Reconnect all cables and check the power cord and electrical
outlet.
Printer prints garbled information.
Cause Solution
The correct printer driver for the application is not installed. Install the correct printer driver for the application.
Solving printer problems 91
Printer prints garbled information.
Cause Solution
The cables may not be connected properly. Reconnect all cables.
Printer memory may be overloaded. Reset the printer by turning it for one minute, then turn it back o
on.
Printer will not print.
Cause Solution
The printer may be out of paper. Check the paper tray and it if it is empty.rell
Solving keyboard and mouse problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment and to
the common causes and solutions listed in the following table.
A wireless keyboard/mouse is not working correctly. Symptoms include lagging mouse movement, jumpy mouse/keyboard, or no
function of mouse/keyboard and external drive.
Cause Solution
If your computer is equipped with USB 3.0 ports, connected USB
3.0 devices can interfere with the wireless keyboard USB receiver.
Connect the wireless keyboard USB receiver to a USB 2.0 port that
is separated from ports with USB 3.0 devices. If you still
experience interference, you may have to place the connectors
farther apart using an external USB hub.
Keyboard commands and typing are not recognized by the computer.
Cause Solution
Keyboard connector is not properly connected. Shut down the computer, reconnect the keyboard to the back of
the computer, and then restart the computer.
Program in use has stopped responding to commands. Shut down your computer using the mouse and then restart the
computer.
Keyboard needs repairs. See the Worldwide Limited Warranty for terms and conditions.
Computer is in Sleep state. Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep date, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Cursor will not move using the arrow keys on the keypad.
Cause Solution
The key is on. Press the key. The Num Lock light should be if you Num Lock Num Lock o
want to use the arrow keys on the keypad. You can disable or
92 Chapter 6 Troubleshooting without diagnostics
Cursor will not move using the arrow keys on the keypad.
Cause Solution
enable the Num Lock key in Computer Setup at > Advanced
Device Options.
Mouse does not respond to movement or is too slow.
Cause Solution
Mouse connector is not properly plugged into the back of the
computer.
Shut down the computer using the keyboard.
Windows 7:
1. Press the and keys at the same time (or press the Ctrl Esc
Windows logo key) to display the menu.Start
2. Use the keys to select and then press arrow Shut Down
Enter.
3. After the shutdown is complete, plug the mouse connector
into the back of the computer (or the keyboard) and restart.
Windows 8.1:
1. Press the + to open the Settings charm.Windows logo l
2. Use the keys to select arrow Power, and then press .Enter
3. Use the keys to select , and then press arrow Shut Down
Enter.
4. After the shutdown is complete, plug the mouse connector
into the back of the computer (or the keyboard) and restart.
Windows 10:
1. Press the and keys at the same time (or press the Ctrl Esc
Windows logo key) to display the menu.Start
2. Use the keys to scroll to and select the power icon at arrow
the top right on the menu, and then press Enter.
3. Use the keys to select , and then press arrow Shut Down
Enter.
4. After the shutdown is complete, plug the mouse connector
into the back of the computer (or the keyboard) and restart.
Program in use has stopped responding to commands. Shut down the computer using the keyboard then restart the
computer.
Mouse may need cleaning. Remove the roller ball cover on the mouse and clean the internal
components.
Mouse may need repair. See the Worldwide Limited Warranty for terms and conditions.
Computer is in Sleep state. Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Solving keyboard and mouse problems 93
Mouse will only move vertically, horizontally, or movement is jerky.
Cause Solution
Mouse roller ball or the rotating encoder shafts that make contact
with the ball are dirty.
Remove roller ball cover from the bottom of the mouse and clean
the internal components with a mouse cleaning kit available from
most computer stores.
Solving Hardware Installation Problems
You may need to the computer when you add or remove hardware, such as an additional drive or recongure
expansion card. If you install a plug and play device, Windows automatically recognizes the device and
congures the computer. If you install a non-plug and play device, you must the computer after recongure
completing installation of the new hardware. In Windows, use the and follow the Add Hardware Wizard
instructions that appear on the screen.
To open the Add Hardware Wizard, open a Command Prompt and open hdwwiz.exe.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect
the power cord from the wall outlet and allow the internal system components to cool before touching.
Table 6-1 Solving Hardware Installation Problems
A new device is not recognized as part of the system.
Cause Solution
Device is not seated or connected properly. Ensure that the device is properly and securely connected and
that pins in the connector are not bent down.
Cable(s) of new external device are loose or power cables are
unplugged.
Ensure that all cables are properly and securely connected and
that pins in the cable or connector are not bent down.
Power switch of new external device is not turned on. Turn the computer, turn on the external device, then turn on o
the computer to integrate the device with the computer system.
When the system advised you of changes to the conguration,
you did not accept them.
Reboot the computer and follow the instructions for accepting the
changes.
A plug and play board may not automatically when congure
added if the default with other devices.conguration conicts
Use Windows Device Manager to deselect the automatic settings
for the board and choose a basic that does not conguration
cause a resource You can also use Computer Setup to conict.
recongure or disable devices to resolve the resource conict.
To access Device Manager in Windows 7, click , select Start Control
Panel, and then select .Device Manager
To access Device Manager in Windows 8.1, from the Start screen,
type , select cControl Panel from the list of applications, and then
select .Device Manager
To access Device Manager in Windows 10, type device
manager in the taskbar search box, and then select Device
Manager from the list of applications.
USB ports on the computer are disabled in Computer Setup. Run the Computer Setup utility and ensure that Device available
is selected for appropriate USB ports under Security > USB
Security.
94 Chapter 6 Troubleshooting without diagnostics
