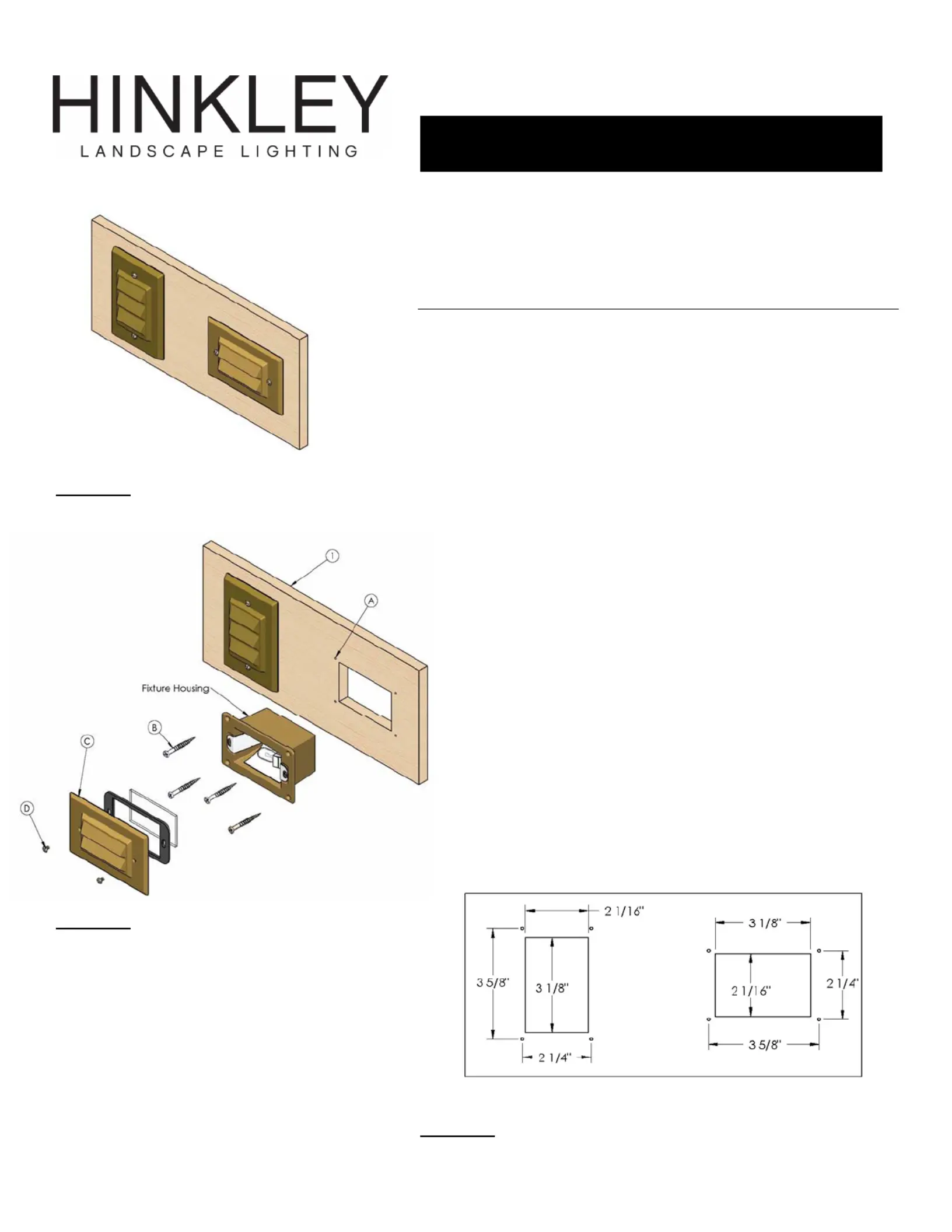

Family: 12v Series Deck Light Item No. 1542BZ/1546BZ
1. Locate and atta to area to be ill ) drilling template (page 2 ch dr ed (1).
Drill four ing en on on pla #39 es pilot hol (A) accord to dim si s tem te.
2. Cut 3-1/8” ng 2-1/16” de cen er ng or ure ou ng a lo x wi t op ien f fixt h si .
Refer ncee (not to scale). Draw 3ing
3. E a wiring let a d to NEC t c c . nsure ll is comp ed ccor ing elec ri al ode Make
app opr on up re ing ec ra ed orr iate wire c nections to s ply wi us conn tors t f
the desi ed tion. r loca
4. Sli fixtu semb to en ng nd att ch usi four de re as ly in op i a a ng No8 x 1”
long w rews (B)ood sc (not provided).
5. You stall he mp in ure may now in t la to fixt .
6. Attach fixture face u us the p ed (C) to ho sing ing sup li No8-32 Philips
h ews )ea scrd (D d with f ture. provi ed ix
Hole orientat in m ti surface ion oun ng
for 1542B Z for 1546BZ

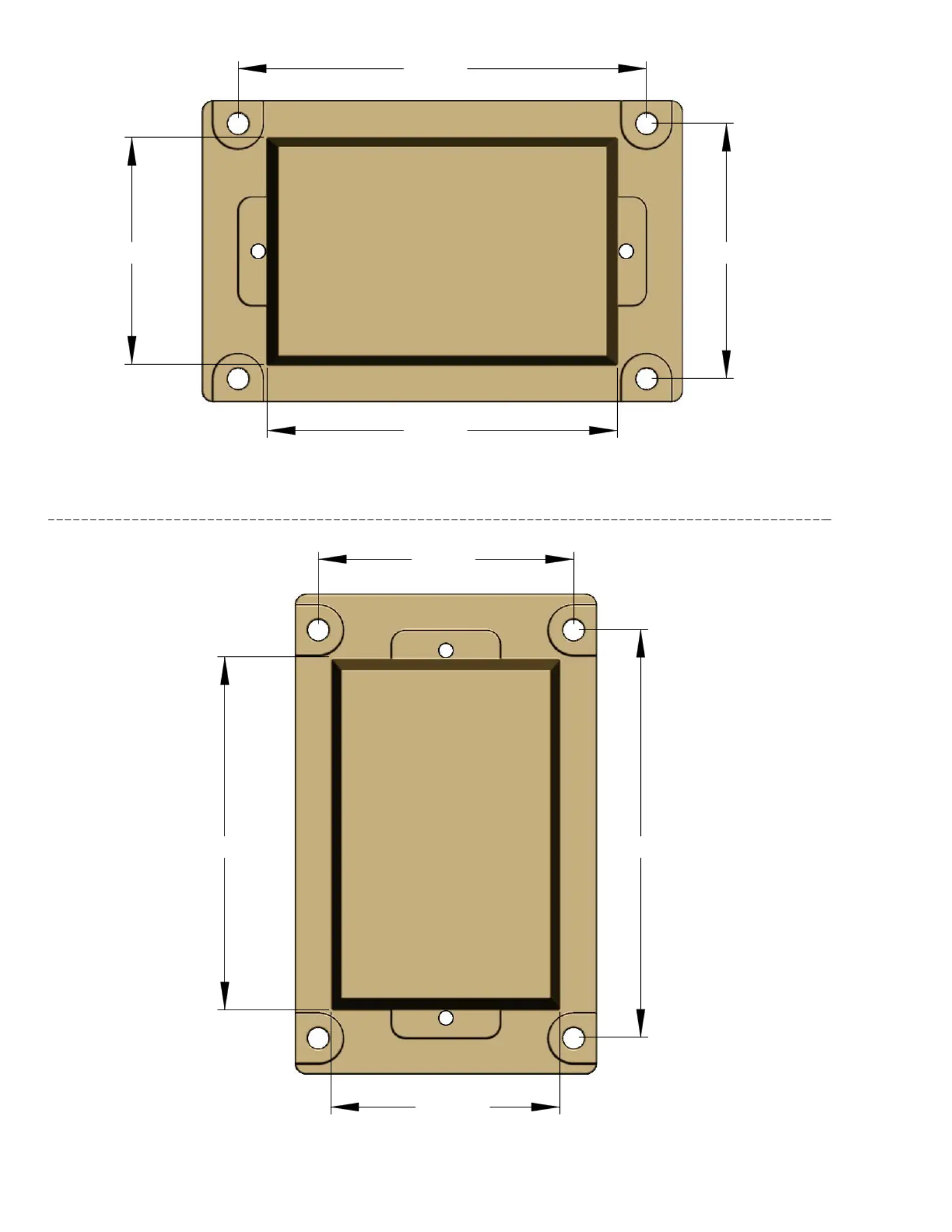

Drawing 3 (not to scale)
Mounting Instructions
2 1/4"2 1/16"
3 5/8"
3 1/8"
Back of
Fixture 3 5/8"
2 1/16"
2 1/4"
3 1/8"
Back of Fixture
Drilling Template for 1546BZ
Full Scale
Drilling Template for 1542BZ
Full Scale

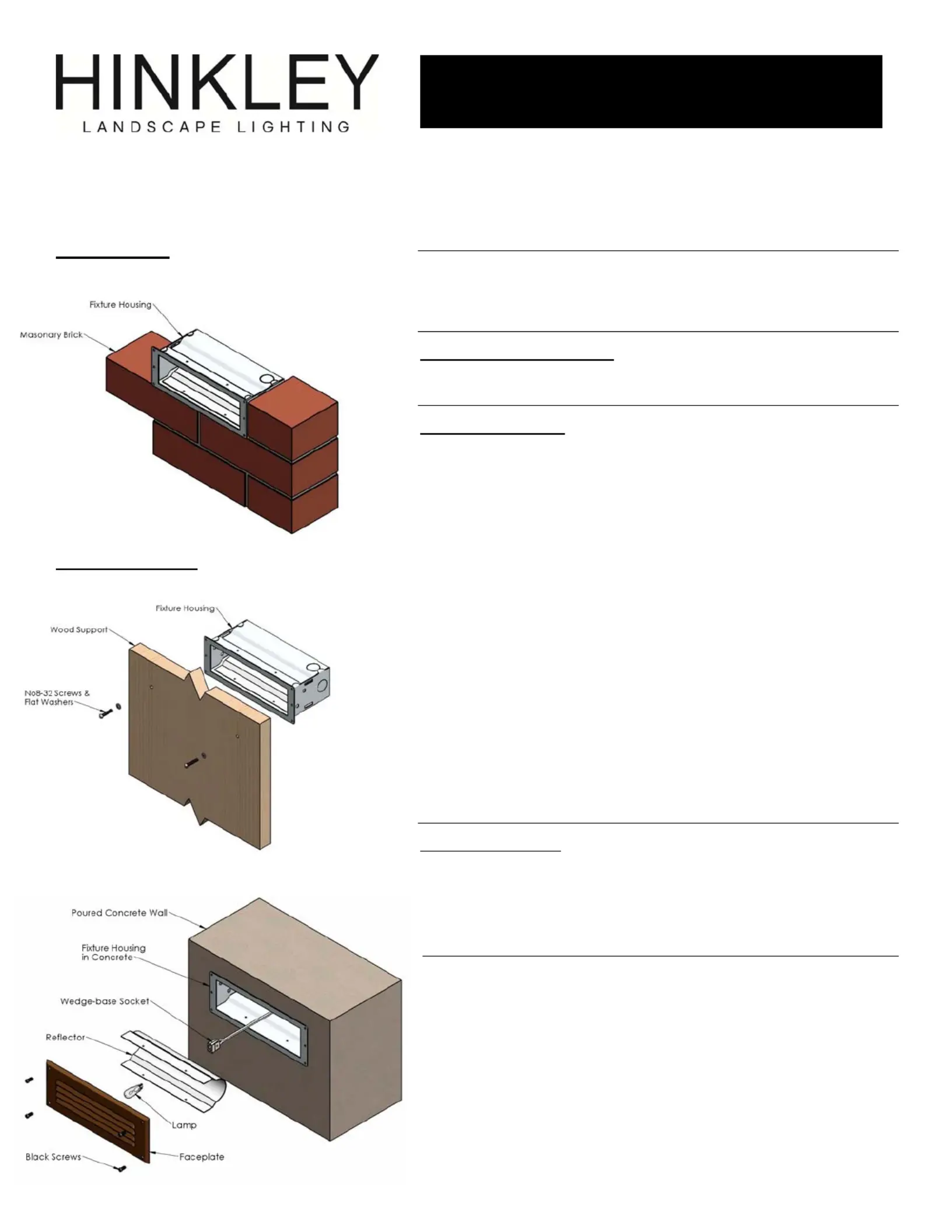

Brick Mounting
Concrete Mounting
Deck & Step Light (1546, 1542, 1594)
Low Voltage Bricklight
start here
SAFETY WARNING: TURN POWER SUPPLY OFF DURING INSTALLATION. IF
NEW WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR LOCAL
AUTHORITY FOR CODE REQUIREMENTS.
IMPORTANT OPERATION NOTE: THIS LIMINAIRE IS DESIGNED TO BE
OPERATED WITH HINKLEY APPROVED 12 VOLT AC SYSTEMS.
SAVE THESE INSTRUCTIONS
LUMINAIRE MOUNTING:
1. To prevent electrical shock, disconnect transformer from electrical supply
before installation or service.
2. Run wire to Luminaire with use of conduit before installation. The Fixture is
provided with three ½” NPT conduit knockouts. Ensure that all non-used
open holes are closed or covered before beginning installation.
3. Strip the two wire leads from the Luminaire and connect to the main supply
wire using the provided wirenuts and silicone fill.
For Masonry Installation:
4. Locate desired position of fixture and set in place with mortar. Fixture should
take the place of a standard masonry brick.
For Poured Concrete Installation:
5. Level the supplied template on wood support frame and drill two 3/16”
diameter clearance holes. Attach fixture to wood support using two No8-32
screws and washers (not supplied) as shown in illustration.
6. For a more protected installation, it is recommended to wrap fixture housing
in tar paper or masonry underlayment.
7. Pour Concrete
8. Once concrete has set, remove the wood support frame and lamp
accordingly and then attach the fixture faceplate with the four Black screws
provided with fixture.
LAMP REPLACEMENT:
1. Remove the four Black oxide screws from the faceplate using a Philips
head screwdriver.
2. Set faceplate aside for reuse in assembly.
3. Remove burned out light bulb and replace with new bulb.
4. Reattached faceplate and energize fixture.
Brick & Concrete Installation
Instructions
