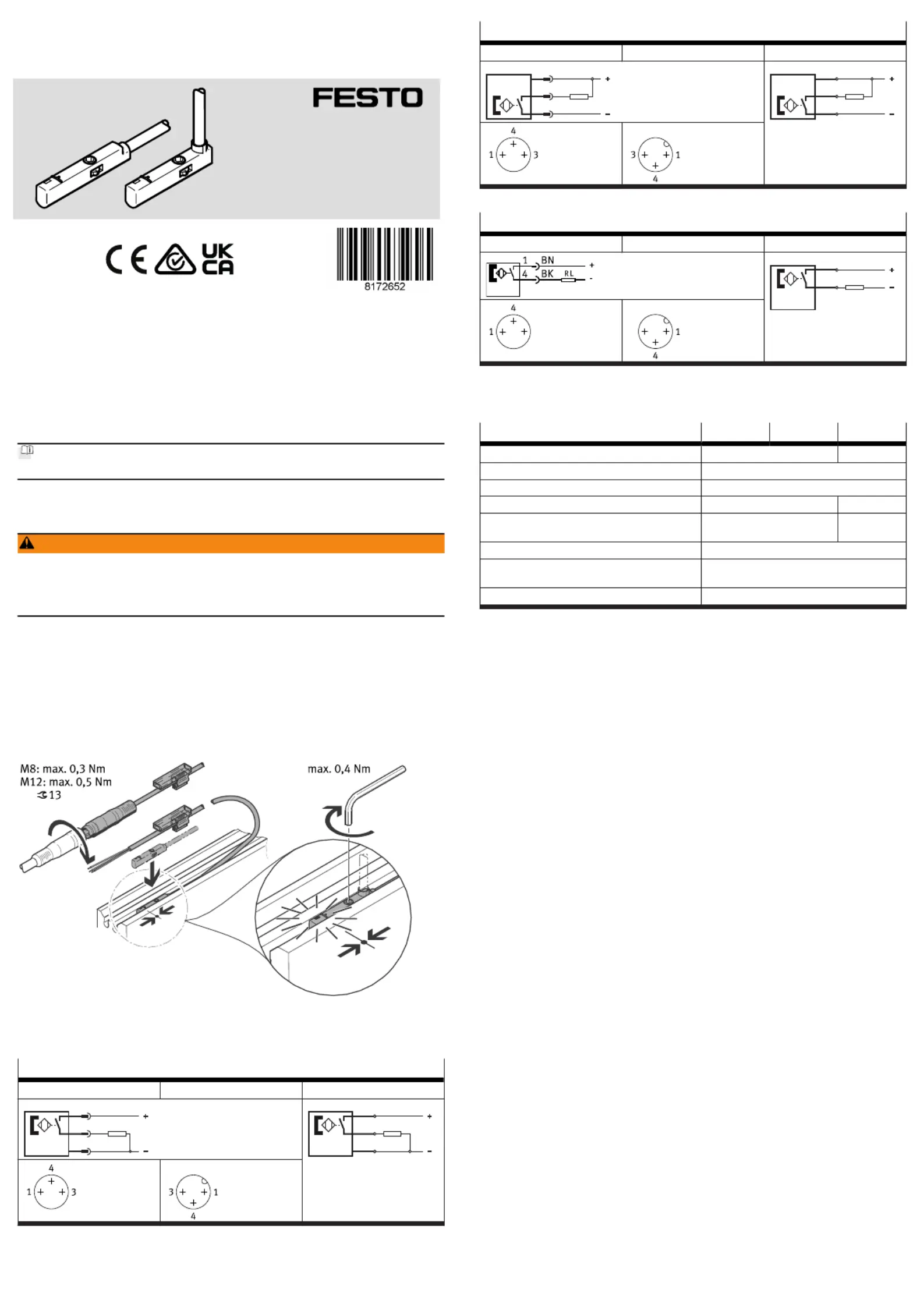

Oldal 1/1
SMT-10M
Proximity switch
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8172652
2022-05e
[8172654]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1 Applicable Documents
All available documents for the product
è www.festo.com/sp.
2 Safety
2.1 Safety instructions
WARNING
Risk of injury due to electric shock.
For the electric power supply, use only PELV circuits that ensure a reliable
electric disconnection from the mains network.
Observe IEC 60204-1/EN 60204-1.
Before working on the product: Switch off the power supply, ensure that it is off
and secure it against being switched on again.
2.2 Intended use
The proximity switch is intended for use in Festo products for sensing the position
of magnets, e.g. the position of the piston.
The product is intended for use in industrial environments.
3 Mounting
Fig. 1: Mounting
4 Electrical installation
SMT-10M-PS-24V-...
-M8/-M8D -M12 -OE
PNP
BN
BK
BU
RL
1
4
3
PNP
BN
BK
BU
RL
Tab. 1: Electrical connection SMT-10M-PS-24V-...
SMT-10M-NS-24V-...
-M8/-M8D -M12 -OE
NPN
BN
BK
BU
RL
1
4
3
NPN
BN
BK
BU
RL
Tab. 2: Electrical connection SMT-10M-NS-24V-...
SMT-10M-ZS-24V-...
-M8/-M8D -M12 -OE
BN
BU RL
Tab. 3: Electrical connection SMT-10M-ZS-24V-...
5 Technical data
SMT-10M -PS -NS -ZS
Operating voltage range [V AC] 5 … 30 7 … 30
Max. output current [mA] 100
Max. output current in mounting kit [mA] 50
Max. switching capacity [W] 2.8 2.4
Max. switching capacity in mounting
kit
[W] 1.5 1.2
Ambient temperature [°C] –40 … +70
Ambient temperature with flexible
cable installation
[°C] –20 … +70
Degree of protection IP65, IP68
Tab. 4: Technical data
