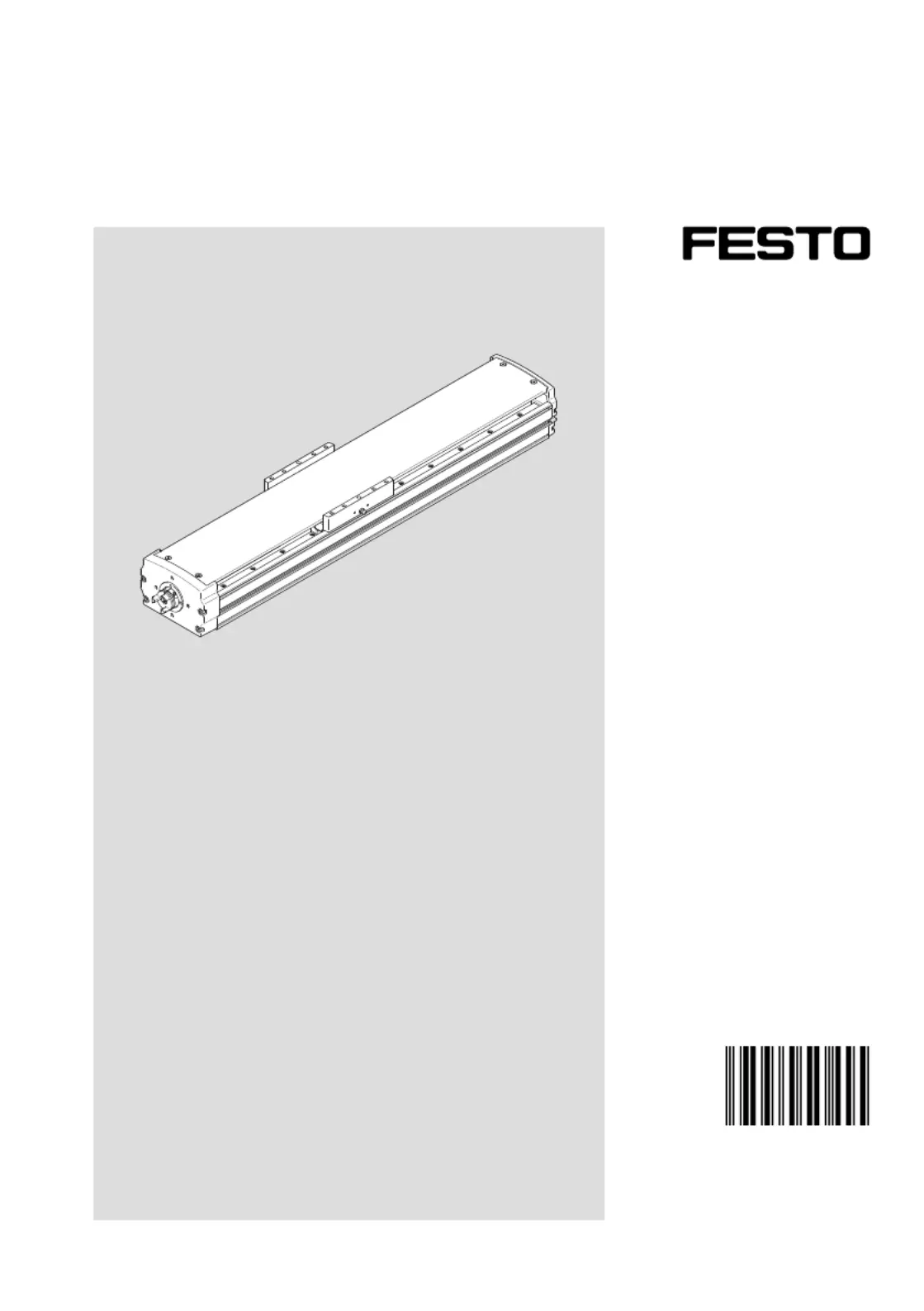

ELGT-BS
Spindle axis
Operating instruc-
tion
8190904
8190904
2023-07a
[8190906]
Translation of the original instructions
Festo — ELGT-BS — 2023-07a
3
Table of contents
1 Applicable documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Training of qualified personnel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Product overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.1 Product design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.2 Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6 Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.1 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.2 Mounting motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.3 Mounting axis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.4 Mounting payload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.5 Mounting sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.1 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.2 Check reversing backlash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.3 Cleaning axis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.4 Lubricating axis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 Fault clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.1 Technical data, mechanical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.2 Characteristic curves of support distances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10.3 Characteristic speed curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Festo — ELGT-BS — 2023-07a
Product overview
5
4 Product overview
4.1 Product design
1
2
3 4 5 6 987 11
12
13
15
14
10
Fig. 2: Product design ELGT-BS
1
Drive hub
2
Threaded hole for motor mounting kit
3
Drive cover
4
Guide rail
5
Cover
6
Ball screw lubrication point
7
Threaded hole for payload
8
Centring hole for payload
9
Guide lubrication point
10
Slide
11
End cap
12
Slot for sensors
13
Slot for profile mounting
14
Profile
15
Slot for slot nut, threaded hole and centring
hole
6
Festo — ELGT-BS — 2023-07a
Transport
1
3 74 5 6
2
Fig. 3: Surface ELGT-BS-...-AR
1
Drive hub, reflective surface
2
Drive cover retaining screw, reflective sur-
face
3
Cover retaining screw, reflective surface
4
Attachment surface of the payload on the
slide, reflective surface
5
Guide lubrication point, reflective surface
6
Guide rail and spindle, reflective surface
7
All other components, black anti-reflective
surface
4.2 Function
The axis converts the rotary motion of the mounted motor into a linear motion of the slide. The
screw drive converts the torque of the motor into a feed force. The linear movement of the slide is
precisely guided by the guide. Sensors enable the monitoring of end positions, reference position and
intermediate position.
5 Transport
WARNING
Risk of injury due to falling product
If the product is lifted incorrectly, it may fall and cut, crush or separate body parts.
• Lift the product only with suitable load-bearing equipment.
–Store and transport the product in its original packaging. Observe the weight, the dimensions and
the ambient conditions.
–Take the centre of gravity of the product into consideration.
8
Festo — ELGT-BS — 2023-07a
Assembly
Profile mounting EAHF-L2 Slot nut NST Direct fastening
Tab. 2: Overview of mounting components
Requirements:
–Adequate clearance for payload to avoid collisions with motor, mounting components and sensor
components.
–Sufficient space for maintenance work.
–Flatness of the mounting surface of 0.05%of the stroke length or maximum 0.5mm over the stroke
length of the bearing surface.
–Required support points lie within the specified support clearances è10.2 Characteristic curves
of support distances. Compliance with the support clearances prevents the axis from excessive
bending.
1. Place the mounting components on the support points.
2. Tighten the screws. Observe the maximum tightening torque and maximum screw-in depth.
When used in multi-axis systems: align to the first axis and install without tension.
ELGT-BS-... -90 -120 -160
Profile mounting EAHF-L2
Thread Instruction manual èwww.festo.com/sp.
Slot nut mounting NST
Thread, bottom M5 M6
Max. screw-in
depthtmax
[mm] 6 11.5
Direct fastening
Thread, bottom M6 M8
Max. tightening torque [Nm] 9.9 15
Max. screw-in
depthtmax
[mm] 8 7 9
Cylindrical pins [mm] 5 H7 6 H7 8 H7Æ Æ Æ
10
Festo — ELGT-BS — 2023-07a
Commissioning
3. Tighten the screws. Observe the maximum tightening torque and maximum screw-in depth.
ELGT-BS-... -90 -120 -160
Direct fastening
Thread M6 M8
Max. tightening torque [Nm] 9.9 15
Max. screw-in depthtmax [mm] 12 15
Cylindrical pins [mm] 5 H7 6 H7 8 H7ÆÆÆ
6.5 Mounting sensor
21 31 2 1
Fig. 5: Mounting switch lug, sensor and sensor bracket
1
Sensor
2
Switch lug
3
Sensor bracket
Requirements:
–Protect the sensor from external magnetic or ferritic influences with min. 10 mm distance from slot
nuts.
–Use a hardware limit switch with N/C contact function to guarantee protection in the event of a
sensor failure.
1. If necessary, mount the switch lug.
2. If necessary, mount the sensor bracket.
3. Mount the sensor.
7 Commissioning
WARNING
Risk of injury due to unexpected movement of components.
• Protect the positioning range from unwanted intervention.
• Keep foreign objects out of the positioning range.
• Perform commissioning with low dynamic response.
Festo — ELGT-BS — 2023-07a
Commissioning
11
Block-shaped acceleration profiles without jerk limitation can have the following effects:
• High mechanical loads on the lead screw due to high force peaks.
• Overshooting effects during positioning.
• Rise of the entire system.
Recommendation: reduce high force peaks in the acceleration and deceleration phases by using the
jerk limitation.
Identical axes can generate different running noises depending on the parameterisation, mode of
operation, type of mounting, installation environment and components.
For use with reduced particle emission:
• Clean product è8.3 Cleaning axis.
Requirements:
–The motor encoder is referenced to the reference mark by a homing run.
–The motor encoder has the absolute reference to the reference mark.
–The direction of movement of the slide is determined by the direction of rotation of the motor.
–The mounting of the drive system has been checked.
–The installation on the motor has been checked.
–There are no foreign objects within the range of motion of the drive system.
–Maximum permissible feed force and drive torque as a function of acceleration, deceleration,
e.g.with stop function or quick stop, speed, moving mass and mounting position, are not exceeded.
–Axis is not mechanically overloaded and dynamic setpoint deviation is not exceeded as a result of
force peaks, torque peaks or overshoot effects, e.g.overrunning the end position.
Overloads and overruns as a result of jerk limitation must be restricted by reduced acceleration and
deceleration setpoints or optimised controller settings.
–The software end positions are not within the effective range of the mechanical stops.
–No homing or test run to mechanical end stops.
1. Start check run.
2. Select permissible reference points "against reference switch" for the homing.
3. Start the homing run with reduced speed setpoints, acceleration setpoints and deceleration
setpoints.
4. Start the test run with reduced speed setpoints, acceleration setpoints and deceleration set-
points.
5. Check that the slide completes the entire travel cycle within the specified time.
ÄThe slide stops its travel when it reaches a limit switch and the drive system is ready for
operation.
12
Festo — ELGT-BS — 2023-07a
Maintenance
8 Maintenance
8.1 Safety
WARNING
Unexpected movement of components.
Injury due to impacts or crushing.
• Before working on the product, switch off the control and secure it to prevent it from being switched
back on accidentally.
8.2 Check reversing backlash
• Check the reversing backlash (reversal error) of the slide at every maintenance interval, e.g.lubri-
cation interval. If the maximum permissible reversing backlash is exceeded, replace the axis.
ELGT-BS-... -90 -120 -160
Max. permissible reversing
backlash
[mm] 0.15
8.3 Cleaning axis
–If the guide rail is dirty, clean it with a clean, soft and lint-free cloth without cleaning agents and
then apply the lubricant thinly to the guide rail.
–Clean the other product components with a clean, soft cloth and non-abrasive cleaning agents.
For use with reduced particle emission:
–Remove abraded particles and dirt from the product:
–Prior to initial commissioning.
–Regularly during operation.
8.4 Lubricating axis
Requirements:
–The pressure grease gun LUB-1, 647958, is available.
–The roller bearing grease LUB-KC1, 684474, Elkalub VP 922, is available.
–The lubrication adapter, axial output, LUB-1-KE, 744167, is available.
1. Calculate the load comparison factor fv with the formula for combined loads è10.1 Technical
data, mechanical.
Festo — ELGT-BS — 2023-07a
Maintenance
13
2. Take the lubrication interval Sint as a function of the load comparison factor fv from the character-
istic curve.
3. Determine the load factors:
–Dusty and dirty environment.
–Nominal stroke 300 mm or 2000 mm.< >
–Ambient temperature +40 °C.>
–Service age 3 years.>
–The travel profile matches triangular operation, e.g.frequent acceleration and braking.
4. If there is a load factor, halve the lubrication interval S
int. If there are multiple load factors, reduce
the lubrication interval Sint to a quarter of the standard interval.
5. If necessary, replace the needle point of the pressure grease gun with the lubrication adapter with
axial or radial outlet.
6. Press the pressure grease gun onto the lubrication nipple for the ball screw. Press in the roller
bearing grease at the rear.
ELGA-BS-... -90 -120 -160
Grease volume per lubri-
cating hole
[g] 1.4 1.4 2
14
Festo — ELGT-BS — 2023-07a
Fault clearance
7. Press the pressure grease gun on the lubrication nipples of the recirculating ball bearing guide.
Press in the roller bearing grease at the front and rear.
ELGA-BS-... -90 -120 -160
Grease volume per lubri-
cating hole
[g] 1.5 3.5 5
8. Move along the complete travel distance during the lubrication process to distribute the grease
evenly in the interior.
9. If necessary, grease other components with roller bearing grease, e.g.the guide rail.
9 Fault clearance
WARNING
Unexpected movement of components.
Injury due to impacts or crushing.
• Before working on the product, switch off the control and secure it to prevent it from being switched
back on accidentally.
WARNING
Risk of injury due to unexpected movement of components.
• Protect the positioning range from unwanted intervention.
• Keep foreign objects out of the positioning range.
• Perform commissioning with low dynamic response.
16
Festo — ELGT-BS — 2023-07a
Technical data
Malfunction Possible cause Remedy
Slide does not move. Coupling slips. –Check installation of the
shaft-hub connection è
Installation instructions for
the motor mounting kit.
Loads are too high. –Reduce forces and torques.
Consider dynamics.
Ball screw blocked. –Contact local Festo Service.
–Replace axis.
Overruns the end position. Sensor does not switch. –Check sensor, installation and
parameterisation.
Idling torque too high. Wear in the drivetrain. –Contact local Festo Service.
–Replace axis.
Tab. 3: Fault clearance
10 Technical data
10.1 Technical data, mechanical
ELGT-BS-... -90-...-10P -90-...-20P -120-...-10P -120-...-20P
Design Electromechanical axis with ball screw
Guide Recirculating ball bearing guide
Mounting position Any
Max. feed force [N] 1054 810 1265 805
Max. idling torque at max.
speed
[Nm] 0.3 0.2 0.3
Max. rotational speed [rpm] 3000
Max. speed [m/s] 0.5 1 0.5 1
Max. acceleration [m/s2] 15
Repetition accuracy [mm] ±0.02
Feed constant [mm/
rev]
10 20 10 20
Ambient temperature [°C] 0…+50
Storage temperature [°C] –20…+60
Degree of protection IP20

Termékspecifikációk

Márka: Festo
Kategória: nincs kategorizálva
Modell: ELGT-BS-120-700-20P

Szüksége van segítségre?

Ha segítségre van szüksége Festo ELGT-BS-120-700-20P, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók nincs kategorizálva Festo

Festo

Festo DFM-50-80-B-PPV-A-KF Útmutató

30 Március 2025
Festo

Festo SOEG-RSP-M12-PS-S-2L Útmutató

30 Március 2025
Festo

Festo DFPC-125-150-D Útmutató

30 Március 2025
Festo

Festo DADM-TK-65 Útmutató

30 Március 2025
Festo

Festo DFM-25-B Útmutató

30 Március 2025
Festo

Festo NEBM-L10G14-EH-7.5-Q6N-LE12 Útmutató

30 Március 2025
Festo

Festo DFM-32-40-B-PPV-A-GF Útmutató

30 Március 2025
Festo

Festo DFM-40-25-B-PPV-A-KF Útmutató

30 Március 2025
Festo

Festo DDPC-80 Útmutató

30 Március 2025
Festo

Festo DFM-63- -B Útmutató

30 Március 2025

Útmutatók nincs kategorizálva

Legújabb útmutatók nincs kategorizálva

AEG

AEG AirFry A9OOAFWM Útmutató

1 Április 2025
Atlona

Atlona AT-HDR-EX-70C-TX Útmutató

1 Április 2025
Parallels

Parallels Plesk Panel 11.5 Útmutató

1 Április 2025
Sunny

Sunny Fresh Art Easel Útmutató

1 Április 2025
Crestron

Crestron CAEN-1X1 Útmutató

1 Április 2025
Crestron

Crestron CAEN-4X2 Útmutató

1 Április 2025
Hamlet

Hamlet HXD25TCU31 Útmutató

1 Április 2025
Crestron

Crestron CAEN-7X1 Útmutató

1 Április 2025
Crestron

Crestron CAEN-7X2 Útmutató

1 Április 2025
Crestron

Crestron CAEN-2X1 Útmutató

1 Április 2025
