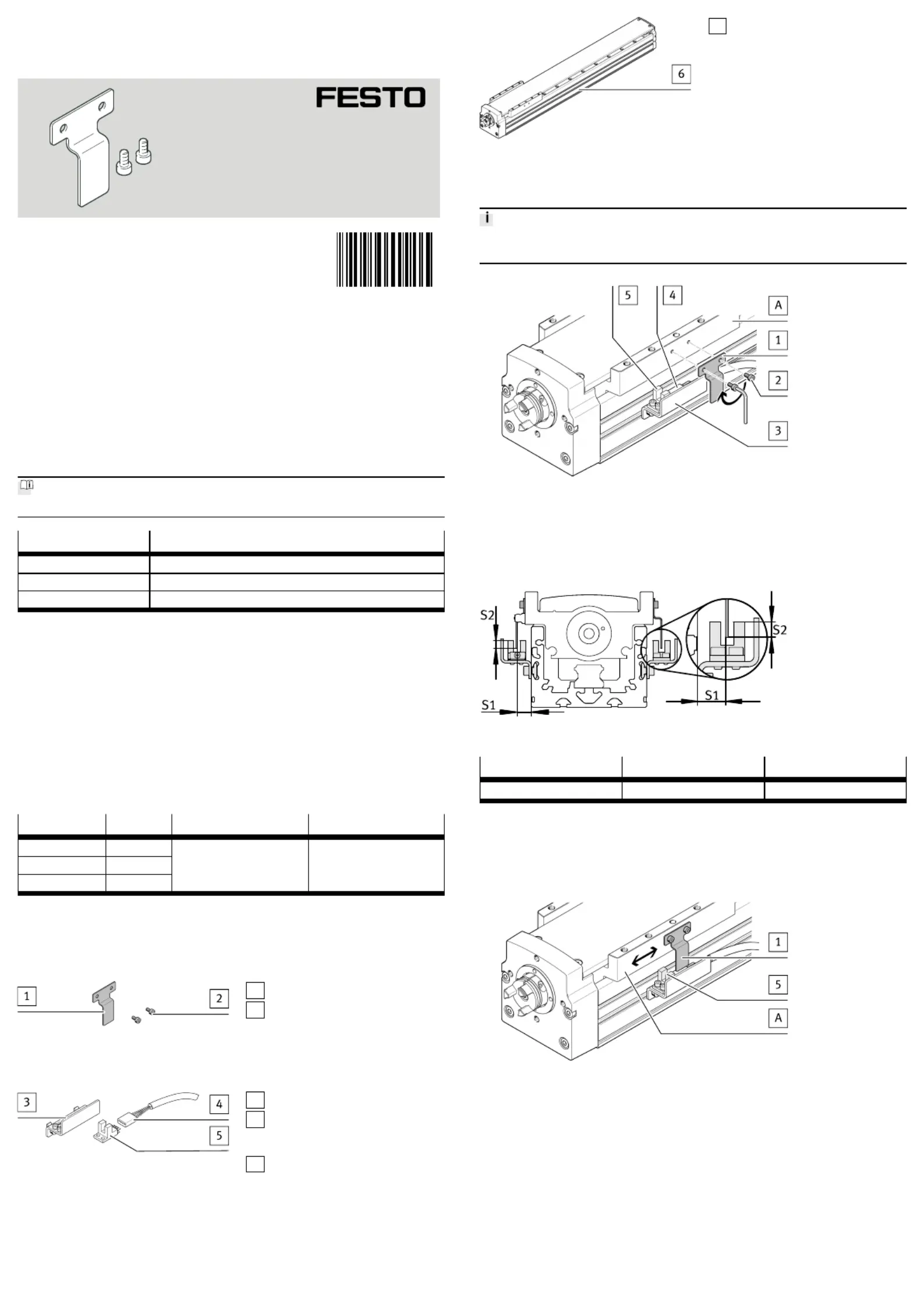

Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
OMRON® is a registered trademark of its respective trademark holder in certain
countries.
1 Applicable documents
All available documents for the product www.festo.com/sp.è
Document Product
User documents Actuator
User documents Proximity switches
User documents Sensor bracket
Tab. 1
2 Safety
2.1 Safety instructions
Only mount the product on components that are in a condition to be safely
operated.
Observe tightening torques.
2.2 Intended use
2.2.1 Use
Triggering the switching function of an optical microsensor from OMRON for query
of the slide position of an actuator.
2.2.2 Permissible components
Switch lug Actuator Proximity switches Sensor bracket
EAPM-L9-90-SLE ELGT-BS-90
EAPM-L9-120-SLE ELGT-BS-120
EAPM-L9-160-SLE ELGT-BS-160
Optical microsensor
OMRON,Series EE-SX674
EAPM-L9-SHE
Tab. 2
3 Product Range Overview
3.1 Scope of delivery
1Switch lug (1x)
2Screw (2x)
M3x6
Fig. 1
3.2 Not in scope of delivery
3Sensor bracket (1x)
4Connector (1x)
EE-1001/1001-1, EE-1006,
EE-1009 (OMRON)
5Sensor (1x)
Series EE-SX674 (OMRON)
Fig. 2
6Actuator (1x)
ELGT-BS
Fig. 3
4 Assembly
The switch lug, sensor bracket and proximity switch can be mounted on the left or
right of the actuator .6
Fig. 4 Mount the switch lug on the actuator
1. Fasten the switch lug with screws to the slide[A]. Tightening torque:1 2
1.2Nm±10%.
2. Mount sensor bracket Applicable documents.3è
3. Ensure compliance with the sensor distancesS.
Fig. 5 Sensor distances
Sensor distance S1 S2
[mm] 11.5±1 6±0.3
Tab. 3
5 Test run
1. Switch on power supply.
2. In case of motors with a brake: release the brake.
Fig. 6 Test run
Move the slide[A] with the switch lug slowly over the sensor .1 5
ÄSensor switches.5
8140654
EAPM-L9-...-SLE
Switch lug
8140654
2020-08
[8140656]
Assembly instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
