Bus node
CPX-FB40
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Brief description
Translation of the original instructions
8101660
2018-11a
[8101662]
Bus node CPX-FB40 English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For all available product documentation è www.festo.com/pk
1 Intended use
The module described in this document is intended for use as a participant in an
Ethernet POWERLINK network in an industrial environment. Outside of industrial
environments, e.g. in commercial and mixed-residential areas, actions to suppress
interference may have to be taken.
The module is intended exclusively for use in CPX terminals from Festo for installation
in machines or automated systems and may be used only in the following ways:
– in an excellent technical status
– in original status without unauthorised modifications, except for the adapta
tions described in this documentation
– within the limits of the product defined through the technical data.
2 Safety
This documentation is directed exclusively at technicians trained in control and
automation technology.
You can find detailed information in the description for the module
(è P.BE-CPX-FB40-…) as well as in the CPX system description
(è P.BE-CPX-SYS-…).
Warning
Electric shock
Injury to people, damage to the machine and system
For the electrical power supply, use only PELV circuits in accordance with
IEC 60204-1 (Protective Extra-Low Voltage, PELV).
Observe the general requirements of IEC 60204-1 for PELV circuits.
Use only voltage sources which guarantee reliable electrical isolation of the
operating and load voltage in accordance with IEC 60204-1.
Always connect all circuits for operating and load voltage supplies U
EL/SEN,
UVAL and UOUT
.
Note
Electrostatically sensitive devices
Do not touch any components.
Observe the handling specifications for electrostatically sensitive
devices.
Note
Take into consideration the specifications and notes in the module description
and the assembly instructions for the components.
Commission the module only if fully mounted and wired.
Ethernet POWERLINK®, SPEEDCON® are registered trademarks of the
respective trademark owners in certain countries.

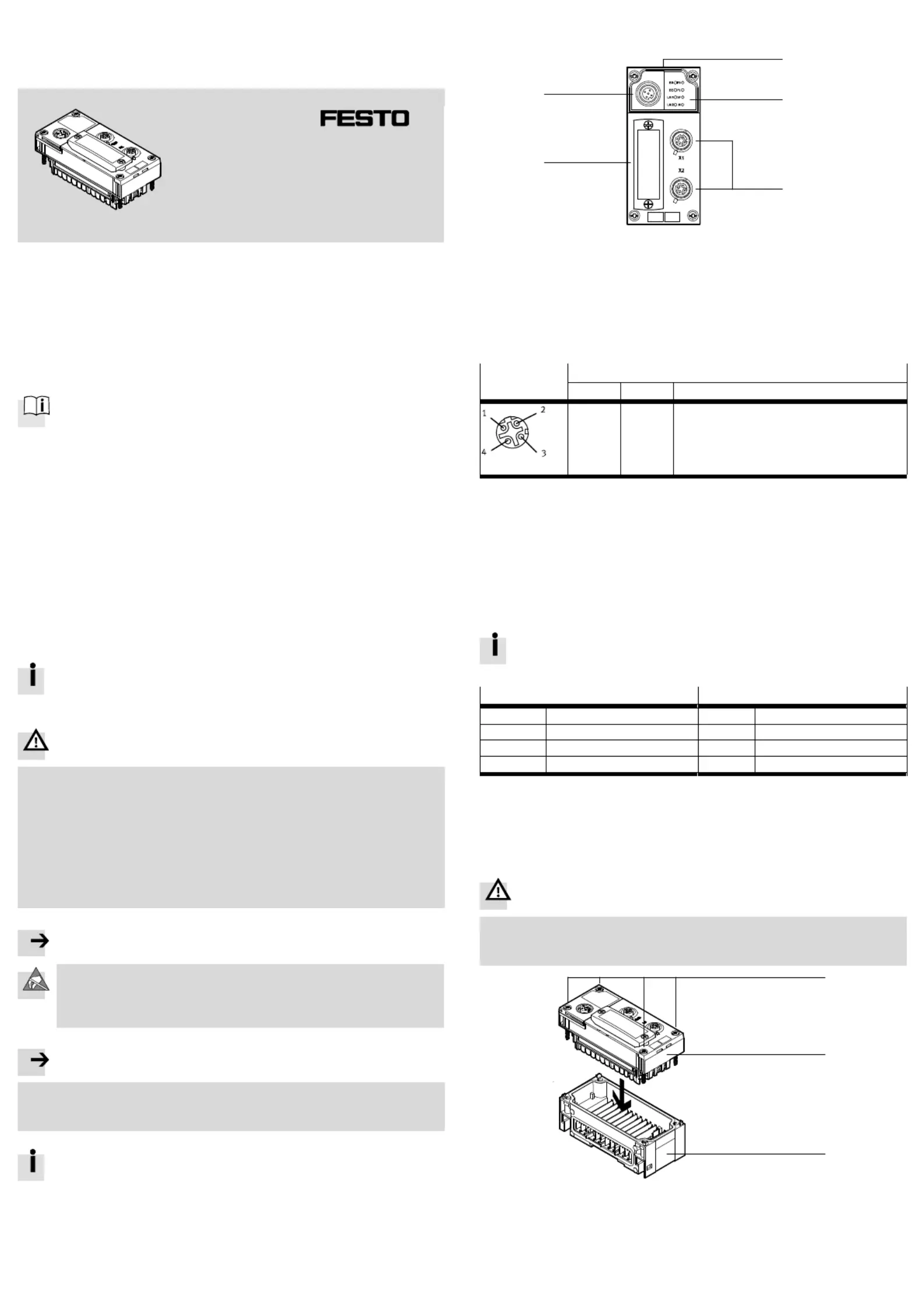

3 Electrical connections and indicators
1
2
3
4
5
1Rating plate
2Network- and CPX-specific LEDs
3Network connections X1 and X21)
4DIL switch cover
5Service interface
2) for CPX-MMI or
the adapter3) for the CPX-FMT
1) M12 socket, D-coded, 4-pin
2) M12 socket, A-coded, 5-pin
3) Adapter NEFC-M12G5-0.3-U1G5 for paramet
erisation via a USB connection
Fig. 1
3.1 Network connections
Socket Connection [X1]/[X2]
Pin Signal Explanation
M12, 4-pin
1
2
3
4
Housing
TD+
RD+
TD–
RD–
FE
Transmitted data +
Received data +
Transmitted data –
Received data –
Screening/FE1)
1) The screened connection is connected to the earth potential of the CPX terminal through an RC element.
Fig. 2
3.2 LED indicators - normal operating status
Behaviour of the LED indicators in normal operating status:
– the green LEDs BS, PS and PL are illuminated
– the green LEDs L/A1 and L/A2 are illuminated or flash if a network cable is con
nected
– the yellow LED (M) is illuminated, flashes or is dark
– the red LEDs (BE, SF) are not illuminated.
A network cable does not need to be connected at both network connec
tions.
Network-specific LED indicators CPX-specific LED indicators2)
BS (green) Data communication OK1) PS (green) Power system
BE (red) Data communication faulty1) PL (green) Power load
L/A1 (green) Link/activity port 1 SF (red) System failure
3)
L/A2 (green) Link/activity port 2 M (yellow) Modify4)
1) Detailed information (è description for the module P.BE-CPX-FB40-…)
2) Detailed information (è CPX system description P.BE-CPX-SYS-…)
3) Flashes in case of error, error diagnostics (è CPX system description P.BE-CPX-SYS-…)
4) Parameterisation revised or “Force” active.
Fig. 3
4 Mounting and dismantling
Warning
Electric shock
Injury to people, damage to the machine and system
Switch supply power off before assembly work.
2
3
1
1Screws
2Module
3Interlinking block
Fig. 4
4.1 Mounting
Note
Material damage due to incorrect mounting
Select screws that are suitable for the material of the interlinking block:
– Plastic: Thread-cutting tapping screws
– Metal: Screws with metric thread.
When ordering a single module without a CPX terminal, all required screws
are supplied.
1. Check seal and sealing surfaces. Replace damaged parts.
2. Push the module carefully and without tilting into the interlinking block up to the
stop.
3. Turn the screws into the existing thread.
4. Tighten the screws in diagonally opposite sequence. Tightening torque:
0.9 … 1.1 Nm.
4.2 Dismantling
1. Unscrew screws.
2. Pull the module without tilting out of the interlinking block.
5 Power supply
The operating and load voltage supply is fed in via the interlinking block
( P.BE-CPX-SYS-…).è CPX system description

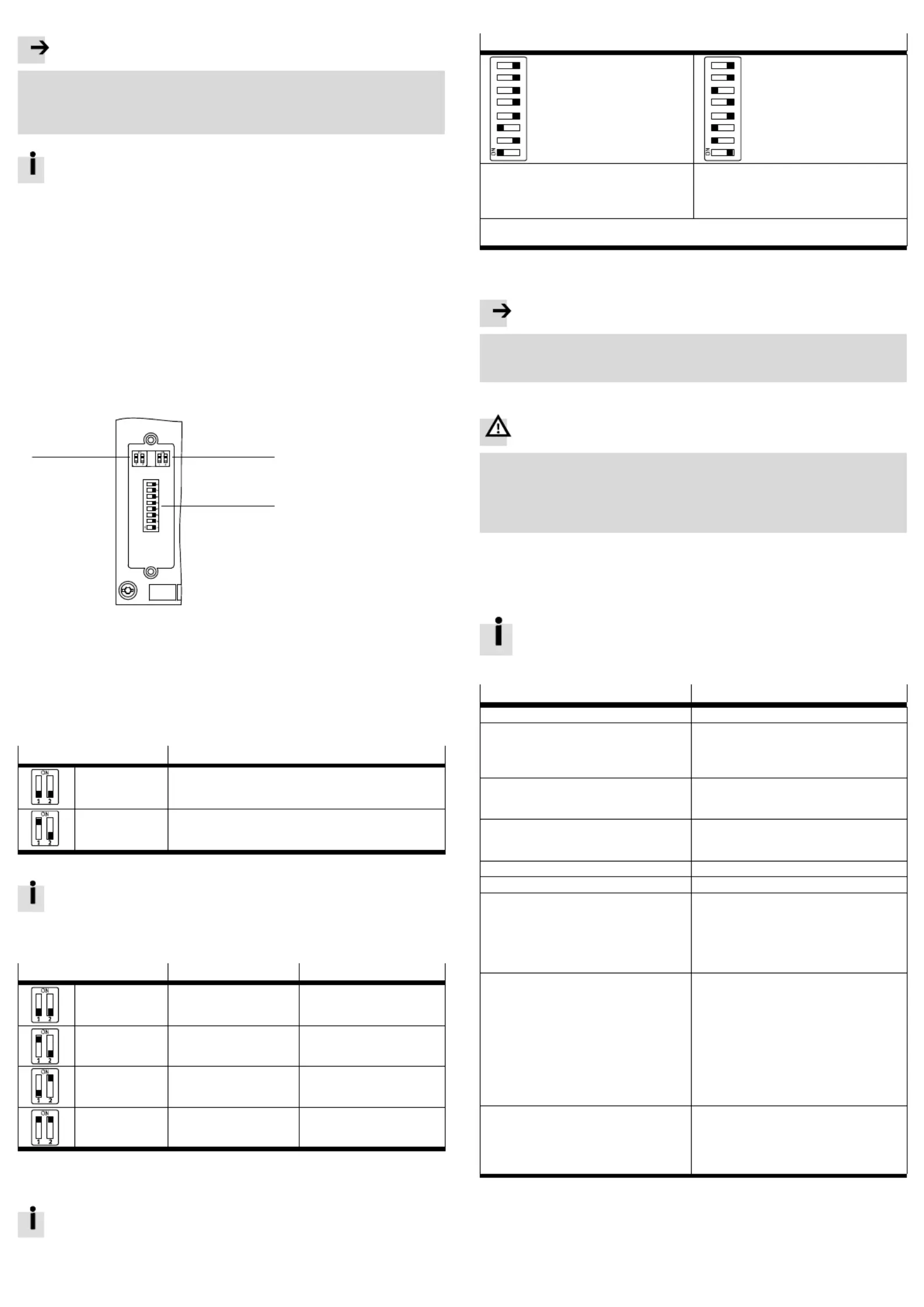

6 DIL switch elements
1 2
3
1DIL switch 1: Operating mode
2DIL switch 2:1)
– Diagnostics mode (remote I/O)
– I/O mode (remote controller)
3DIL switch 3: Station number
1) Dependent on the operating mode (è DIL switch 1)
Fig. 5
6.1 DIL switch 1: (Operating mode)
Setting DIL switch 1 Operating mode
DIL 1.1: OFF
(Factory setting)
Remote I/O
All functions of the CPX terminal are controlled directly by the
Ethernet POWERLINK controller or a higher-order controller.
DIL 1.1: ON Remote controller
An FEC or CEC integrated into the CPX terminal controls all
functions of the CPX terminal.
Fig. 6
– The setting of the operating mode via DIL switch 1.1 has priority over all
other settings.
– The switch element 1.2 is reserved and without function.
6.2 DIL switch 2 (diagnostics or I/O mode)
Setting DIL switch 2 Diagnostics mode1) I/O mode2)
DIL 2.1: OFF
DIL 2.2: OFF
(Factory setting)
I/O diagnostics interface
and status bits are switched
off
8 byte I/8 byte O for communic
ation of the bus node with the
CPX-FEC or CPX-CEC.
DIL 2.1: ON
DIL 2.2: OFF
I/O diagnostics interface is
switched on
Reserved
DIL 2.1: OFF
DIL 2.2: ON
Status bits switched on 16 byte I/16 byte O for commu
nication of the bus node with
the CPX-FEC or CPX-CEC.
DIL 2.1: ON
DIL 2.2: ON
Reserved Reserved
1) Only in the remote I/O operating mode
2) Only in the remote controller operating mode
Fig. 7
The diagnostics mode reduces the available address space.
Take account of this fact when planning the CPX terminal.
– Further information can be found in the description for the module
(è P.BE-CPX-FB40-…).
6.3 DIL switch 3 (IP addressing)
Static addressing (host ID of the IP address)
1 2 3 4 5 6 7 8
3.8:
3.7:
3.6:
3.5:
3.4:
3.3:
3.2:
3.1:
27 =
26 =
25 =
24 =
23 =
22 =
21 =
20 =
128
64
32
16
8
4
2
1
1 2 3 4 5 6 7 8
3.8:
3.7:
3.6:
3.5:
3.4:
3.3:
3.2:
3.1:
27 =
26 =
25 =
24 =
23 =
22 =
21 =
20 =
128
64
32
16
8
4
2
1
Example:
20 + 22 = 1 + 4 = 5 (host ID)
Set IP address: 192.168.100.005
Example:
21 + 22 + 25 = 2 + 4 + 32 = 38 (host ID)
Set IP address: 192.168.100.038
Permitted numbers: 1 … 239
Factory setting: 1
Fig. 8
7 Parameterisation
Note
The CPX terminal and the module described here can be parameterised with the
operator unit (CPX-MMI), the Festo Maintenance Tool (CPX-FMT) software or the
higher-level system.
8 Note on module replacement
Caution
For CPX terminals with a continuously illuminated or flashing Modify LED (M),
parameterisation is not automatically created by the higher-level system when
the CPX terminal is replaced during servicing.
Before replacement, note required settings and make them again after
replacement.
9 Start-up behaviour of the CPX terminal
If the Modify LED (M) lights up or flashes permanently after the system start, “Sys
tem start with saved parameterisation and saved CPX expansion” is set or “Force”
is active.
Additional information on parameterisation, module replacement and
start behaviour can be found in the description (è P.BE-CPX-FB40-…).
10 Technical data
Feature Specification/value
General technical data è CPX system description(P.BE-CPX-SYS-…)
Degree of protection through housing1)
in accordance with IEC 60529, completely
mounted, plug connector in plugged-in status
or equipped with cover caps2).
IP65/IP67
Protection against electric shock
Protection against direct and indirect contact
in accordance with IEC 60204-1
through the usage of PELV circuits (protective
extra-low voltage)
Intrinsic current consumption at 24 V
from operating voltage supply for electronics/
sensors (UEL/SEN)
typ. 100 mA (internal electronics)
Separation of network interfaces to UEL/SEN Galvanically separated
Mains buffering time 10 ms
Module code (CPX-specific)
Remote I/O
Remote controller
Module identifiers (CPX-MMI, CPX-FMT)
Remote I/O
Remote controller
224 (sub-module code 4)
171 (sub-module code 4)
FB40 Powerlink Remote I/O
FB40-RC Powerlink Node
Network-specific characteristics
Protocol
Specification
Transmission rate
Max. address capacity, inputs/outputs
Cycle time
Answer delay time (PReq/PRes)3)
Delay time of integrated hub
Crossover detection
Connection length
Ethernet POWERLINK
IEC 617842 (CPF13), IEC 61158
100 Mbit/s, half-duplex operation
64 byte/64 byte (operating-mode-independent)
Min. 600 μs
Max. 10 μs
< 1 μs
Auto-MDI/MDI-X
Max. 100 m
Cable specification
Cable type
Transmission class
Cable diameter
Wire cross section
Industrial Ethernet cable, screened
Category Cat 5
6 … 8 mm
0.14 … 0.75 mm2, AWG 224)
1) Observe that connected devices may only satisfy a lower degree of protection or smaller temperature
range, etc.
2) Cover caps ISK-M12 included in scope of delivery.
3) Poll-request-to-poll-response
4) Required for maximum connection length between the network participants.
Fig. 9

Termékspecifikációk

Márka: Festo
Kategória: nincs kategorizálva
Modell: CPX-FB40

Szüksége van segítségre?

Ha segítségre van szüksége Festo CPX-FB40, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók nincs kategorizálva Festo

Festo

Festo MUC-25 Útmutató

1 Október 2024
Festo

Festo DAMH-L8-20-PL-1 Útmutató

1 Október 2024
Festo

Festo EHAM-H1-20-L2-80 Útmutató

1 Október 2024
Festo

Festo EAHF-E24-60-P-S Útmutató

1 Október 2024
Festo

Festo DADG-D-F8-16/20 Útmutató

1 Október 2024
Festo

Festo EAHM-E15-60-E22 Útmutató

1 Október 2024
Festo

Festo ELGT-BS-160-1000-20P Útmutató

1 Október 2024
Festo

Festo SMBS-1 Útmutató

1 Október 2024
Festo

Festo SMBS-2 Útmutató

1 Október 2024
Festo

Festo EAHH-P2-60 Útmutató

1 Október 2024

Útmutatók nincs kategorizálva

Legújabb útmutatók nincs kategorizálva

Roland

Roland SD-20 Útmutató

16 Október 2024
SilverCrest

SilverCrest SRG 1300 C3 Útmutató

16 Október 2024
IFM

IFM TY0058 Útmutató

16 Október 2024
Thule

Thule Kit 186039 Útmutató

16 Október 2024
Blumfeldt

Blumfeldt Solidflor Útmutató

16 Október 2024
Dimplex

Dimplex QRAD200E Útmutató

16 Október 2024
DAS Audio

DAS Audio AX-112-5 Útmutató

16 Október 2024
Ferplast

Ferplast Ergocomfort Freetime Útmutató

16 Október 2024
AEG

AEG MECK52 Útmutató

16 Október 2024
Black Diamond

Black Diamond BD1121530000ALL1 Útmutató

16 Október 2024
