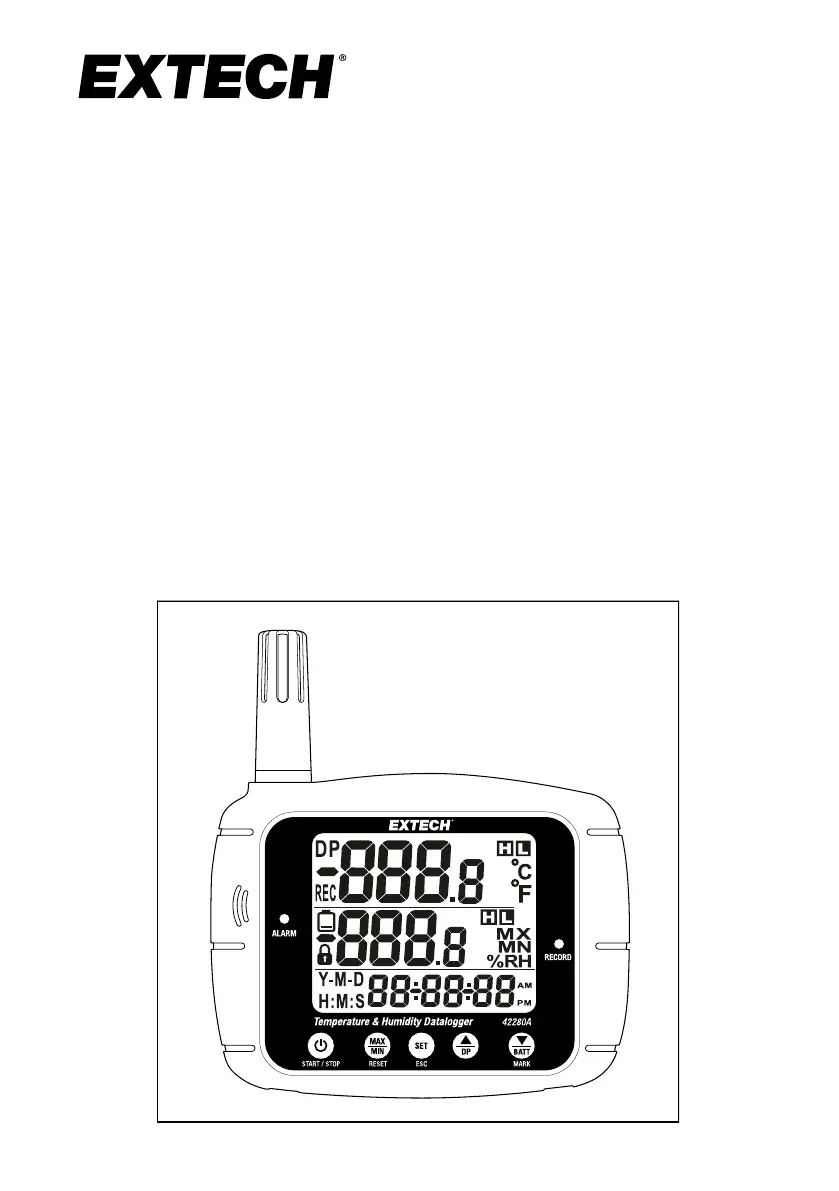

Quick Start
42280A Temperature &
Humidity Datalogger
Introduction
The 42280A is a portable, battery operated instrument that moni-
tors, displays, and logs Temperature and Relative Humidity (RH).
The 42280A can monitor environmental conditions in a variety of
residential and commercial storage and in-transit locations.
The 42280A logs up to 48,000 readings for later PC transfer and
generates comprehensive reports that include detailed statistical
analyses with high/low alarms.
Download the User Manual from the support site for detailed in-
structions and additional language translations:
https://support.flir.com
Quick Steps
Install four (4) AA batteries in the rear compartment. An
optional 9 V adapter is available.
Short press the power button to switch on the 42280A.
Temperature is shown on the top display row, RH on
middle row, and date/time on bottom. Short press the
DP button to show the Dew Point on middle row. Short
press the MAX/MIN button to step through the highest
(MX), lowest (MN), and current readings. Long press
the MAX/MIN button to reset the MAX/MIN memories.
Configure the logger using a PC or the 42280A keypad, per the instructions in
the following sections, and then return to this section.
Long press the START/STOP button to start logging.
The green recording LED and the display icon willREC
flash. If you set a Start Delay in the configuration proc-
ess, the icon will not flash until the delay timeREC
elapses.
Place the logger in the area to be monitored.
Long press the START/STOP button to stop logging.
The recording LED and display icon will switch off.REC
#NAS100130; r. AA/88663/88663; en-US 1
Connect to the PC to generate log reports. Open the supplied application,
click the PDF or Excel tab, and follow the on-screen prompts.
Short press the power button to switch off the 42280A.
Logger Configuration (PC)
With 42280A power on, connect to a PC using the supplied USB
cable. The PC recognizes the 42280A as an external drive. The
drive contains the ‘PDF Logger Configuration Tool’ software. Open
the program and configure the logger as explained below.
Parameter Description
1 Tabs Click ‘Configuration’ to start. After logging, click the
PDF and Excel tabs to create reports.
2 Language Set the report language.
3Sampling
Rate
Rate at which readings are logged.
4 Start Delay Set a timer to delay logging start.
5Units Select or temperature units.℃ ℉
6 Password Set a 16 character (max.) password.
#NAS100130; r. AA/88663/88663; en-US 2
