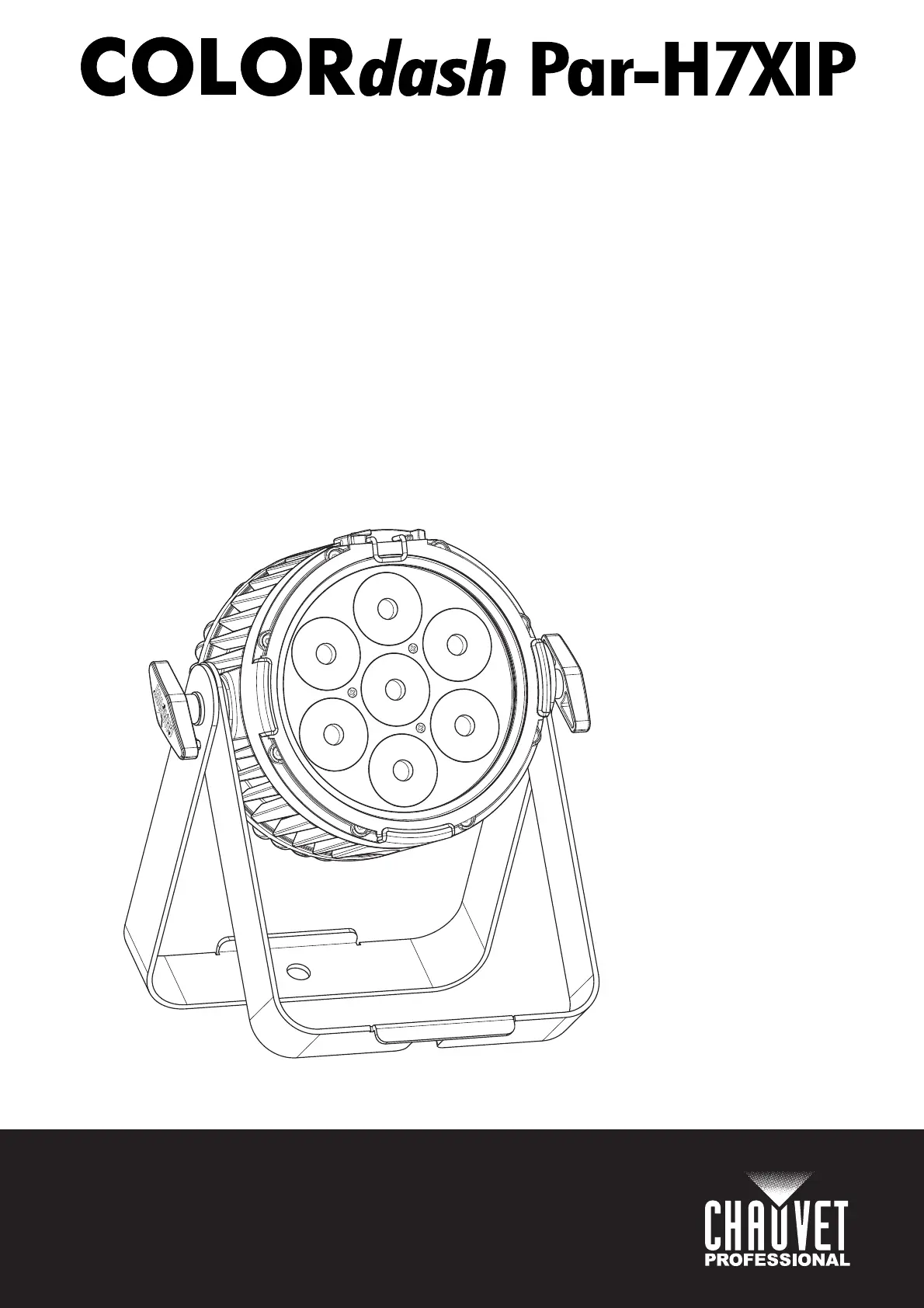

Quick Reference Guide
Model ID: COLORDASHPARH7XIP
1
EN
QUICK REFERENCE GUIDE
COLORdash Par-H7XIP QRG Rev. 2
About This Guide
The COLORdash Par-H7XIP Quick Reference Guide (QRG) has basic product information such as mounting, menu
options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than
20 in (0.5 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord
exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with
adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• Not for permanent outdoor installation in locations with extreme environmental conditions.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us at the end of this QRG for contact information.
EN
2
COLORdash Par-H7XIP QRG Rev. 2
QUICK REFERENCE GUIDE
What is Included
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Power Linking
It is possible to power link up to 16 COLORdash Par-H7XIP products at 100 V, 20 products at 120 V, 34 products at
208 V, or up to 37 products at 230 V or 240 V. Never exceed this number. Power-linking cables can be purchased
separately.
DMX Linking
The COLORdash Par-H7XIP will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is
available from www.chauvetprofessional.com.
DMX Connection
The COLORdash Par-H7XIP uses a 3- or 5-pin DMX data connection for its DMX personalities: 6CH 8CH 9CH, , , , 13CH
and 14CH. See the User Manual for information about connecting and configuring the product for DMX operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers
have this capability. The COLORdash Par-H7XIP supports RDM protocol that allows feedback to make changes to menu
map options. Download the User Manual from www.chauvetprofessional.com for more details.
Mounting
Before mounting this product, read the Safety Notes. Make sure the mounting clamps are capable of supporting the
weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.
Mounting Diagram
• COLORdash Par-H7XIP
• Seetronic Powerkon IP65 power cable
• Gel frame holder
• Gel frame
• Quick Reference Guide
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
!
Safety cable
Mounting clamp
Overhead mounting Surface mounting
