INSTALLATION, MAINTENANCE
AND USE INSTRUCTIONS FOR
FREE-STANDING COOKERS
90x60 cm GIANT OVEN
INSTALLATION, MAINTENANCE AND USE INSTRUCTIONS FOR
FREE-STANDING COOKERS 90x60 cm GIANT OVEN
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or
improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this booklet. In
addition, the appearance of the figures reported is also purely indicative.
The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting
the essential safety and operating characteristics.
THIS APPLIANCE HAS BEEN DESIGNED FOR NON-PROFESSIONAL DOMESTIC USE.
3100097
2
WARNING:
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
Do not use sharp metal scrapers to clean the oven door glass/the glass of hinged lids of the hob (as appropriate), since they
can scratch the surface, which may result in shattering of the glass.
Steam cleaner is not to be used.
Any spillage should be removed from the lid before opening. The hob surface should be allowed to cool before closing the lid.
The appliances are not intended to be operated by means of an external timer or separate remote-control system.
If the range is not installed directly on the floor, but is placed on a base, measures have to be taken to prevent the appliance
slipping from the base.
The appliance must not be installed behind a decorative door in order to avoid overheating.
INSTALLING THE SYSTEM TO PREVENT TILTING OF THE APPLIANCE

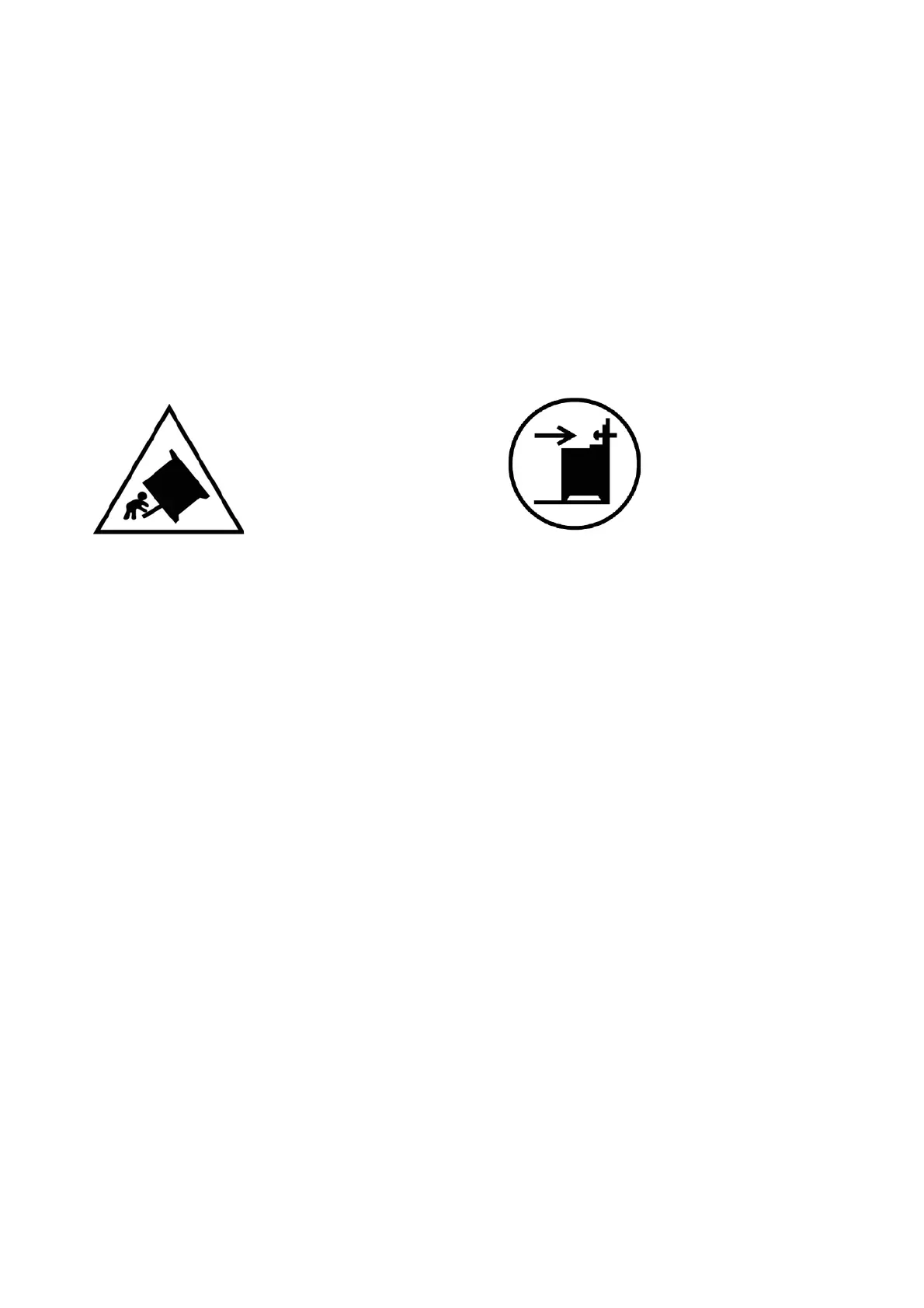

Caution, possibility of tilting Anti-tip restraints
To prevent the appliance from accidentally e provided with the appliance must be installed. Insttilting, the anti-tilting devic allation
instruction are included in the anti-tilting device kit supplied.
INSTALLER TECHNICAL MANUAL
APPLIANCE GAS CONNECTION
Before connecting the appliance to the gas network, make sure that the data on the label attached to the food warmer
drawer or on the back of the cooker are compatible with what is indicated for the gas distribution network.
A label attached to the last page of this handbook and in the food warmer drawer (or on the back) of the appliance
indicates the appliance adjustment conditions: type of gas and operating pressure.
IMPORTANT: This appliance must be installed in compliance with current national standards in force and used only in
a well-ventilated room.
WARNING: It should be recalled that the appliance utilises a threaded 1/2" gas cylindrical male fitting according to UNI-
ISO 228-1.
To connect the appliance to the gas network with a flexible rubber hose, a supplemental hose nipple fitting is needed
(see Fig. 1) which is supplied with the appliance.
ADAPTATION TO DIFFERENT TYPES OF GAS
Before performing any maintenance operation, disconnect the appliance from the gas supply and electricity network.
REPLACING THE NOZZLES TO OPERATE WITH ANOTHER TYPE OF GAS:
Follow the instructions below to change the burner nozzles on the work surface:
1) Pull out the plug from the electric outlet to avoid any type of electric contact.
2) Remove the grids from the work surface (Fig. 2).
3) Remove the burners (Fig. 2).
4) Unscrew the nozzles using a 7 mm spanner, and replace them (Fig. 3) with those needed for the new type of gas according
to what is indicated in Table 1.
Follow the instructions below to change the oven burner nozzle:
1) Remove the oven level (Fig. 4-5).
2) Loosen the screw V and pull out the burner from the support being careful not to damage the ignition plug and the
thermocouple (Fig. 6).
3) Unscrew the nozzle R (Fig. 6) using a 7 mm spanner and replace it with the nozzle needed for the new type of gas according
to what is indicated in Table 2 or in Table 3.
Follow the instructions below to change the grill burner nozzle:
1) Loosen the screw at the end of the grill burner and pull out the burner from the support being careful not to damage the
ignition plug and the thermocouple (Fig. 7).
2) Unscrew the nozzle R (Fig. 7) using a 7 mm spanner and replace it with the nozzle needed for the new type of gas according
to what is indicated in Table 2 or in Table 3.
WARNING: After completing the above-mentioned replacements, the technician must adjust the burners, as described
in the paragraph below, seal any adjustment and pre-adjustment devices and apply the label on the
3
appliance, to replace the existing one, corresponding to the new gas adjustment. This label is contained in
the spare nozzle bag.
Table 1
Burner Types of gas Pressure Nozzle diameter Rater capacity
mbar 1/100 mm. g/h l/h kW kcal/h
Auxiliary Natural G20 20 72 - 95 1 860
Butane G30 30 50 73 - 1 860
Propane G31 37 50 71 - 1 860
Semi-rapid Natural G20 20 97 - 167 1,75 1505
Butane G30 30 65 127 - 1,75 1505
Propane G31 37 65 125 - 1,75 1505
Rapid Natural G20 20 115 - 286 3 2580
Butane G30 30 85 218 - 3 2580
Propane G31 37 85 214 - 3 2580
Ultra rapid Natural G20 20 153 - 405 4,25 3655
4 kW Butane G30 30 102 309 - 4,25 3655
Propane G31 37 102 303 - 4,25 3655
Natural G20 20 ext. 155
int. 70
-
-
476
5
-
4300
Ultra rapid
Dual 5 kW
Butane G30
30 ext. 96
int. 46
334 -
-
4,60 3956
Propane G31
37 ext. 96
int. 46
328 -
-
4,60 3956
Table 2 (model with gas oven and gas grill with double controls)
Oven Natural G20 20 155 - 429 4,50 3870
Butane G30 30 105 327 - 4,50 3870
Propane G31 37 105 321 - 4,50 3870
Grill Natural G20 20 108 - 191 2 1720
Butane G30 30 72 145 - 2 1720
Propane G31 37 72 143 - 2 1720
Table 3 (model with gas oven and gas grill with single control,)
Oven Natural G20 20 155 - 429 4,50 3870
Butane G30 30 105 327 - 4,50 3870
Propane G31 37 105 321 - 4,50 3870
Grill Natural G20 20 108 - 191 2 1720
Butane G30 30 72 145 - 2 1720
Propane G31 37 72 143 - 2 1720
BURNER ADJUSTMENT
1) Burner "MINIMUM" adjustment:
Work surface burner adjustment: follow the instructions below to adjust the work surface burner minimum:
1) Light the burner and set the knob to the MINIMUM position (small flame).
2) Remove the knob of the valve that is press fit on the rod of that valve.
3) If the cooker is not equipped with safety valves on the surface burners, insert a small slotted screwdriver into the hole on the
valve rod (Fig. 8) and turn the choke screw to the right or left until the burner flame is adjusted to minimum. If the cooker is
equipped with safety valves, the choke valve is not located in the rod hole, but on the valve body (see fig. 9).
4)For the gas valve of dual burner the choke valve is located on the valve body (fig.10), the A screw adjust the outer ring,
the B screw adjust the inner ring.
5) Make sure that the flame does not go out when switching quickly from the MAXIMUM to the MINIMUM position.
Oven burner adjustment: follow the instructions below to adjust the minimum:
1) Light the burner setting the knob to the MAXIMUM position.
2) Close the oven door and operate the oven for at least 10 minutes.
3) Set the knob to the MINIMUM position (corresponding to 120°) and then remove it.
4) With a slotted screwdriver turn the choking screw (see figure 11) and, while observing the flame at the same time through the
cooker porthole, evaluate the consistency of the flame so it remains on when switching quickly from the MINIMUM to the
MAXIMUM position.
Grill burner adjustment: follow the instructions below to adjust the minimum:
1) Light the burner setting the knob to the MAXIMUM position.
2) Close the oven door and operate the oven for at least 10 minutes.
3) Set the knob to the MINIMUM position (small flame) and then remove it.
4) If the cooker is not equipped with safety valves on the surface burners, insert a small slotted screwdriver into the hole on the
valve rod (Fig. 8) and turn the choke screw to the right or left, while observing the flame at the same time through the cooker
porthole, evaluate the consistency of the flame so it remains on when switching quickly from the MINIMUM to the MAXIMUM
position. If the cooker is equipped with safety valves, the choke valve is not located in the rod hole, but on the valve body (see
figure 9).
WARNING: The above-mentioned adjustment should be made only with natural gas burners, while for those operating
with liquid gas the screw must be locked at the end in a clockwise direction.
WARNING: For the model with single grill burner, the grill burner always operates at maximum and therefore no
minimum adjustment is required.
