INSTRUCTION MANUAL
NOTICE D’UTILISATION
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUAL DE INSTRUÇÕES
MANUALE D'USO
INSTRUCTIEHANDLEIDING
BRUKERHÅNDBOK
KÄYTTÖOPAS
BRUKSANVISNING
BRUGERVEJLEDNING
INSTRUKCJA
ECVEIQIDIO ODGCIXM VQGRGR
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
HASZNÁLATI UTASÍTÁS
NÁVOD K OBSLUZE
MODEL# BASF1516
pure indoor living
SPR-100710
2-in-1 DUAL DESK/STAND
FAN
PLEASE READ AND SAVE THESE
INSTRUCTIONS

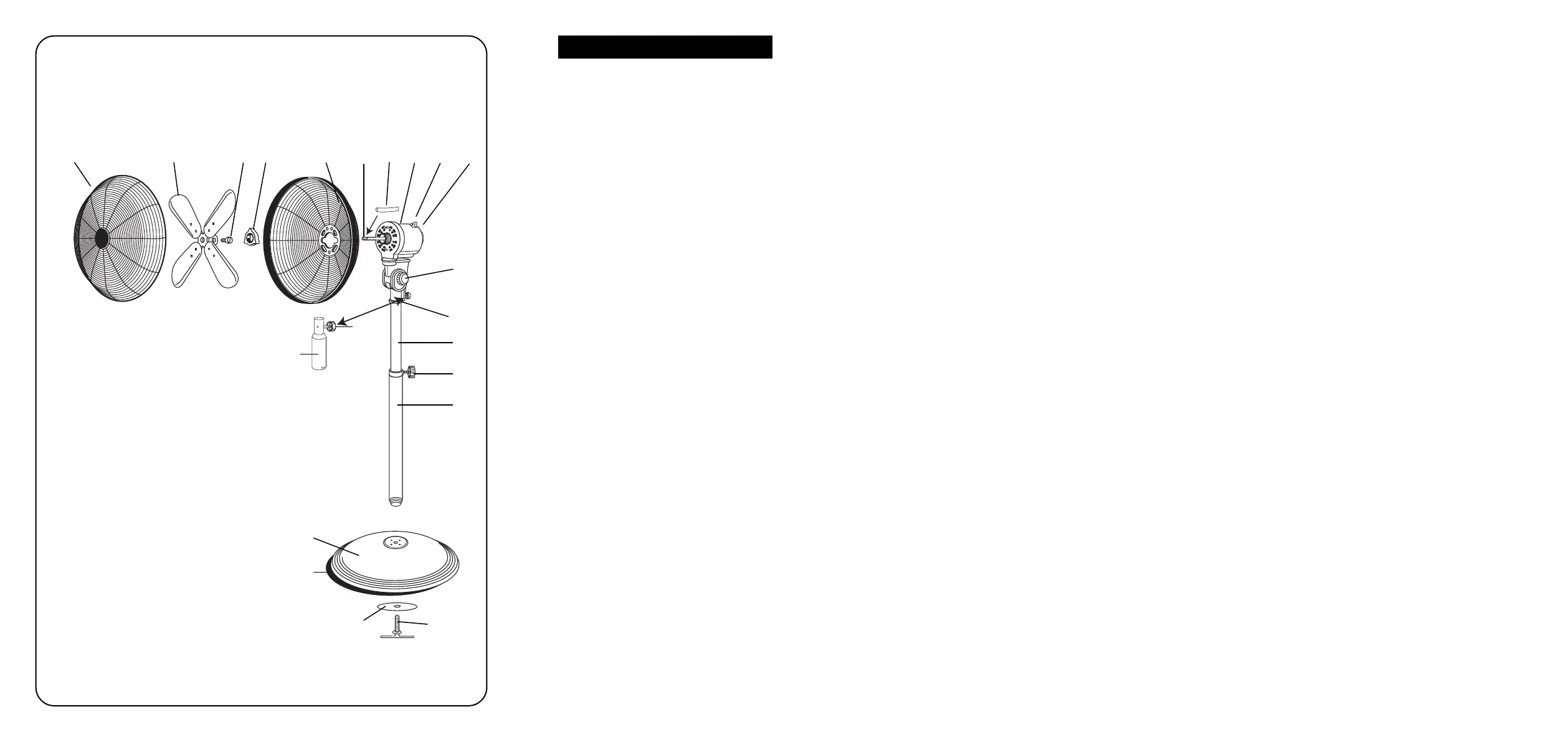

GENERAL DESCRIPTION (SEE FIG. 1)
A Front Grill
B. Fan Blade
C. Securing Screw
D. Grill Mounting Nut
E. Rear Grill
F. Motor Shaft
G. Plastic Sleeve
H. Motor Housing
I. Selector (Speed) Control
J. Oscillation Control
K. Tilt Head Adjustment Knob
L. Fan Head Locking Knob
M. Fan Head's Neck
N. Inner Pole Extension
O. Pole Locking Knob
P. Outer Pole
Q. Additional Short Pole
R. Base Cover
S. Weight
T. Washer
U. T-Shaped Locking Lever
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic safety
precautions should always be taken including the
following:
• Use the fan only for purposes described in the
instruction manual.
• To protect against electrical shock, do not
immerse the fan, plug or cord in water or spray
with liquids.
• Close supervision is necessary when any
appliance is used by or near children.
• Unplug from the electrical outlet when not in
use, when moving the fan from one location to
another, before putting on or taking off parts
and before cleaning.
• Avoid contact with any moving parts.
• Do not operate in the presence of explosive
and/or flammable fumes.
• Do not operate fan until fully assembled with all
parts properly in place.
• To avoid fire hazard, NEVER place the cord
under rugs or any parts near an open flame,
cooking or other heating appliance.
• Ensure that the fan is switched off from the
supply mains before removing the guard.
• Do not operate any appliance with a damaged
cord, plug, after the appliance malfunctions, or
has been dropped/damaged in any manner.
• The use of attachments not recommended or
sold by the appliance manufacturer may cause
hazards.
• Do not use outdoors.
• Do not let the cord hang over the edge of a
table or counter, or come into contact with hot
surfaces.
• To disconnect from the electrical supply, grip
the plug and pull from the wall outlet. DO NOT
pull on the cord.
• Always use on a dry, level surface.
• Do not operate without the fan grills properly in
place.
• This product is intended for household use
ONLY and not for commercial or industrial
applications.
• Should the fan stop working, first check the
fuse in the plug (UK only) or fuse/circuit
breaker at the distribution board is operating,
before contacting the manufacturer or service
agent.
• If the supply cord or plug is damaged, it must
be replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid hazard.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
MISSING A PART FOR YOUR FAN?
Please call 0800 052 3615 for assistance.
ASSEMBLY INSTRUCTIONS
Base/Pole assembly
You will need the base cover (R), weight (S),
outer pole (P), washer (T) and T-shaped locking
lever (U).
1. Turn the base cover upside down and place the
weight into the base cover.
2. Insert the threaded end of the T-shaped locking
lever into the hole of the washer, weight and
through the base cover.
3. Whilst holding the base cover and weight with
one hand vertically, connect the outer pole to
the base, sliding the T-shaped locking lever into
the bottom of the outer pole with your other
hand.
4. Turn the T-shaped locking lever clockwise to
securely attach the pole to the base.
5. Set the base on the floor, weight side down.
Fan head assembly
You are now ready to assemble the fan head.
ENGLISH 1. Unscrew grill mounting nut (D), turning counter-
clockwise, before positioning the rear grill (E)
over the motor shaft (F), making certain that the
vertical slots at the top and bottom of the rear
grill fit over the prongs on the motor housing
(H). Make sure that the carry handle is topmost
on the motor assembly.
2. Secure the rear grill (E) in its place using the
rear grill mounting nut (D). Turn this nut
clockwise and tighten firmly.
3. Slide the fan blade (B) onto the motor shaft
(F) through the rear protrusion, removing and
discarding plastic sleeve (G) if included.
Loosen securing screw (C) on side of
protrusion first. Then make sure securing
screw aligns with notch on motor shaft and
tighten. Avoid contact with sharpCAUTION:
end of blades.
4. Centre the front grill (A) by aligning the
Bionaire logo on the logo plate so that it is
horizontal and parallel with the floor. Then
place the bracket at the top over the front and
rear grills with the hole on the bracket going
through the center vertical bar. Affix the other
clips, making sure they go over both the front
and rear grills.
Final assembly
1. Slide the inner pole extension (N) up from the
outer pole (P), first loosening the pole locking
knob (O), to securely hold this position.
Tighten the pole locking knob (O).
2. Place the fan head assembly into this
extension pole, inserting the fan’s head neck
(M) into the pole opening.
3. Add the fan head locking knob (L) to the hole
in the fan head's neck (M), making sure holes
are aligned, and tighten.
NOTE: Fan head locking knob (L) may be in
additional short pole when shipped.
Converting to a table fan
An additional short pole (Q) is supplied which
allows the fan to be converted into a table fan.
To change to this short pole, remove the fan
head assembly from its position on top of the
inner pole extension (N) and unscrew the T-
shaped locking lever (U) at the base. Remove
the outer pole (P), replace with the short pole
(Q) and reassemble as detailed above.
OPERATING INSTRUCTIONS
1. Set the fan base on a dry level surface
2. Make sure the Selector (Speed) Control (H) is
in the OFF(0) position. Selector (Speed)
Control (H) is located on the top of the fan
motor housing.
3. Plug the cord into a suitable 220-240V. AC
outlet.
4. The SPEED is adjusted by turning the Selector
(Speed) Control (H) to the desired setting:
0-1-2-3.
5. The OSCILLATION control (I) is located
on the top of the fan motor housing. To start
oscillation, push the control knob down.
To stop oscillation, pull the control knob up.
ADJUSTMENT
Tilt adjustment
To adjust tilt, loosen the tilt head adjustment
knob (K) and tighten to desired angle.
Height adjustment
Follow these instructions to adjust the height of
the fan.
1. Turn the pole locking knob (O) counter-
clockwise to loosen the pole.
2. Adjust the pole to the desired height and firmly
tighten the locking knob in a clockwise
direction.
CLEANING AND MAINTENANCE
Follow these instructions to correctly and safely
care for your BionaireTM fan. Please remember:
• Always unplug the fan before cleaning or
assembly.
• Do not allow water to drip on or into the fan
motor housing.
• Be sure to use a soft cloth, moistened with a
mild soap solution.
• Do not use any of the following as a cleaner:
petrol, thinners or benzene.
Fan blade cleaning
(See instructions for fan head assembly)
1. To access the fan blade, remove the front grill
and securing screw.
2. Clean the fan blade, front and rear grills with
a soft moist cloth.
3. Replace the fan blade, tighten screw and
securely fasten the front grill.
Fan head, base and pole cleaning
Using a soft, moist cloth, with or without a mild
soap solution, carefully clean the fan base, pole
and head. Please use caution around the motor
housing area. Do not allow the motor or other
electrical components to be exposed to water.
FAN STORAGE
Your fan can be stored either partially
disassembled or assembled.
It is important to keep it in a safe, dry location.
• If stored disassembled, we recommend using
the original (or appropriately sized) box.
• If stored assembled or partially assembled,
remember to protect the fan head from dust.
GUARANTEE
Please keep your receipt as this will be required
for any claims under this guarantee.
This appliance is guaranteed for 3 years after
your purchase as described in this document.
During this guaranteed period, if in the unlikely
2 3
Fig.1
MODEL# BASF1516
A B C D E F H I J
K
M
N
O
P
L
R
S
TU
G
Q

Termékspecifikációk

Márka: Bionaire
Kategória: Ventilator
Modell: BASF1516

Szüksége van segítségre?

Ha segítségre van szüksége Bionaire BASF1516, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók Ventilator Bionaire

Bionaire

Bionaire BASF1415 Útmutató

18 Szeptember 2024
Bionaire

Bionaire BW2300 Útmutató

3 Szeptember 2024
Bionaire

Bionaire BT46R Útmutató

3 Szeptember 2024
Bionaire

Bionaire BT90R Útmutató

3 Szeptember 2024
Bionaire

Bionaire BAOF30G Útmutató

3 Szeptember 2024
Bionaire

Bionaire BAC14-I Útmutató

3 Szeptember 2024
Bionaire

Bionaire BASF1016G Útmutató

3 Szeptember 2024
Bionaire

Bionaire BMT50-I Útmutató

3 Szeptember 2024
Bionaire

Bionaire BT 14 Útmutató

3 Szeptember 2024
Bionaire

Bionaire BBLF01 Útmutató

21 Augusztus 2024

Útmutatók Ventilator

Legújabb útmutatók Ventilator

Broan

Broan Ultra Pro RB110L1 Útmutató

3 Április 2025
Broan

Broan QTXE110S Útmutató

2 Április 2025
Broan

Broan Ultra Pro RB110 Útmutató

2 Április 2025
Fantini Cosmi

Fantini Cosmi ASPIRKAPPA Útmutató

2 Április 2025
Broan

Broan L300KMG Útmutató

2 Április 2025
RYOBI

RYOBI RY40HF02 Útmutató

2 Április 2025
Vornado

Vornado Strata 8T Útmutató

1 Április 2025
Broan

Broan QTXE150 Útmutató

1 Április 2025
Honeywell

Honeywell QuietSet 5 HYF260 Útmutató

1 Április 2025
Honeywell

Honeywell Quietset Slim Mini HTF210 Útmutató

1 Április 2025
