Oldal 1/11

Twelve Hundred

User’s Manual

Manuel de l’utilisateur

Anwenderhandbuch

Manuale per l’operatore

Manual del usuario

পᡅ䂀ᯢ᳌

Ё᭛Փ⫼᠟ݞ

At Antec, we continually refine and improve our products to ensure the highest

quality. As such, your new case may differ slightly from the description in this

manual. This isn’t a problem; it’s simply an improvement. As of the date of publication,

all features, descriptions, and illustrations in this manual are correct.

Disclaimer

This manual is intended only as a guide for Antec’s Computer Enclosures. For more

comprehensive instructions on installing the motherboard and peripherals, please

refer to the user’s manuals that come with those components.

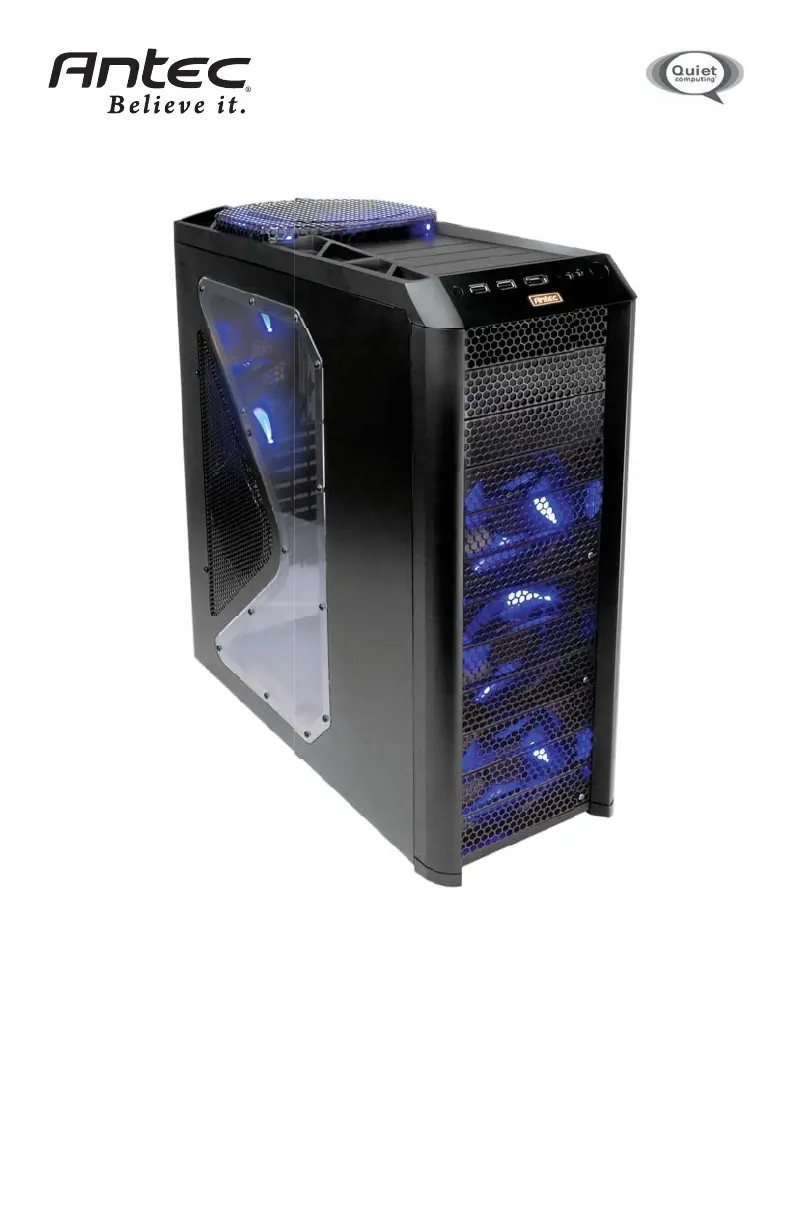

Twelve Hundred User’s Manual

Twelve Hundred – Gaming Case

The Twelve Hundred comes without a power supply. Make sure you choose a

power supply that is compatible with your computer components and has a long

enough power harness to reach your motherboard and peripheral devices. We

recommend our TruePower Quattro, TruePower Trio, or NeoPower power supplies for

the latest ATX specification compliance, broad compatibility, and power savings

capability.

Although care has been taken to prevent sharp edges in your Antec case, we

strongly recommend taking the appropriate time and care when working with it.

Avoid hurried or careless motions. Please use reasonable precaution.

Note: The Twelve Hundred comes with a top storage area. Antec does not recommend

that users put any liquid-containing items (drinks, ice cream, candles, perfume

dispensers, etc.) in this area. It was designed to hold your personal media player, digi-

tal camera, keys, coins, etc.

Setting Up

1. Place the case upright on a flat, stable surface so that the rear panel (power

supply and expansion slots) is facing you.

2. Remove the panel thumbscrews from a side panel and open it by sliding it

towards yourself.

Note: Place the panel thumbscrews carefully aside as they are NOT interchangeable

with the HDD cage thumbscrews.

3. Remove the panel thumbscrews from the other side panel and open it by

sliding it towards you. Place the screws carefully aside. Inside the case is the

power supply mount at the lower rear of the case and the 5.25” drive bay

area with three withHDD cages inside the bays. You will also find some wiring

marked connectors (USB, PWR etc.), an installed I/O panel and a toolbox

containing more hardware (screws, brass standoffs, etc.)

Note: Don’t use your fingernail to pry or lift the panels.

Installing the Motherboard

This manual is not designed to cover CPU, RAM, or expansion card installation.

Please consult the motherboard manual for specific mounting instructions and

troubleshooting. Before proceeding, check the manual for your CPU cooler to find

out if there are steps you must do before installing the motherboard.

1. Lay the case down so that the open side is up.

2. Make sure you have the appropri-

ate I/O panel for the motherboard.

If the panel provided is not suit-

able for the motherboard, please

contact the motherboard manu-

facturer for the correct I/O panel.

3. Line up the motherboard with the standoff

holes. Determine which holes line up and re-

member where they are. Not all motherboards

will match with all of the provided screw

holes, and this is not necessary for proper

functionality. Some standoffs may be pre-in-

stalled for your convenience.

4. Lift up and remove the motherboard.

5. Screw in the brass standoffs to the threaded

holes that line up with the motherboard.

6. Place the motherboard on the brass standoffs.

Screw in the motherboard to the standoffs

with the provided Phillips-head screws.

7. The motherboard is now installed.

8. If you are installing a water cooling system,

then you may need to run some of the tubing

outside the case through the hose ports with

rubber grommets on the back of the case.

Also, make sure to read about the pump/

reservoir platform feature described near the

end of the manual.
