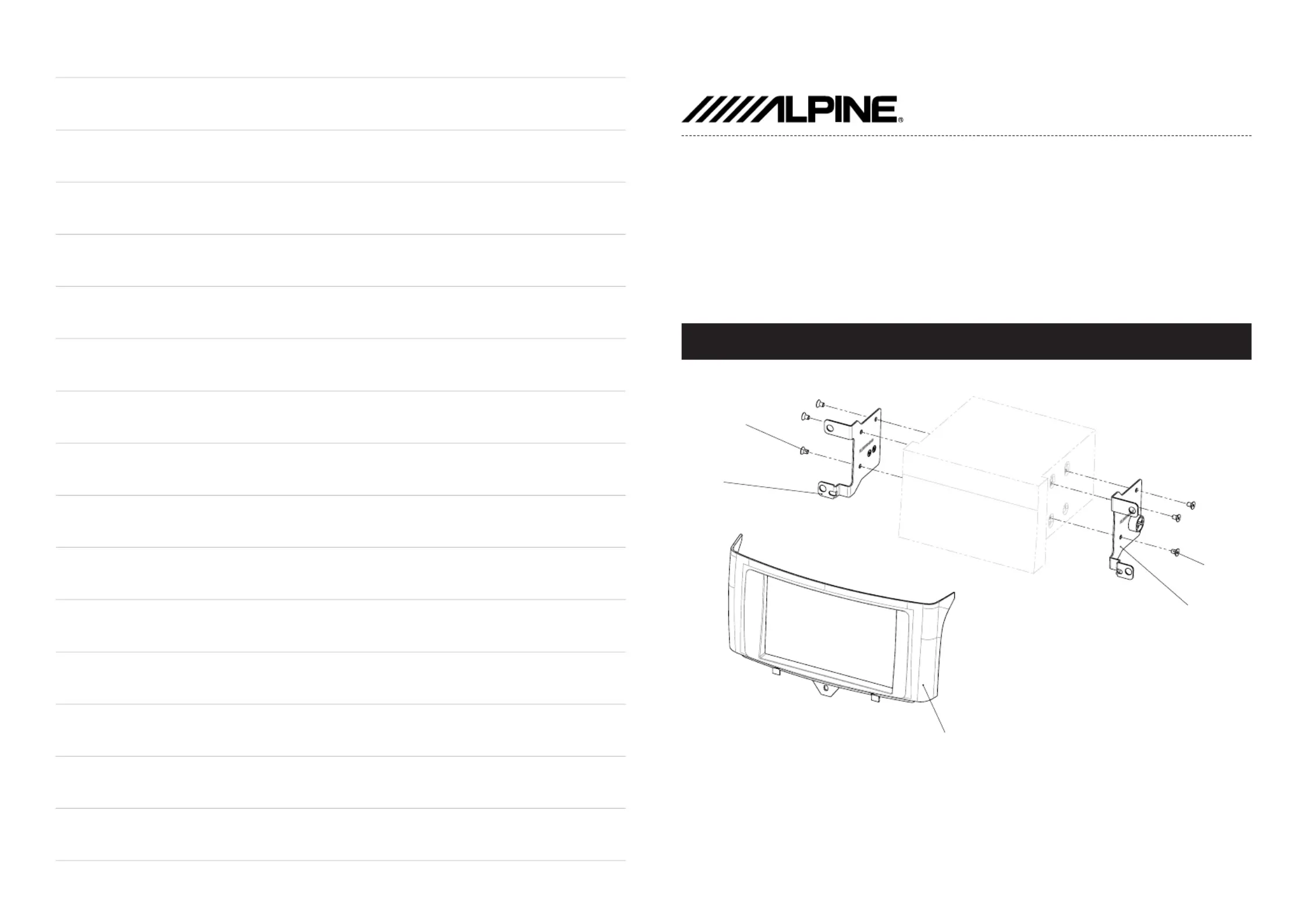

Double DIN Set contents
• (1) facia plate
• (2) mounting bracket right
• (3) mounting bracket left
• (4) hexagon socket countersunk
at head screw
Installation Manual
INE-W928R Kit
• Smart fortwo colour / part-no.:
black / KIT-8SMT
Compatible with these Alpine navigation devices
INE-W928R
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Smart Fortwo with
radio preparation (pocket)
or OEM head unit

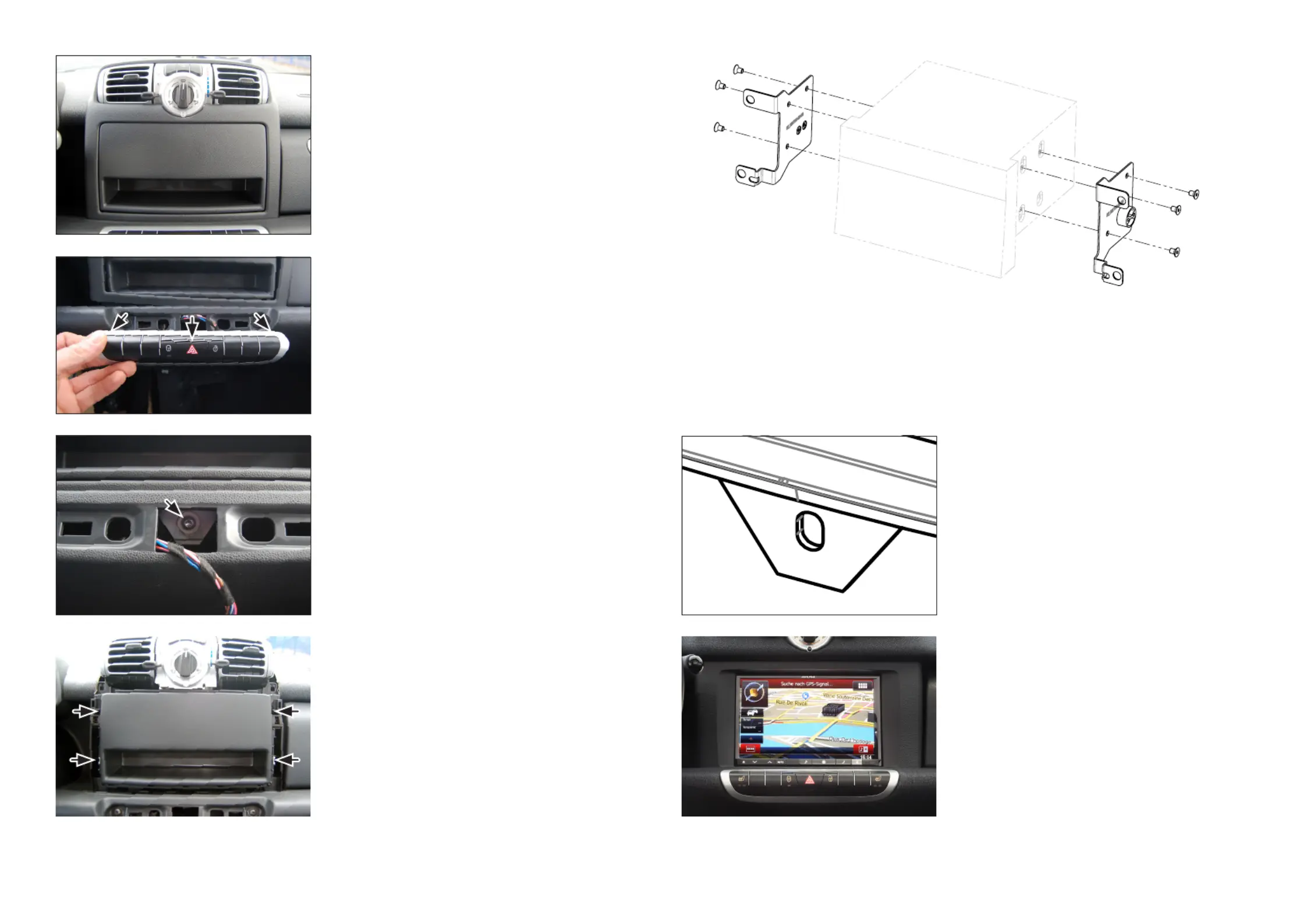

2. Remove the switch unit
(xed by clamps)
by pulling it towards you
3. Remove the TORX TX25 screw
holding the surrounding frame
(see arrow)
4. Remove surrounding frame
(xed by clamps) - by pulling it
towards you
Remove the 4 screws (see arrows)
pull out the pocket / OEM head unit
© 01/2014 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
6. Fix INE-W928R with OEM Screws
Place facia plate and x it with OEM
TORX TX25 screw (see step 3)
7. Reinstall everything in reverse
order to nish installation
5. Mount mounting brackets
left and right to INE-W928R
Connect all required circuit
points and place the Double
DIN head unit on dash board
